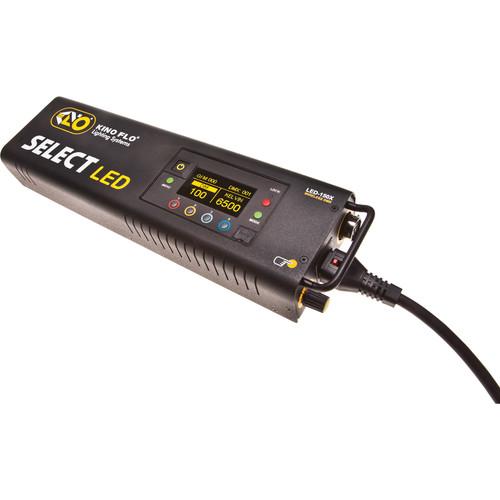

User Manual for Kino Flo FreeStyle 151X-230U LED DMX Controller Click to enlarge the picture
Contents of the user manual for the Kino Flo FreeStyle 151X-230U LED DMX
- Product category: Lighting Consoles & Controllers Kino Flo
- Brand: Kino Flo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kino Flo Lighting Consoles & Controllers
|
User manual for the Kino Flo FreeStyle 151X-230U LED DMX contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kino Flo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kino Flo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kino Flo product will considerably shorten its lifespan!
|
Product description What You Need to Know When Working with DMX Read More btbbeuuccxszeesttfduaaedzttztv The FreeStyle 151X-230U LED DMX Controller from Kino Flo is the "brain" of the FreeStyle line of panels and is required for their use. The Controller uses three menus with features that can be controlled on the light via traditional wired DMX or by Lumen Radio wireless DMX with the separate purchase of a Lumen Radio transmitter. The White menu allows control of 0-100% dimming, color control from 2700-6500K, and Green/Magenta control. There are two Color menus. The first offers an extended color range from 2500-9900K and includes a channel called "Gel" that offers multiple presets for light conditions such as mercury-vapor and 100 often-used gel filters. There are also channels for Hue and Saturation that work together by selecting a specific color and determining its intensity. The second color menu provides RGB (Red, Green, Blue) control to permit a user-selected combination to obtain any color in the visible spectrum. The Controller also has an FX mode with effects such as candle, fire, TV, police, lightning, paparazzi, pulse, and scroll. The FreeStyle LED panels can be disconnected from their barndoor shells or ordered without them with the designation FreeStyle/FX. In either case, there is an optional Gaffer Tray for them that not only gives the fixture a thin profile, but allows the Controller to be mounted to it. The FreeStyle 151X-230U LED DMX Controller is ready for worldwide use thanks to its universal 100 to 240 VAC input. The 24 VDC Controller can also run on batteries when AC power is unavailable. In the Box Kino Flo FreeStyle 151X-230U LED DMX Controller Limited 1-Year warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kino Flo FreeStyle 151X-230U LED DMX Controller in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKino Flo LED-151X-230U Specs | Color Range | Standard Range: 2700 to 6500K
Extended Range: 2500 to 9900K
White Mode and Color Mode:
Green/Magenta control
Hue Angle and Saturation
RGB control
Kelvin presets
Gel selection
FX (Effects) Mode: Candle, fire, TV, police, lightning, paparazzi, pulse scroll, and more | | Dimming | 100 to 0% | | Control | Wired DMX
Wireless Lumen Radio DMX (requires optional transmitter)
6 DMX channels | | CRI | 95 or 96 Depending on LED panel used | | Operating Voltage | 100 to 240 VAC, 50/60 Hz
24 VDC, 6.25 A |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 98 owners. Add your rating and experience with the product.
