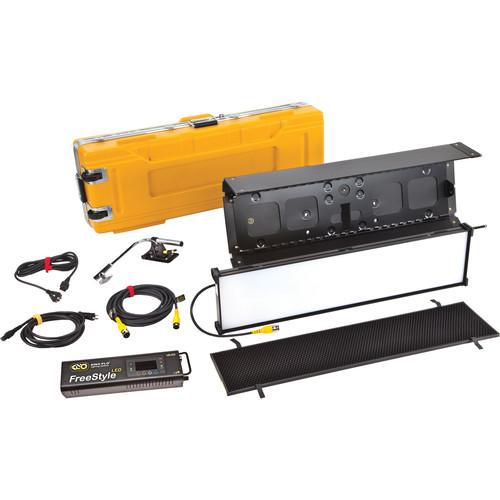

User Manual for Kino Flo FreeStyle 31 LED DMX Kit with Flight Case

• Product category: LED Lights Kino Flo
• Brand: Kino Flo
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Kino Flo LED Lights

Product description

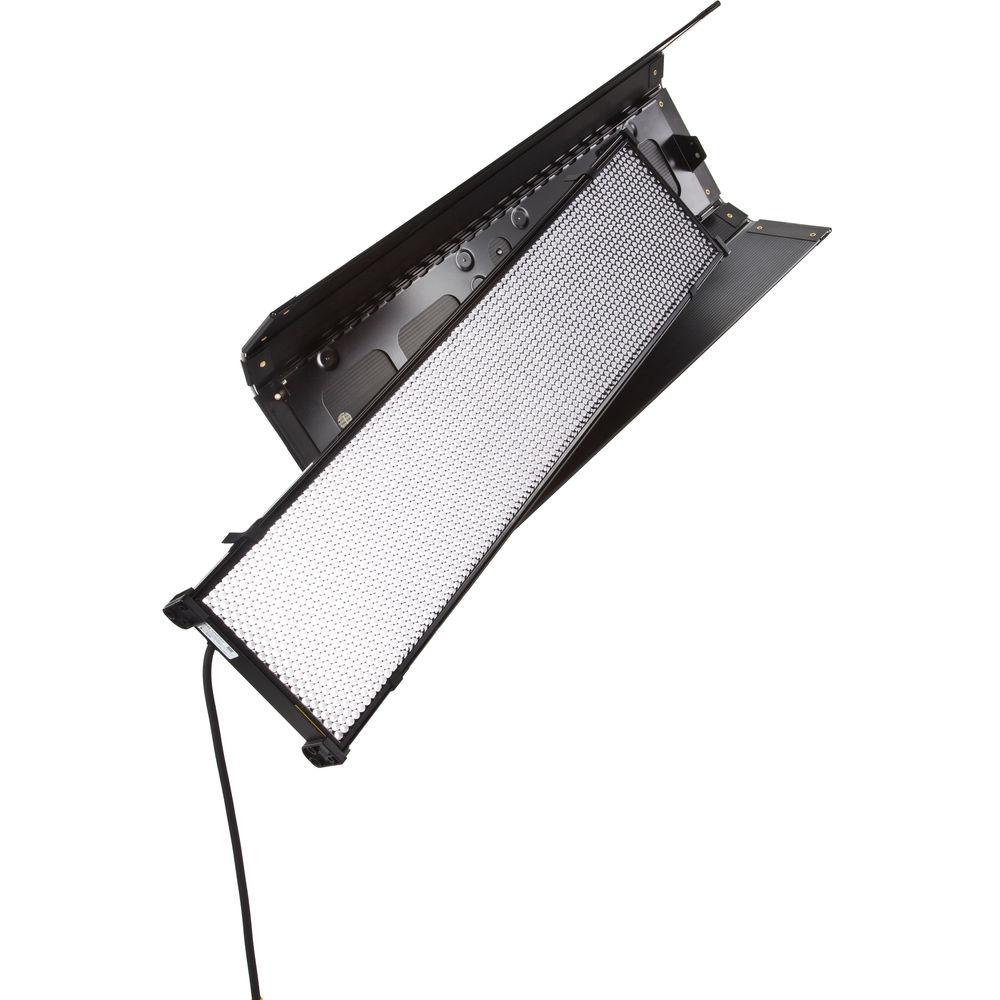

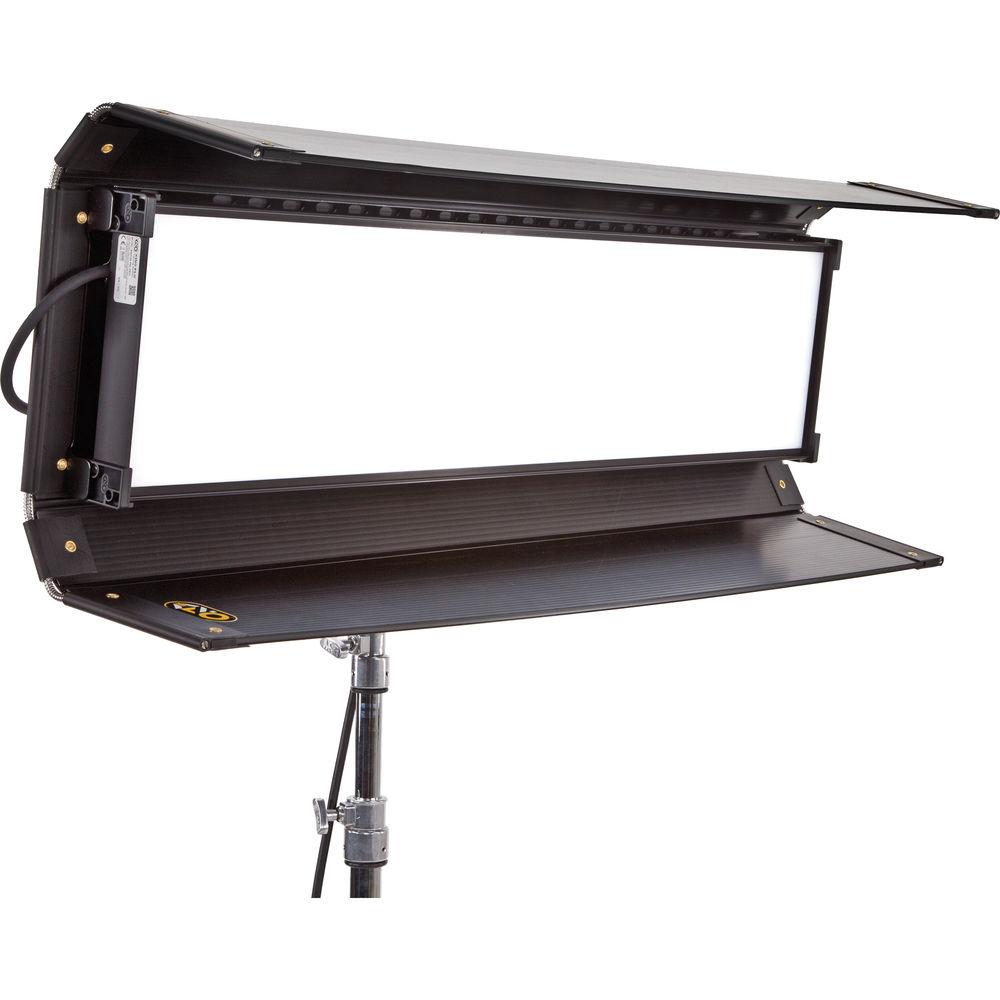

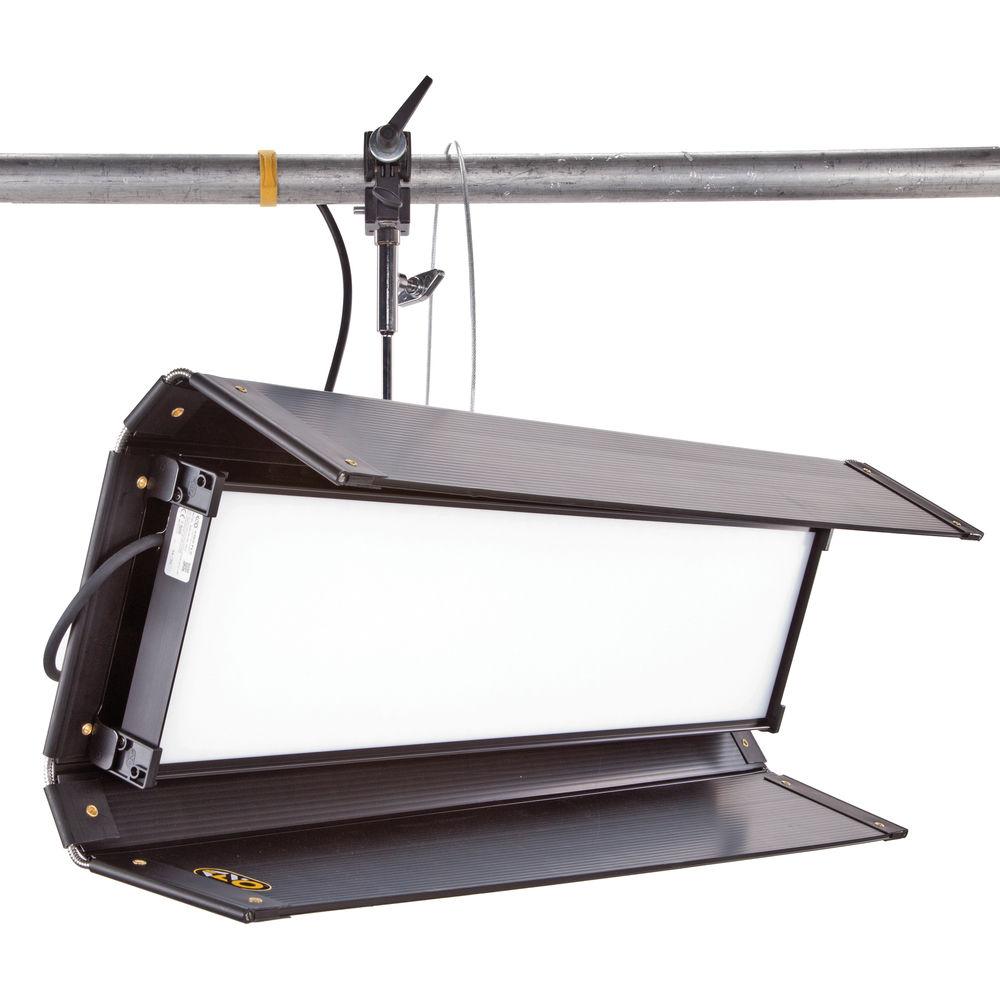

• FreeStyle 31 LED Fixture The FreeStyle 31 LED Fixture from Kino Flo is an LED lamp head that is part of a system or kit that includes the required Select 150 LED DMX Controller. The fixture measures 40.5 x 10.5 x 3.5" w/ 6.5" Barndoors and weighs 15 lb - light enough to hand hold. The fixture comes with a 90-degree removable louver (grid). In fact, the LED panel can also be removed from its housing for mounting options. The fixture runs on 100 to 240 VAC current through its optional controller.The FreeStyle 31 requires a head cable and controller (which are available separately) for use. The controller offers an extensive 6-channel array of control features and use options. It has 2 menus for color and a "White Menu" for Dimming, Kelvin Temperature and Green/Magenta adjustments. Using one of the color menus expands the Kelvin range from a warm 2500 to an ice-blue 9900K. The second color menu allows you to work with RGB, a real convenience when employing color wheels or RGB presets. The fourth channel (named the Gel channel) has presets for over 100 well-known temperature-modifying gels including blue/green screen, sodium vapor and mercury vapor.A fifth channel allows for Hue adjustments along a 360-degree range like a color wheel, while the 6th Saturation channel controls the intensity of the chosen color. The required controller has onboard DMX for making adjustments remotely from a console and also is compatible with Lumen Radio wireless DMX. The controller runs on 100 to 240 VAC current for worldwide use.
  Benefits Using Separately Purchased LED Controller
  • Kelvin presets
  • Dial-in color temperature control between 2700-6500K
  • Extended color palette from 2500-9900K
  • Green/Magenta Control
  • Hue angle and Saturation adjustments
  • RGB control
  • Works with Apps with predetermined RGB presets or color wheels
  • Can use preset buttons to store custom Kelvin settings
  • Light levels do not change when selecting Kelvin settings
  • No color shift while dimming
  • Color-correct with high color rendering index (CRI 96)
  • Universal input 100-240 VAC or 24 VDC
  • Energy efficient, low electrical draw
  • Flicker-free, dead quiet operation
  • Full range onboard and DMX dimming
  • DMX wireless link (Lumen Radio)
  • DMX Auto Terminate
  • Remote fixture with built-in barndoors

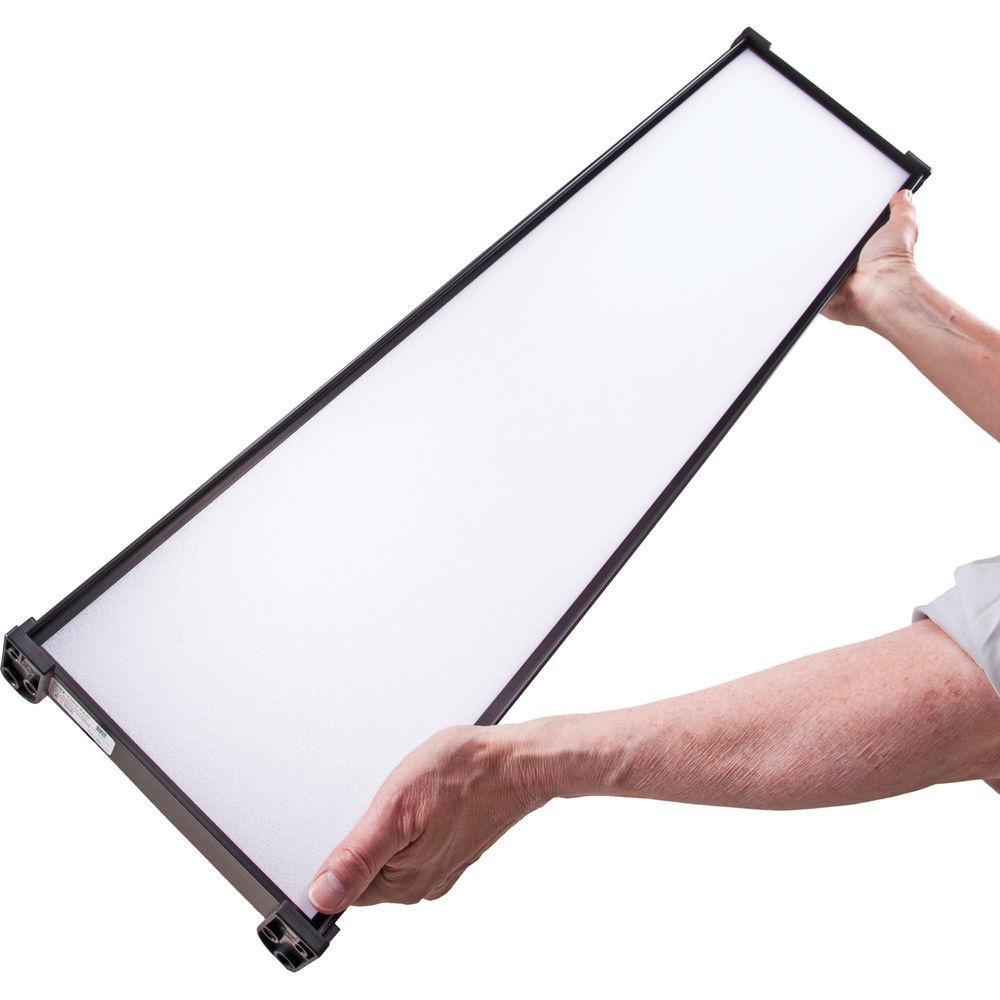

  • Removable LED panel

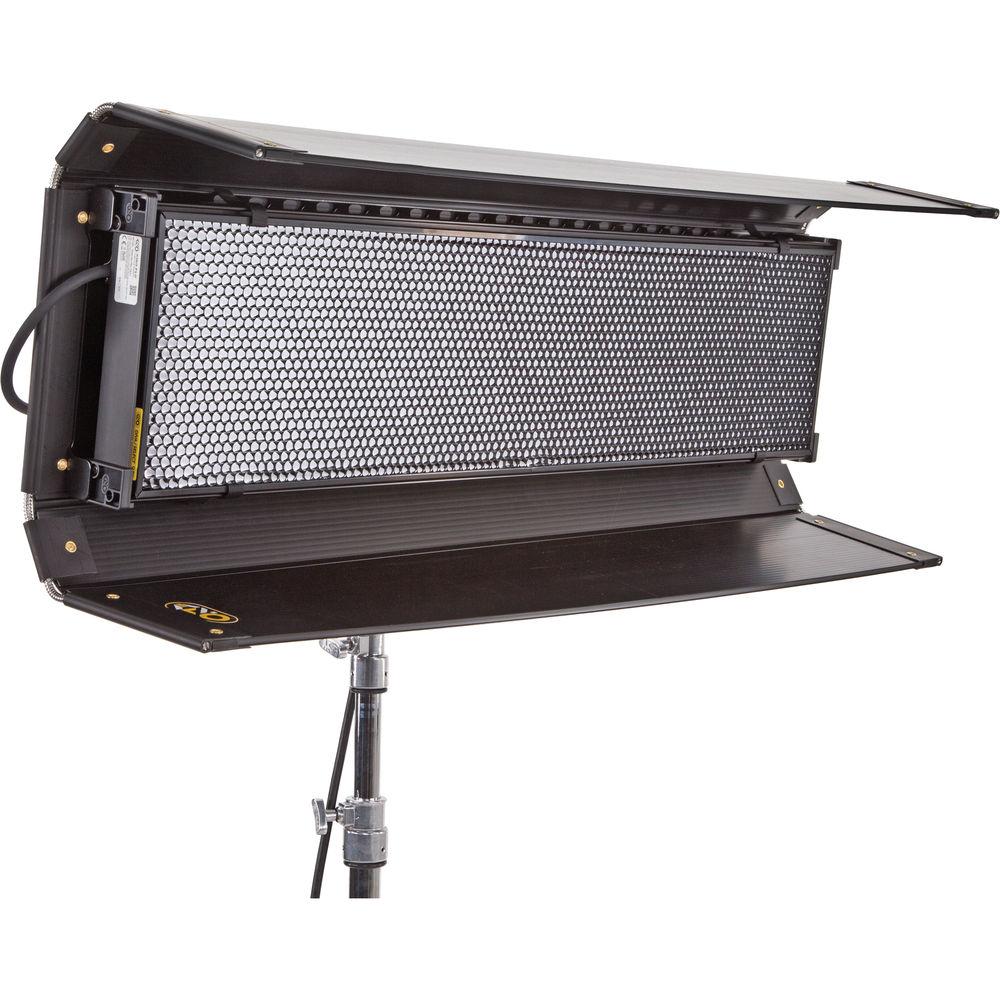

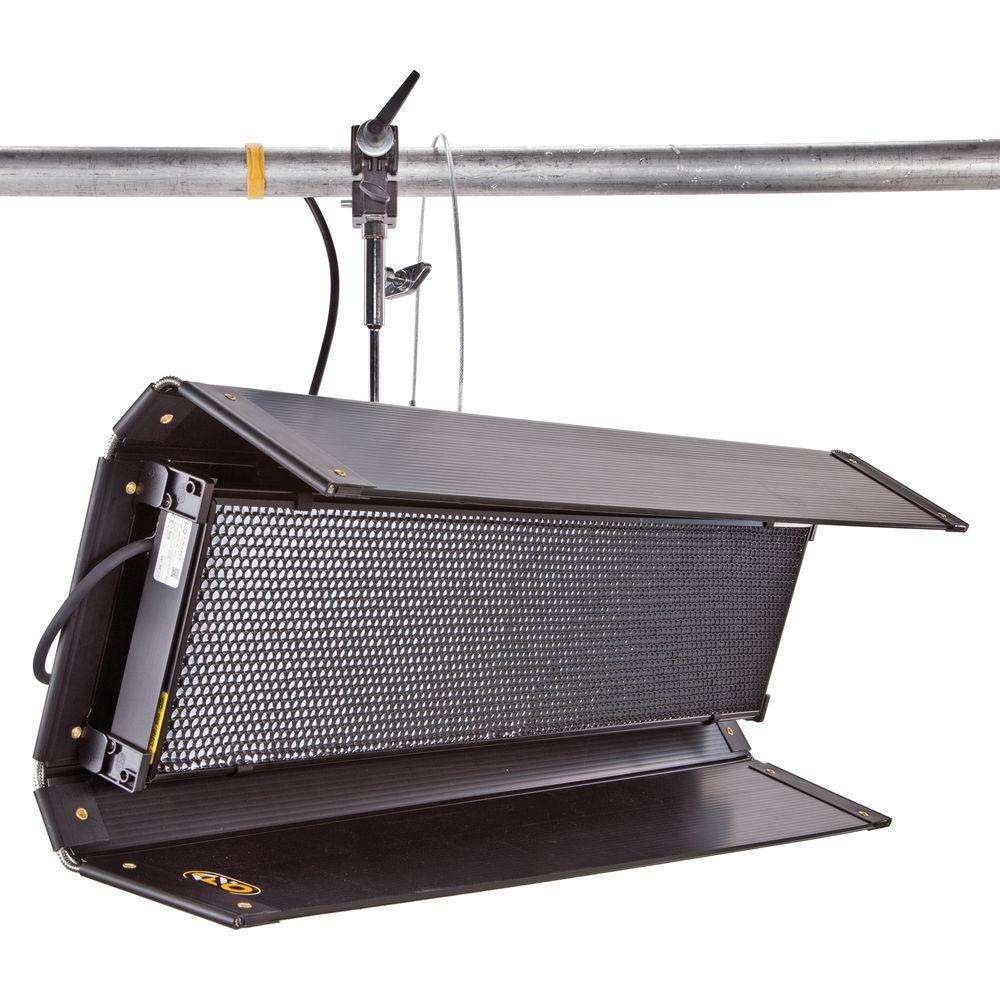

  • Fixture includes removable 90° Honeycomb Louver
  • Honeycomb louver also available in 60° as accessory
  • Lightweight, slim profile
  • Light enough to be handheld

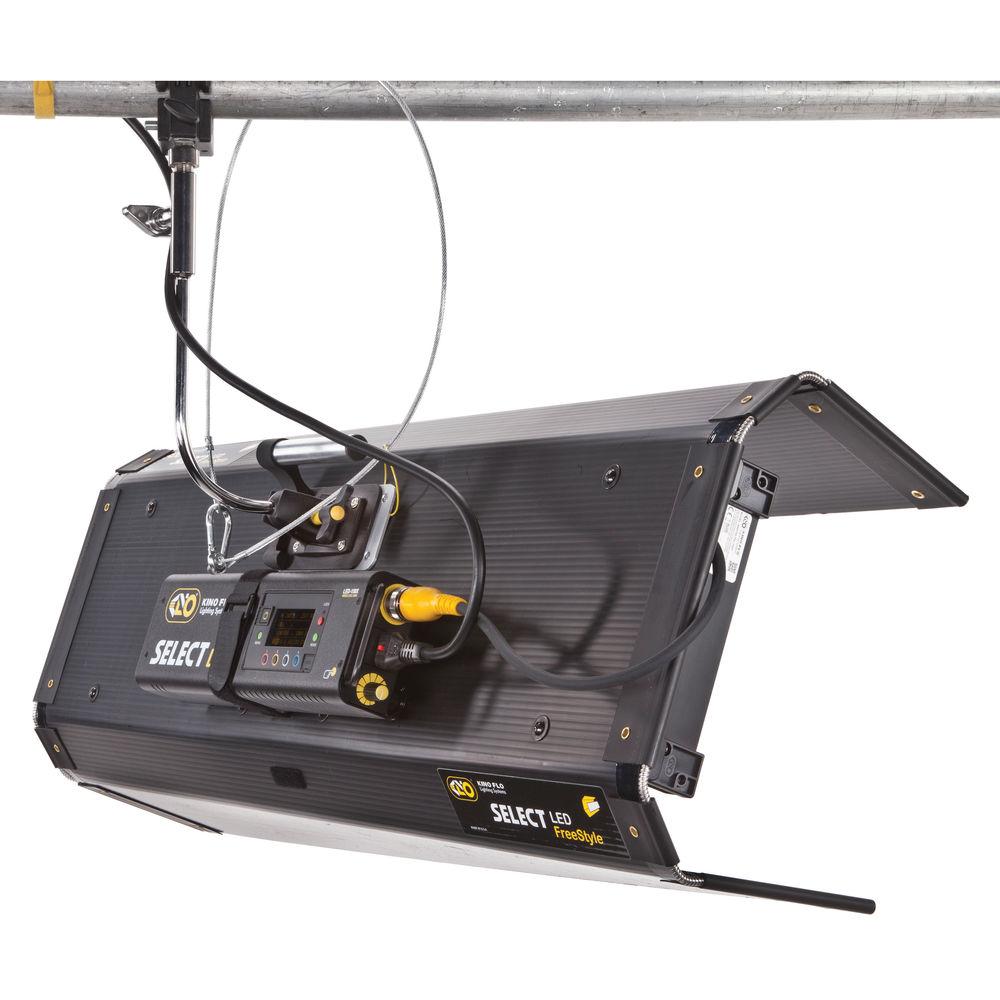

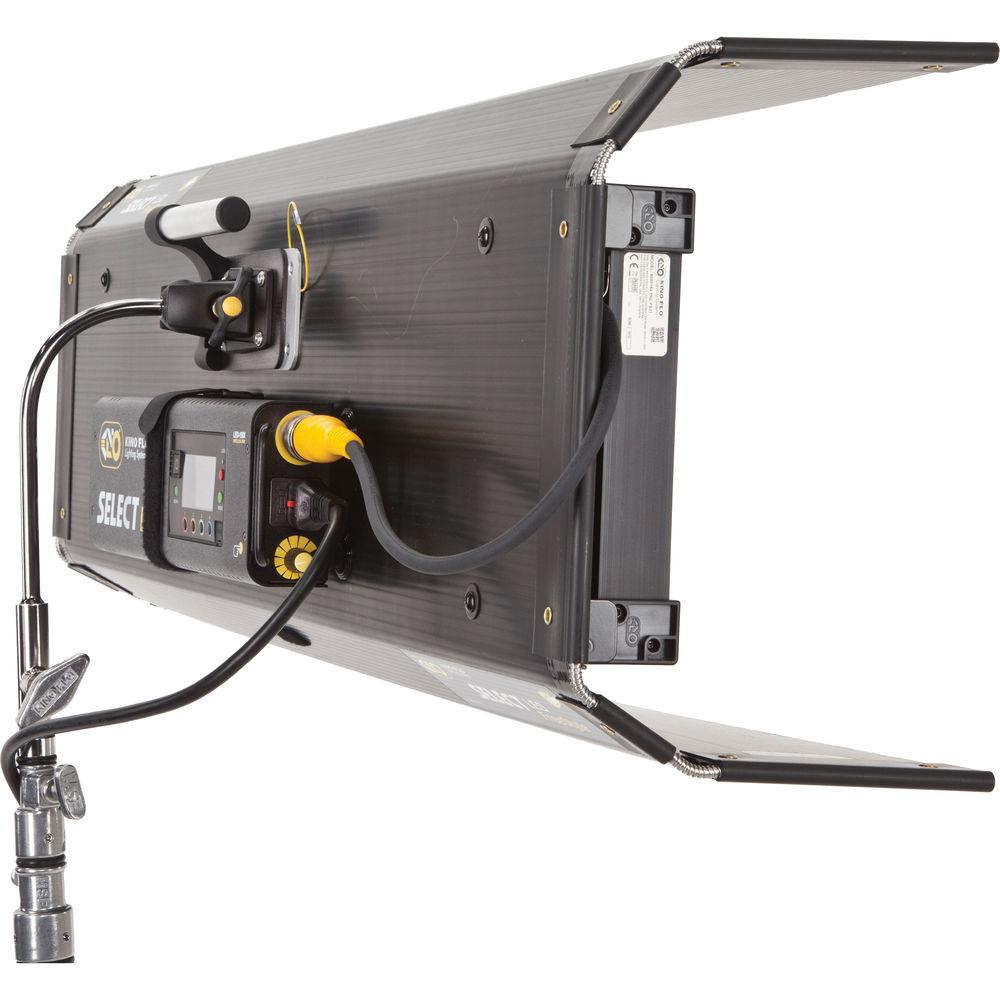

  • Separately purchased Controller mounts onto fixture or operates remotely with extension cable

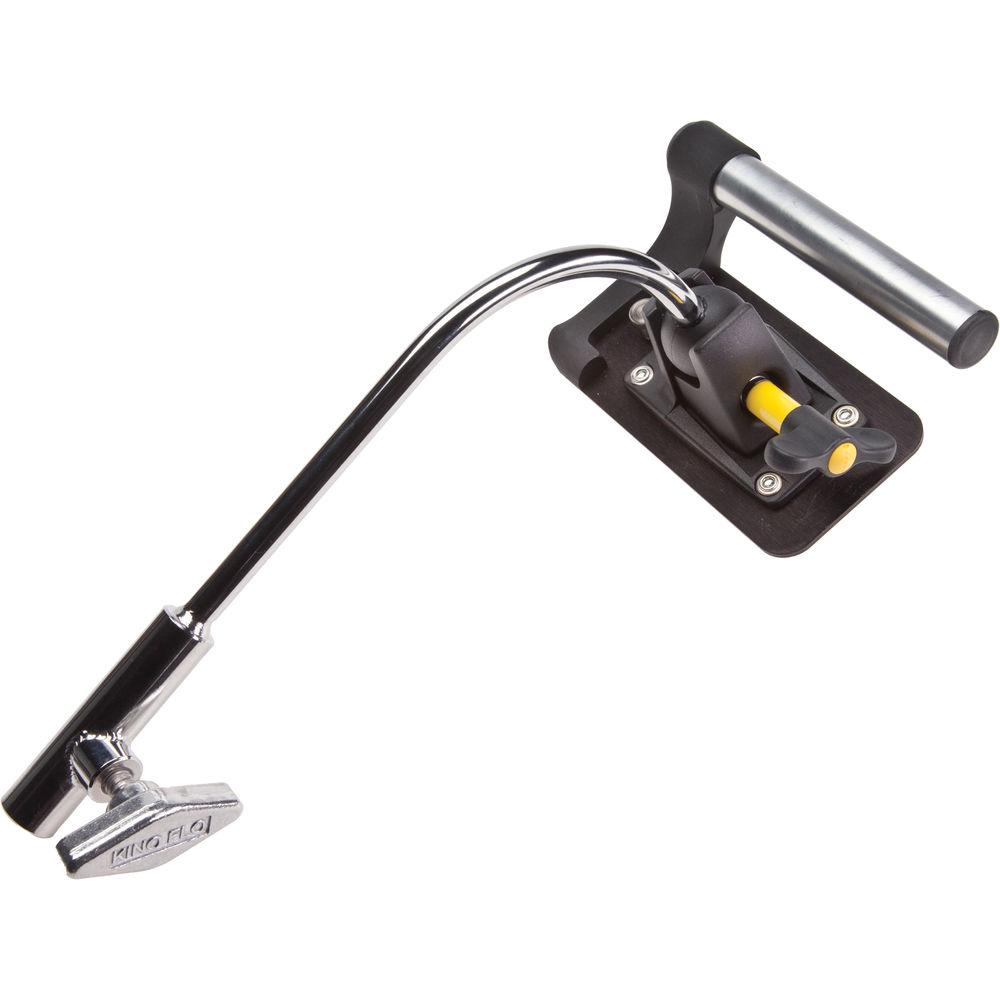

• KinoGrip K41 Twist-On Mount with 5/8" Baby Receiver Make your fixture easier to transport and handle with this KinoGrip K41 Twist-On Mount with 5/8" Baby Receiver from Kino Flo. Able to work with fixtures featuring Twist-On mating plates, this mount will add a grip handle for easier maneuvering of the light, as well as a wing knob for making quick adjustments and locking the light in position.
• Extension Cable 150 for Select LED System (25') The 25' Extension Cable 150 for Select LED System from Kino Flo provides extra distance between the Select LED head and its ballast. Up to 2 extensions can be joined for a total of 50'.
• Flight Case for Diva 30 Fixture and Accessories (Yellow) Store, protect, and transport your Diva 30 lighting fixture, controller, 25' extension cord, mount, stand, and more with the yellow Flight Case for Diva 30 Fixture and Accessories from Kino Flo. The case has a hard shell for impact protection and features latch closure for easy access to gear. Carry the case with the handles, or roll on the two built-in wheels.

• 90-Degree Louver (Grid)

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Limited 90-Day Warranty

Also Includes

• LED 151X DMX Controller
• US/North America Power Cord
• Euro-Type Power Cord

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• FreeStyle 31 LED Fixture

  Color Range	With Required Controller: Standard Range: 2700 to 6500K Extended Range: 2500 to 9900K
  CRI	96
  Operating Voltage	100 to 240 VAC, 50/60 Hz (with optional controller)
  Dimming	100 to 0% (with optional controller)
  Photometrics	Footcandles 510 fc at 2.0' / 0.6 m 161 fc at 4.0' / 1.2 m) 75 fc at 6.0' / 1.8 m 43 fc at 8.0' / 2.4 m 28 fc at 10' / 3.0 m Lux 7270 lux at 1.6' / 0.5 m 2470 lux at 3.3' / 1.0 m 1190 lux at 4.9' / 1.5 m 683 lux at 6.5' / 2.0 m 445 lux at 8.2' / 2.5 m
  Mount	Optional 3/8" pin, Baby receiver, offset Baby receiver
  Dimensions	40.5 x 10.5 x 3.5" / 103 x 28 x 9.0 cm (with 6.5" / 16.5 cm barndoors)
  Weight	15 lb / 7.0 kg

  Box Dimensions (LxWxH)	47.0 x 18.0 x 11.0"

• KinoGrip K41 Twist-On Mount with 5/8" Baby Receiver

  Mount

  5/8" / 16 mm Baby Receiver

  Box Dimensions (LxWxH)	12.2 x 5.6 x 3.1"

• Extension Cable 150 for Select LED System (25')

  Box Dimensions (LxWxH)	11.6 x 9.58 x 1.18"

• Flight Case for Diva 30 Fixture and Accessories (Yellow)

  Closure Type	Latch
  Carry and Transport Options	Handle
  Exterior Dimensions (W x H x D)	46 x 11 x 16.5" / 117 x 28 x 42 cm
  Weight	26 lb / 12 kg

  Box Dimensions (LxWxH)	47.0 x 17.0 x 11.0"
