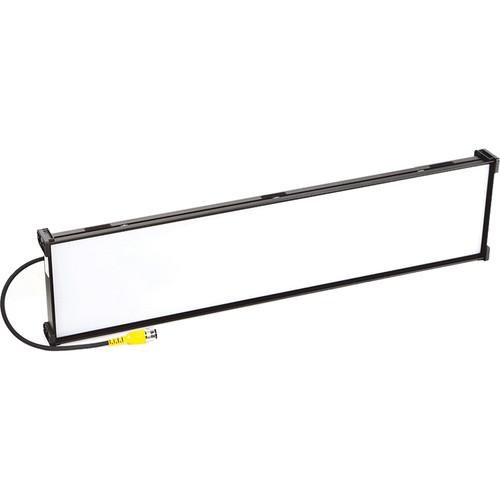

User Manual for Kino Flo FreeStyle 41 LED Panel Click to enlarge the picture
Contents of the user manual for the Kino Flo FreeStyle 41 LED Panel
- Product category: LED Lights Kino Flo
- Brand: Kino Flo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kino Flo LED Lights
|
User manual for the Kino Flo FreeStyle 41 LED Panel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kino Flo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kino Flo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kino Flo product will considerably shorten its lifespan!
|
Product description The 49.5 x 7.5 x 2.5" FreeStyle 41 LED Panel from Kino Flo is a light source capable of advanced color adjustments and wired or wireless control. This listing is for the panel only without the fixture shell. It requires the separate purchase of a mount and a FreeStyle DMX controller, and a 100-240 VAC power supply is available for worldwide use.The following description illustrates the capabilities of the panel when used with the optional controller for use:The FreeStyle 41 uses three menus with features that can be controlled on the light via traditional wired DMX or by Lumen Radio wireless DMX with the separate purchase of a Lumen transmitter. The White menu allows control of 0-100% dimming, color control from 2700-6500K, and Green/Magenta control. There are two Color menus. The first offers an extended color range from 2500-9900K and includes a channel called "Gel" that offers multiple presets for light conditions such as mercury-vapor and 100 often-used gel filters. There are also channels for Hue and Saturation that work together by selecting a specific color and determining the intensity of it. The second color menu provides RGB (Red, Green, Blue) control to permit a user-selected combination to obtain any color in the visible spectrum. - Benefits Using Separately Purchased LED Controller
-
- Kelvin presets
- Dial-in color temperature control between 2700-6500K
- Extended color palette from 2500-9900K
- Green/Magenta Control
- Hue and Saturation adjustments
- RGB control
- Works with Apps with predetermined RGB presets or color wheels
- Light levels do not change when selecting Kelvin settings
- No color shift while dimming
- Color-correct with high color rendering index (CRI 95)
- 100-240 VAC or 24 VDC
- Energy efficient, low electrical draw
- Flicker-free, dead quiet operation
- Lightweight, slim profile
- Mounts on stand, light enough to be handheld
- Separately purchased controller mounts onto fixture or operates remotely with extension cable
In the Box Kino Flo FreeStyle 41 LED Panel Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kino Flo FreeStyle 41 LED Panel in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKino Flo 41 LED DMX Specs | | | Color Temperature | 2500 to 9900K | | Color Accuracy Standard | CRI 95 | | Cooling System | Passive | | Dimming | Yes, 1 to 100% (Continuous) | | Photometrics | 161 fc / 1732.4 lux at 4' / 1.22 m
45 fc / 484.2 lux at 8' / 2.44 m
21 fc / 226 lux at 12' / 3.66 m | | Fixture Dimensions | 49.5 x 7.5 x 2.5" / 125.7 x 19.1 x 6.3 cm | | Fixture Weight | 9.6 lb / 4.35 kg | | | | Fixture Mount | None | | Accessory Mount | None | | | | Remote Control Type | DMX | | Number of DMX Channel Modes | 6 | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Source | AC Adapter, External Battery |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 24 owners. Add your rating and experience with the product.
