Product description The FreeStyle/GT 21 LED DMX System from Kino Flo contains everything you'll need to get up and running with this versatile fixture that offers complete color adjustment and extensive control features. The kit includes the FreeStyle/GT 21 fixture with a Gaffer Tray, LED Controller, and a 90-Degree Louver (grid) to narrow the fixture's beam for selective lighting. A KinoGrip mount with a 5/8" receiver and a 25' head cable are also included. - FreeStyle/GT 21 LED Fixture The 23.5 x 11.5 x 2.5" FreeStyle/GT 21 LED Panel from Kino Flo is a light source capable of advanced color adjustments and wired or wireless control. The panel comes with a Gaffer Tray instead of the standard shell with barndoors. It mounts onto the back of the removable panel and allows attachment of the KinoGrip center mount and the LED controller to it. The tray offers a slimmer profile without bending the barndoors (of the standard version) back. It can also be screwed to the wall for a completely flat mount. Use of this panel requires separate purchase of a mount, a FreeStyle DMX controller, and a head cable. A 90-degree Louver (grid) is included to narrow the light's wide beam spread. The following description illustrates the capabilities of the panel when used with the optional controller: The FreeStyle/GT 21 uses three menus with features that can be controlled on the light via traditional wired DMX or by Lumen Radio wireless DMX with the separate purchase of a Lumen transmitter. The White menu allows control of 0-100% dimming, color control from 2700-6500K, and Green/Magenta control. There are two Color menus. The first offers an extended color range from 2500-9900K and includes a channel called "Gel" that offers multiple presets for light conditions such as mercury-vapor and 100 often-used gel filters. There are also channels for Hue and Saturation that work together by selecting a specific color and determining the intensity of it. The second color menu provides RGB (Red, Green, Blue) control to permit a user-selected combination to obtain any color in the visible spectrum.
- LED Controller for Kino Flo Select 20 and 30 Fixtures The LED Controller for Kino Flo Select 20 and 30 Fixtures from Kino Flo is a detachable controller for the Select 20 or Select 30 LED heads. The controller can be mounted on the back of the lamp head or used remotely up to 25' away with an optional extension cable. It enables the fixture to produce a consistent light level across the variable 2700 to 6500K color temperature range in the White Menu and 2500 to 9900K in the Color Menu. The White Menu has Dimming, Kelvin and Green/Magenta adjustment channels. The Color Menu gives you access to Gel, Hue Angle and Saturation channels. The Gel channel includes presets such as blue and green screen, sodium vapor, mercury vapor and over 100 well-known lighting gels. Hue Angle and Saturation channels act like a traditional color wheel with a 360-degree color range and choice of color intensity. The detachable controller has a display screen for menu navigation and information display, as well as physical buttons for navigation and settings.
This hard-wired DMX controller is augmented by wireless DMX, which is provided by Lumen Radio. It can accept worldwide AC power and can also be powered by DC via a 3-pin XLR connector. - Benefits
-
- Tunable Kelvin 2500K to 9900K in Color Menu
- Tunable Kelvin 2700K to 6500K in White Menu
- Dimming without color shift
- Green/Magenta control
- Kino Flo presets and Gel presets
- Dial-in color using Hue angle and Saturation control
- Universal input 100-240 VAC and 18-36 VDC
- Manual and DMX dimming with Auto Terminate
- DMX wireless (Lumen Radio)
- Flicker-free, dead-quiet operation
- KinoGrip K41 Twist-On Mount with 5/8" Baby Receiver Make your fixture easier to transport and handle with this KinoGrip K41 Twist-On Mount with 5/8" Baby Receiver from Kino Flo. Able to work with fixtures featuring Twist-On mating plates, this mount will add a grip handle for easier maneuvering of the light, as well as a wing knob for making quick adjustments and locking the light in position.
- Extension Cable 150 for Select LED System (25') The 25' Extension Cable 150 for Select LED System from Kino Flo provides extra distance between the Select LED head and its ballast. Up to 2 extensions can be joined for a total of 50'.

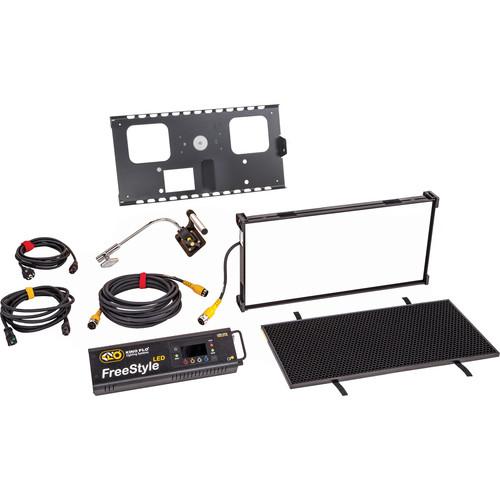

In the Box Bundle Items FreeStyle/GT 21 LED Fixture eqqwrbwddfexffdcsxdzxqbtraacwy - Gaffer Tray for FreeStyle 21 LED Panel
- Louver for Diva-Lite 20 (90°)
LED Controller for Kino Flo Select 20 and 30 Fixtures KinoGrip K41 Twist-On Mount with 5/8" Baby Receiver Extension Cable 150 for Select LED System (25') eqqwrbwddfexffdcsxdzxqbtraacwy Table of Contents
|
Upload User Manual
Have you got an user manual for the Kino Flo FreeStyle GT 21 LED DMX System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - FreeStyle/GT 21 LED Fixture
- LED Controller for Kino Flo Select 20 and 30 Fixtures
| Power | VAC: 100 to 240 V @ 50/60 Hz, 150 W
VDC: 18 to 36 V, 150 W
1.3 A @ 120 VAC, 7.0 A at 24 VDC | | Color Temperature | 2700 to 6500K in White Menu
2500 to 9900K in Color Menu | | Dimming | 100 - 1% | | Dimensions | 15 x 4.5 x 3.0" (38 x 11.5 x 8.0 cm) | | Weight | 4.5 lb (2.0 kg) | | | | Box Dimensions (LxWxH) | 17.0 x 6.9 x 3.95" | - KinoGrip K41 Twist-On Mount with 5/8" Baby Receiver
| Mount | 5/8" / 16 mm Baby Receiver | | | | Box Dimensions (LxWxH) | 12.2 x 5.6 x 3.1" | - Extension Cable 150 for Select LED System (25')
| | | Box Dimensions (LxWxH) | 11.6 x 9.58 x 1.18" |
