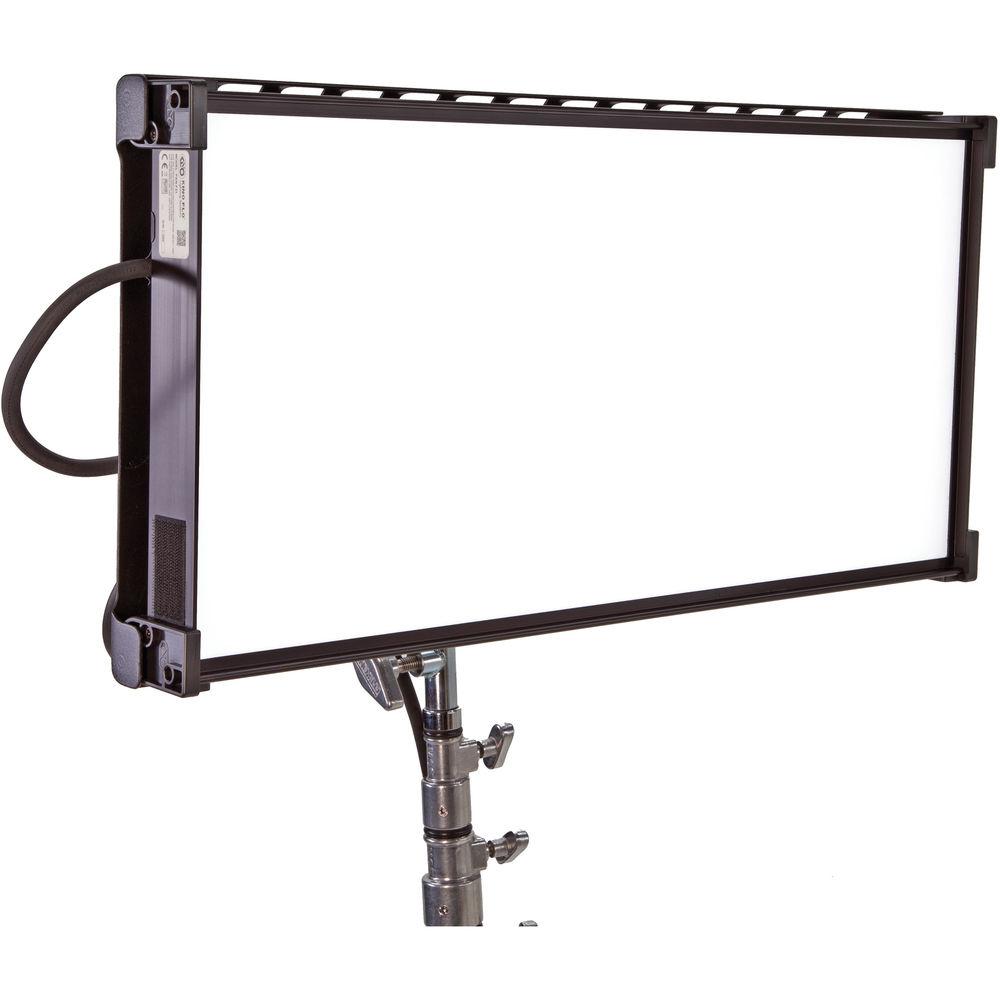

Product description The 23.5 x 11.5 x 2.5" FreeStyle/GT 21 LED Panel from Kino Flo is a light source capable of advanced color adjustments and wired or wireless control. The panel comes with a Gaffer Tray instead of the standard shell with barndoors. It mounts onto the back of the removable panel and allows attachment of the KinoGrip center mount and the LED controller to it. The tray offers a slimmer profile without bending the barndoors (of the standard version) back. It can also be screwed to the wall for a completely flat mount. Use of this panel requires separate purchase of a mount, a FreeStyle DMX controller, and a head cable. A 90-degree Louver (grid) is included to narrow the light's wide beam spread. The following description illustrates the capabilities of the panel when used with the optional controller: The FreeStyle/GT 21 uses three menus with features that can be controlled on the light via traditional wired DMX or by Lumen Radio wireless DMX with the separate purchase of a Lumen transmitter. The White menu allows control of 0-100% dimming, color control from 2700-6500K, and Green/Magenta control. There are two Color menus. The first offers an extended color range from 2500-9900K and includes a channel called "Gel" that offers multiple presets for light conditions such as mercury-vapor and 100 often-used gel filters. There are also channels for Hue and Saturation that work together by selecting a specific color and determining the intensity of it. The second color menu provides RGB (Red, Green, Blue) control to permit a user-selected combination to obtain any color in the visible spectrum. - FreeStyle 21 LED Panel The 23.5 x 11.5 x 2.5" FreeStyle 21 LED Panel from Kino Flo is a light source capable of advanced color adjustments and wired or wireless control. This listing is for the panel only without the fixture shell. It requires the separate purchase of a mount and a FreeStyle DMX controller, and a 100-240 VAC power supply is available for worldwide use.The following description illustrates the capabilities of the panel when used with the optional controller for use:The FreeStyle 21 uses three menus with features that can be controlled on the light via traditional wired DMX or by Lumen Radio wireless DMX with the separate purchase of a Lumen transmitter. The White menu allows control of 0-100% dimming, color control from 2700-6500K, and Green/Magenta control. There are two Color menus. The first offers an extended color range from 2500-9900K and includes a channel called "Gel" that offers multiple presets for light conditions such as mercury-vapor and 100 often-used gel filters. There are also channels for Hue and Saturation that work together by selecting a specific color and determining the intensity of it. The second color menu provides RGB (Red, Green, Blue) control to permit a user-selected combination to obtain any color in the visible spectrum.
- Benefits Using Separately Purchased LED Controller
-
- Kelvin presets
- Dial-in color temperature control between 2700-6500K
- Extended color palette from 2500-9900K
- Green/Magenta Control
- Hue and Saturation adjustments
- RGB control
- Works with Apps with predetermined RGB presets or color wheels
- Light levels do not change when selecting Kelvin settings
- No color shift while dimming
- Color-correct with high color rendering index (CRI 95)
- 100-240 VAC or 24 VDC
- Energy efficient, low electrical draw
- Flicker-free, dead quiet operation
- Lightweight, slim profile
- Mounts on stand, light enough to be handheld
- Separately purchased controller mounts onto fixture or operates remotely with extension cable

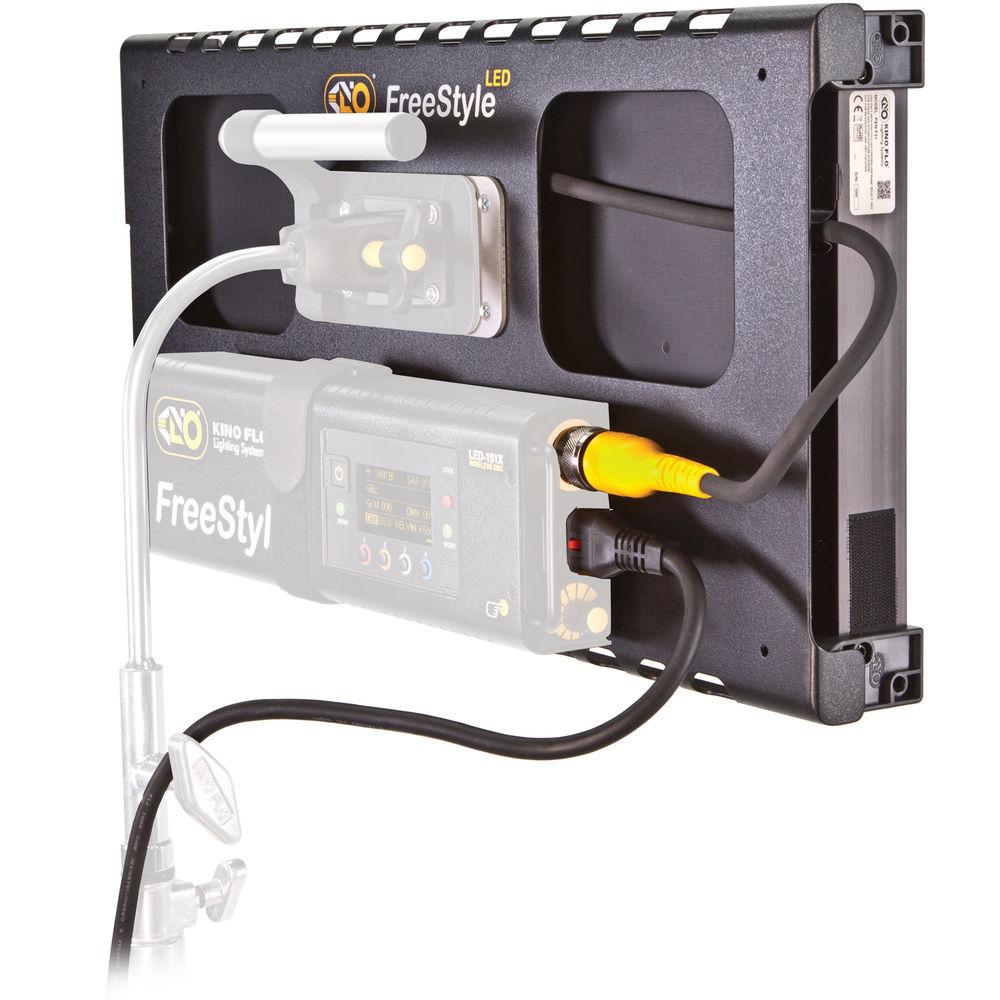

- Gaffer Tray for FreeStyle 21 LED Panel The Gaffer Tray for FreeStyle 21 LED Panel from Kino Flo replaces the light's standard barndoor housing and accepts the removable LED panel to create a smaller profile fixture. The Gaffer Tray has a built-in mating plate for attachment of a center mount. The controller can also be mounted to the Gaffer Tray.
- Louver for Diva-Lite 20 (90°) The 90° Louver for Diva-Lite 20 from Kino Flo is a plastic honeycomb grid that fits onto the front of the fixture. It narrows the light's beam spread while limiting spill light and adding directional control.
In the Box Bundle Items FreeStyle 21 LED Panel yxctrdavzurxxc Gaffer Tray for FreeStyle 21 LED Panel Louver for Diva-Lite 20 (90°)
Also Includes Table of Contents
|
Upload User Manual
Have you got an user manual for the Kino Flo FreeStyle GT 21 LED Fixture in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - FreeStyle 21 LED Panel
| | | Color Temperature | 2500 to 9900K | | Color Accuracy Standard | CRI 95 | | Cooling System | Passive | | Dimming | Yes, 1 to 100% (Continuous) | | Photometrics | 154 fc / 1657 lux at 4' / 1.22 m
40 fc / 430.4 lux at 8' / 2.44 m
18 fc / 193.7 lux at 12' / 3.66 m | | Fixture Dimensions | 23.5 x 11.5 x 2.5" / 59.7 x 29.2 x 6.3 cm | | Fixture Weight | 7 lb / 3.18 kg | | | | Fixture Mount | None | | Accessory Mount | None | | | | Remote Control Type | DMX | | Number of DMX Channel Modes | 6 | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Source | AC Adapter, External Battery | - Gaffer Tray for FreeStyle 21 LED Panel
| Size | Approx. 23.5 x 2.5 x 11.5" (60 x 6.5 x 29 cm) | | | | Box Dimensions (LxWxH) | 24.5 x 12.0 x 2.5" | - Louver for Diva-Lite 20 (90°)
| Material | Plastic | | Beam Angle | 90° | | | | Box Dimensions (LxWxH) | 23.0 x 11.0 x 1.0" |
