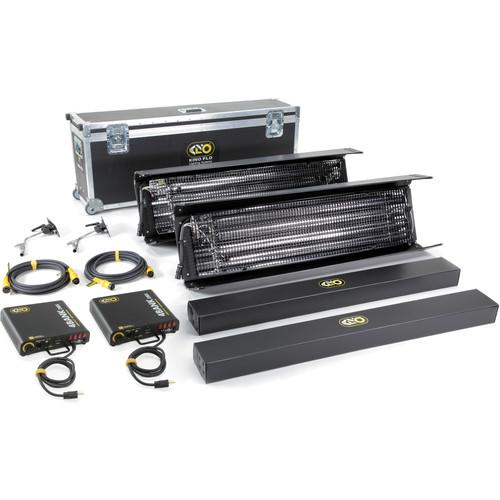

Product description The Gaffer DMX 4' 4Bank Two Light Kit from Kino Flo includes some of the core accessories for a two light fluorescent fixture setup. This includes two 4' 4Bank fixtures, two 4Bank DMX ballasts with North American plug, two mounts with baby receivers, two 25' extension cables, two lamp cases, and a Gaffer shipping case.

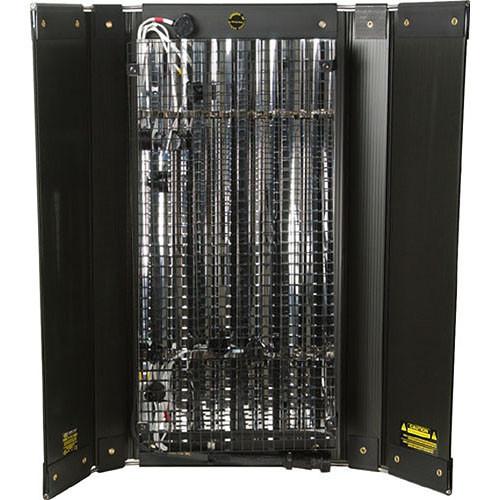

This kit will get you up and running with a two light kit great for when strong, soft light sources are necessary. The 4Bank fixtures work with the DMX ballasts to provide complete control over each lamp and will mount easily to walls or ceilings via the included baby receivers. Also, the 25' extension cables extend the reach of your ballasts and control. Included for storage and protection are two lamp cases and a Gaffer shipping case that will hold both fixtures. - 4Bank 4' Fixture Only The Kino-Flo 4' 4Bank fluorescent fixture provides soft, cool, flicker-free light like a bounce-source, but with features to control the intensity and spread of the light emitted. It is very portable and draws very little AC power.When fitted with 4- True-Match fluorescent tubes (available separately), this 4' long fixture will emit 84 footcandles with a 100° spread, from a distance of 6'.This is a fixture only. It does not include a mount, cable, or ballast. it DOES include a fixture shell (FIX4804), locking harness (HAR4804), reflector (REF4804), and louver (KI44BLS).
- When the reflector is removed and the white backing is used, light output is reduced about 1/3 of an f/stop and the color temperature may drop about 100° Kelvin.

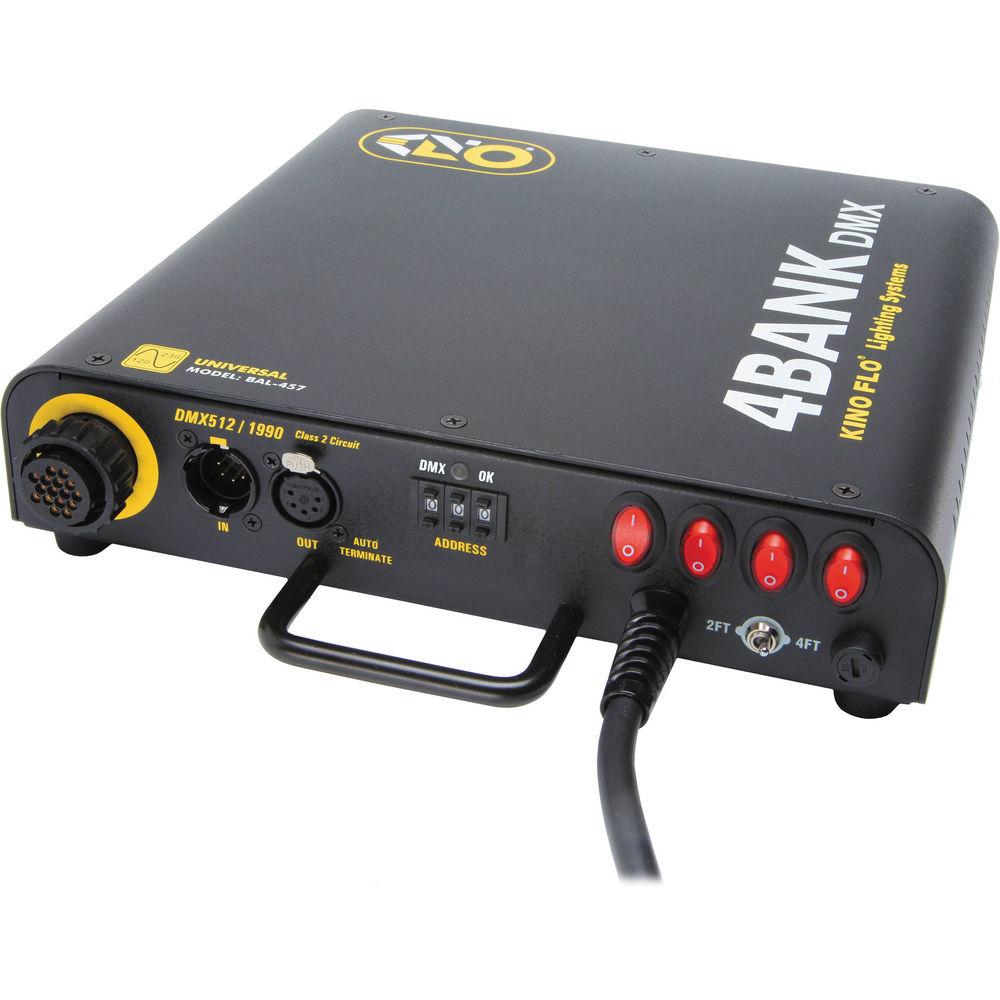

- 4Bank DMX Ballast (North American Plug) The North American plug 4Bank DMX Ballast from Kino Flo is a high frequency ballast with DMX 512/1990 support with Auto Terminate. It can control the four lamp 4Bank fluorescent lighting fixture from a distance of up to 75' for extra versatility with the use of optional extension cables. It also will work with either the 2' or 4' lamps. The ballast features four on/off switches for controlling each lamp independently. Also, this version has a universal voltage of 100-240 VAC and features a North American plug.

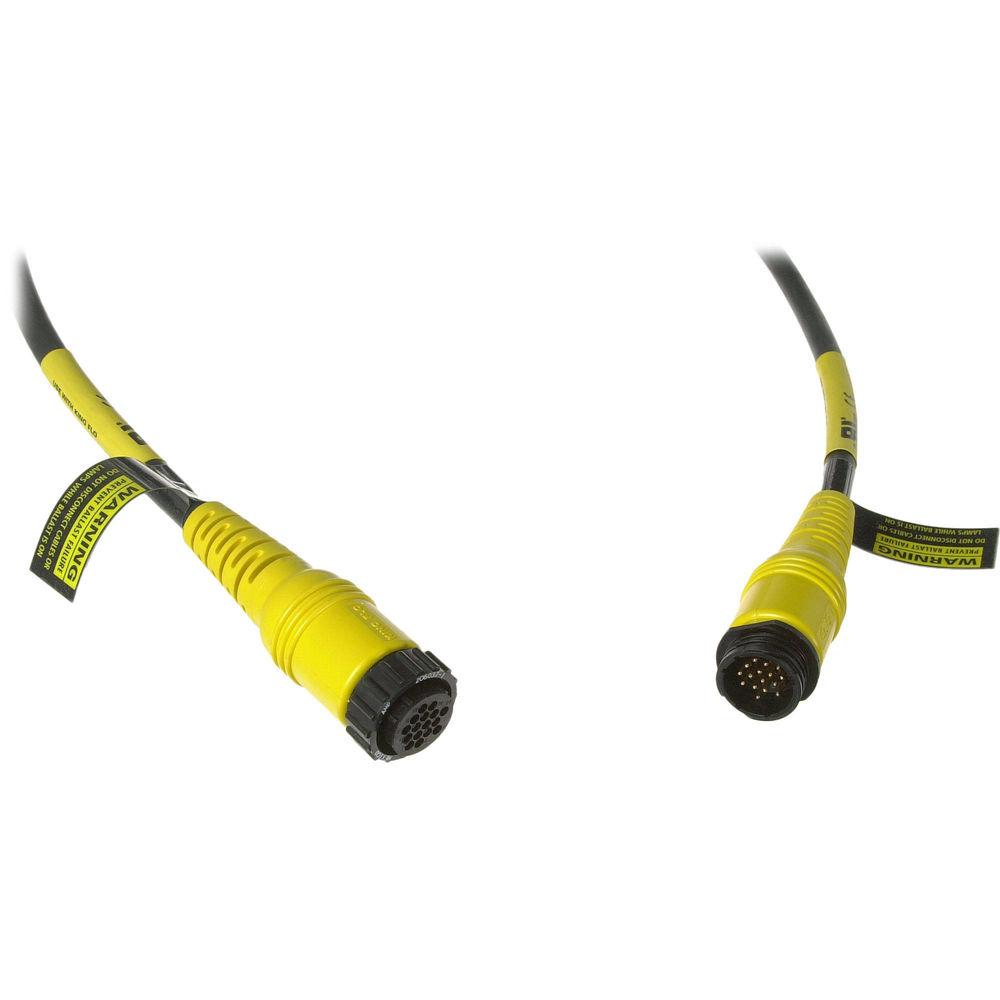

- Extension Cable for 4-Bank Fixture - 25' Extends the range of one of the Kino Flo's 4-Bank fixture components.

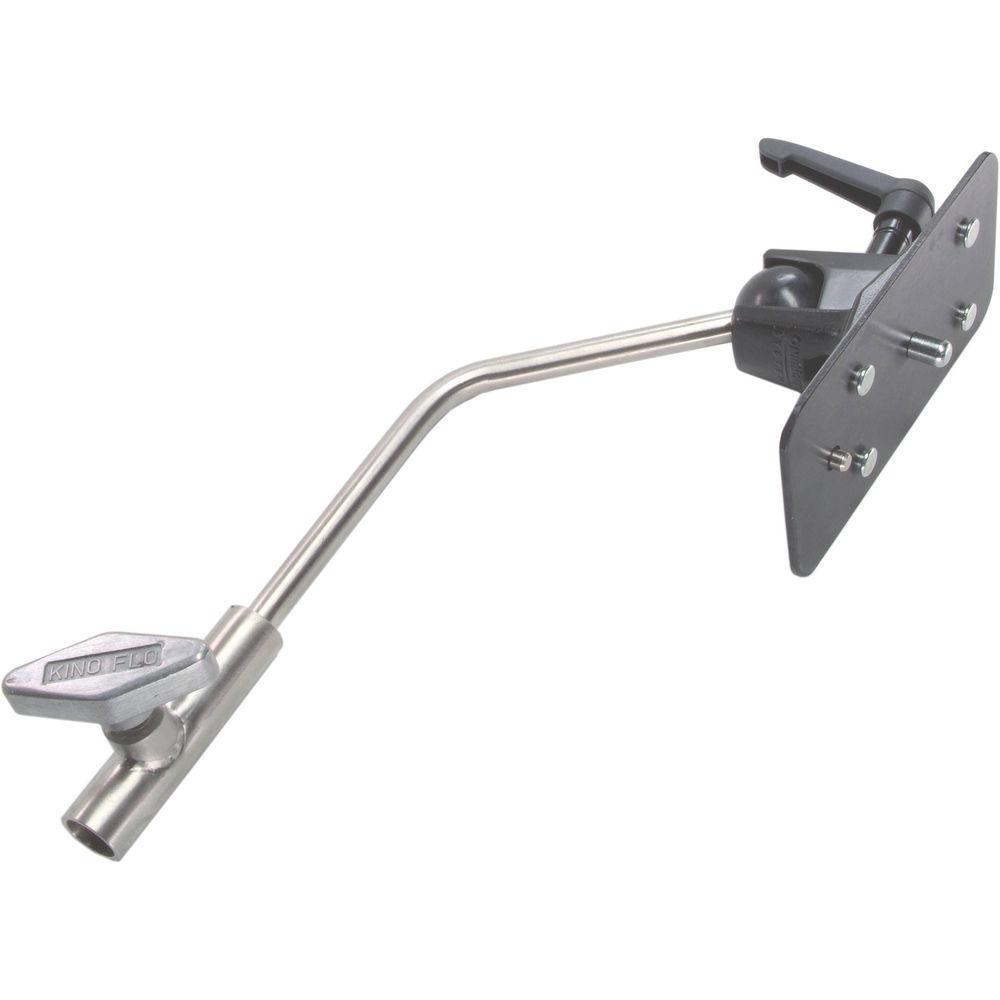

25 feet long. - Twist-On Mounting Plate w/Baby Receiver Many Kino-Flo fixtures do not come with mounting hardware. This is a twist-on locking mounting plate that secures to the rear of a Kino-Flo fixture, and it allows mounting to a 5/8" light stand top.

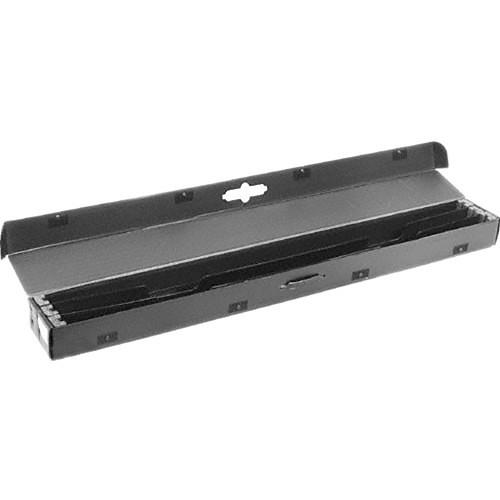

- T12 6-Lamp 4' Carry Case A 4 ft plastic case used to hold up to 6- 4' flourescent tubes in foam.

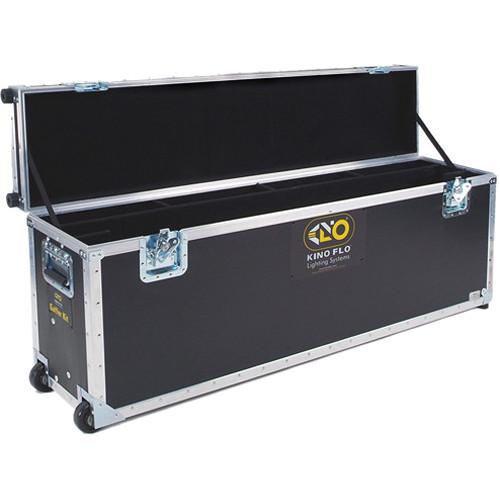

- KAS-GAF2 Gaffer Kit Ship Case The Kino Flo KAS-GAF2 Gaffer Kit Ship Case (Black with Chrome) is a vinyl clad plywood case with reinforced edges and corners. It has a custom-cut padded interior that is designed to carry two 4.0' four bank lighting systems. The case has recessed butterfly latches and recessed spring-action handles.
- Construction
-
- Vinyl clad plywood exterior
- Interior custom-cut padding
- Reinforced edges and corners
- Recessed butterfly latches
- Recessed spring-action handles
- Compatible with 2 Kino Flo 4.0' four bank lighting systems
In the Box Bundle Items 2 x 4Bank 4' Fixture Only reaexzbvefrfcszazyffvbwzrsdsveysyyc 2 x 4Bank DMX Ballast (North American Plug) 2 x Extension Cable for 4-Bank Fixture - 25' 2 x Twist-On Mounting Plate w/Baby Receiver 2 x T12 6-Lamp 4' Carry Case KAS-GAF2 Gaffer Kit Ship Case reaexzbvefrfcszazyffvbwzrsdsveysyyc Table of Contents
|
Upload User Manual
Have you got an user manual for the Kino Flo Gaffer DMX 4' 4Bank Two Light Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - 4Bank 4' Fixture Only
| Input Voltage | 120VAC | | Lamps | 4- 75W, 4' F75/T12 - optional | | Ballast | Optional | | Mounting | Optional | | Weight | 10 lb (4.5kg) | | Dimensions | 51.5 x 13 x 3.5" (131 x 33 x 9cm) with 6.5" integral barndoors | | | | Box Dimensions (LxWxH) | 52.0 x 13.5 x 3.0" | - 4Bank DMX Ballast (North American Plug)
| Input Voltage | 100-240 VAC, 50/60 Hz | | Amperage | F75/2.6 A, F40/2.5 A, F30/1.6 A, F20/0.9 A | | Output Frequency | 25 kHz | | Lamp Switching | 1-4 | | Output Switching | 4 / 2' (122 / 61 cm) | | Operating Temperature | 14 to 122°F (-10 to 50°C) | | Dimensions | 12 x 11 x 3" (31 x 28 x 8 cm) | | Weight | 5.3 lb (2.4 kg) | | | | Box Dimensions (LxWxH) | 14.6 x 11.7 x 3.1" | - Extension Cable for 4-Bank Fixture - 25'
| | | Box Dimensions (LxWxH) | 12.1 x 12.05 x 3.05" | - Twist-On Mounting Plate w/Baby Receiver
| | | Box Dimensions (LxWxH) | 12.8 x 3.4 x 3.2" | - T12 6-Lamp 4' Carry Case
| Construction | Plastic lidded shell, clasp, foam interior | | Dimensions | 50.5 x 5.5 x 3.5 in (13 x 14 x 89 cm) | | Weight | 2lbs (.9 kg) | | | | Box Dimensions (LxWxH) | 50.2 x 5.5 x 3.5" | - KAS-GAF2 Gaffer Kit Ship Case
| | | Closure Type | Latch | | Carry and Transport Options | Recessed Handle | | Material of Construction | Wood | | Exterior Dimensions (W x H x D) | 13 x 21.5 x 56.5" / 13 x 54.6 x 143.5 cm | | Weight | 31 lb / 14 kg | | | | Box Dimensions (LxWxH) | 56.5 x 22.0 x 13.0" |
