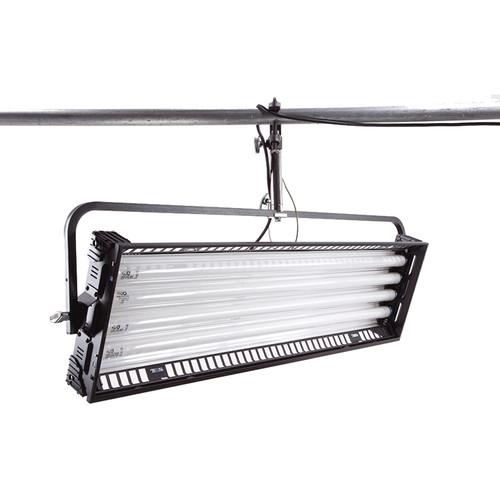

User Manual for Kino Flo Image 47 DMX Fluorescent Yoke Mount Fixture

• Product category: Fluorescent Lights Kino Flo
• Brand: Kino Flo
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Kino Flo Fluorescent Lights

Product description

• Broad, even light - ideal for blue and green screen

• Lower amperage draw for energy savings

• Long lamp life, less lamp replacements, lower maintenance and labor

• Lower operating temperature

• More efficient heat management design for stable color temperature

• Mixing lamps for various color temperatures and effects possible

• Optional high color rendering True-Match lamps work well alongside conventional quartz lights or HMIs

• DMX control for stable color temperature and light level control

• Color gels do not burn out or fade due to lower heat of fixture

• HO (High Output) Mode for 0.5 stop boost and Standard Mode for normal operation

• DMX and local switching, Individual lamp control

• Traditional yoke mount with two-position setting that is ideal for low ceilings

• Gel frame and louver included

• Instant-on, dead quiet ballast

• Optional remote hand-held lamp control (DIM-5)

Photometrics
• 200 ASA @ 1/125th sec. shutter speed
  Footcandles
  531 fc at 2.0' (0.6 m)
  173 fc at 4.0' (1.2 m)
  84 fc at 6.0' (1.8 m)
  49 fc at 8.0' (2.4 m)
  32 fc at 10' (3.0 m)
  22.5 fc at 12' (3.6 m)
  17 fc at 14' (4.3 m)
  13 fc at 16' (4.9 m)
  10.5 fc at 18' (5.5 m)
  8.5 fc at 20' (6.0 m)
  Lux
  7,407 lux at 1.6' (0.5 m)
  2,261 lux at 3.3' (1.0 m)
  1,303 lux at 4.9' (1.5 m)
  775 lux at 6.5' (2.0 m)
  503 lux at 8.2' (2.5 m)
  356 lux at 9.8' (3.0 m)
  267 lux at 11.5' (3.5 m)
  208 lux at 13.1' (4.0 m)
  168 lux at 14.7' (4.5 m)
  135 lux at 16.4' (5.0 m)
  f/Stop in Feet
  5.6/1 at 2.0' (0.6 m)
  2.8/4 fc at 4.0' (1.2 m)
  2.0/4 at 6.0' (1.8 m)
  1.4/6 at 8.0' (2.4 m)
  1.4 at 10' (3.0 m)
  f/Stop in Lux
  5.6/4 at 1.6' (0.5 m)
  2.8/9 at 3.3' (1.0 m)
  2.8 at 4.9' (1.5 m)
  2.0/2 at 6.5' (2.0 m)
  1.4/5 at 8.2' (2.5 m)
