Kino Flo Image 47 DMX Yoke

User Manual for Kino Flo Image 47 DMX Yoke Mount Kit

• Product category: Fluorescent Lights Kino Flo
• Brand: Kino Flo
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Kino Flo Fluorescent Lights

Product description

• Image 47 DMX Fluorescent Yoke Mount Fixture The Kino Flo Image 47 DMX Fluorescent Yoke Mount Fixture combines an open-shadow, soft quality of light, wide lamp choices among the True-Match lamp line, DMX control and individual lamp switching for a lighting solution that is ideal for visual effects lighting designers in film, HD broadcast, video and photo set work.Fabricated from metal, the Image 47 features a built-in 100-240 VAC ballast with dead quiet operation. HO Mode (High Output) is on board to boost output approximately 0.5 stop. As with other Kino lights, dimming is possible with negligible color shift. The combination of low power draw and minimal heat result in a more comfortable set and lower air-conditioning and running costs. The Image 47 is a good choice for overhead or grid systems. Another use is blue or green screen lighting of cycloramas or other backgrounds using highly specialized True-Match visual effects lamps. This version of the Image 47 ships with a yoke mount with a pre-tapped 0.5" hole for an optional Junior pin or Baby receiver. An eggcrate louver, gel frame, four card holders for flags and interior reflector are also included. Optional four-way barndoors are available separately.
  • Broad, even light - ideal for blue and green screen
  • Lower amperage draw for energy savings
  • Long lamp life, less lamp replacements, lower maintenance and labor
  • Lower operating temperature
  • More efficient heat management design for stable color temperature
  • Mixing lamps for various color temperatures and effects possible
  • Optional high color rendering True-Match lamps work well alongside conventional quartz lights or HMIs
  • DMX control for stable color temperature and light level control
  • Color gels do not burn out or fade due to lower heat of fixture
  • HO (High Output) Mode for 0.5 stop boost and Standard Mode for normal operation

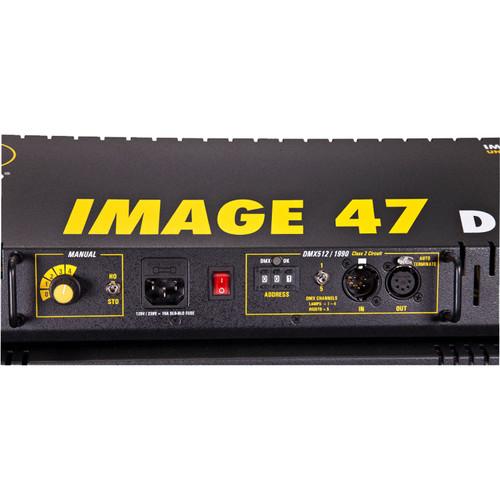

  • DMX and local switching, Individual lamp control
  • Traditional yoke mount with two-position setting that is ideal for low ceilings
  • Gel frame and louver included
  • Instant-on, dead quiet ballast
  • Optional remote hand-held lamp control (DIM-5)
  Photometrics
  • 200 ASA @ 1/125th sec. shutter speed
    Footcandles
    531 fc at 2.0' (0.6 m)
    173 fc at 4.0' (1.2 m)
    84 fc at 6.0' (1.8 m)
    49 fc at 8.0' (2.4 m)
    32 fc at 10' (3.0 m)
    22.5 fc at 12' (3.6 m)
    17 fc at 14' (4.3 m)
    13 fc at 16' (4.9 m)
    10.5 fc at 18' (5.5 m)
    8.5 fc at 20' (6.0 m)
    Lux
    7,407 lux at 1.6' (0.5 m)
    2,261 lux at 3.3' (1.0 m)
    1,303 lux at 4.9' (1.5 m)
    775 lux at 6.5' (2.0 m)
    503 lux at 8.2' (2.5 m)
    356 lux at 9.8' (3.0 m)
    267 lux at 11.5' (3.5 m)
    208 lux at 13.1' (4.0 m)
    168 lux at 14.7' (4.5 m)
    135 lux at 16.4' (5.0 m)
    f/Stop in Feet
    5.6/1 at 2.0' (0.6 m)
    2.8/4 fc at 4.0' (1.2 m)
    2.0/4 at 6.0' (1.8 m)
    1.4/6 at 8.0' (2.4 m)
    1.4 at 10' (3.0 m)
    f/Stop in Lux
    5.6/4 at 1.6' (0.5 m)
    2.8/9 at 3.3' (1.0 m)
    2.8 at 4.9' (1.5 m)
    2.0/2 at 6.5' (2.0 m)
    1.4/5 at 8.2' (2.5 m)
• Junior Pin Assembly for 80, 40, 20 Kino Flo Image 80/40/20 Junior Pin assembly. Allows straight-ahead mounting of the fixture to a Junior 1-1/8" female receptor. Includes metric threaded screws and a Junior (1-1/8") pin.
• Shipping Case for 1- Image 40, 45 Fixture Kino Flo Shipping Case for 1- Image 40, 45 Fixture provides ample room for a fixture, cables, and some accessories.
  • Heavy duty, reinforced sides

• Image 40 Gel Frame

• Eggcrate Louver for Image 40 (Silver)

• Limited 1-Year Warranty

Also Includes

• Limited 1-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

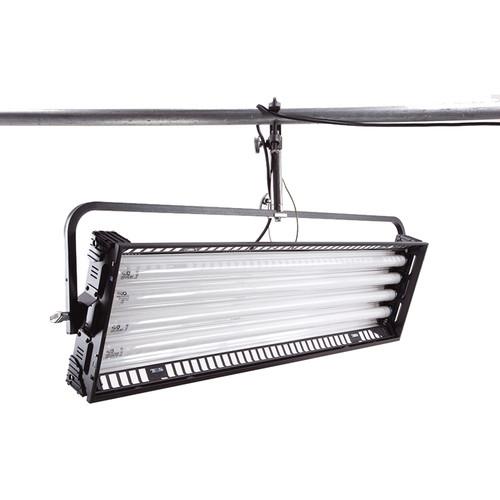

• Image 47 DMX Fluorescent Yoke Mount Fixture

  Input Voltage	100-240 VAC, 50/60 Hz
  Amperage	2.3 A at 100-240 VAC, 50/60 Hz 1.1 A at 240-100 VAC, 50/60 Hz
  Output Frequency	25 kHz
  Lamps	Optional F75/T12 (75 W)
  Lamp Switching	1 - 4
  Output Switching	High Output/Standard
  Plug	Euro Plug
  Mounting	Yoke mount, 0.5" (12.7 mm) hole Optional 1-1/8" (28 mm) pin or 5/8" (16 mm) receiver
  Dimensions	54 x 17 x 6.5" (137 x 43 x 16.5 cm)
  Weight	23 lb (10.4 kg)

• Junior Pin Assembly for 80, 40, 20

  Box Dimensions (LxWxH)	4.8 x 4.5 x 3.1"

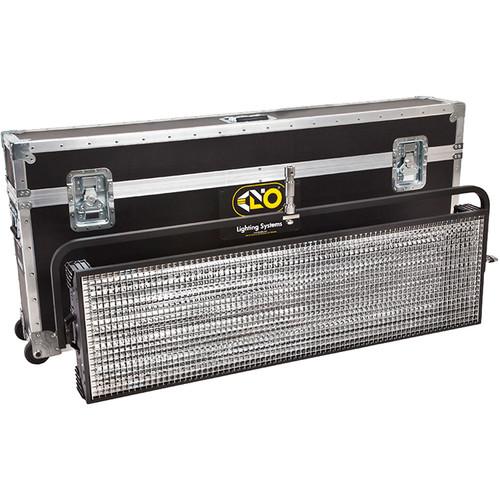

• Shipping Case for 1- Image 40, 45 Fixture

  Closure Type	Hasp
  Carry and Transport Options	None
  Material of Construction	Metal, Wood
  Exterior Dimensions (W x H x D)	56.5 x 10.2 x 23.2" / 143.5 x 26 x 59 cm
  Weight	29 lb / 13 kg

  Box Dimensions (LxWxH)	58.0 x 26.0 x 9.2"
