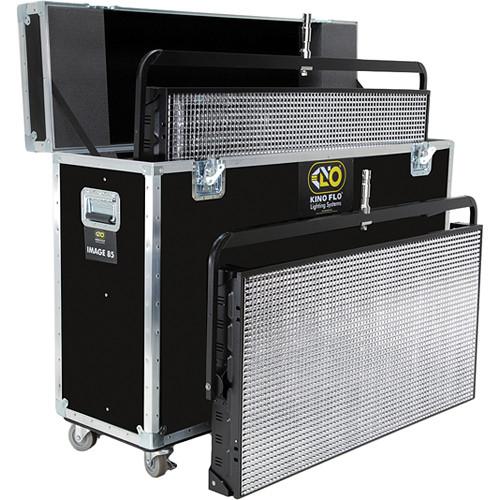

User Manual for Kino Flo Image 87 DMX Yoke Mount 2-Light Kit Click to enlarge the picture
Contents of the user manual for the Kino Flo Image 87 DMX Yoke
- Product category: Fluorescent Lights Kino Flo
- Brand: Kino Flo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kino Flo Fluorescent Lights
|
User manual for the Kino Flo Image 87 DMX Yoke contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kino Flo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kino Flo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kino Flo product will considerably shorten its lifespan!
|
Product description The 120 VAC Kino Flo Image 87 DMX Yoke Mount 2-Light Kit contains two Image 87 DMX Yoke Mount fixtures, two Junior pin assemblies, and one shipping case for protection and storage of the fixtures and assembly mounts.
The Image 87 DMX Yoke Mount Fixture is a 4'-wide, eight-lamp fixture with low power draw that is ideal for motion picture and TV studios. The metal alloy fixture features local and DMX dimming and lamp switching that combine for optimal flexibility in light level adjustment. - Image 87 DMX Yoke Mount Fixture The Kino Flo Image 87 DMX Yoke Mount Fixture is a 4' wide, 8 lamp fixture with low power draw that's ideal for motion picture and TV studios. The metal alloy fixture features local and DMX dimming and lamp switching that combine for optimal flexibility in light level adjustment. A High Output switch further expands that capability with a 1/2 stop power boost. Popular for blue/green screen applications thanks to its broad, even output, the Image 87 DMX makes use of True Match 420nm blue and 525nm green lamps as well as high CRI 5500K, 3200K and 2900K fluorescents. The light's low draw combined with relatively low heat offer substantial savings in powering the fixtures and cooling the studio. This yoke mount version of the Image 87 has a 2 position yoke for varying ceiling heights and manual control of pan and tilt adjustments. An optional 1 1/8" pin is available for Junior receivers. The Image 87 DMX ships with a silver louver to narrow the beam angle, filter frame and 4 card holders to attach flags to the unit.
- Features
-
- Metal alloy fixture includes gel frame, louver and cardholders
- Broad, even light - ideal for blue and green screen
- Instant-on, dead quiet
- Low amperage draw equals energy savings
- Long lamp life, low lamp replacements, low maintenance labor
- Low operating temperature yields low air-conditioning costs
- More efficient heat management design for stable color temperature
- Uses 5500K, 3200K and 2900K, 420nm blue and 525nm green lamps
- Mix lamps for various color temperatures
- High color rendering True Match lamps work well alongside conventional quartz lights or HMIs
- DMX control for stable color temperature and light level control
- DMX lamp switching, HO/Standard switching
- Instant-on, dead quiet
- Color Gels do not burn out or fade due to lower heat of fixture
- Photometrics
- fc
930 fc @ 2.0' (0.6 m)
325 fc @ 4.0' (1.2 m)
160 fc @ 6.0' (1.8 m)
94 fc @ 8.0' (2.4 m)
61 fc @ 10' (3.0 m)
44 fc @ 12' (3.6 m)
33 fc @ 14' (4.3 m)
26 fc @ 16' (4.9 m)
20 fc @ 18' (5.5 m)
17 fc @ 20' (6.0 m)
lux
12,490 lux @ 1.6' (0.5 m)
4,748 lux @ 3.3' (1.0 m)
2,412 lux @ 4.9' (1.5 m)
1,433 lux @ 6.5' (2.0 m)
958 lux @ 8.0' (2.5 m)
678 lux @ 10' (3.0 m)
505 lux @ 11.5' (3.5 m)
394 lux @ 13' (4.0 m)
320 lux @ 15' (4.5 m)
265 lux @ 16.4' (5.0 m)
f/stop fc
930 fc @ 2.0' (0.6 m), f5.6/8
325 fc @ 4.0' (1.2 m), f4.0/4
160 fc @ 6.0' (1.8 m), f2.8/3
94 fc @ 8.0' (2.4 m), f2.0/6
61 fc @ 10' (3.0 m), f2.0
f/stop lux
12,490 lux @ 1.6' (0.5 m), f8.0/2
4,748 lux @ 3.3' (1.0 m), f4.0/8
2,412 lux @ 4.9' (1.5 m), f2.8/8
1,443 lux @ 6.5' (2.0 m), f2.8/1
958 lux @ 8.0' (2.5 m), f2.0/5 - Junior Pin Assembly for 80, 40, 20 Kino Flo Image 80/40/20 Junior Pin assembly. Allows straight-ahead mounting of the fixture to a Junior 1-1/8" female receptor. Includes metric threaded screws and a Junior (1-1/8") pin.
- Image 80 Ship Case (2) Kino Flo Image 80 Ship case (2), holds two Image 80 fixtures.
In the Box Bundle Items 2 x Image 87 DMX Yoke Mount Fixture sraddrfctruryvuwrxstwxbrxvxyurcy - Silver Louver (LVR-180-S)
2 x Junior Pin Assembly for 80, 40, 20 Image 80 Ship Case (2) Table of Contents
|
Upload User Manual
Have you got an user manual for the Kino Flo Image 87 DMX Yoke Mount 2-Light Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Image 87 DMX Yoke Mount Fixture
| Input Voltage | 120VAC 50/60Hz | | Amperage | 4.8A | | Lamps | F75/T12 | | Lamp Switching | 1 - 8 | | Output Switching | High Output / Standard Output | | Mount | Yoke mount | | Dimensions | 54 x 28 x 6.5" (138.4 x 71 x 16.5 cm) | | Weight | 39 lb (18 kg) | | | | Box Dimensions (LxWxH) | 58.5 x 35.5 x 10.5" | - Junior Pin Assembly for 80, 40, 20
| | | Box Dimensions (LxWxH) | 4.8 x 4.5 x 3.1" | - Image 80 Ship Case (2)
| | | Exterior Dimensions (W x H x D) | 56.2 x 16.2 x 35" / 1435 x 413 x 889 mm | | Weight | 98 lb / 44 kg | | | | Box Dimensions (LxWxH) | 57.0 x 41.0 x 17.0" |
