Product description

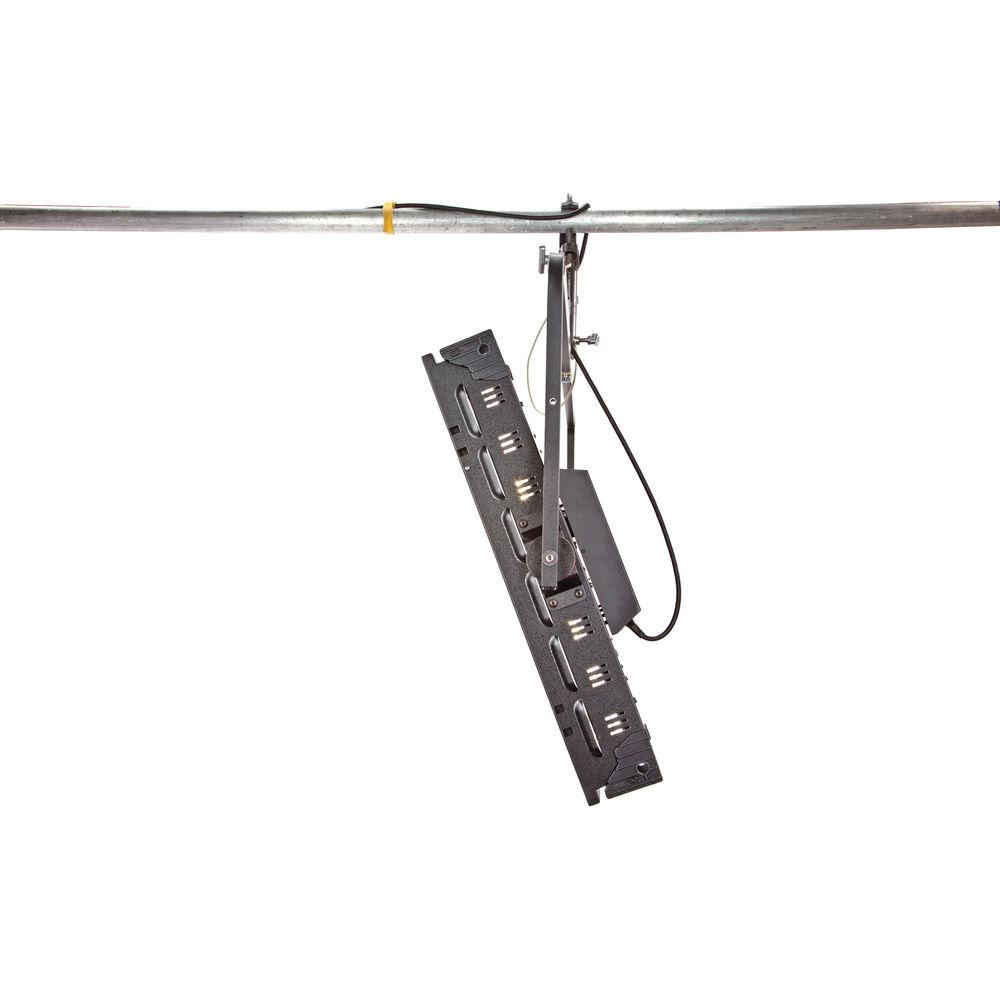

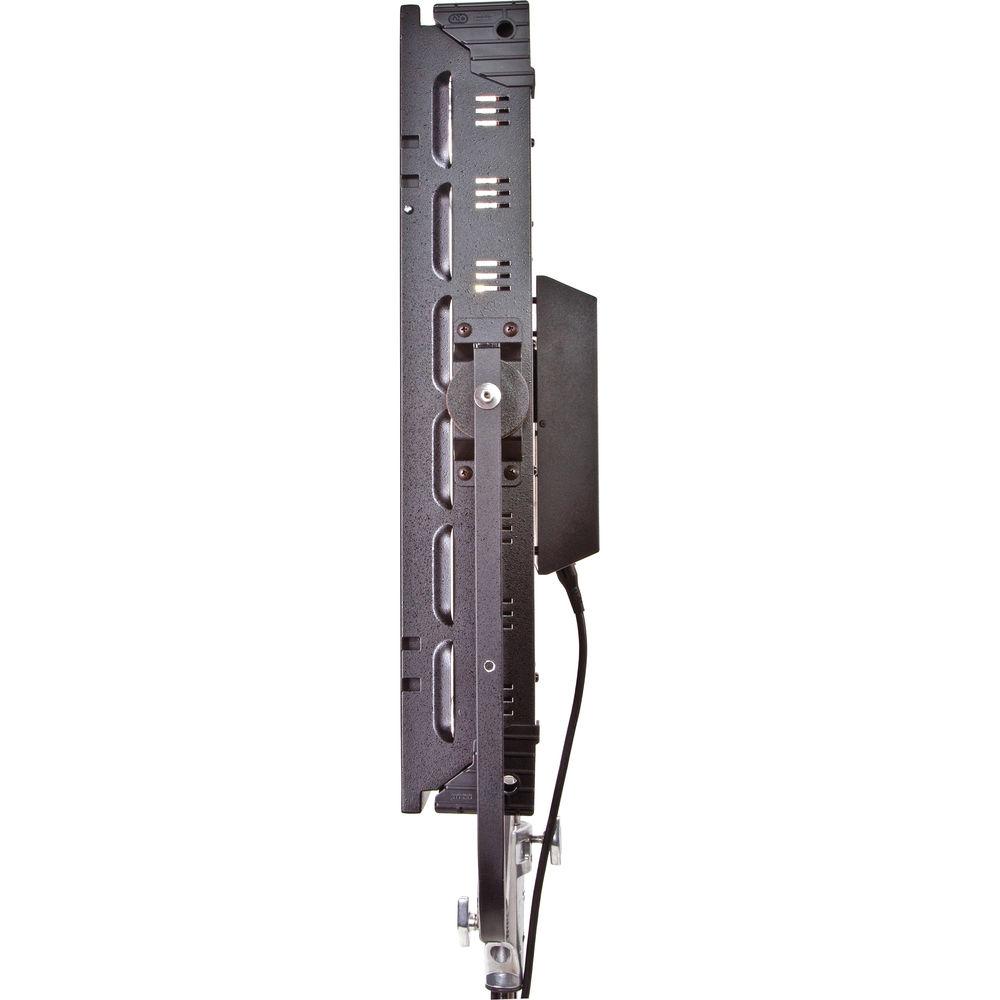

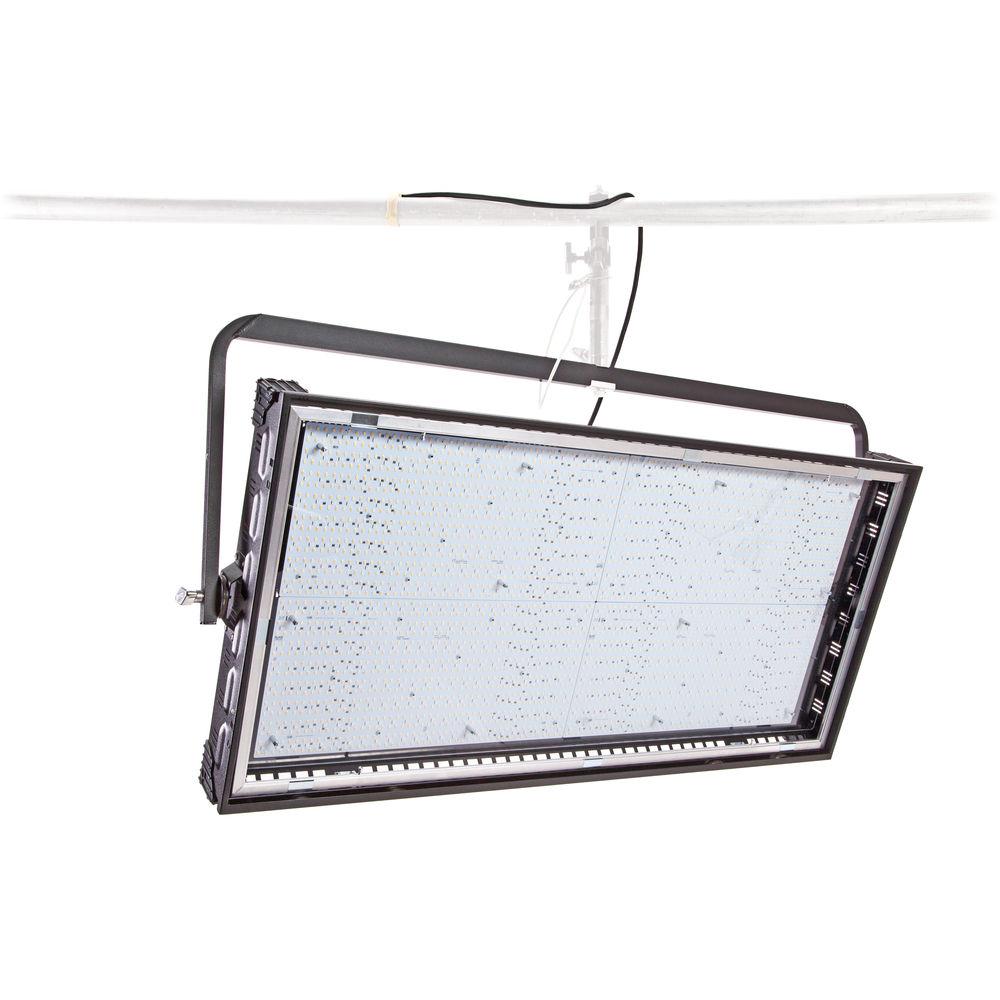

• Image L80 DMX LED Panel with Yoke Mount Flexibility and extensive control options are key to the production of the Image L80 DMX LED Panel with Yoke Mount from Kino Flo. The 54 x 28 x 6.5" panel employs four menus with several channels that have features that can be controlled on the light via traditional wired DMX or by Lumen Radio wireless DMX. The White menu allows control of 1 to 100% dimming, color control from 2700 to 6500K, and Green/Magenta control. There are two color menus. In the Gels/Hue menu, the Kelvin range is extended to 2500 to 9900K. Among the channels is one called Gel that offers multiple presets for light conditions, such as mercury-vapor, and 100 often-used gel filters. A channel called Hue Angle (Hue) and another called Saturation (Sat) are also included in the Gel menu and function together like a 360-degree color wheel making over two million color combinations available. The second color menu provides RGB (Red, Green, Blue) control, permitting a user-selected combination to obtain any color in the visible spectrum. The RGB menu also allows you to dial in specific gel RGB values or control colors from a DMX console. Finally, there's an FX menu that creates effects such as Candle, Fire, TV, Police, Lightning, Paparazzi, Pulse, and Scroll. Within each effect there are presets that vary the parameters or change the rate of the chosen effect. The Image L80 is ready for worldwide use thanks to its 100 to 240 VAC power supply. The light comes with a 90-degree honeycomb grid to tighten its beam angle and limit spill light, providing directional control for selective lighting. This version of the light has a Yoke Mount. The yoke has a hole to accept industry-standard hardware such as a pin or receiver.
  Benefits
  • Kelvin presets
  • Dial-in color temperature control between 2700 and 6500K
  • Extended color palette from 2500 to 9900K
  • Green/magenta control
  • Hue angle and saturation adjustments
  • RGB control
  • FX control
  • Works with apps with predetermined RGB presets or color wheels
  • Can use preset buttons to store custom Kelvin settings
  • Light levels do not change when selecting Kelvin settings
  • No color shift while dimming
  • Color-correct with a high CRI/TLCI rating
  • Universal power input: 100 to 240 VAC
  • Energy efficient, draws 2A at 120 VAC
  • Flicker-free, quiet operation
  • Full range onboard and DMX dimming
  • DMX wireless link: Lumen Radio
  • DMX auto terminate
  • Metal alloy fixture includes removable gel frame, louver, and cardholders
  • Slim 6.5" profile

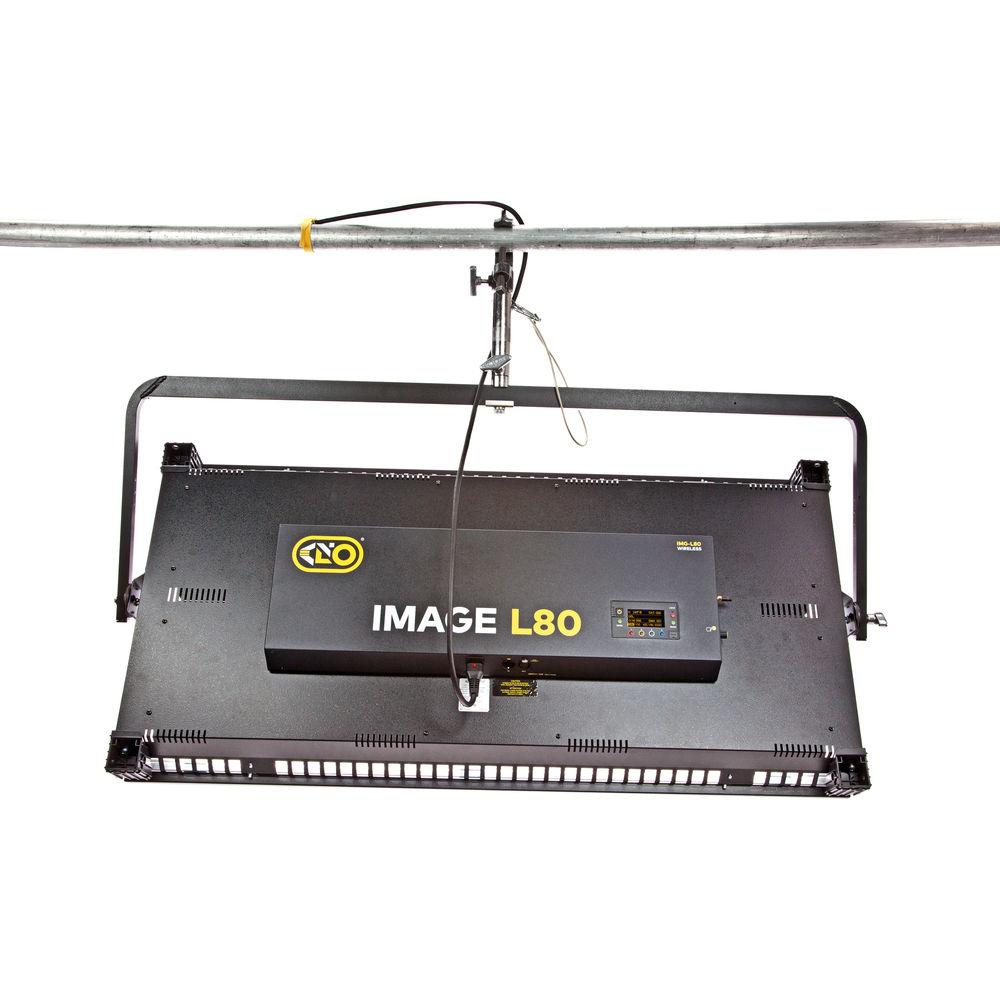

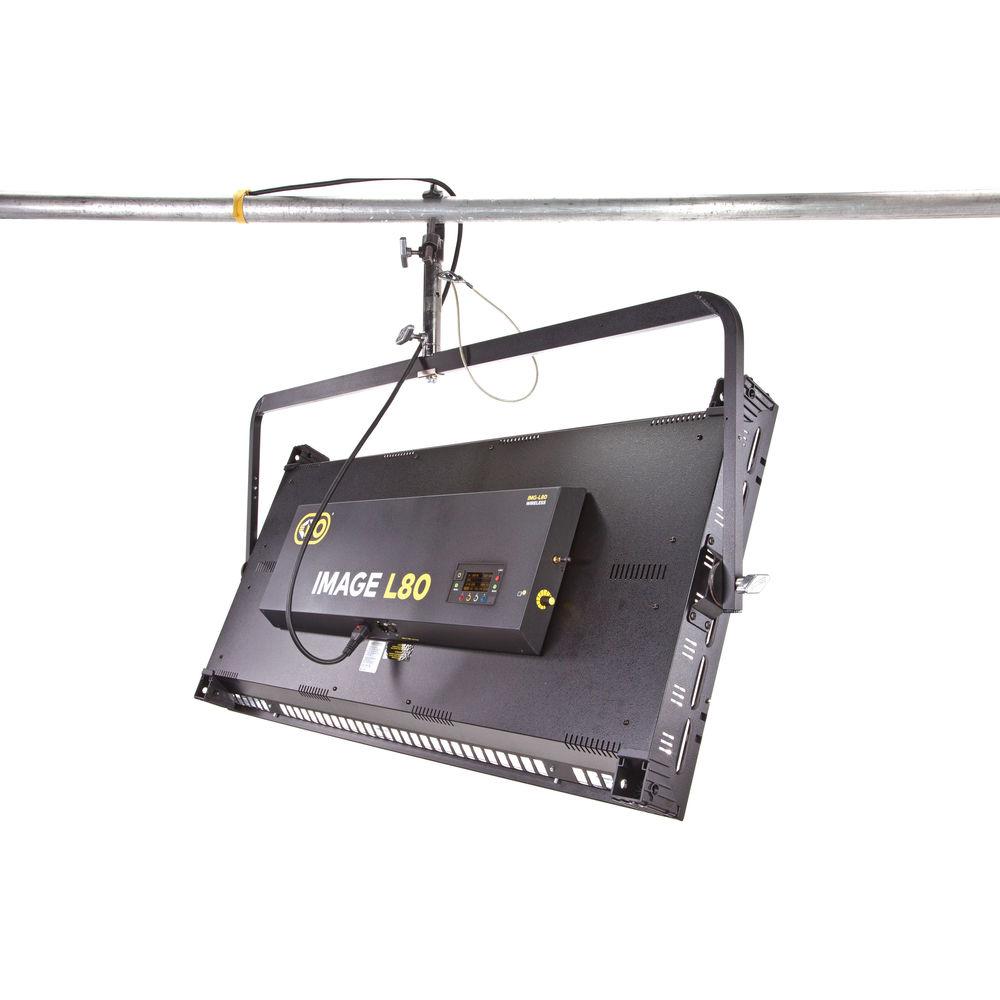

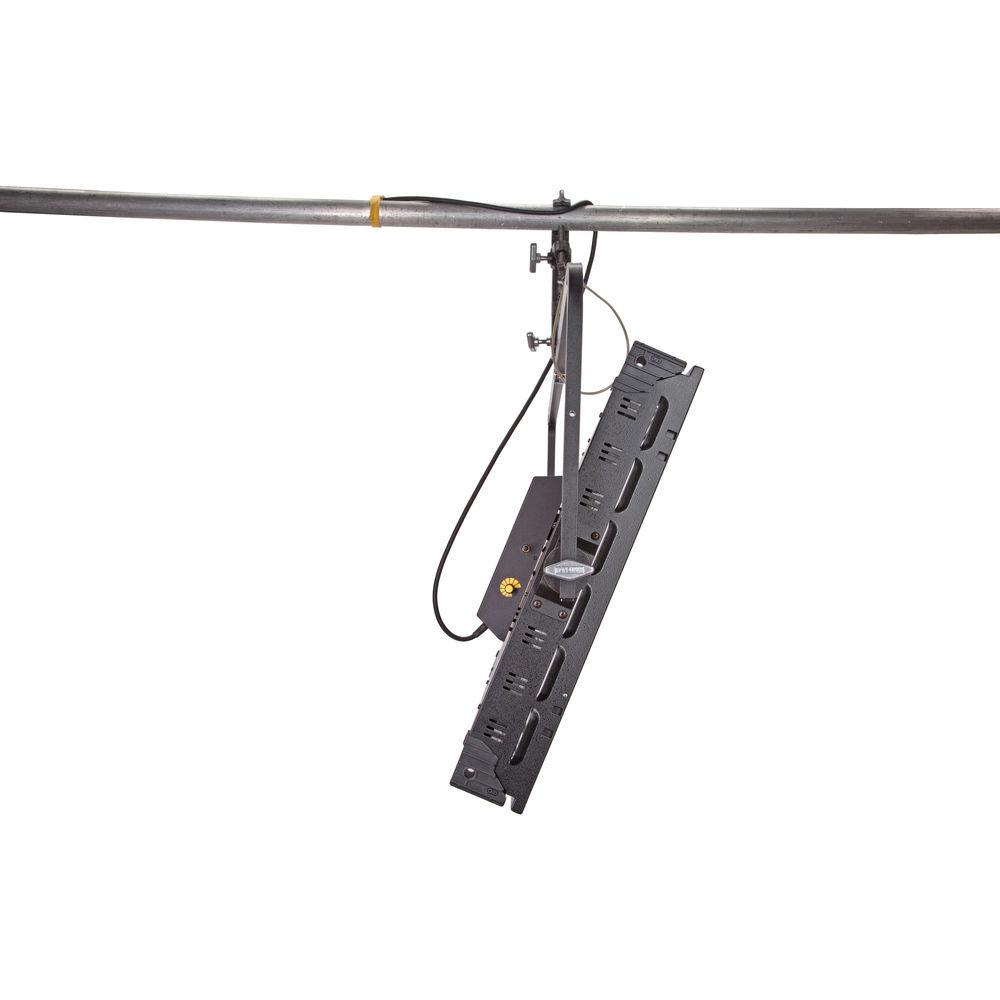

  • Mounts to stand or can hang easily from a grid
• Junior Pin Assembly for 80, 40, 20 Kino Flo Image 80/40/20 Junior Pin assembly. Allows straight-ahead mounting of the fixture to a Junior 1-1/8" female receptor. Includes metric threaded screws and a Junior (1-1/8") pin.

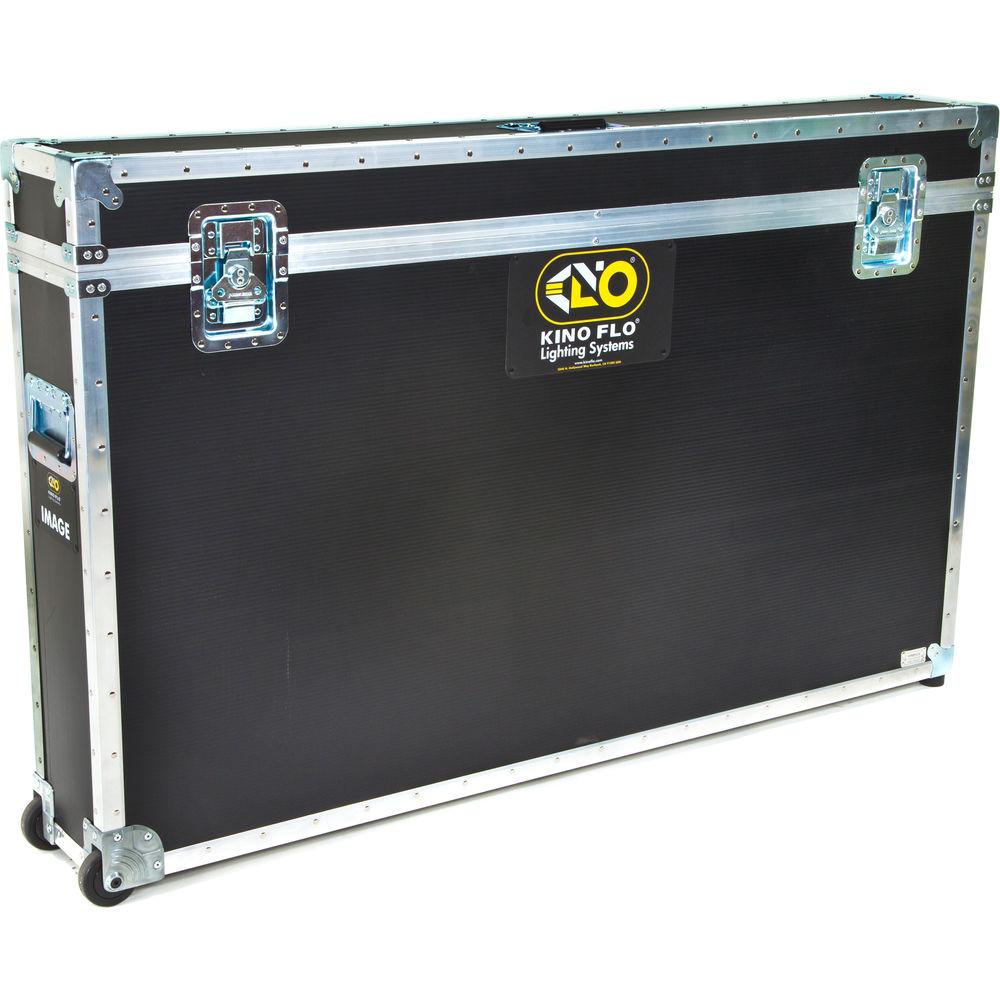

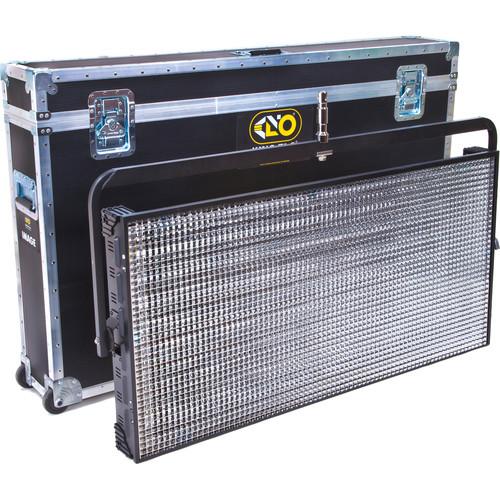

• Image 80 Ship Case (1) The Kino Flo 80 Ship Case is used to hold one Image 80 fixture and cable. It is reinforced plywood with a vinyl covering, metal hasps, and has reinforced corners.
  • Wheels ease transport
  • Side and top handles for convenience

• Image 80, 85 Gel Frame

• Eggcrate Louver for Image 80 and Flathead 80 (Black)

• Set of Card Holders

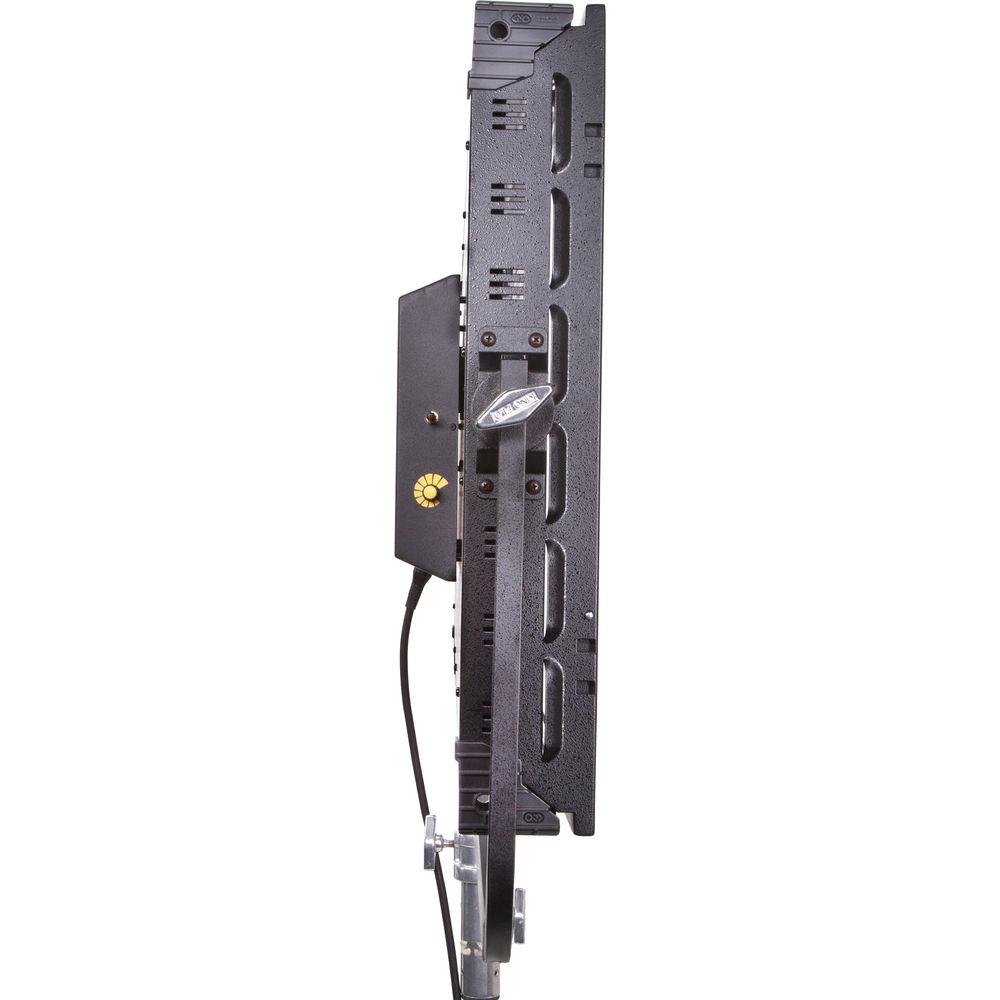

• Yoke Mount

• Limited 1-Year Warranty

• 1 Year Manufacturer's Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Image L80 DMX LED Panel with Yoke Mount

  Color Temperature	2500 to 9900K
  Color Accuracy Standard	CRI 96 TLCI 98
  Dimming	Yes, 1 to 100% (Continuous)
  Display	LCD
  Housing Material	Aluminum
  Photometrics	68 fc / 731.7 lux at 12' / 3.65 m
  Expected Lamp Life	50000 Hours
  Fixture Dimensions	54.0 x 28.0 x 6.5" / 137.2 x 71.1 x 16.5 cm
  Fixture Weight	45.5 lb / 20.64 kg (Including Yoke)

  Battery Plate	None
  Power Input Connector	IEC
  DMX Connector	5-Pin XLR

  Fixture Mount	None
  Accessory Mount	None

  Yoke Type	Yoke/Bracket

  Remote Control Type	DMX

  AC Input Power	100 to 240 VAC, 50 / 60 Hz
  Power Source	AC Adapter
  Max Power Consumption	400 W

  Box Dimensions (LxWxH)	56.5 x 33.0 x 9.7"

• Junior Pin Assembly for 80, 40, 20

  Box Dimensions (LxWxH)	4.8 x 4.5 x 3.1"

• Image 80 Ship Case (1)

  Carry and Transport Options	Handle
  Material of Construction	Metal, Wood
  Exterior Dimensions (W x H x D)	56.5 x 7.8 x 35" / 143.5 x 19.7 x 88.9 cm
  Weight	38 lb / 17.2 kg

  Box Dimensions (LxWxH)	59.5 x 37.0 x 11.0"
