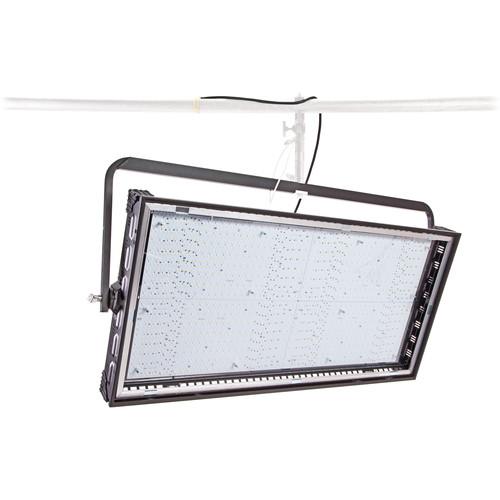

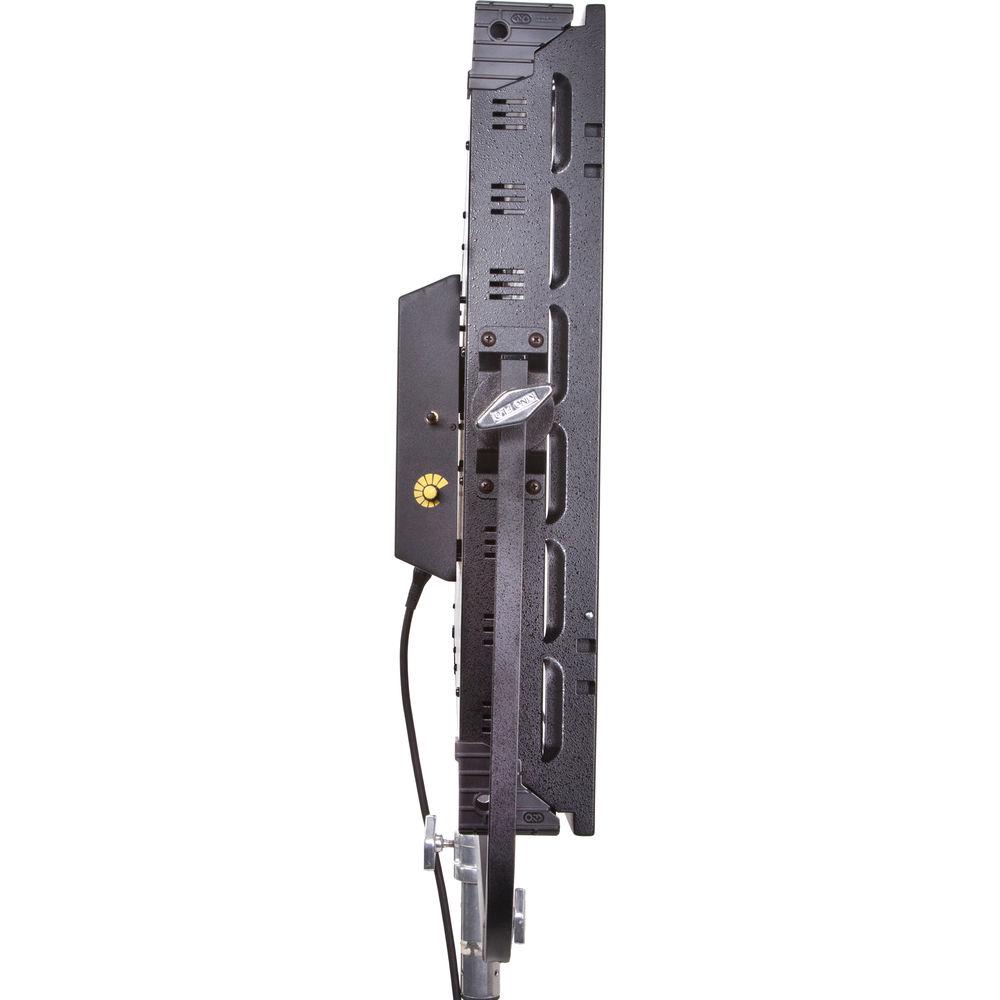

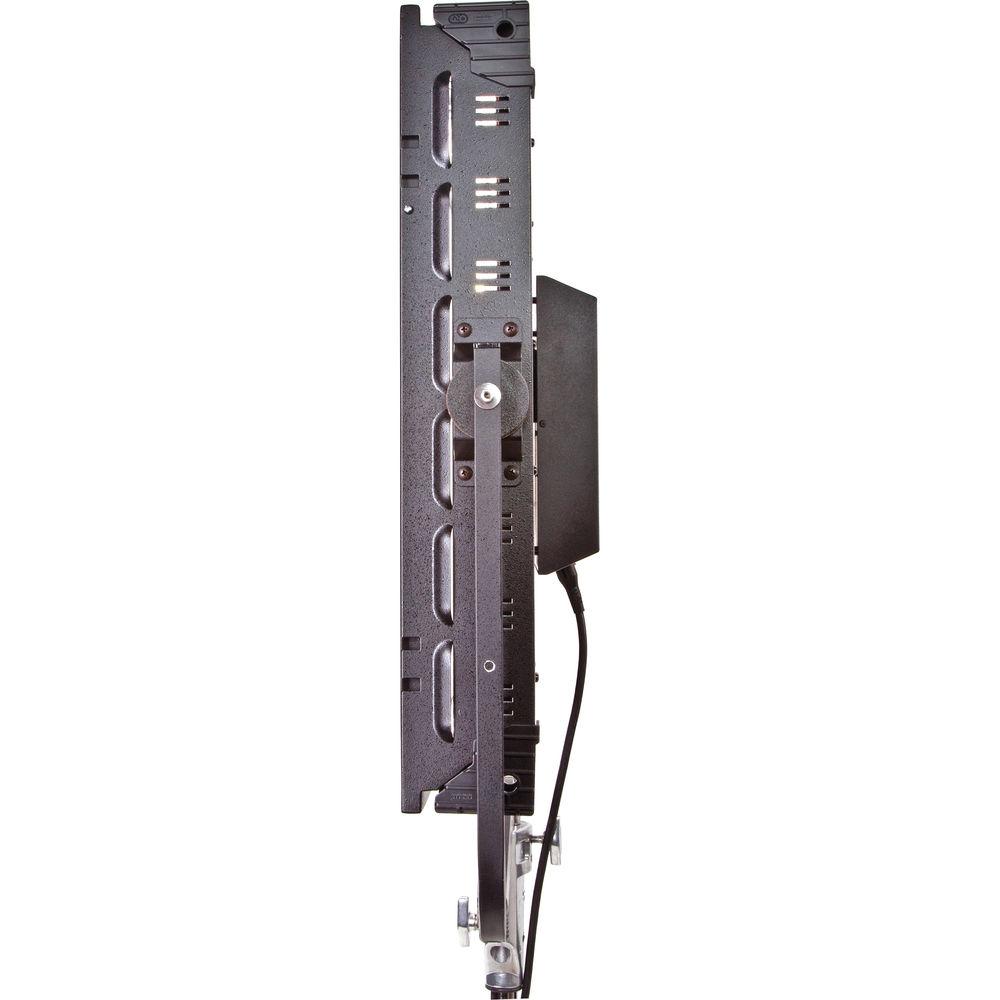

User Manual for Kino Flo Image L80 DMX LED Panel with Yoke Mount Click to enlarge the picture
Contents of the user manual for the Kino Flo Image L80 DMX LED
- Product category: LED Lights Kino Flo
- Brand: Kino Flo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kino Flo LED Lights
 |
User manual for the Kino Flo Image L80 DMX LED contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kino Flo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kino Flo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kino Flo product will considerably shorten its lifespan!
|
Product description Flexibility and extensive control options are key to the production of the Image L80 DMX LED Panel with Yoke Mount from Kino Flo. The 54 x 28 x 6.5" panel employs four menus with several channels that have features that can be controlled on the light via traditional wired DMX or by Lumen Radio wireless DMX. The White menu allows control of 1 to 100% dimming, color control from 2700 to 6500K, and Green/Magenta control. There are two color menus. In the Gels/Hue menu, the Kelvin range is extended to 2500 to 9900K. Among the channels is one called Gel that offers multiple presets for light conditions, such as mercury-vapor, and 100 often-used gel filters. A channel called Hue Angle (Hue) and another called Saturation (Sat) are also included in the Gel menu and function together like a 360-degree color wheel making over two million color combinations available. The second color menu provides RGB (Red, Green, Blue) control, permitting a user-selected combination to obtain any color in the visible spectrum. The RGB menu also allows you to dial in specific gel RGB values or control colors from a DMX console. Finally, there's an FX menu that creates effects such as Candle, Fire, TV, Police, Lightning, Paparazzi, Pulse, and Scroll. Within each effect there are presets that vary the parameters or change the rate of the chosen effect. The Image L80 is ready for worldwide use thanks to its 100 to 240 VAC power supply. The light comes with a 90-degree honeycomb grid to tighten its beam angle and limit spill light, providing directional control for selective lighting. This version of the light has a Yoke Mount. The yoke has a hole to accept industry-standard hardware such as a pin or receiver. - Benefits
-
- Kelvin presets
- Dial-in color temperature control between 2700 and 6500K
- Extended color palette from 2500 to 9900K
- Green/magenta control
- Hue angle and saturation adjustments
- RGB control
- FX control
- Works with apps with predetermined RGB presets or color wheels
- Can use preset buttons to store custom Kelvin settings
- Light levels do not change when selecting Kelvin settings
- No color shift while dimming
- Color-correct with a high CRI/TLCI rating
- Universal power input: 100 to 240 VAC
- Energy efficient, draws 2A at 120 VAC
- Flicker-free, quiet operation
- Full range onboard and DMX dimming
- DMX wireless link: Lumen Radio
- DMX auto terminate
- Metal alloy fixture includes removable gel frame, louver, and cardholders
- Slim 6.5" profile

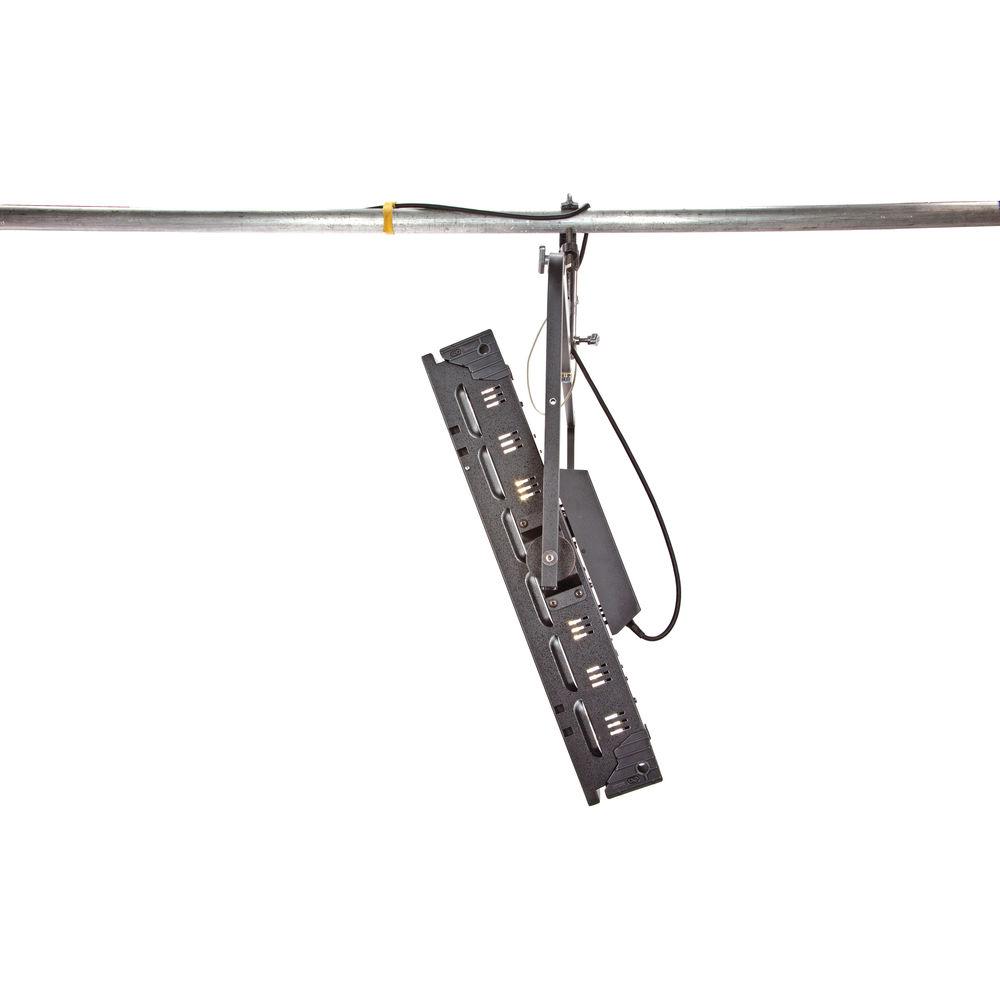

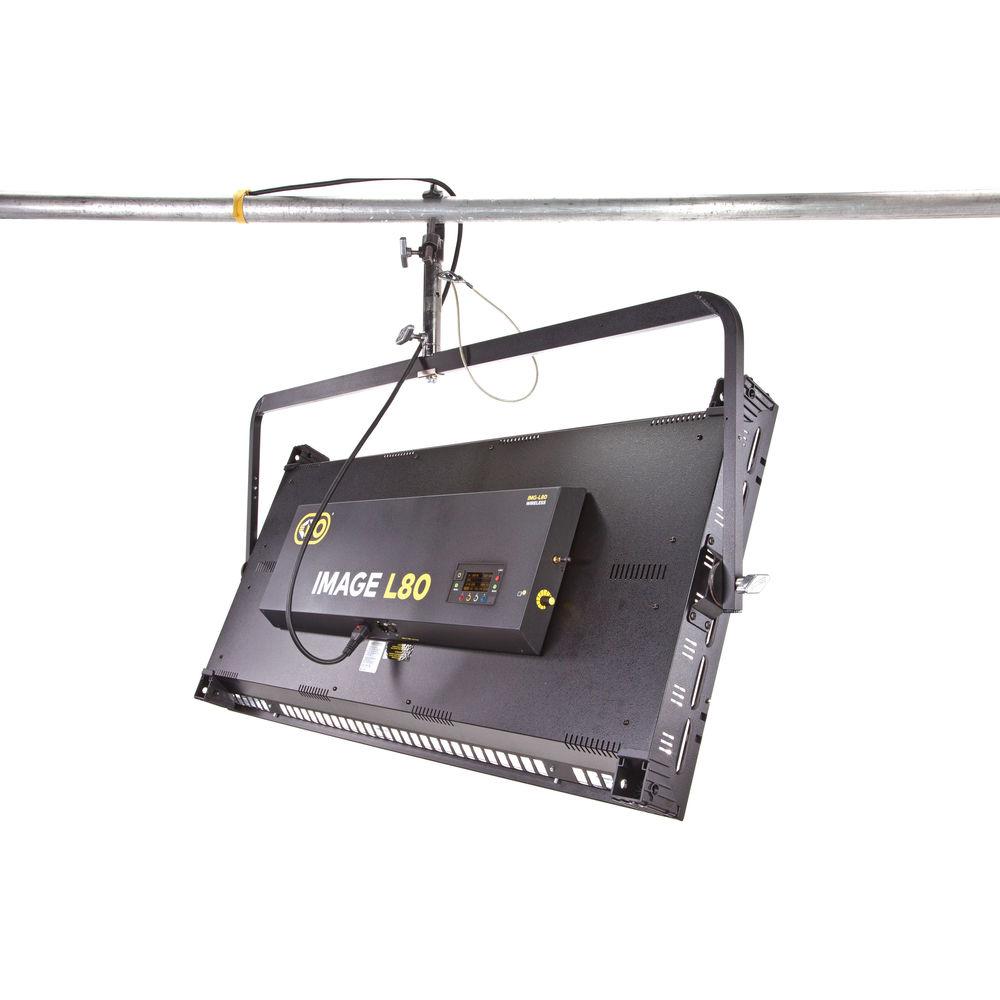

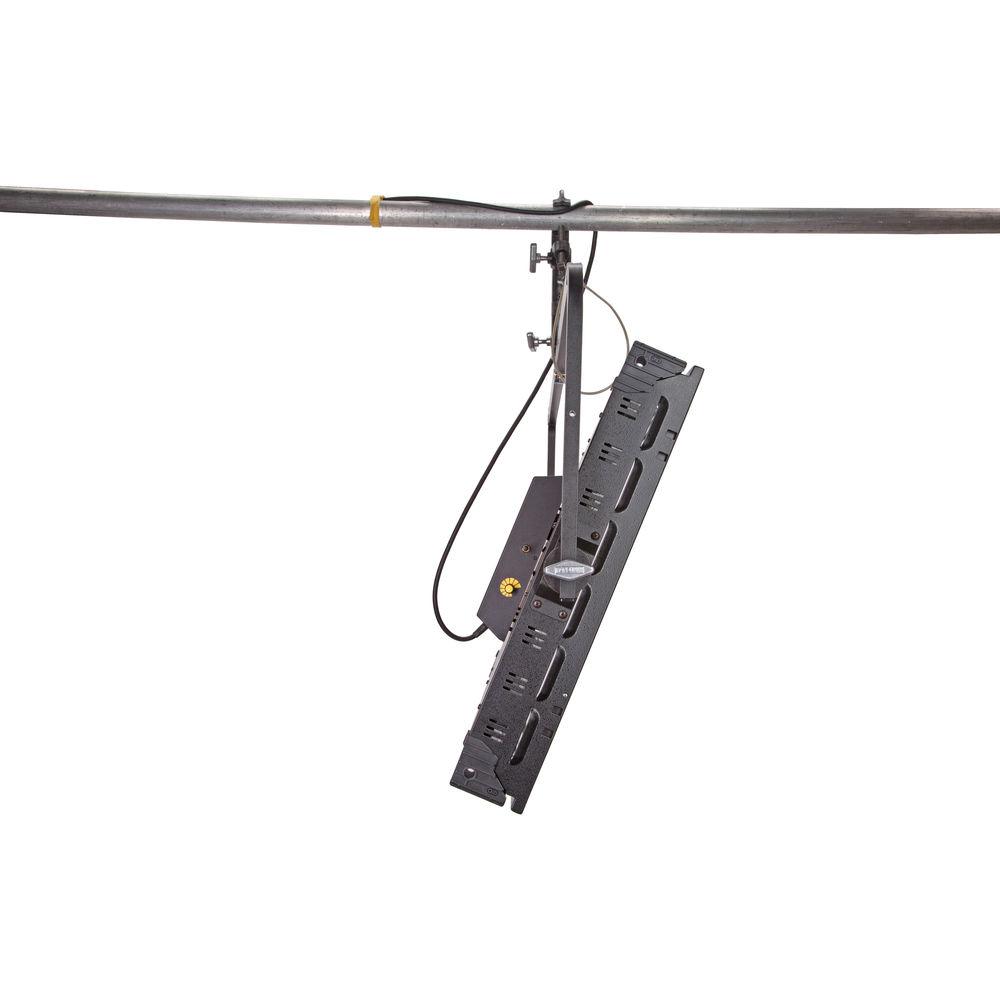

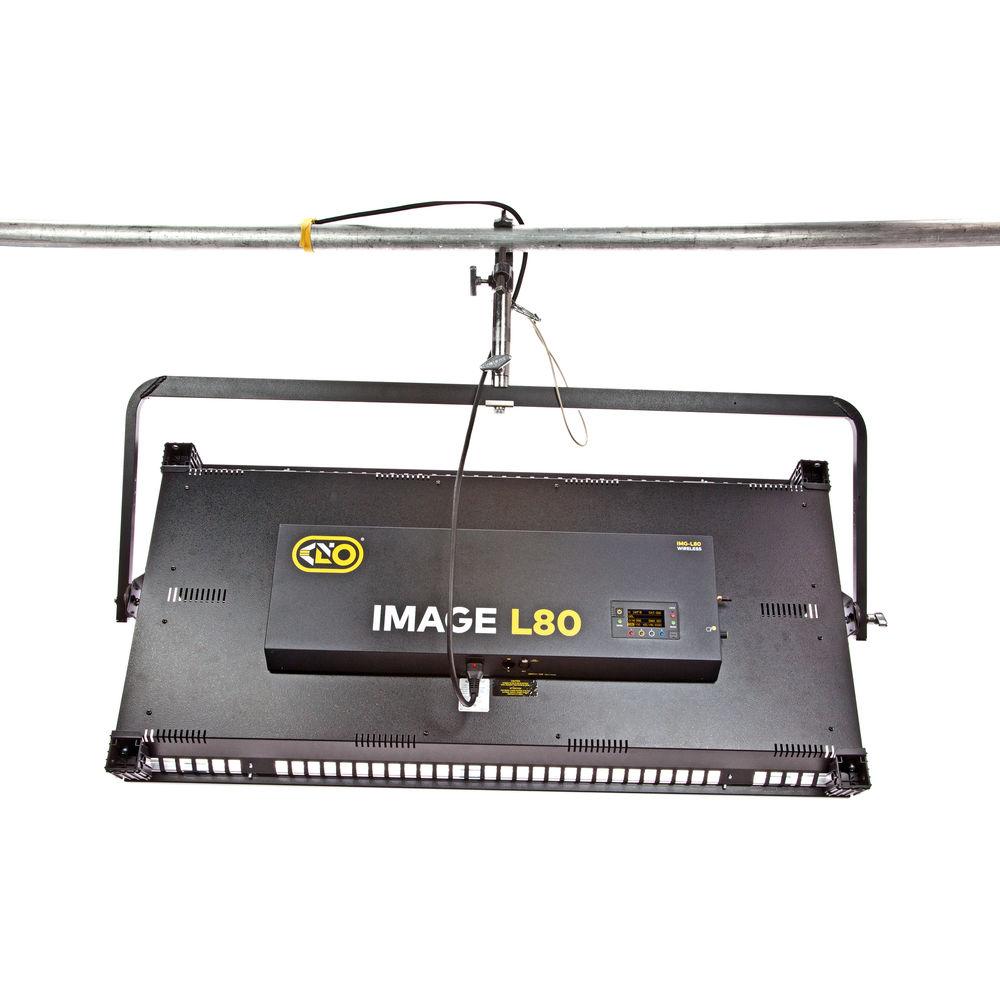

- Mounts to stand or can hang easily from a grid
In the Box Kino Flo Image L80 DMX LED Panel with Yoke Mount Image 80, 85 Gel Frame Eggcrate Louver for Image 80 and Flathead 80 (Black) Set of Card Holders Yoke Mount Limited 1-Year Warranty User Manual PDF 6.1mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Kino Flo Image L80 DMX LED Panel with Yoke Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKino Flo L80 LED DMX Specs | | | Color Temperature | 2500 to 9900K | | Color Accuracy Standard | CRI 96
TLCI 98 | | Dimming | Yes, 1 to 100% (Continuous) | | Display | LCD | | Housing Material | Aluminum | | Photometrics | 68 fc / 731.7 lux at 12' / 3.65 m | | Expected Lamp Life | 50000 Hours | | Fixture Dimensions | 54.0 x 28.0 x 6.5" / 137.2 x 71.1 x 16.5 cm | | Fixture Weight | 45.5 lb / 20.64 kg (Including Yoke) | | | | Battery Plate | None | | Power Input Connector | IEC | | DMX Connector | 5-Pin XLR | | | | Fixture Mount | None | | Accessory Mount | None | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Source | AC Adapter | | Max Power Consumption | 400 W | | | | Package Weight | 45.0 lb | | Box Dimensions (LxWxH) | 56.5 x 33.0 x 9.7" |
