User Manual for Kino Flo Interview 2' 4Bank, 2-Light Kit Click to enlarge the picture
Contents of the user manual for the Kino Flo Interview 2' 4Bank, 2-Light
- Product category: Fluorescent Lights Kino Flo
- Brand: Kino Flo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kino Flo Fluorescent Lights
|
User manual for the Kino Flo Interview 2' 4Bank, 2-Light contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kino Flo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kino Flo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kino Flo product will considerably shorten its lifespan!
|

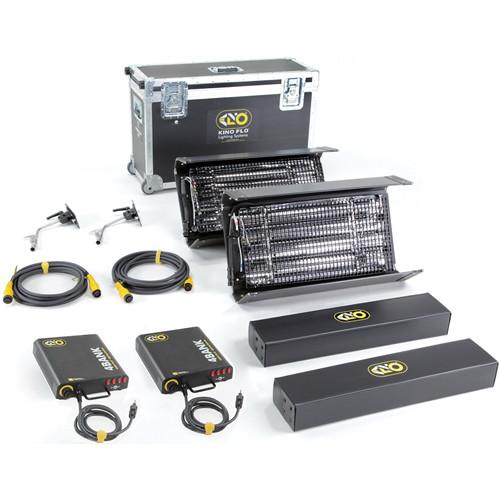

Product description The Interview 2' 4Bank, 2-Light Kit from Kino Flo is comprised of two 2', four-tube fluorescent fixtures, 2 4bank ballasts to power them, eggcrates to help control the light, 2 25' head extension cables, MTP-BL41 mounts with baby receiver with which to mount the units to a stand. A rolling kit case is included. Two cases for the fluorescent tubes are also provided.
This versatile kit is portable enough to be used for news gathering or any other location video shots but is equally at home in the studio. The 4Bank system was designed as a softlight source that could be plugged into the wall on location. With its narrow profile and size, the 4Bank could approximate the quality of light from bounced sources without losing set space. It was designed in this manner to allow the greatest flexibility when working on film production where the gaffer and DP are constantly being challenged to light unique locations and problem solve at a moment's notice. The 4Bank is a high output, high frequency electronic ballast with universal input voltage from 100-240 VAC, that can operate four lamps up to 75 feet between ballast and fixture. Dedicated switches allow for individual control of each lamp. The ballast sends a high output current to the lamps to drive the light as brightly as possible. Its high-frequency electronics prevent any type of flicker. Kino Flo's engineering ensures stable operation without magnetic hum or cooling fans to interfere with the sound recording on set.
All Kino Flo lights employ True Match lamps which are formulated to correspond to the spectral distribution curves of film and video cameras as well as look correct to the eye. They are designed to match the colors from quartz units or daylight sources such as HMIs. This gives the camera operator the option of mixing quartz hard light sources with fluorescent soft sources. In the Box Kino Flo Interview 2' 4Bank, 2-Light Kit (120U) 2 x 4Bank Fixture Only (2') vywzqdxrsvcsf 2 x 4-Bank Ballast 2 x MTP-BL41 Mount w/ Baby Receiver 2 x 25' Extension Cable 2 x Lamp Case Carry Case Limited 1-Year Warranty on Lights Limited 2-Year Warranty on Ballasts Table of Contents
|
Upload User Manual
Have you got an user manual for the Kino Flo Interview 2' 4Bank, 2-Light Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKino Flo 4Bank Specs | | | Input Voltage | 100 - 240 VAC, 50/60 Hz | | Lamps | 4 x 2' T-12 True Match Fluorescent Lamps | | Mounting | MTP-BL41 Kino 41L Mount with Baby Receiver | | Operating Temperature | 14 - 122°F (-10 - 50°C). | | Dimensions | 27 x 13 x 3.5" w/6.5" Barndoors (69 x 33 x 9 cm w/16.5 cm Barndoors) | | Weight | 7.5 lb (3.4 kg) | | | | Ballast | Input Voltage: 100~240 VAC 50/60 Hz
Output Frequency: 25 kHz
Amperage: F75/2.6 A, F40/2.5 A, F30/1.6 A, F20/0.9 A
Lamp Switching: 1~4
Output Switching: 4' / 2'
Ballast Size: 13 x 9.5 x 3" (33 x 24 x 7.6cm)
Weight: 4.9 lb (2.2 kg) | | | | Kit Weight | 57.5 lb (26 kg) | | Case Dimensions | 35.5 x 13 x 22" (90 x 33 x 56 cm) | | | | Package Weight | 66.0 lb | | Box Dimensions (LxWxH) | 35.5 x 23.5 x 13.5" |
