Kino Flo Interview DMX 2' 4Bank

User Manual for Kino Flo Interview DMX 2' 4Bank Two Light Kit

• Product category: Fluorescent Lights Kino Flo
• Brand: Kino Flo
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Kino Flo Fluorescent Lights

Product description

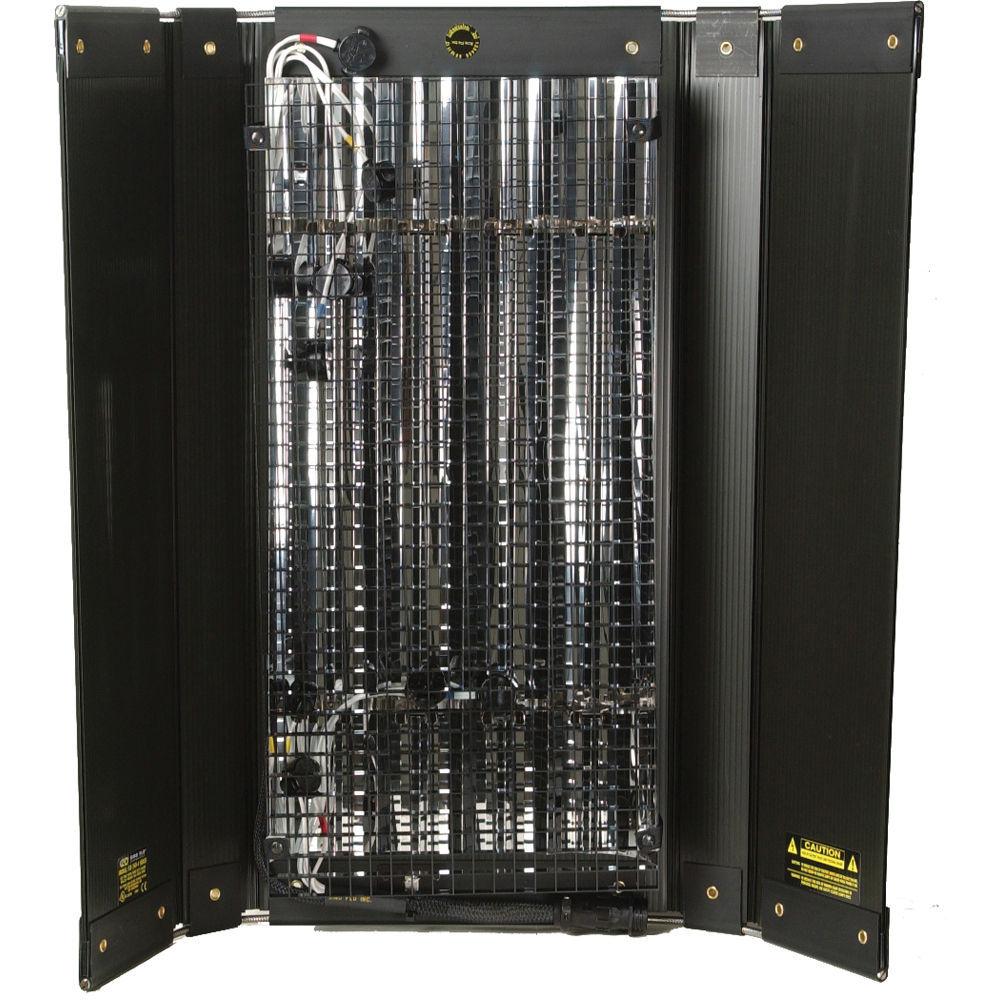

• 4Bank Fixture Only (2') The 2' Kino Flo 4Bank Select System has won awards as well as the hearts of lighting artists from around the world. More 4Banks are used in film, photo and video production than any other fluorescent luminaire. The 4Bank delivers soft, cool, flicker-free light like a bounced source. It needs only a little power. A single 4Bank can display colors ranging from full-spectrum True Match lamps to red, pink, blue, gold, and green. Fluorescent tubes and mounting plates are available separately.
  • Lightweight, a 4Bank can be hand held or taped to a wall.
  • Fluorescent tubes may be pulled out of the fixture and built directly into a set.
  • Head extension cables allow the fixtures to be place up to 25' from their ballasts.

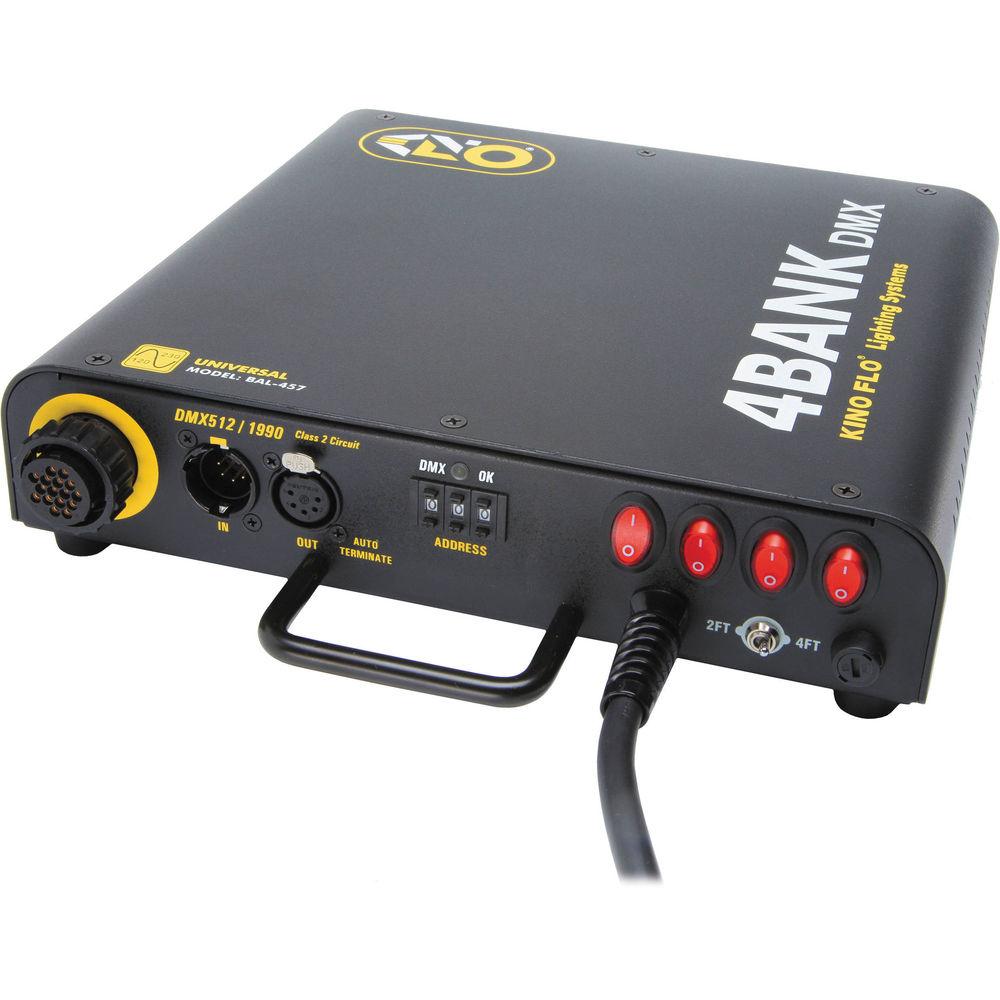

• 4Bank DMX Ballast (North American Plug) The North American plug 4Bank DMX Ballast from Kino Flo is a high frequency ballast with DMX 512/1990 support with Auto Terminate. It can control the four lamp 4Bank fluorescent lighting fixture from a distance of up to 75' for extra versatility with the use of optional extension cables. It also will work with either the 2' or 4' lamps. The ballast features four on/off switches for controlling each lamp independently. Also, this version has a universal voltage of 100-240 VAC and features a North American plug.

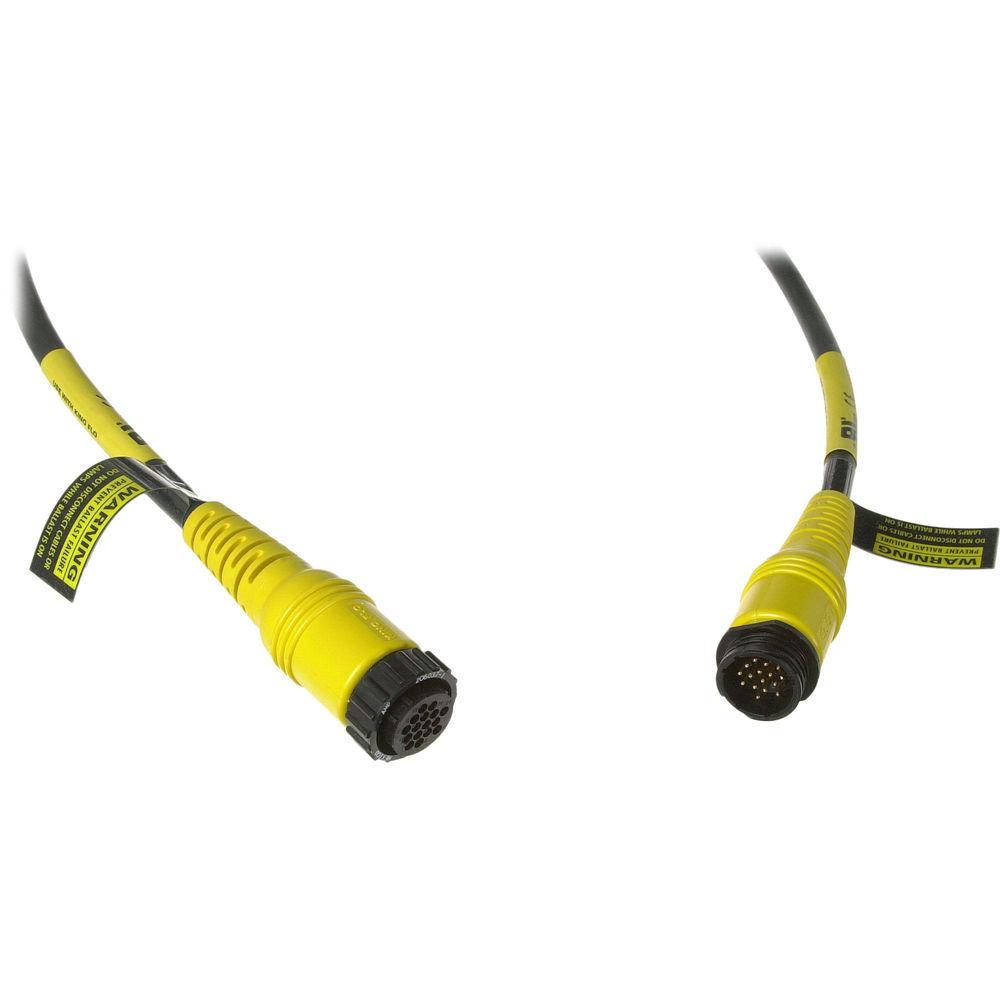

• Extension Cable for 4-Bank Fixture - 25' Extends the range of one of the Kino Flo's 4-Bank fixture components.
  25 feet long.

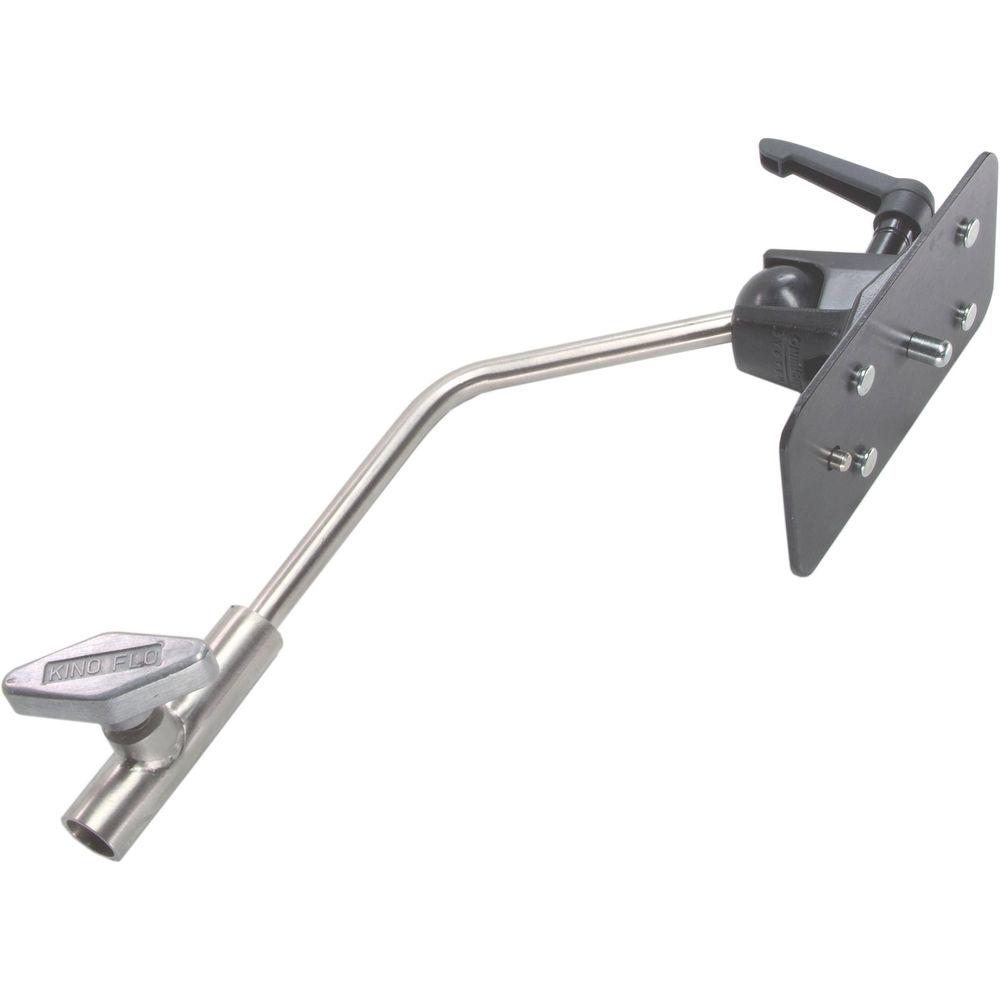

• Twist-On Mounting Plate w/Baby Receiver Many Kino-Flo fixtures do not come with mounting hardware. This is a twist-on locking mounting plate that secures to the rear of a Kino-Flo fixture, and it allows mounting to a 5/8" light stand top.

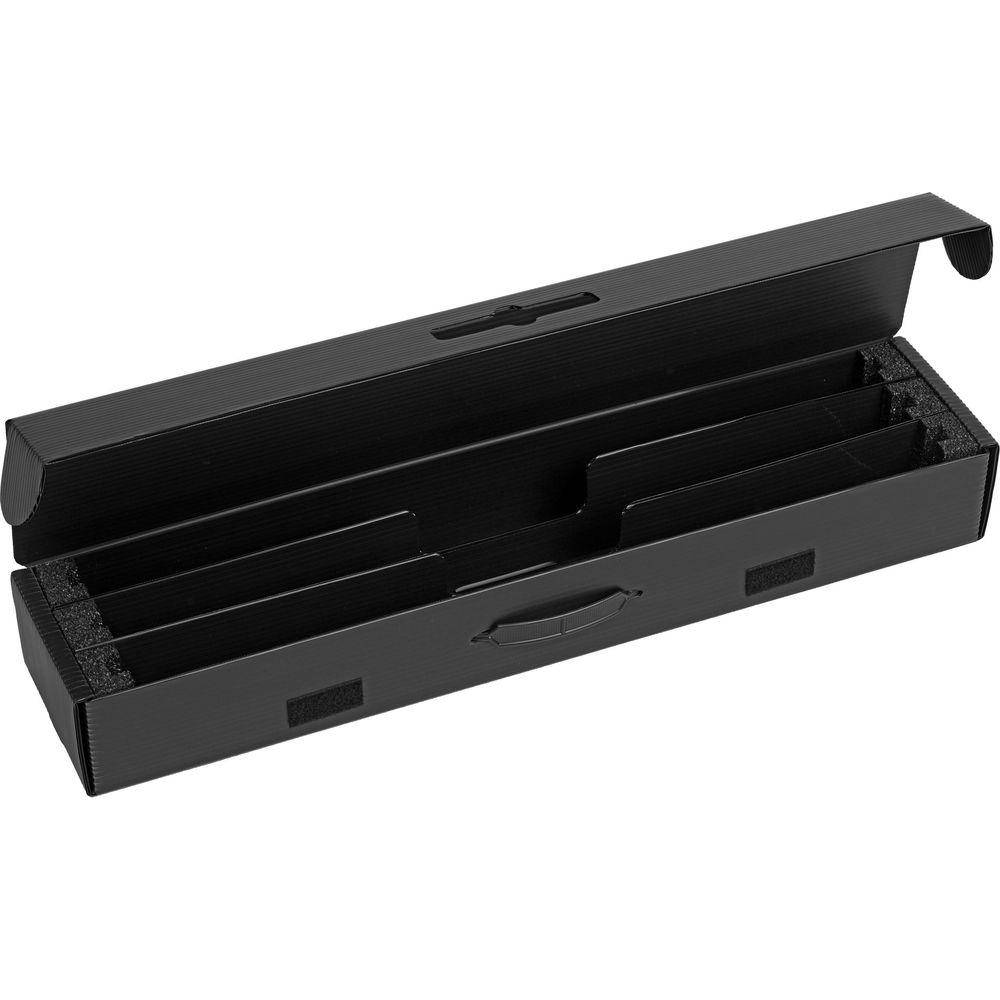

• T12 6-Lamp 2' Carry Case Kino Flo T12 6 Lamp Carry case hold up to 6- 2 ft long flourescent tubes.

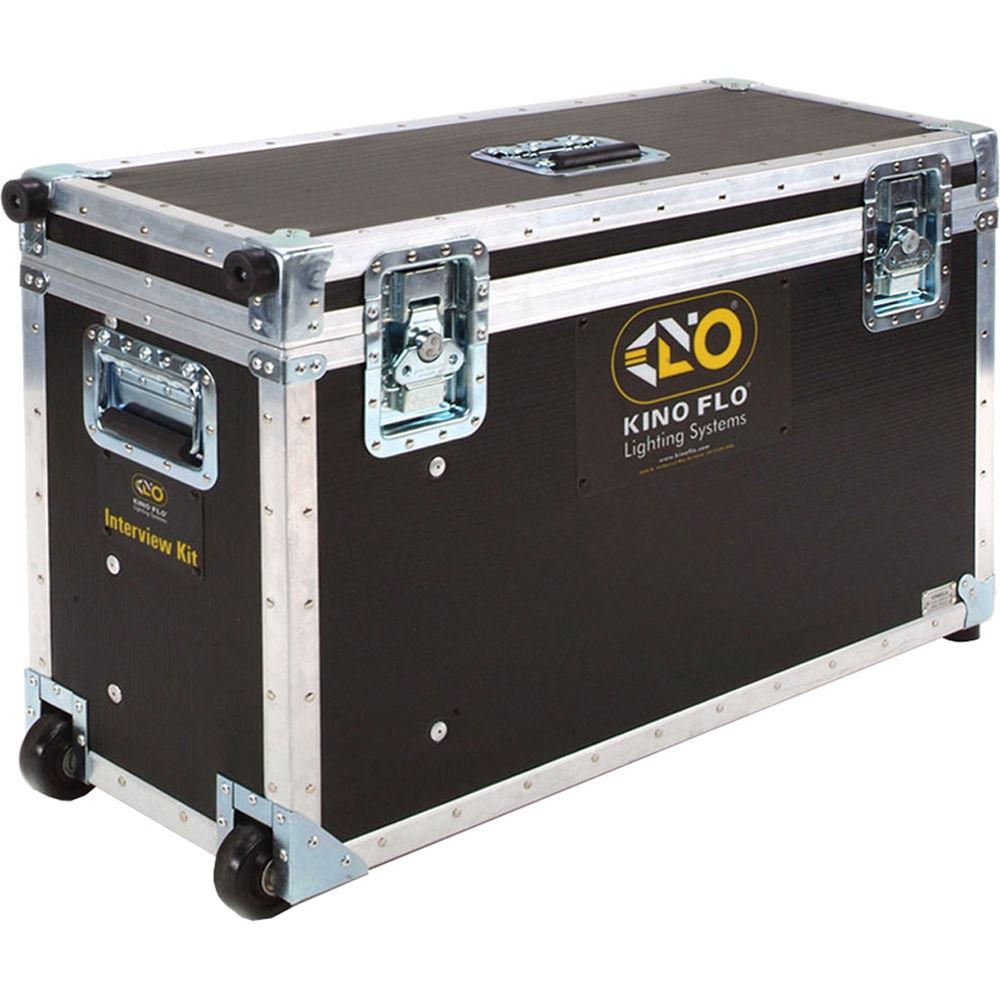

• KAS-INT2 Interview Ship Case The Kino Flo KAS-INT2 Interview Ship Case (Black with Chrome) is a vinyl clad plywood case with reinforced edges and corners. It has a custom-cut padded interior that is designed to carry two Kino flo 2.0' four bank lighting systems. The case has recessed butterfly latches and recessed spring-action handles.
  Construction
  • • Vinyl clad plywood exterior
    • Interior custom-cut padding
    • Reinforced edges and corners
    • Recessed butterfly latches
  • Recessed spring-action handles
  • Compatible with 2 Kino Flo 2.0' four bank lighting systems

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• 1- Foam tube holder (INSL6)

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• 4Bank Fixture Only (2')

  Input Voltage	120V AC
  Lamps	4 - F40/T12, optional
  Ballast	Select/Ve 4Bank, Non-dimming
  Mounting	Mounting plate with 3/8" Pin, optional
  Weight	7.5 lb (3.4 kg)
  Dimensions	27.5 x 13 x 3.5" (69 x 33 x 9 cm)

  Box Dimensions (LxWxH)	27.0 x 13.5 x 4.0"

• 4Bank DMX Ballast (North American Plug)

  Input Voltage	100-240 VAC, 50/60 Hz
  Amperage	F75/2.6 A, F40/2.5 A, F30/1.6 A, F20/0.9 A
  Output Frequency	25 kHz
  Lamp Switching	1-4
  Output Switching	4 / 2' (122 / 61 cm)
  Operating Temperature	14 to 122°F (-10 to 50°C)
  Dimensions	12 x 11 x 3" (31 x 28 x 8 cm)
  Weight	5.3 lb (2.4 kg)

  Box Dimensions (LxWxH)	14.6 x 11.7 x 3.1"

• Extension Cable for 4-Bank Fixture - 25'

  Box Dimensions (LxWxH)	12.1 x 12.05 x 3.05"

• Twist-On Mounting Plate w/Baby Receiver

  Box Dimensions (LxWxH)	12.8 x 3.4 x 3.2"

• T12 6-Lamp 2' Carry Case

  Construction	Plastic lidded shell, clasp, foam interior
  Dimensions	26 x 6 x 3.5 in (48 x 18 x 36 cm)
  Weight	.9 lb (.41 kg)

  Box Dimensions (LxWxH)	26.05 x 5.7 x 3.5"

• KAS-INT2 Interview Ship Case

  Closure Type	Latch
  Carry and Transport Options	Recessed Handle
  Material of Construction	Wood
  Exterior Dimensions (W x H x D)	13 x 22.5 x 35.5" / 33 x 57 x 90 cm
  Weight	25 lb / 11.3 kg

  Box Dimensions (LxWxH)	37.0 x 24.0 x 15.5"
