User Manual for Kino Flo LED Controller for Kino Flo Select 20 and 30 Fixtures Click to enlarge the picture
Contents of the user manual for the Kino Flo LED Controller for Kino
- Product category: Lighting Consoles & Controllers Kino Flo
- Brand: Kino Flo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kino Flo Lighting Consoles & Controllers
 |
User manual for the Kino Flo LED Controller for Kino contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kino Flo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kino Flo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kino Flo product will considerably shorten its lifespan!
|

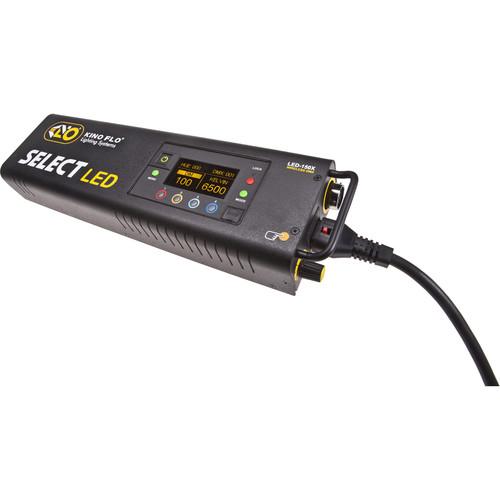

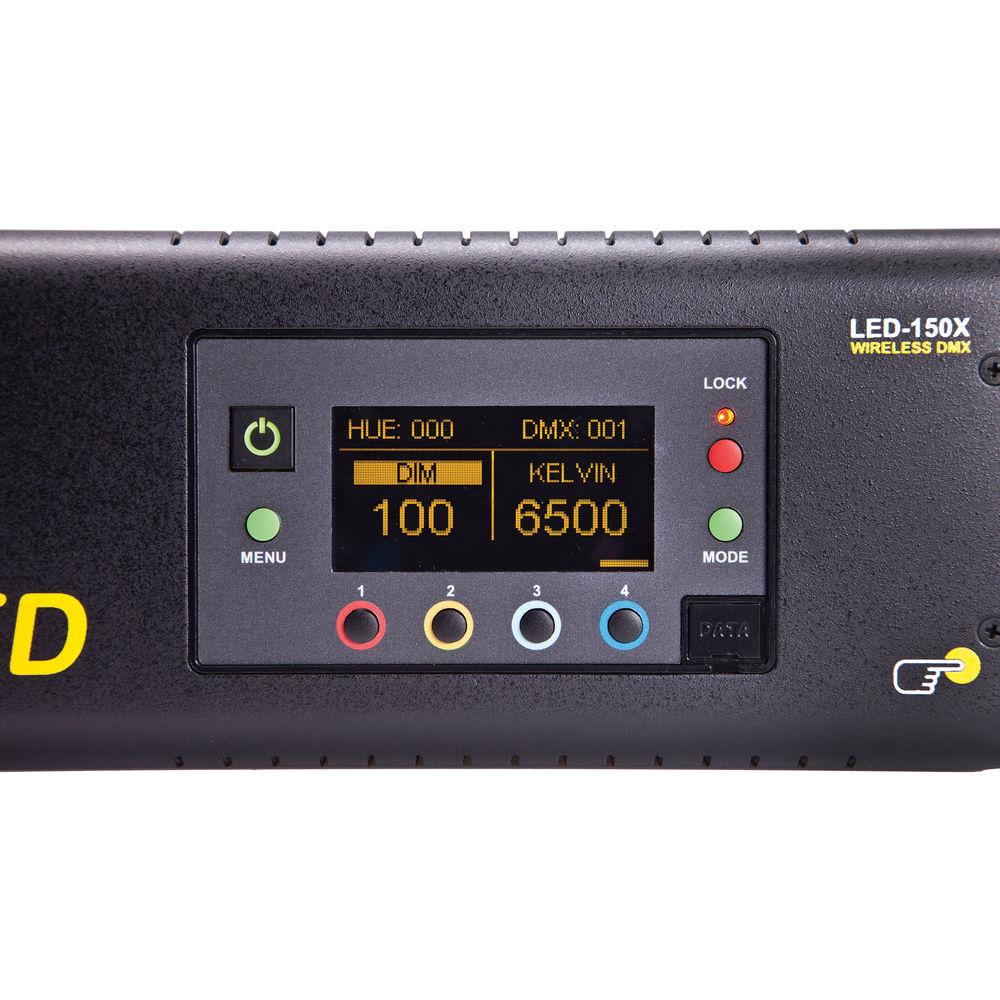

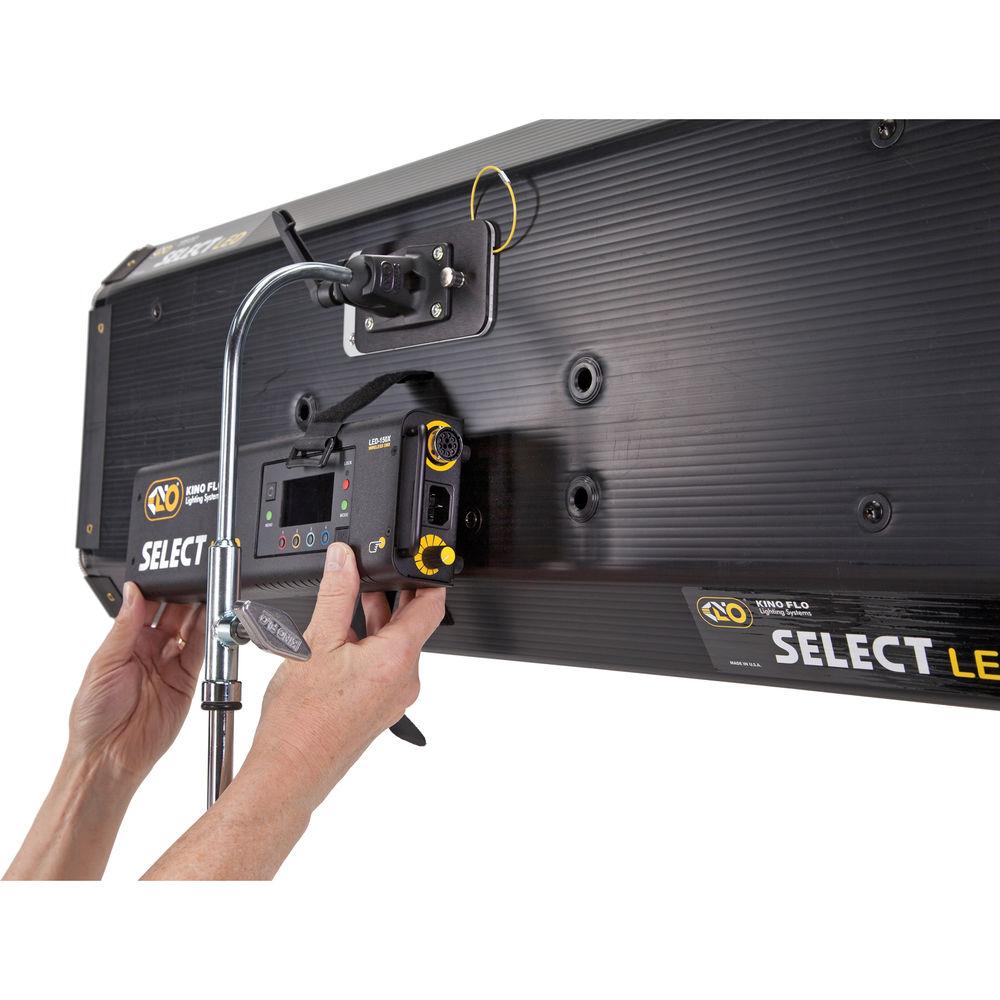

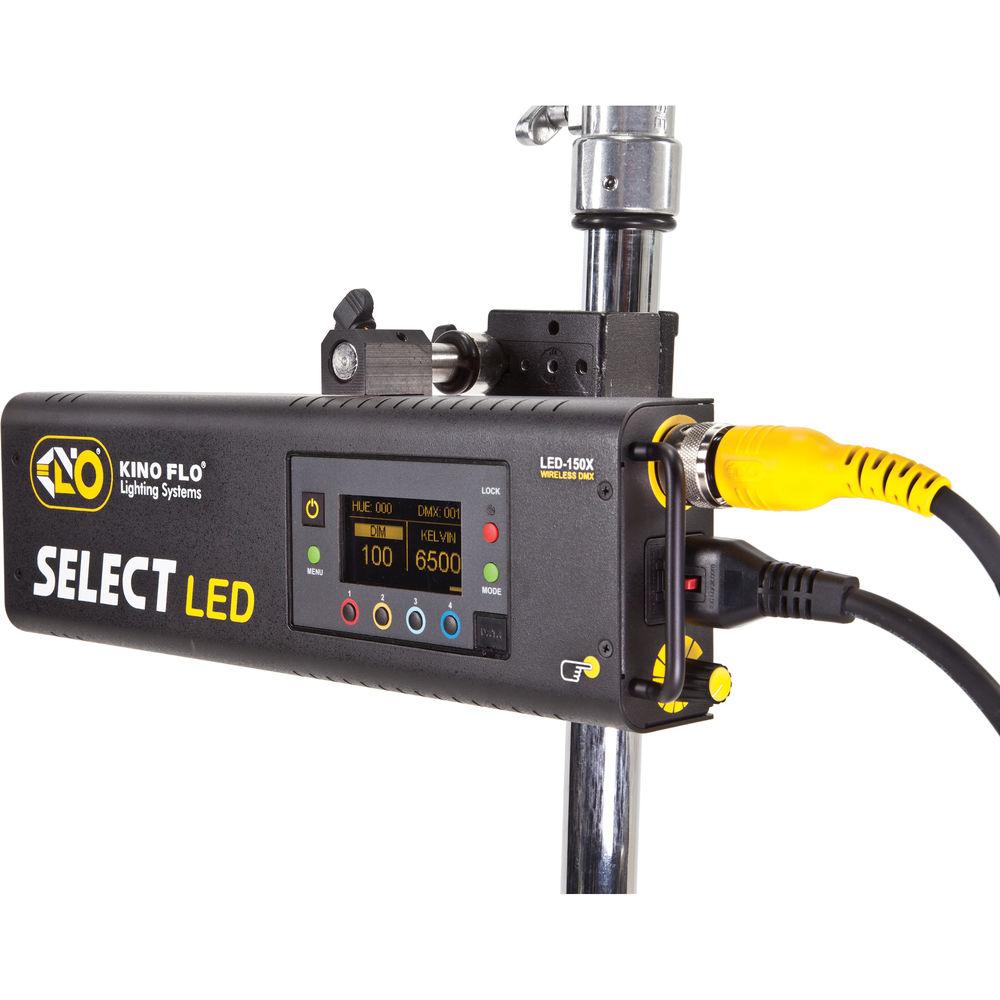

Product description What You Need to Know When Working with DMX Read More The LED Controller for Kino Flo Select 20 and 30 Fixtures from Kino Flo is a detachable controller for the Select 20 or Select 30 LED heads. The controller can be mounted on the back of the lamp head or used remotely up to 25' away with an optional extension cable. It enables the fixture to produce a consistent light level across the variable 2700 to 6500K color temperature range in the White Menu and 2500 to 9900K in the Color Menu. The White Menu has Dimming, Kelvin and Green/Magenta adjustment channels. The Color Menu gives you access to Gel, Hue Angle and Saturation channels. The Gel channel includes presets such as blue and green screen, sodium vapor, mercury vapor and over 100 well-known lighting gels. Hue Angle and Saturation channels act like a traditional color wheel with a 360-degree color range and choice of color intensity. The detachable controller has a display screen for menu navigation and information display, as well as physical buttons for navigation and settings.
This hard-wired DMX controller is augmented by wireless DMX, which is provided by Lumen Radio. It can accept worldwide AC power and can also be powered by DC via a 3-pin XLR connector. - Benefits
-
- Tunable Kelvin 2500K to 9900K in Color Menu
- Tunable Kelvin 2700K to 6500K in White Menu
- Dimming without color shift
- Green/Magenta control
- Kino Flo presets and Gel presets
- Dial-in color using Hue angle and Saturation control
- Universal input 100-240 VAC and 18-36 VDC
- Manual and DMX dimming with Auto Terminate
- DMX wireless (Lumen Radio)
- Flicker-free, dead-quiet operation
In the Box Kino Flo LED Controller for Kino Flo Select 20 and 30 Fixtures Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kino Flo LED Controller for Kino Flo Select 20 and 30 Fixtures in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKino Flo LED-150X-120U Specs | Power | VAC: 100 to 240 V @ 50/60 Hz, 150 W
VDC: 18 to 36 V, 150 W
1.3 A @ 120 VAC, 7.0 A at 24 VDC | | Color Temperature | 2700 to 6500K in White Menu
2500 to 9900K in Color Menu | | Dimming | 100 - 1% | | Dimensions | 15 x 4.5 x 3.0" (38 x 11.5 x 8.0 cm) | | Weight | 4.5 lb (2.0 kg) | | | | Package Weight | 4.855 lb | | Box Dimensions (LxWxH) | 17.0 x 6.9 x 3.95" |
