Product description

• CFX-SL20 Select LED 20 DMX Controllable Fixture (Head Only) The CFX-SL20 Select LED 20 DMX Controllable Fixture (Head Only) from Kino Flo features a detachable controller that allows you to control the fixture manually or via hard or wireless DMX. This SKU is for the fixture head and included 90° honeycomb grid only. All the other components must be sourced separately and are not included. The controller (not included) can be mounted on the back of the fixture or used remotely up to 25' away with an optional 25' extension cable. Producing a consistent light level across the variable 2700 to 6500K color temperature range, the fixture is flicker-free at any dimming setting from 100 to 1%. The detachable controller has a display screen for menu navigation and information display as well as physical buttons for navigation and settings.

  The hard-wired DMX control is augmented by wireless DMX, which is provided by Lumen Radio. In addition to color temperature presets, you can also adjust the green/magenta hue of the fixture if you need to match existing fixtures. The fixture is flicker-free and virtually silent in operation, making it suitable for use on location as well as in a studio. It features built-in barndoors (top and bottom) and a form factor reminiscent of fluorescent Kino Flow light fixtures. It can accept worldwide AC power and can also be powered by DC.
  • A detachable controller (not included) mounts to the back of the fixture as with a traditional Kino Flo unit. However, you can easily remove it and, by using an extension cable (not included), control the fixture from up to 25' away. This allows you to place your fixture flush against a wall or hang it from a grid and still control it easily, without having to reach around or climb a ladder to manually access the controls.
  • Included with the fixture is a 90° honeycomb grid that helps control light spill and give shape to the light.
  • The color temperature of the fixture is continuously variable from 2700 to 6500K without the intensity of the light changing as a result of changing the color temperature of the fixture. In other words, there is no brightness spike around 4300K as you change the color temperature from 2700 to 6500K.
  • The fixture can be dimmed from 100 to 1% brightness, remaining flicker-free at each brightness level.
• LED Controller for Kino Flo Select 20 and 30 Fixtures The LED Controller for Kino Flo Select 20 and 30 Fixtures from Kino Flo is a detachable controller for the Select 20 or Select 30 LED heads. The controller can be mounted on the back of the lamp head or used remotely up to 25' away with an optional extension cable. It enables the fixture to produce a consistent light level across the variable 2700 to 6500K color temperature range in the White Menu and 2500 to 9900K in the Color Menu. The White Menu has Dimming, Kelvin and Green/Magenta adjustment channels. The Color Menu gives you access to Gel, Hue Angle and Saturation channels. The Gel channel includes presets such as blue and green screen, sodium vapor, mercury vapor and over 100 well-known lighting gels. Hue Angle and Saturation channels act like a traditional color wheel with a 360-degree color range and choice of color intensity. The detachable controller has a display screen for menu navigation and information display, as well as physical buttons for navigation and settings.

  This hard-wired DMX controller is augmented by wireless DMX, which is provided by Lumen Radio. It can accept worldwide AC power and can also be powered by DC via a 3-pin XLR connector.
  Benefits
  • Tunable Kelvin 2500K to 9900K in Color Menu
  • Tunable Kelvin 2700K to 6500K in White Menu
  • Dimming without color shift
  • Green/Magenta control
  • Kino Flo presets and Gel presets
  • Dial-in color using Hue angle and Saturation control
  • Universal input 100-240 VAC and 18-36 VDC
  • Manual and DMX dimming with Auto Terminate
  • DMX wireless (Lumen Radio)
  • Flicker-free, dead-quiet operation
• MTP-BC41 Mount with 5/8" Curve Receiver The MTP-BC41 Mount with 5/8" Receiver from Kino Flo is a redesigned version with improved bearings for more gripping power and enhanced jaws for greater flexibility. The mount has a curved design with a baby (5/8") receiver for light stands. It fits Select, Celeb 201 and 401, Double, Diva-Lite, and Tegra fixtures.
• Extension Cable 150 for Select LED System (25') The 25' Extension Cable 150 for Select LED System from Kino Flo provides extra distance between the Select LED head and its ballast. Up to 2 extensions can be joined for a total of 50'.

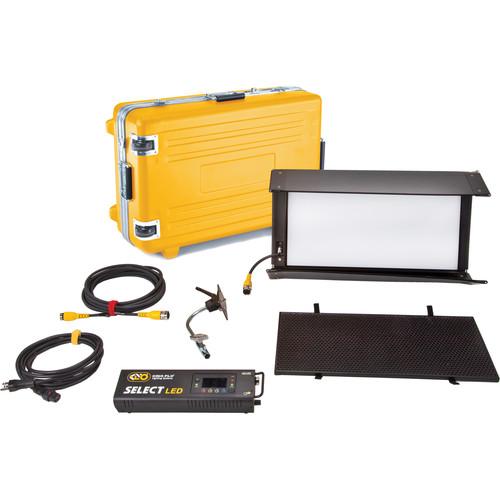

• Flight Case for Diva 20 Fixture and Accessories (Yellow) Store, protect, and transport your Diva 20 lighting fixture, controller, 25' extension cord, mount, stand, and more with the yellow Flight Case for Diva 20 Fixture and Accessories from Kino Flo. The case has a hard shell for impact protection and features latch closure for easy access to gear. Carry the case with the handles, or roll on the two built-in wheels.

• 90° Honeycomb Grid

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Limited 90-Day Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• CFX-SL20 Select LED 20 DMX Controllable Fixture (Head Only)

  CRI	95
  Color Temperature	2700-6500K
  Photometrics	Foot Candles 2.0' / 0.6 m: 508 4.0' / 1.2 m: 154 6.0' / 1.8 m: 70 Lux 3.3' / 1.0 m: 2409 6.6' / 2.0 m: 634 9.8' / 3.0 m: 288
  Dimming	100 to 1%
  Operating Conditions	14 to 104°F / -10 to 40°C
  Dimensions	Fixture: 26.5 x 13.0 x 3.5" / 67.3 x 33.0 x 8.9 cm Built-In Barndoors: 6.0" / 15.2 cm
  Weight	10.0 lb / 4.5 kg

  Box Dimensions (LxWxH)	26.4 x 13.4 x 3.4"

• LED Controller for Kino Flo Select 20 and 30 Fixtures

  Power	VAC: 100 to 240 V @ 50/60 Hz, 150 W VDC: 18 to 36 V, 150 W 1.3 A @ 120 VAC, 7.0 A at 24 VDC
  Color Temperature	2700 to 6500K in White Menu 2500 to 9900K in Color Menu
  Dimming	100 - 1%
  Dimensions	15 x 4.5 x 3.0" (38 x 11.5 x 8.0 cm)
  Weight	4.5 lb (2.0 kg)

  Box Dimensions (LxWxH)	17.0 x 6.9 x 3.95"

• MTP-BC41 Mount with 5/8" Curve Receiver

  Receiver

  5/8" (16 mm)

  Box Dimensions (LxWxH)	12.7 x 3.4 x 3.4"

• Extension Cable 150 for Select LED System (25')

  Box Dimensions (LxWxH)	11.6 x 9.58 x 1.18"

• Flight Case for Diva 20 Fixture and Accessories (Yellow)

  Closure Type	Latch
  Carry and Transport Options	Handle
  Exterior Dimensions (W x H x D)	30 x 10.5 x 21" / 76 x 27 x 53 cm
  Weight	20 lb / 9.1 kg

  Box Dimensions (LxWxH)	31.5 x 23.0 x 12.0"
