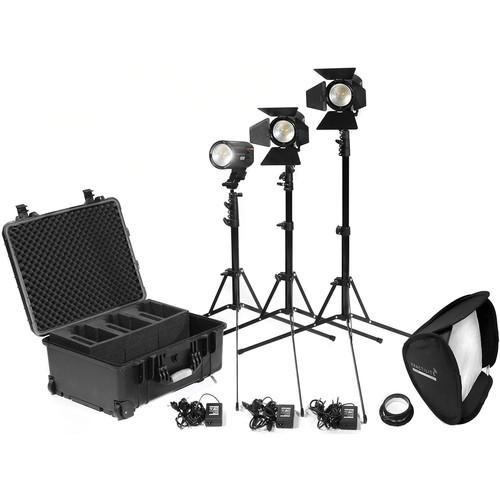

User Manual for Kinotehnik Practilite 602 3-Light Kit with Light Stands

• Product category: LED Lights Kinotehnik
• Brand: Kinotehnik
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Kinotehnik LED Lights

Product description

• Practilite 602 LED Fresnel The Practilite 602 LED Fresnel from Kinotehnik is a small, lightweight light source with a 3.2" borosilicate Fresnel glass lens capable of an impressive spot-to-flood spec of 15-75 degrees for variable field coverage. Flexibility is key to the design of the Practilite. Light intensity is variable from 5 to 100% negating the need of jockeying the fixture back and forth once you've found the perfect position. The same goes for color. While others are fumbling with filters you can take advantage of the 602's wide color variability from 3000 to 6000K to match existing light conditions or fixtures or just for creative effects. COB LEDs make possible a high CRI of 96 to ensure faithful rendering of colors down to the subtlest of hues. The Practilite is designed to work with the Practilite Remote Control app available for iPhones and iPads that lets you control its functions with your iOS or Android device. Additionally, it's Bluetooth compatible, allowing remote control of up to 6 fixtures. Once you're acquainted with the Practilite you'll want to use it everywhere and Kinotehnik makes it easy with the inclusion of a 100-240 VAC power adapter for worldwide use. And no power is no problem. The 602 can also run on V-Mount or Gold Mount batteries with optional adapters. The light comes with 4-way barndoors but it's also compatible with third party 4" studio head light modifiers such as those from Profoto.
  Smart Sync Connectivity
  • The advanced Practilite 602 is ideally suited for permanent and semi-permanent installations. The light is especially effective in places like small and home studios or even for high quality gallery lighting. Smart Sync Connectivity enables synchronous control from one Master fixture.
  Smartphone Control via Practilite Remote Control App
  • The Practilite 602 is designed to be controlled wirelessly with the free Practilite Remote Control App for Android and iOS 8.0+ and Android devices, including both the iPhone and iPad. You can connect and control up to 6 Practilite fixtures wirelessly with your smartphone. Adjust brightness, color temperature and identify connected fixtures for ease of use and convenient operation.
  Greater Light Range
  • This compact and powerful light produces a greater light range than conventional LED fixtures. Its 3.2" (80mm) Fresnel lens has a 15 to 75-degree, spot-to-flood focusable beam angle ensuring wide coverage and pinpoint accuracy.
  Variable Color Temperature
  • Whether it's CFL, LED, halogen or daylight, the Practilite 602 is just the right tool to adapt to various lighting conditions.
  Flicker-Free, Compact and Durable
  • The Practilite 602 is flicker-free, which allows for perfectly lit slow motion shots. Compact and durable, the light's aircraft grade aluminum CNC-machined construction allows safe, easy and cost effective transportation. The universal power supply is usable internationally.
  Other Features
  • Bright OLED screen readout
  • Manual quick draw beam angle control of 15-75 degrees
  • Fresnel lens: 3.2" (80mm), borosilicate glass
  • Tunable color temperature from 3000 to 6200K
  • Very high CRI ≤96
  • Max current draw 90W and long lamp life
  • 100-240 VAC, 14-28 VDC: can be powered from AC outlet or batteries
  • Attaches to any standard 5/8" (Baby) stud
  • 4-Way barndoors included
  • Compatible with third party 4" studio light modifiers such as Profoto
  • Speedring insert adapters for most manufacturers softboxes are available separately
  • Silent hybrid cooling system
  • Boost Mode increases output 140% when using AC power
  • Clean beam output without any visible artifacts due to state of the art COB technology
  • Easily control up to 6 fixtures via Bluetooth connection within 30' range
  Photometrics
  • Spot 15°:
    @ 3.3' (1.0m): 930 fc / 10,000 lux with a beam diameter of 1.0' (34cm)
    @ 6.6' (2.0m): 233 fc / 2508 lux with a beam diameter of 6.6' (2.0m)
    @ 9.9' (3.0m): 103 fc / 1110 lux with a beam diameter of 2.8' (86cm)
    Boost:
    @ 3.3' (1.0m): 1,394 fc / 15,000 lux with a beam diameter of 1.0' (34cm)
    @ 6.6' (2.0m): 348 fc / 3750 lux with a beam diameter of 6.6' (2.0m)
    @ 9.9' (3.0m): 165 fc / 1670 lux with a beam diameter of 2.8' (86cm)
    Flood 75°:
    @ 3.3' (1.0m): 290 fc / 3100 lux with a beam diameter of 5.0' (150cm)
    @ 6.6' (2.0m): 73 fc / 780 lux with a beam diameter of 9.5' (290cm)
    @ 9.9' (3.0m): 32 fc / 344 lux with a beam diameter of 14' (430cm)
    Boost:
    @ 3.3' (1.0m): 437 fc / 4700 lux with a beam diameter of 5.0' (150cm)
    @ 6.6' (2.0m): 110 fc / 1180 lux with a beam diameter of 9.5' (290cm)
    @ 9.9' (3.0m): 48 fc / 522 lux with a beam diameter of 14' (430cm)
• Practilite 600 Portable Bi-Color LED Fresnel The Practilite 600 Portable Bi-Color LED Fresnel from Kinotehnik is a Dual Phosphor LED fixture with color temperature that's variable from 3000 - 6000K to match ambient light conditions or other fixtures. The flexible Practilite 600 is also dimmable from 5-100% with settings displayed on its OLED screen. The compact 4 x 5.5 x 6" light outputs the equivalent of a 300-450 W comparable tungsten fixture while maintaining a CRI of 96 for faithful and accurate rendition of color. Control features include local adjustments on the unit, as well as Android and iOS 8.0 and above devices via a Practilite Remote Control App. Bluetooth also allows you to control up to 6 fixtures at distances up to 30'. Once you experience the control and convenience features of the Practilite 600, you'll want to take it everywhere, and thanks to its multi-voltage 100-240 VAC power supply, you can use it worldwide.
• Softbox with Speed Ring for Practilite (20 x 20") The 20 x 20" Softbox with Speed Ring for Practilite softens the light output and reduces the Practilite 600 and 602's contrast. It features quick setup and break down and folds flat for storage and transport.
• Light Stand (7') Ideal for location work and a perfect match for the Practilite series of lights, the 7' Light Stand from Kinotehnik features black anodized construction and a reverse folding leg design that allows the stand to break down to just 20" in length. The four-section, lightweight 2.5 lb stand is topped by a 5/8" stud with a 1/4"-20 male thread.
• 1560 Injection-Molded Waterproof Wheeled Case for 2-3 Light Kit with Stands Store, protect, and transport a two-to-three instrument light kit with stands in the Kinotehnik 1560 Injection-Molded Waterproof Wheeled Case. The built-in wheels make it easy to move the case over level ground.

• 4-Way Barndoors

• AC/DC Adapter for Practilite

• Practilite Barndoors

• Limited 1-Year Warranty

• AC Power Adapter

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Limited 1-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Practilite 602 LED Fresnel

  Beam Angle	15 to 80°
  Color Temperature	3000 to 6000K
  Color Accuracy Standard	CRI 96
  Cooling System	Fan/Passive Combo
  Dimming	Yes, 5 to 100%
  Display	OLED
  Fixture Dimensions	4.0 x 7.0 x 6.0" / 10.0 x 17.0 x 15.0 cm
  Fixture Weight	2.9 lb / 1.3 kg

  Lens Diameter	3.2" / 80 mm
  Lens Material	Borosilicate Glass
  Lens Type	Fresnel

  Fixture Mount	5/8" Receiver
  Accessory Mount	None

  Remote Control Type	Bluetooth
  Wireless Range	30' / 9.1 m

  AC Input Power	100 to 240 VAC, 50 / 60 Hz
  DC Input Power	14 to 28 VDC
  Power Source	AC Adapter, External Battery
  Max Power Consumption	90 W

  IP Rating	IP20

  Box Dimensions (LxWxH)	12.6 x 7.25 x 6.9"

• Practilite 600 Portable Bi-Color LED Fresnel

  Beam Angle	75°
  Color Temperature	3000 to 6000K
  Color Accuracy Standard	CRI 96
  Cooling System	Fan/Passive Combo
  Dimming	Yes, 5 to 100%
  Display	None
  Fixture Dimensions	4.0 x 5.5 x 6.0" / 10.0 x 14.0 x 15.0 cm
  Fixture Weight	2.2 lb / 1.1 kg

  Lens Diameter	3.2" / 80 mm
  Lens Material	Borosilicate Glass
  Lens Type	Fresnel

  Fixture Mount	5/8" Receiver
  Accessory Mount	None

  Remote Control Type	Bluetooth
  Wireless Range	30' / 9.1 m

  AC Input Power	100 to 240 VAC, 50 / 60 Hz
  DC Input Power	12 to 28 VDC
  Power Source	AC Adapter, External Battery
  Max Power Consumption	90 W

  IP Rating	IP20

  Box Dimensions (LxWxH)	7.638 x 6.457 x 3.071"

• Softbox with Speed Ring for Practilite (20 x 20")

  Size	20 x 20" (50.8 x 50.8 cm)
  Shape	Square
  Compatibility	Practilite 600 and 602
  Requires Speed Ring	Included

  Box Dimensions (LxWxH)	14.9 x 14.4 x 2.0"

• Light Stand (7')

  Material of Construction	Black anodized aluminum
  Maximum Height	84" (213.4 cm)
  Folded Length	20" (51 cm)
  Sections	4
  Mount	5/8" (16 mm) top stud with 1/4"-20 male thread
  Weight	2.5 lb (1.15 kg)

• 1560 Injection-Molded Waterproof Wheeled Case for 2-3 Light Kit with Stands
