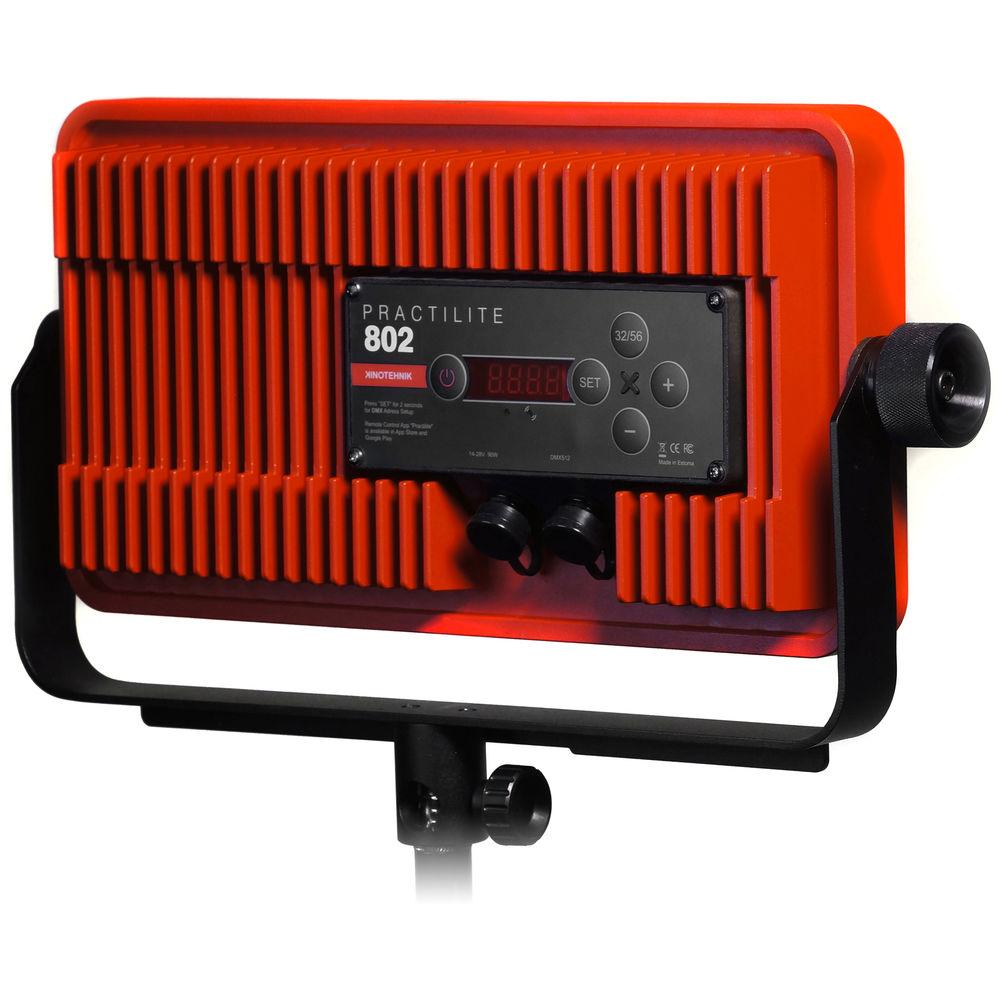

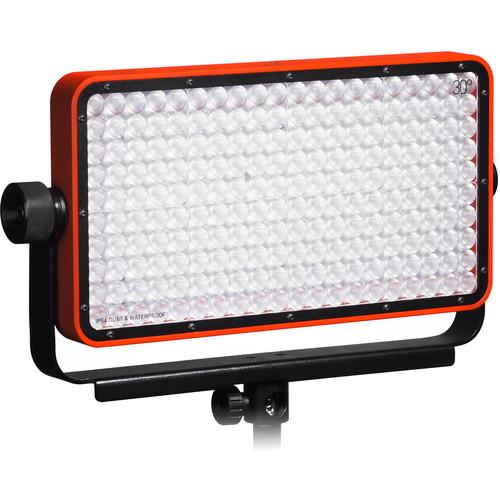

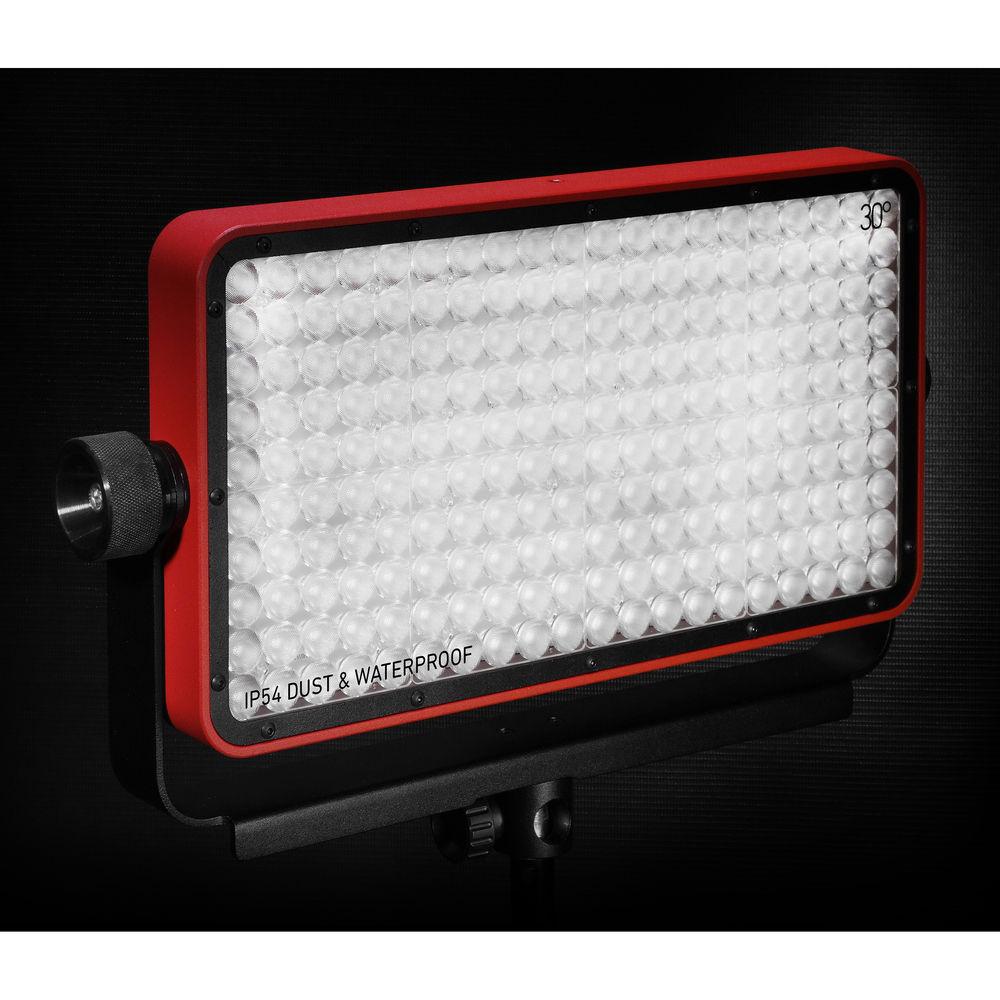

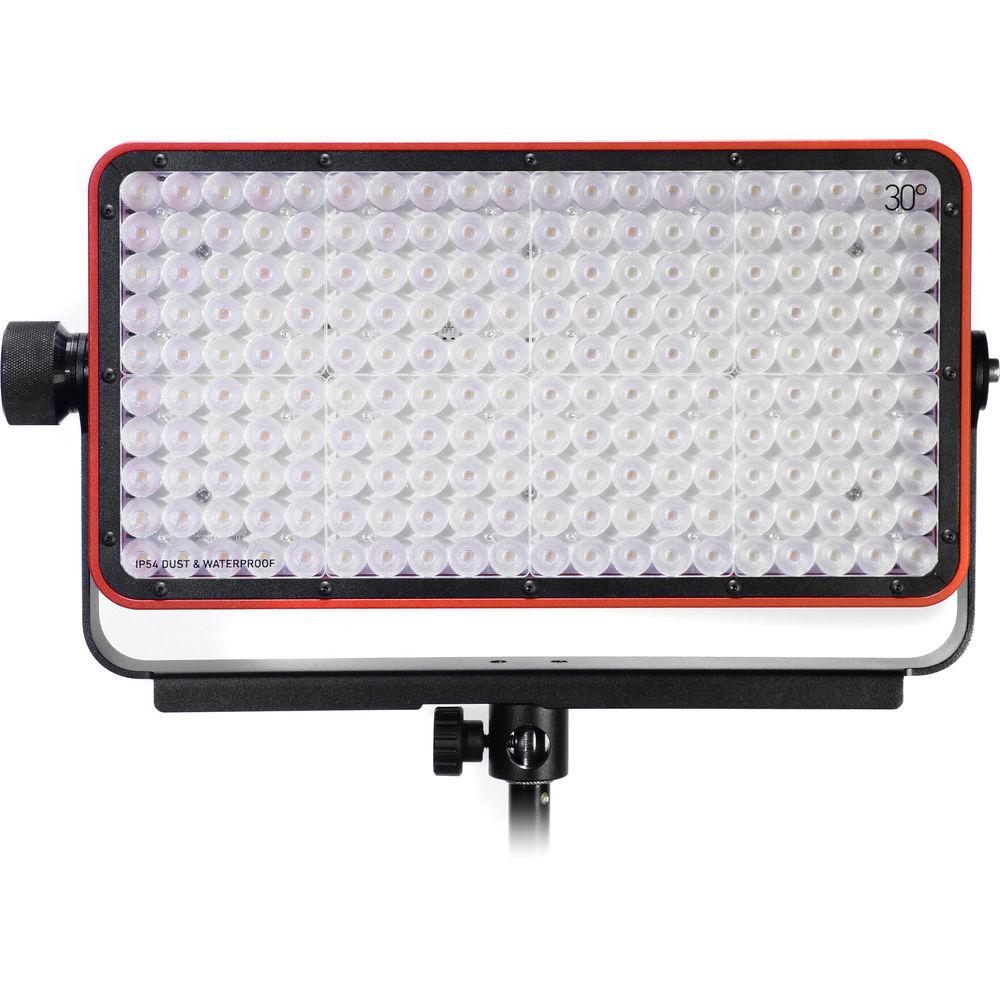

User Manual for Kinotehnik Practilite 802 Bi-Color Water-Resistant Smart LED Panel Click to enlarge the picture
Contents of the user manual for the Kinotehnik Practilite 802 Bi-Color Water-Resistant Smart
- Product category: LED Lights Kinotehnik
- Brand: Kinotehnik
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kinotehnik LED Lights
 |
User manual for the Kinotehnik Practilite 802 Bi-Color Water-Resistant Smart contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kinotehnik product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kinotehnik user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kinotehnik product will considerably shorten its lifespan!
|
Product description Offering power, versatility, compact size, and advanced technology features, the Practilite 802 Bi-Color Water-Resistant Smart LED Panel from Kinotehnik is an ideal choice for production, studio, ENG, EDU, and rental use. The well-crafted, all-aluminum 14.5 x 8.7 x 2" panel employs 200 LEDs to output the equivalent of an 800W tungsten fixture while consuming just 90W of power. The 802 has a 30° beam spread that's ideal for selective lighting, but it also comes with 60 and 90° diffusers for situations where wider coverage is needed. Color temperature is variable from 3000 to 6000K to meet any ambient light challenge, match other fixtures, or for creative expression. Sophisticated software ensures that power output is linear regardless of color temperature, while the CRI rating also remains consistent at 96, an indication of accuracy in color rendition. Light intensity is variable from 0 to 100% and can be adjusted locally on the fixture or remotely via DMX. The lights can also be DMX daisy-chained for use in a cluster. Another means of control is the Bluetooth Practilite App for tablets and smartphones that features a simple, intuitive graphic user interface (GUI) that permits brightness and color control of up to six fixtures (including Practilite Fresnels) at distances up to 30'. Another benefit of the Practilite 802 is its imperviousness to inclement weather. Its IP (Ingress Protection) rating of 54 means it's water-resistant and doesn't have to be safety-bagged in the rain. The 802 is also seen but not heard. Its fanless cooling system is dead quiet, an important quality in sound-sensitive environments. A further indication of versatility is the panel's power options. The light can run worldwide on the included 100 to 240 VAC adapter or on batteries with the purchase of an optional V-mount for situations where AC current is unavailable. Power, compact size, versatility, and advanced technology make the Practilite 802 a smart choice. In the Box Kinotehnik Practilite 802 Bi-Color Water-Resistant Smart LED Panel 60° Diffuser 90° Diffuser AC Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kinotehnik Practilite 802 Bi-Color Water-Resistant Smart LED Panel in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKinotehnik PRACT802 Specs | | | Beam Angle | 30° | | Color Temperature | 3000 to 6000K | | Color Accuracy Standard | CRI 96 | | Cooling System | Passive | | Dimming | Yes, 0 to 100% | | Display | None | | Housing Material | Aluminum | | Photometrics | 90°:
379 fc / 4078 lux at 3.28' / 1 m
30°:
1860 fc / 20,013.6 lux at 3.28' / 1 m 90° photometrics with included diffuser | | Number of LEDs | 200 | | Fixture Dimensions | 14.5 x 8.7 x 2.0" / 36.8 x 22.1 x 5.1 cm (Including Yoke) | | Fixture Weight | 7 lb / 3.18 kg (Including Yoke) | | | | Fixture Mount | 5/8" Receiver | | | | Remote Control Type | Bluetooth, DMX | | Wireless Range | 30' / 9.1 m | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Source | AC Adapter, External Battery | | Max Power Consumption | 90 W | | | | Cable Length | 10' / 3.05 m | | | | Package Weight | 12.18 lb | | Box Dimensions (LxWxH) | 19.6 x 19.4 x 3.8" |
Rating50% users recommend this product to others. And what about you?
This product has already been rated by 30 owners. Add your rating and experience with the product.
