User Manual for Kirk BL-D5100N L-Bracket for Nikon D5100 Click to enlarge the picture
Contents of the user manual for the Kirk BL-D5100N L-Bracket for Nikon D5100
- Product category: Tripods & Support Kirk
- Brand: Kirk
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kirk Tripods & Support
 |
User manual for the Kirk BL-D5100N L-Bracket for Nikon D5100 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kirk product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kirk user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kirk product will considerably shorten its lifespan!
|

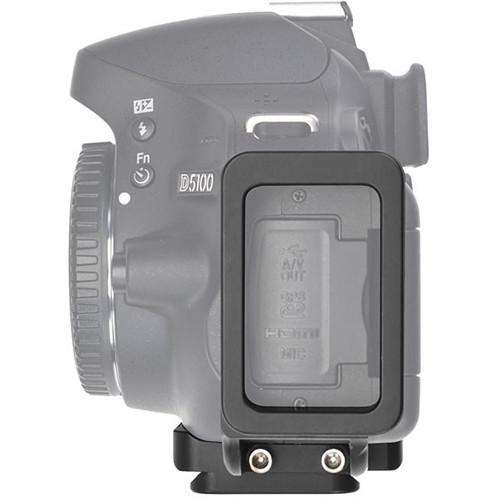

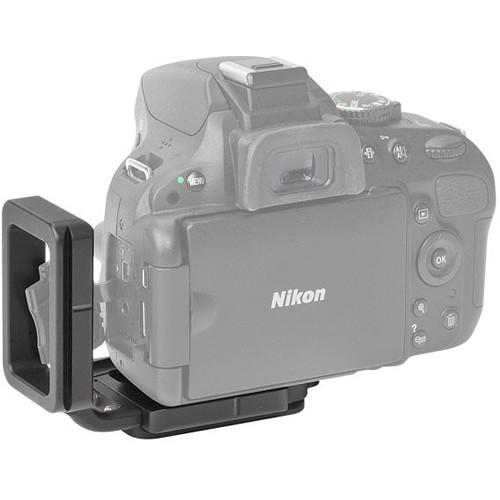

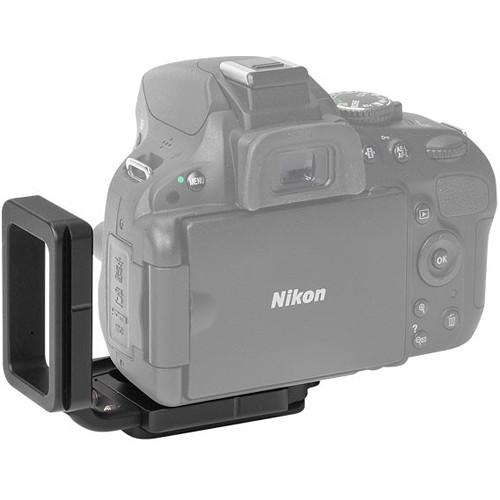

Product description This BL-D5100N L-Bracket for Nikon D5100 from Kirk Enterprises is an Arca-type compatible bracket machined from 6061-T6 aluminum alloy. Meticulously designed, it enables fast changes between portrait and landscape orientation while maintaining access to your cameras valuable connection ports and battery compartment.

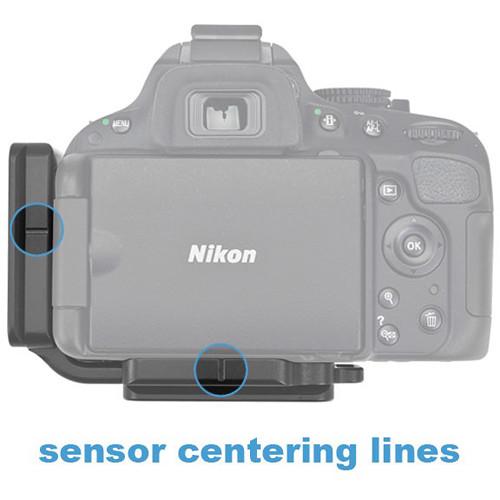

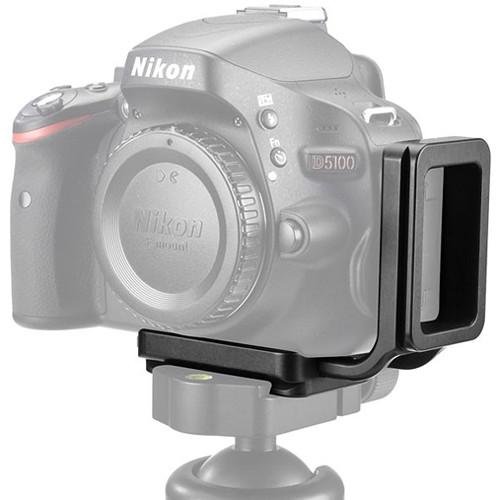

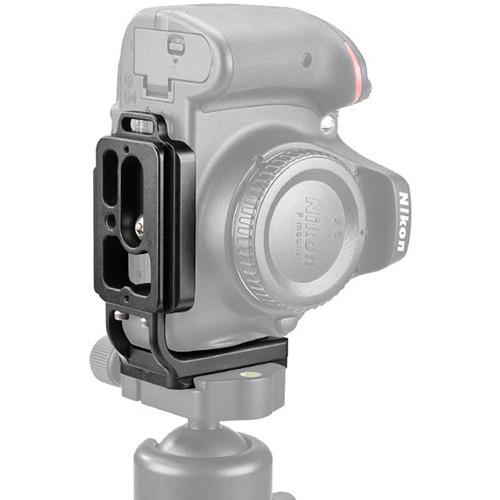

The concept of the L-bracket removes the need to re-adjust your tripod head and completely recompose for different shots. The user can simply release the bracket from nearly any Arca-type compatible quick release clamp, tilt it 90°, and lock the bracket back in place. During re-adjustment, precise positioning is maintained by aligning both your camera and clamp with the centering lines engraved into the L-bracket's base and side. Using an L-bracket also facilitates a sturdier base of support than tilting an entire head to a 90° position and puts less strain on your support gear.
For camera attachment the plate features a captive 1/4"-20 stainless steel mounting screw—an adjacent 1/4"-20 socket is also included for directly mounting the bracket without an Arca-type clamp. The base of the bracket also includes an integrated hand strap loop for those who use a hand strap which requires use of the camera's tripod socket.

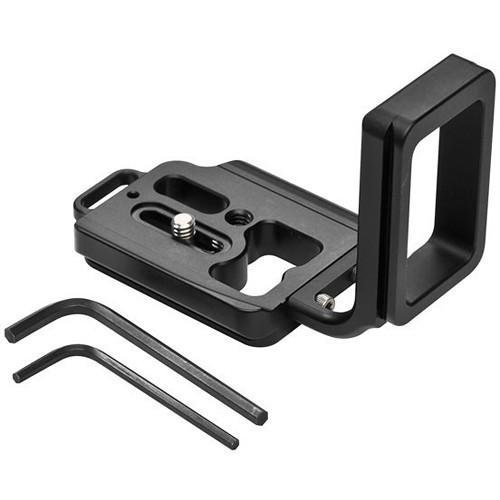

The "N" series of Kirk L-Brackets, much like their predecessors, are constructed of two separate parts—a base plate and side-arm—which appear detachable in the images above. It is important to note that the screws attaching the vertical side-arm to the base plate are not removable and thus, the L-Bracket may not be disassembled. In the Box Kirk BL-D5100N L-Bracket for Nikon D5100 Hex Wrench Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kirk BL-D5100N L-Bracket for Nikon D5100 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKirk BL-D5100N Specs | Mounting Screw | 1 x 1/4"-20 Male | | Tripod Mounting Thread | 1 x 1/4"-20 Female | | Material of Construction | Aluminum | | Weight | 3.2 oz / 90.7 g | | | | Package Weight | 0.3 lb | | Box Dimensions (LxWxH) | 5.6 x 0.5 x 0.2" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 43 owners. Add your rating and experience with the product.
