User Manual for Kirk KLP-360 Arca-Type Quick Release Plate for Select Camera Lenses Click to enlarge the picture
Contents of the user manual for the Kirk KLP-360 Arca-Type Quick Release Plate
- Product category: Tripods & Support Kirk
- Brand: Kirk
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kirk Tripods & Support
 |
User manual for the Kirk KLP-360 Arca-Type Quick Release Plate contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kirk product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kirk user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kirk product will considerably shorten its lifespan!
|

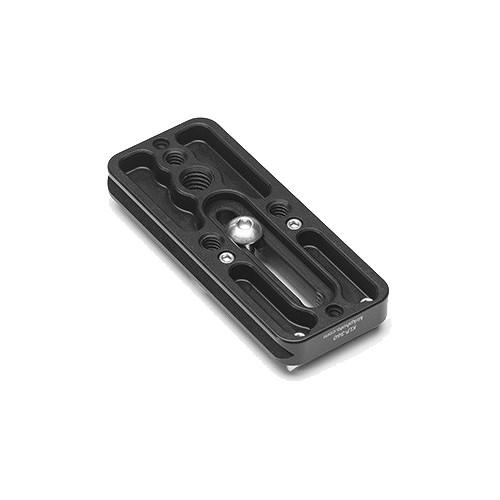

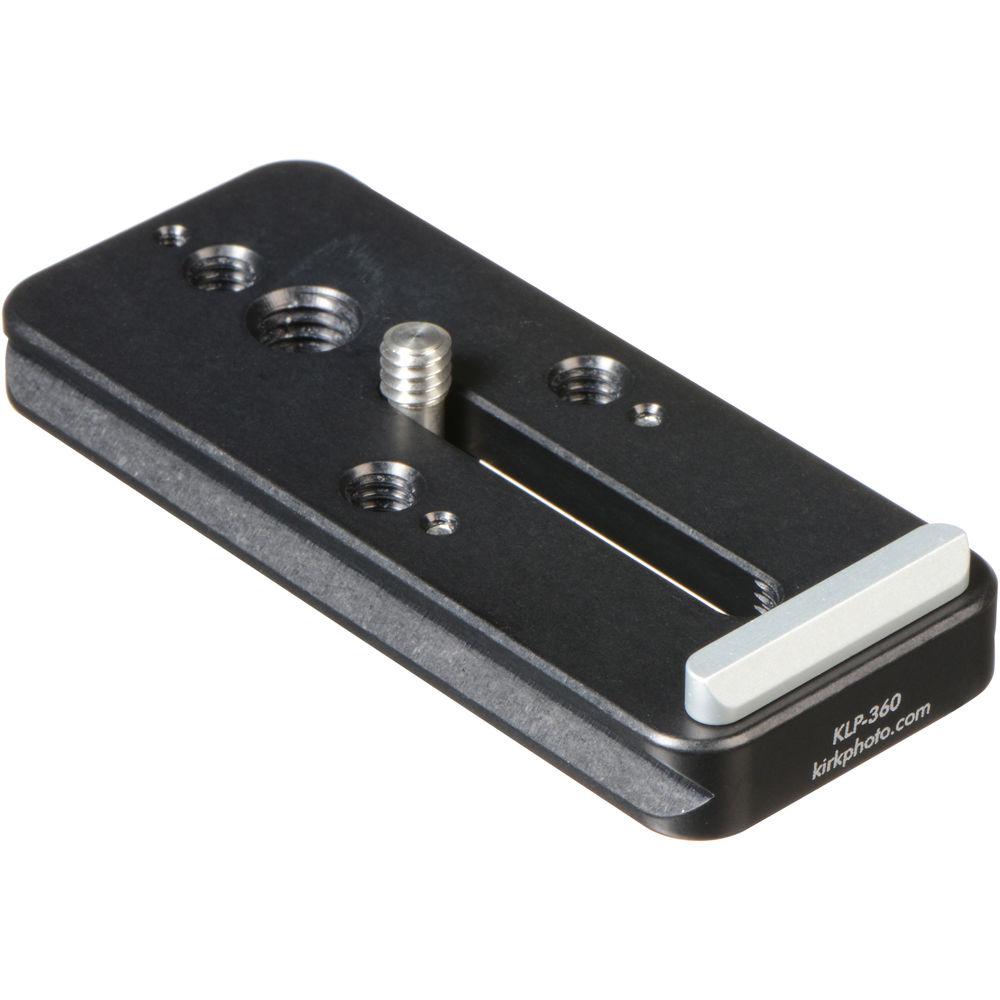

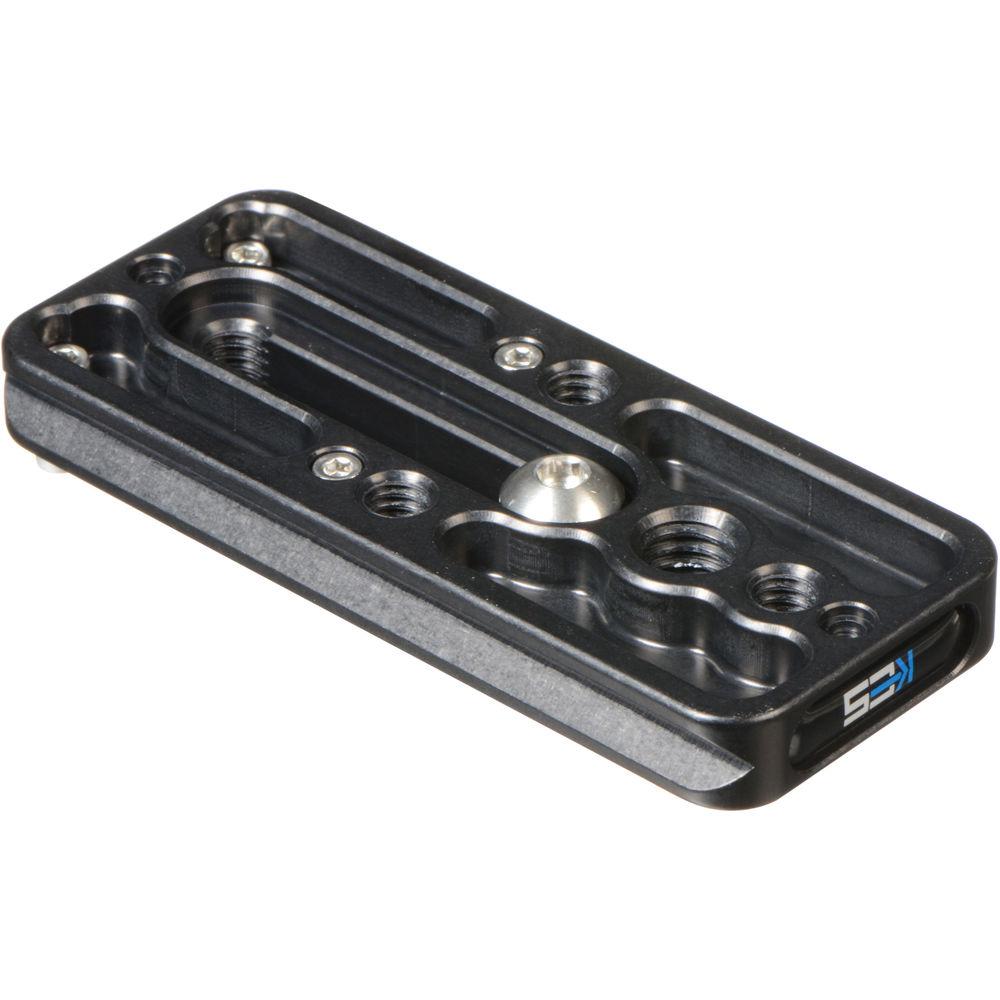

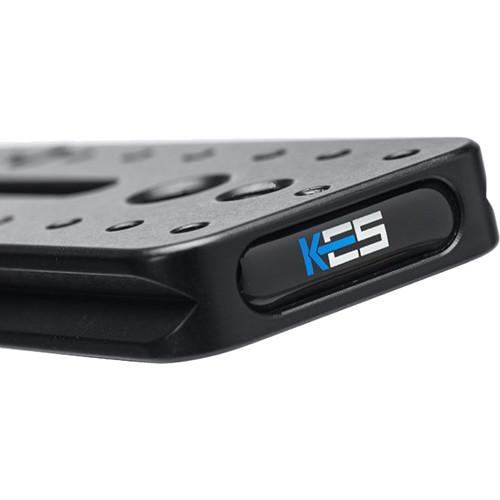

Product description The KLP-360 Arca-Type Quick Release Plate from Kirk Enterprises provides the ability to adapt select lenses with an attached, compatible lens foot or lens foot collar to an Arca-type compatible quick release clamp.

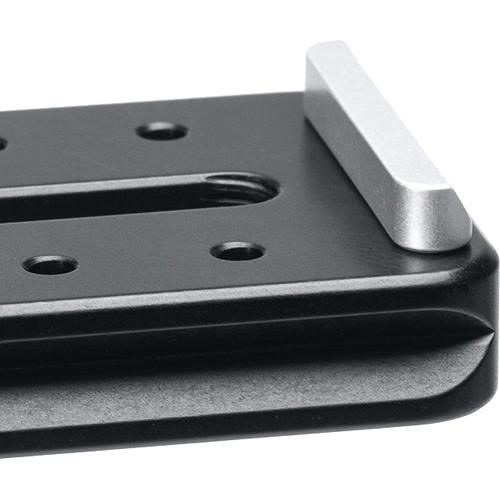

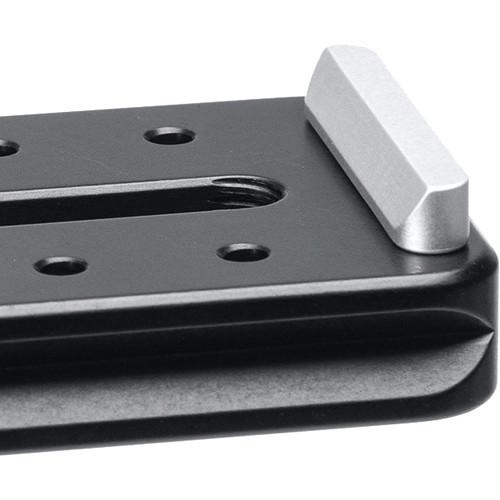

A movable 1/4"-20 mount allows the plate to be connected to a compatible lens foot or lens foot collar. While in use, an anti-twist lip along the surface of the plate helps to prevent unwanted rotation of a lens while it is adapted to a clamp. The anti-twist lip is reversible, and features surfaces that are angled at 90° or 30°. When the surface that most corresponds to the shape of the attached lens foot heel is used, contact between the lip and the heel is maximized, which minimizes lens movement. Dual retaining screws are included for use along the underside of the plate. These screws prevent the plate from accidentally sliding off when the clamp it is placed on is opened. For direct attachment to accessories such as a tripod or straps that feature 1/4"-20 or 3/18"-16 mounts, the surface of the plate is tapped with one 3/18"-16 female accessory thread and three 1/4"-20 female accessory threads.
Constructed from aluminum alloy, the KLP-360 Arca-Type Quick Release Plate is durable while remaining lightweight. - Use and Handling
-
- KLP-360 plate provides the ability to adapt a lens with attached, compatible lens foot to an Arca-type compatible quick release clamp
- 1/4"-20 mount with movement along length of plate allows it to be connected to a compatible lens foot or lens foot collar
- Reversible anti-twist lip prevents unwanted rotation of adapted lens on clamp
- Anti-twist lip features surfaces that are angled at 90° or 30°
- When surface that most corresponds to the shape of the attached lens foot heel is used, contact between the lip and the heel is maximized, which minimizes lens movement
- Dual retaining screws for the underside of the plate help prevent it from accidentally sliding off a clamp

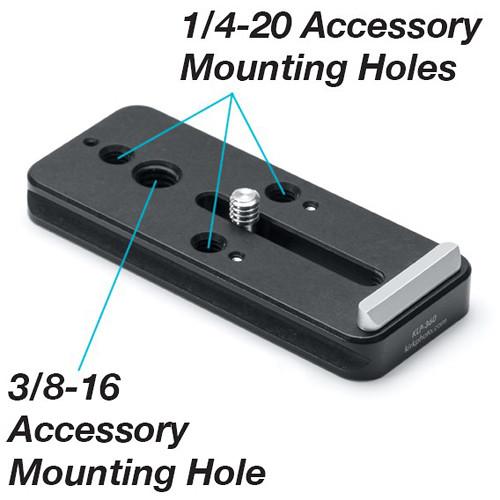

- One 3/18"-16 female accessory thread and three 1/4"-20 female accessory threads for direct connection to a 1/4"-20 or 3/18"-16 mount

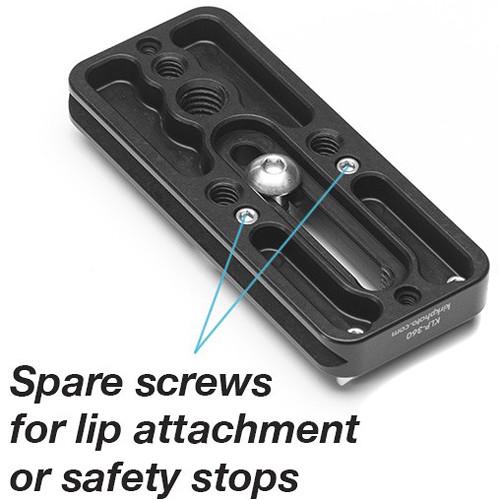

- Two spare retaining screws can be used to prevent plate from accidentally sliding off a clamp, or for attachment of anti-twist lip
- Accessory threads for storage of spare retaining screws within plate
- 5/32 hex key to fasten the plate to a lens using its 1/4"-20 mount
- 3/32 hex key to fasten retaining screws
- Compatible Lenses with Lens Foot or Lens Foot Collar Attached
- Canon Lenses
- Canon EF 70-200mm f/2.8L IS USM
- Canon EF 100-400mm f/4.5-5.6L IS USM
- Canon EF 100mm f/2.8 Macro USM
- Canon EF 35-350mm f/3.5-5.6L USM
- Canon EF 300mm f/4L IS USM
- Canon EF 180mm f/3.5L Macro USM
- Canon MP-E 65mm f/2.8 1-5x Macro Photo
- Canon EF 70-200mm f/2.8L IS II USM
- Canon EF 70-200mm f/2.8L USM
Hasselblad Lenses
- Hasselblad 350mm f/4 FE TCC Tele-Tessar T
- Hasselblad 350mm f/5.6 CFE Tele-Superachromat
Leica Lenses
- Leica 180mm f/2 APO Summicron-R
- Leica 280mm f/2.8 APO Telyt-R
- Leica 280mm f/4 APO Telyt-R
Nikon Lenses
- Nikon AF-S NIKKOR 70-200mm f/2.8E FL ED VR
Olympus Lenses
- Olympus Zuiko Digital ED 150mm f/2
- Olympus 300mm f/2.8 ED Lens
Sigma Lenses
- Sigma 120-300mm f/2.8 EX DG OS HSM
Sony Lenses
- Sony FE PZ 28-135mm f/4 G OSS
Tamron Lenses
- Tamron 200-500mm f/5-6.3 SP AF Di LD IF
Tokina Lenses
- Tokina 80-400mm f/4.5-5.6 AT-X 840 AF D

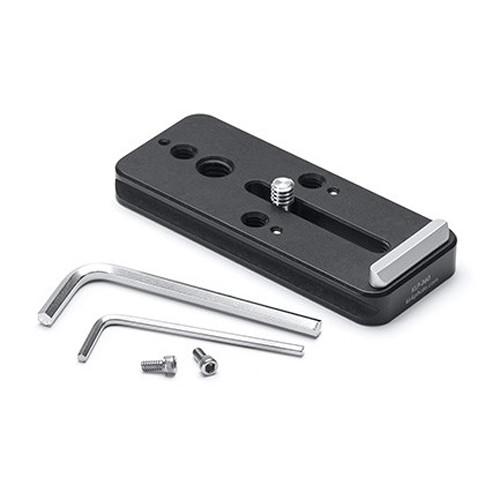

In the Box Kirk KLP-360 Arca-Type Quick Release Plate for Select Camera Lenses KLP-360 Quick Release Plate 1/4"-20 Mount 6 x Retaining Screws Anti-Twist Lip 5/32 Hex Key 3/32 Hex Key Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kirk KLP-360 Arca-Type Quick Release Plate for Select Camera Lenses in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKirk KLP-360 Specs | Material of Construction | Aluminum Alloy | | Length | 3.6" (9.1 cm) | | Weight | 2.0 oz (56.7 g) | | | | Package Weight | 0.2 lb | | Box Dimensions (LxWxH) | 4.4 x 2.7 x 0.8" |
