User Manual for Kirk LP-310 Quick Release Lens Plate Click to enlarge the picture
Contents of the user manual for the Kirk LP-310 Quick Release Lens Plate
- Product category: Tripods & Support Kirk
- Brand: Kirk
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kirk Tripods & Support
 |
User manual for the Kirk LP-310 Quick Release Lens Plate contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kirk product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kirk user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kirk product will considerably shorten its lifespan!
|

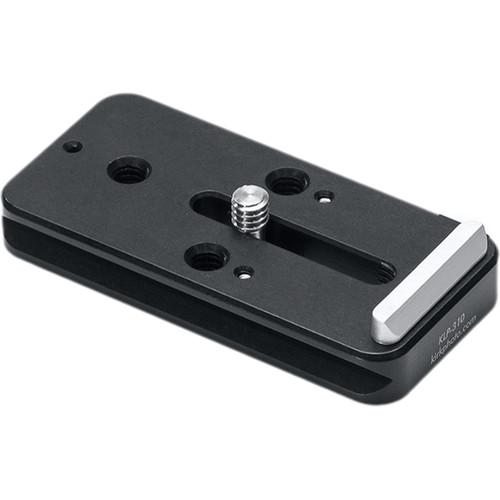

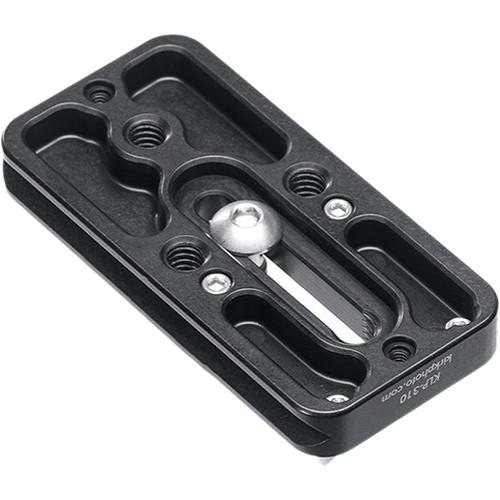

Product description The LP-310 Quick Release Lens Plate from Kirk is an Arca-type compatible plate. The plate itself is black anodized aluminum and the lip is satin sliver anodized, making them scratch-resistant. The lip can be mounted with a 90° or 30° angle, for a snug fit against the tripod collar with the compatible lenses. This feature helps keep a tighter fit and prevents the lens foot from pivoting while mounted to the plate. Removing the lip will make the plate universal with any lens foot, but will lose the capability of having the anti-twist against the foot.The 1/4"-20 screw for the lens foot is made of stainless steel. Two included smaller screws can be used as safety stops to prevent accidental slippage on the head. There are three additional 1/4"-20 mounting holes on the plate for better positioning on the bottom of the lens foot. The plate has a double dovetail design for rigidity while clamped by an Arca-type head.All Kirk plates are made in the USA. - Double Dovetail
- Double dovetail design ensures that the plate cannot twist off accidentally and allows attachment of additional accessories to the upper or lower surface of the plate

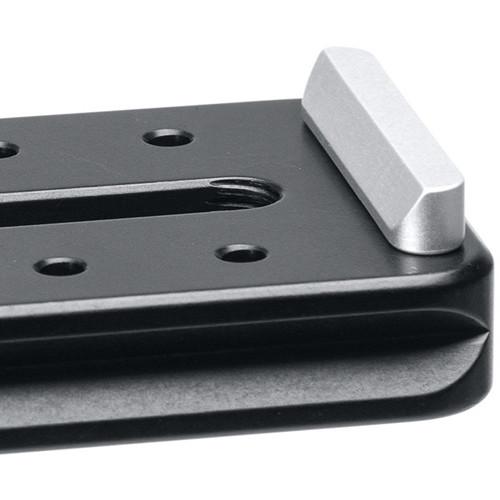

- 90° or 30° Mountable Lip
- The lip can be mounted with a 90° or 30° angle, for a snug fit against the tripod collar with the compatible lenses

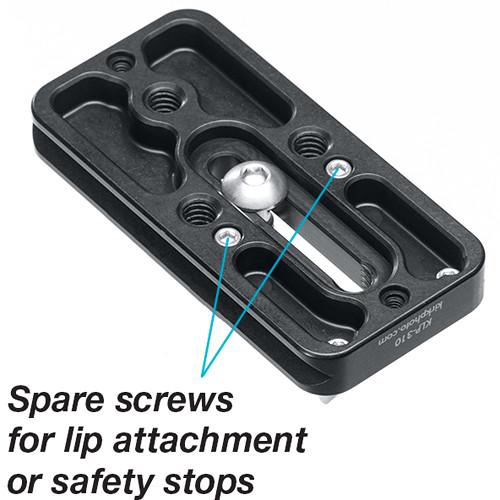

- Safety Stops
- Stops prevent accidental slippage on the head

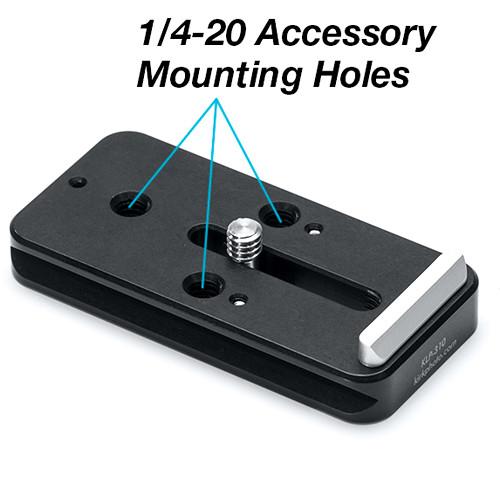

- Three Additional 1/4-20" Mounting Holes
- Three additional holes on the plate for better positioning
- Compatibility
- Canon:
- 200mm f/1.8
- 300mm f/2.8L IS II USM
- Nikon:
- AF-S NIKKOR 300mm f/4E PF ED VR with RT-1 tripod Collar
- AF-S NIKKOR 70-200mm f/4G ED VR with Nikon RT-1 Collar
- AF Micro-NIKKOR 200mm f/4 IF-ED AF Micro
- NIKKOR 300mm f/2.8 AF
- NIKKOR 800mm f/8
- Sigma:
- 100-300mm f/4.0 EX
- 135-400mm f/4.5-5.6
- 150mm f/2.8 EX DG OS HSM APO Macro
- 150mm f/2.8 EX
- 170-500mm f/5-6.3 APO DG
- 180mm f/2.8
- 180mm f/3.5
- 180mm Macro f/2.8 EX DG OS HSM
- 300mm f/2.8 EX
- 70-200mm f/2.8
- 150-600mm f/5-6.3 DG OS HSM Contemporary
- Tamron:
- 180mm f/3.5 Macro
- 200-400mm f/5.6
- 70-200mm f/2.8 DI VC
- 70-210 f/2.8
- 80-200mm f/2.8
- SP 150-600mm f/5-6.3 Di VC USD
- Tokina:
- 150-500mm f/5.6
- Removing the lip will make the plate universal with any lens foot, but its anti-twist protection will be lost

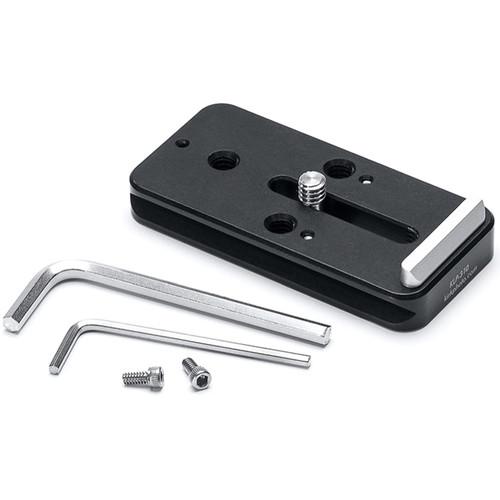

In the Box Kirk LP-310 Quick Release Lens Plate 2 x Allen Keys 2 x Safety Stops Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kirk LP-310 Quick Release Lens Plate in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKirk KLP-310 Specs | Mounting Screw | 1 x 1/4"-20 Male | | Tripod Mounting Thread | 3 x 1/4"-20 Female | | Material of Construction | Aluminum, Steel | | Weight | 1.8 oz / 51 g | | | | Package Weight | 0.25 lb | | Box Dimensions (LxWxH) | 4.5 x 3.2 x 0.9" |
