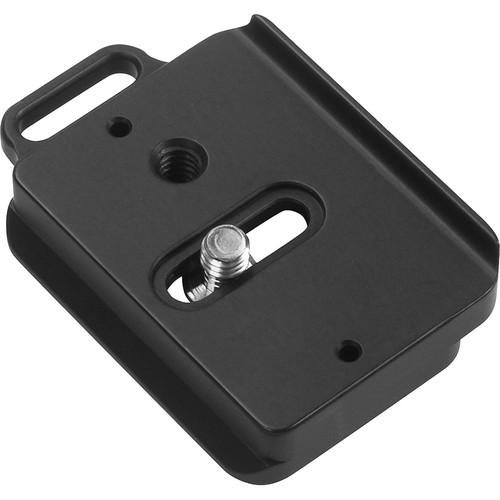

User Manual for Kirk PZ-134 Quick Release Plate for the Pentax K7 Click to enlarge the picture
Contents of the user manual for the Kirk PZ-134 Quick Release Plate for
- Product category: Tripods & Support Kirk
- Brand: Kirk
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kirk Tripods & Support
|
User manual for the Kirk PZ-134 Quick Release Plate for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kirk product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kirk user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kirk product will considerably shorten its lifespan!
|
Product description The Kirk PZ-134 Quick Release Plate is a compact and rugged quick release plate that is custom designed to snugly fit the Pentax K7 camera (without the B-DG4 Grip attached). This plate fits the Arca-type standard, meaning it fits into quick release adapters using the Arca-Swiss standard. Kirk Enterprises makes a fine quick release clamp, amongst many companies in the market offering them. Machined from a single piece of 6061T6 industrial-strength aluminum, the PZ-134 provides full access to all switches, sockets, the battery drawer, and your camera's strap eyelets. They also put a strap eyelet on the plate itself so that you could use a hand strap (such as the Canon Hand Strap E1) with your camera instead of a neck strap. Either way, you'll never need to take it off the camera. Also included with the PZ-134 is a pair of tiny safety stop screws, which can be installed on the bottom of the plate. While this will prevent 'side loading' your camera into the quick release adapter, forcing you to 'top load' it instead, it does give you an element of safety should you accidentally unlock the quick release clamp with the camera still in place. If the safety stop screws are installed, it is more likely that you would realize your mistake in time than it is that your expensive camera would fall to the ground. - For use with quick release systems that adhere to the Arca-Swiss type standard
- Finely machined, with smooth edges
- Allows speedy horizontal/vertical exchange
- "Swiss Cheese" design to shave weight wherever possible
- Two small safety stop screws can be installed on the bottom of the plate, to possibly prevent the camera from falling out of the clamp if the clamp was accidentally opened
In the Box Kirk PZ-134 Quick Release Plate for the Pentax K7 2 x #4-40 Safety Stop Screw #4-40 Allen Wrench 5/32" Allen Wrench 5/32" Hex Screw with 1/4"-20 Camera Threading Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kirk PZ-134 Quick Release Plate for the Pentax K7 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKirk PZ-134 Specs | Weight | Not Specified by Manufacturer | | | | Package Weight | 0.05 lb | | Box Dimensions (LxWxH) | 5.09 x 4.03 x 0.02" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 93 owners. Add your rating and experience with the product.
