User Manual for Kirk QRLB-T Universal Quick Release Tall L-Bracket Click to enlarge the picture
Contents of the user manual for the Kirk QRLB-T Universal Quick Release Tall
- Product category: Tripods & Support Kirk
- Brand: Kirk
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kirk Tripods & Support
 |
User manual for the Kirk QRLB-T Universal Quick Release Tall contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kirk product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kirk user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kirk product will considerably shorten its lifespan!
|

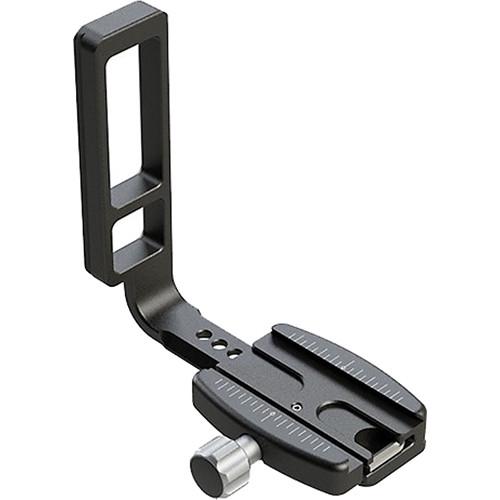

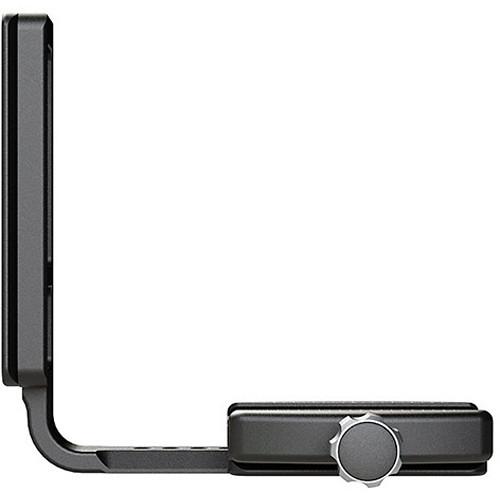

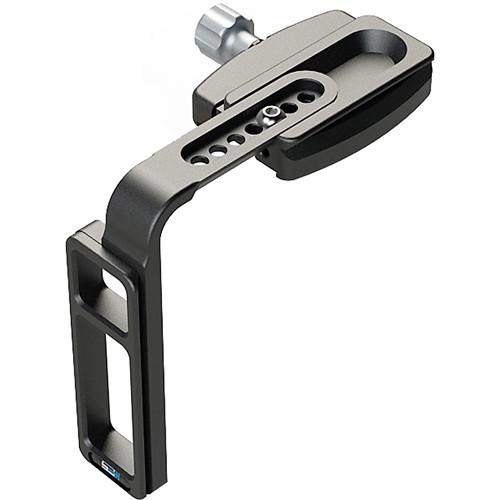

Product description The Kirk QRLB-T Universal Quick Release Tall L-Bracket is a dual-sided bracket that mounts to an Arca-Swiss-style clamp in either landscape orientation or tilted 90° for portrait mode. This enables efficient changes in the orientation of your camera, without the need to tilt your ball head and re-level the shot. In contrast to tilting the head 90°, when you tilt the bracket your camera remains centered over the tripod. To use this bracket, you must already own an Arca-compatible tripod head and a corresponding dovetail plate for the camera. The L-bracket fits between those two elements. Machined from 6061 T6 aluminum, the QRLB-T bracket clamps to your camera's Arca-compatible dovetail plate. This means you can easily remove your camera from the bracket and shoot handheld by simply turning the quick-release knob on the bracket. Both the horizontal and vertical segments of the bracket feature dovetails that work with the Arca-style clamp of a tripod head. The QRLB-T is designed to accommodate all DSLR and SLR cameras, even those that have a battery grip attached to the bottom. Note: Camera plate (not included) must be mounted with dovetail running parallel to bottom of camera body. - Quick-release knob may be mounted towards the front or back of the camera body, according to the user's preference
- The 3"-long quick-release clamp enables the camera to be moved away from the L-bracket, thereby allowing access to the camera's accessory ports
- Allows use of camera strap
- Comes as a complete, easy-to-assemble kit with instructions
In the Box Kirk QRLB-T Universal Quick Release Tall L-Bracket Allen Key 2 x Screws Tube of Loctite for Securing Screws Limited 5-Year Warranty User Manual PDF 494.4kbrdrxuwbrybatsfercqcv Table of Contents
|
Upload User Manual
Have you got an user manual for the Kirk QRLB-T Universal Quick Release Tall L-Bracket in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKirk QRLB-T Specs | Width | 4.4" / 11.1 cm | | Height | 4.8" / 12.2 cm | | Weight | 0.6 lb / 275.0 g | | | | Package Weight | 0.75 lb | | Box Dimensions (LxWxH) | 7.8 x 6.7 x 2.5" |
