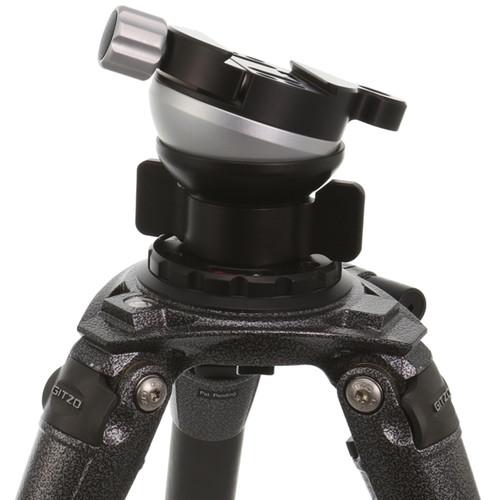

User Manual for Kirk TLB-1QRL Leveling Base with TQR-2L Tripod Head Quick Disconnect System and Large Plate Click to enlarge the picture
Contents of the user manual for the Kirk TLB-1QRL Leveling Base with TQR-2L
- Product category: Camera & Tripod Levelers Kirk
- Brand: Kirk
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kirk Camera & Tripod Levelers
 |
User manual for the Kirk TLB-1QRL Leveling Base with TQR-2L contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kirk product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kirk user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kirk product will considerably shorten its lifespan!
|

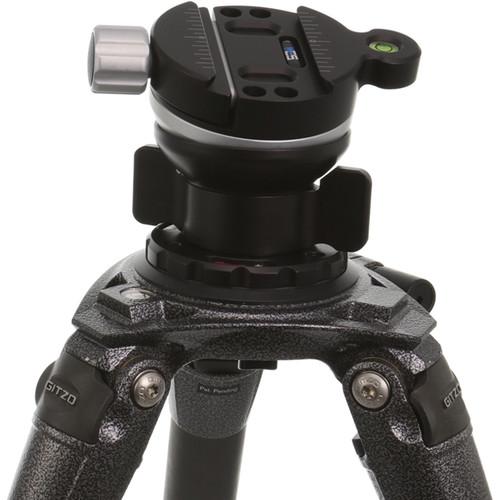

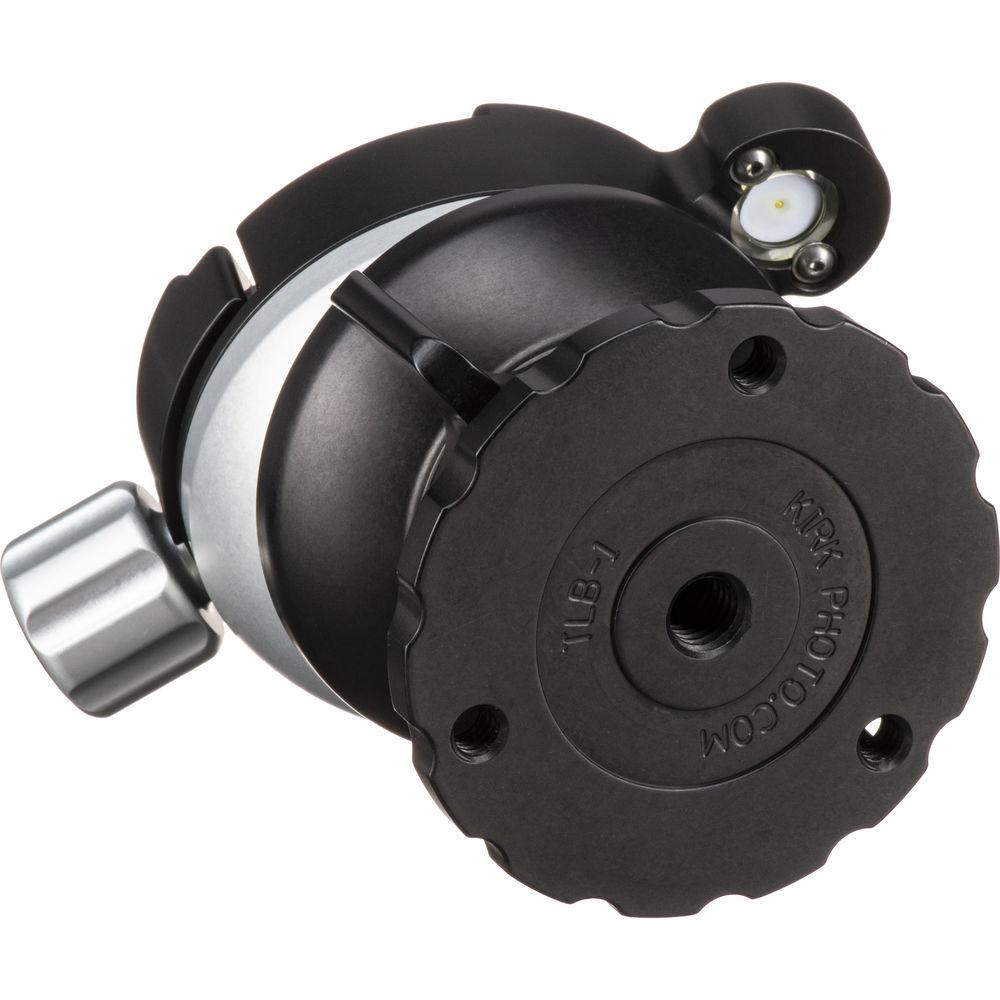

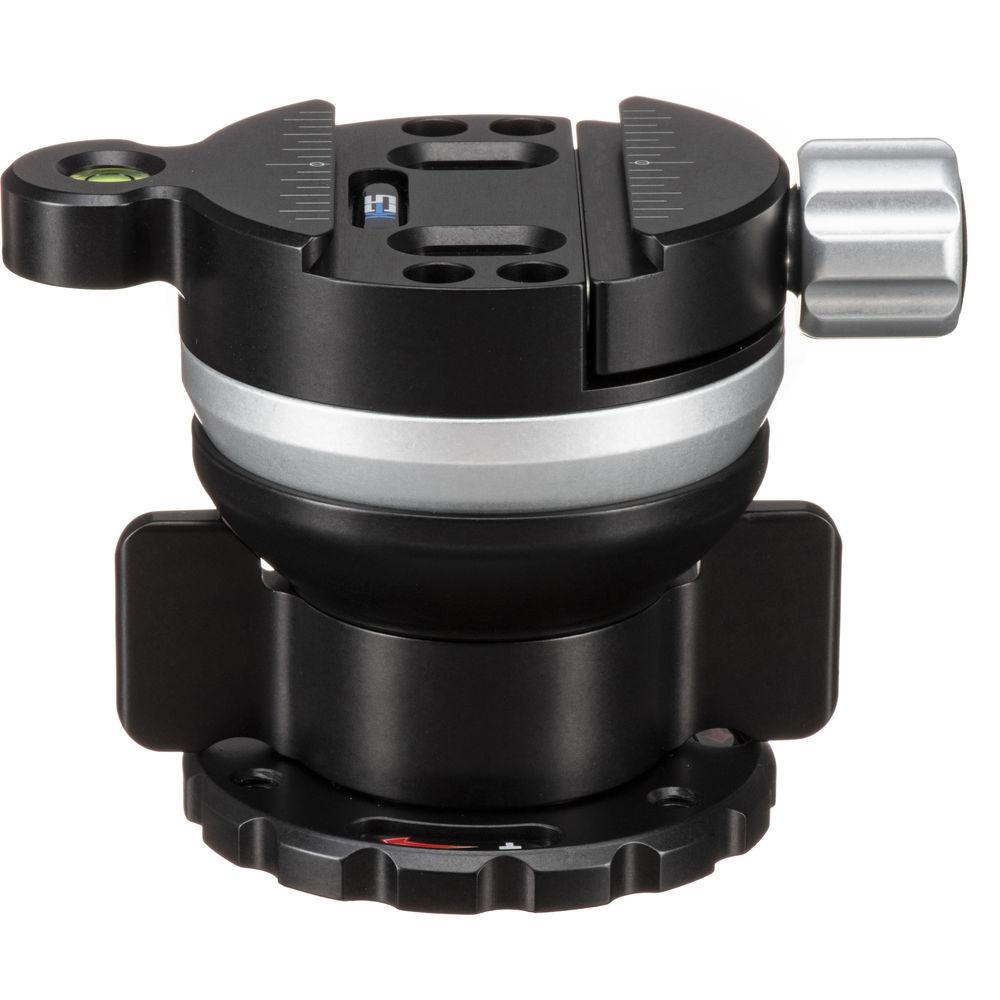

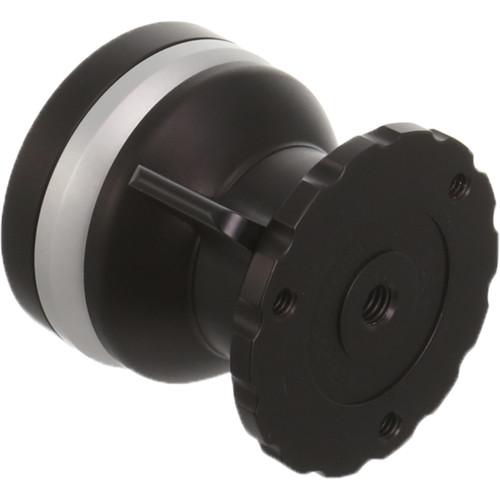

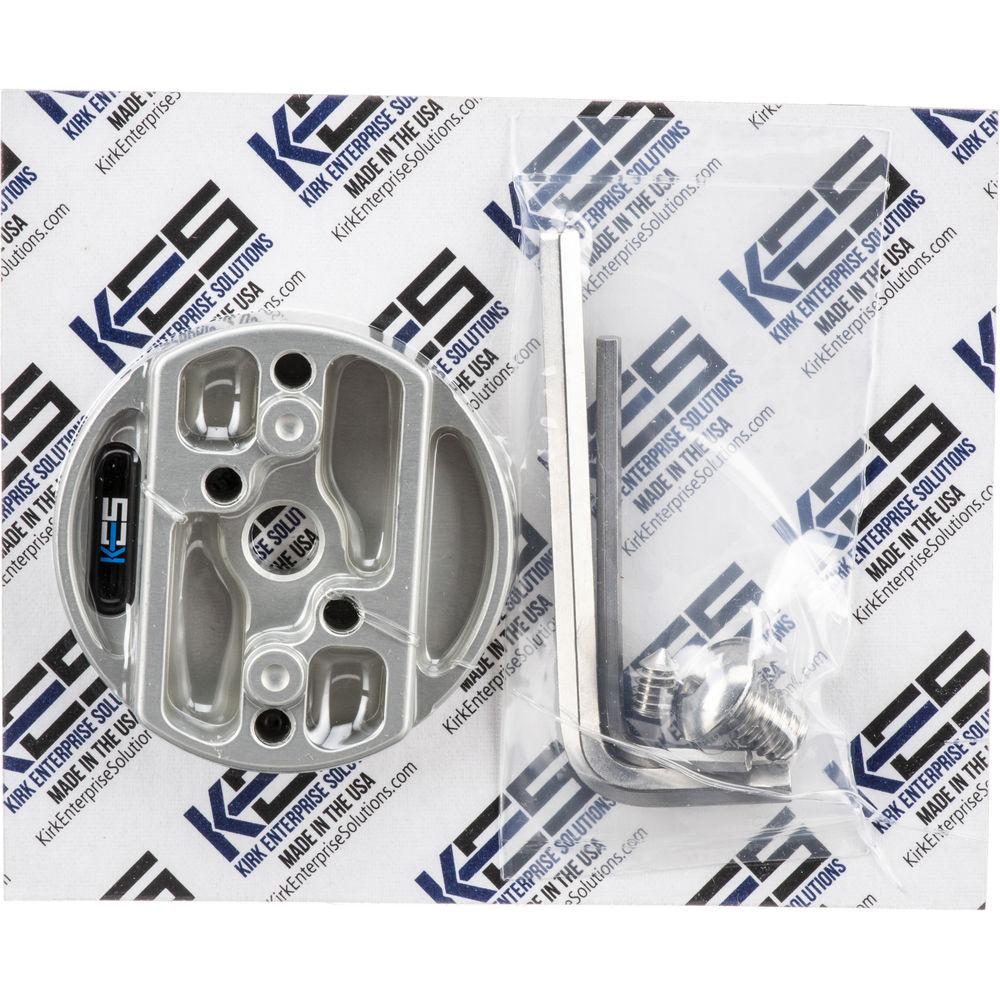

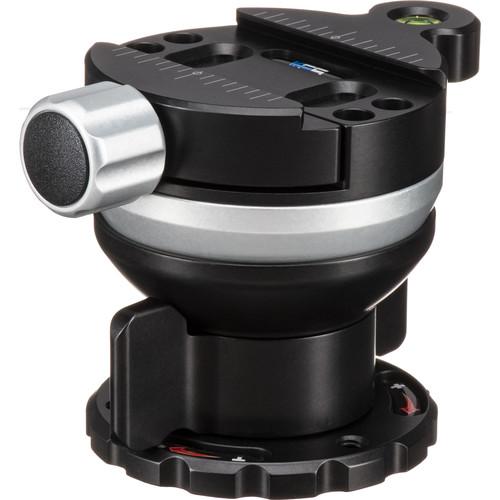

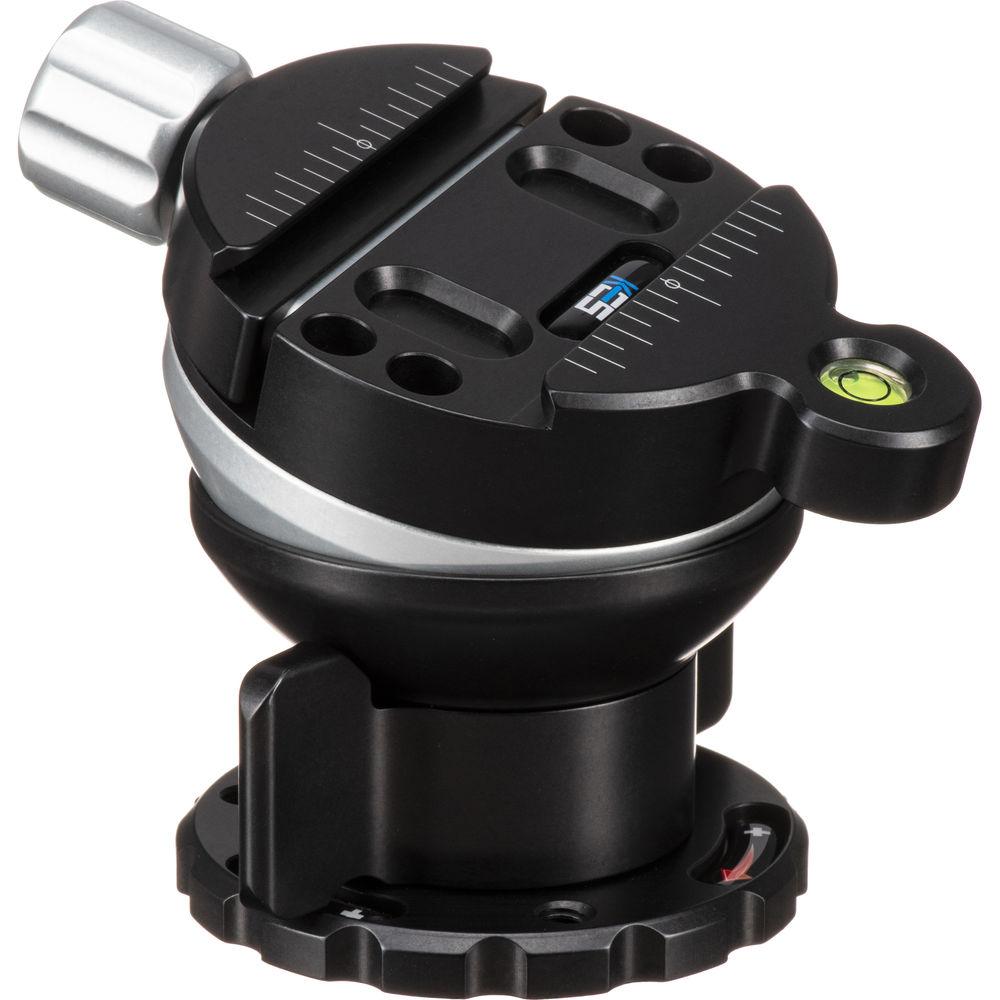

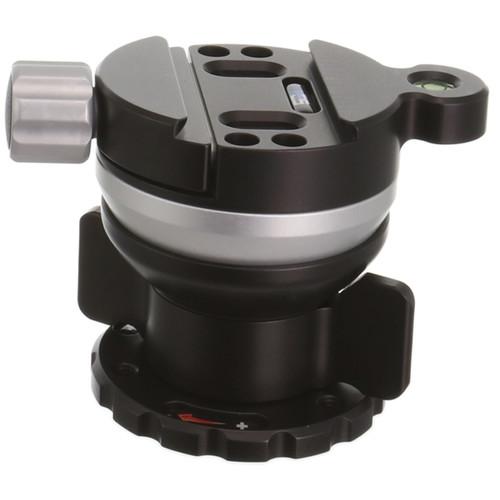

Product description The black and silver satin anodized aluminum and steel TLB-1QRL Leveling Base with TQR-2L Tripod Head Quick Disconnect System and Large Plate from Kirk Enterprises attaches to a tripod via its 3/8"-16 mounting socket. This leveling base has an adjustment range of 32°, which is +/-17° in any direction. You can lock the position into place with the over-sized locking wing nut, and the leveler is capable of supporting a load capacity of 25 lb. This Quick Disconnect System provides a quick release that enables you to quickly switch out many types of tripod heads for different photographic applications. The large plate is designed to fit tripod heads with an approximate base diameter of 2.25" or over. A laser-engraved scale on top of the clamp allows accurate positioning of the plate, which is then secured into place by turning the screw locking knob on the clamp. Set screws are included to secure the clamp to the tripod and the plate to the head and to prevent them from moving while mounted together. In addition, a bubble level is located on the side of the clamp to level out your horizon. In the Box Kirk TLB-1QRL Leveling Base with TQR-2L Tripod Head Quick Disconnect System and Large Plate TQR-2L Tripod Head Quick Disconnect System with Large Plate Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kirk TLB-1QRL Leveling Base with TQR-2L Tripod Head Quick Disconnect System and Large Plate in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKirk TLB-1QRL Specs | Load Capacity | 25 lb / 11.3 kg | | Adjustment Range | Leveling Base: 17° (32° Overall) | | Tripod Mounting Thread | 3/8"-16 | | Finish | Black and Satin Silver Anodized | | Bubble Level | Yes | | Material of Construction | 6061-T6 Aluminum and Stainless Steel | | Base Diameter | 2.9" / 7.4 cm | | Height | 3.2" / 8.1 cm | | Weight | 15 oz / 425.2 g | | | | Package Weight | 1.435 lb | | Box Dimensions (LxWxH) | 6.65 x 5.5 x 4.7" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 66 owners. Add your rating and experience with the product.
