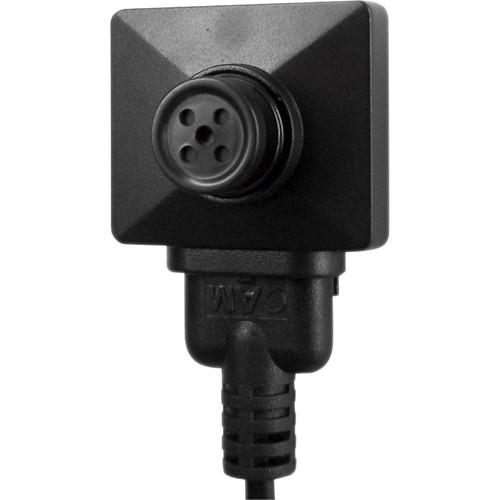

Product description The Button with 2MP Covert Camerafrom KJB Security Products features a 1/2.8" progressive-scan Sony CMOS sensor to capture 1920 x 1080 resolution and 2MP still images. It has an external microphone and USB connection, and comes with a button set to offer a variety of styles of buttons to fit your needs. It is designed for use with LawMate Series DVRs. - Miniature covert camera hidden in button
- 2MP 1/2.8" progressive-scan CMOS sensor
- 1920 x 1080 resolution recording and 2MP still images
UPC: 738549883333 In the Box KJB Security Products Button with 2MP Covert Camera 43" Camera Cable 12" Camera Cable External Microphone Button Set Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the KJB Security Products Button with 2MP Covert Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKJB Security Products LawMate Specs | Video Resolution | > 1200 TVL | | Pixel Size | 2.8 x 2.8 um | | Resolution | 1920 x 1080 | | Image Sensor | Sony 1/2.8" progressive-scan CMOS | | Illumination | 0.08 lux, f/2.0 (50 IRE) | | Aperture | f/2.0 | | Lens Diameter | 4.3mm | | Angle of View | 78° | | Depth of Field | 20" (51 cm) | | Electronic Shutter | 1/8 to 1/30,000 | | Video Output | RAW Dana | | Audio Output | 2 Vpp (maximum) | | Impedance | 10 kOhms | | AGC | > 52 db (AGC off) | | S/N Ratio | 36 dB maximum | | Power Supply Voltage | 3.3 VDC +/- 5% | | Power Current | 200 mA | | Operating Temperature | 14 to 140°F (-10 to 60°C) | | Operating Humidity | 20 to 90% | | Storage Temperature | -22 to 176°F (-30 to 80°C) | | Dimensions | 1.2 x 1.2 x 0.8" (30 x 30 x 20 mm) | | Weight | 0.35 oz (10 g) | | | | Package Weight | 0.55 lb | | Box Dimensions (LxWxH) | 6.0 x 4.9 x 2.6" |
