User Manual for KJB Security Products DD12051 iProtect RF Wireless Signal Detector Wand Click to enlarge the picture
Contents of the user manual for the KJB Security Products DD12051 iProtect RF
- Product category: Counter Surveillance KJB Security Products
- Brand: KJB Security Products
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for KJB Security Products Counter Surveillance
|
User manual for the KJB Security Products DD12051 iProtect RF contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any KJB Security Products product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official KJB Security Products user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a KJB Security Products product will considerably shorten its lifespan!
|

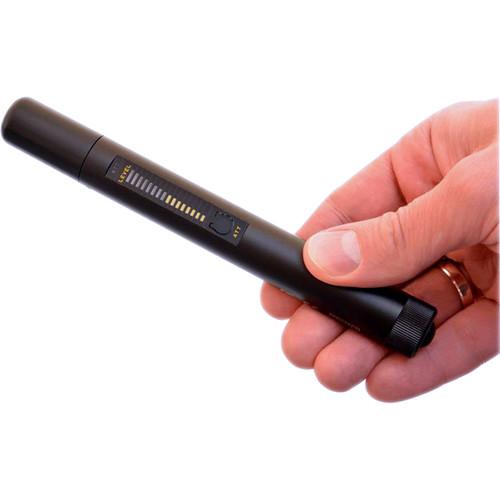

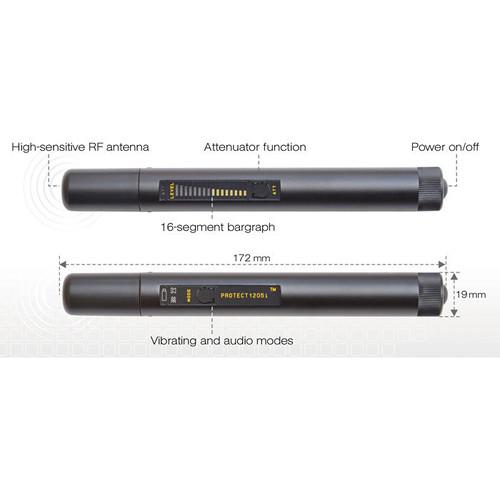

Product description The DD12051 iProtect RF Wireless Signal Detector Wand from KJB Security Products is designed for counter surveillance. This wand detects transmissions from GSM, 3G, 4G (LTE), Bluetooth, Wi-Fi, and wireless bugging devices. It detects both analog and digital transmissions. It has a 50 MHz to 8 GHz frequency range and is equipped with a 16-segment bar graph that displays signal strength. This device is powered by an included AAA battery. It is housed in a duralumin case for durability. - Detects VHF/UHF transmitters, wireless video cameras, Wi-Fi audio and video transmitters, vehicle transmitters, body-carried transmitters, GSM, 3G, 4G (LTE), Bluetooth, and 2.44 and 8 GHz Wi-Fi devices
- Detects both analog and digital transmissions
- Normal, vibrating, and audio working modes
- Vibrating signal for concealed indication of high RF levels
- 16-segment bar graph indicator
- Physical attenuator provides ability to locate strong RF sources
- Highly sensitive to real signals without being affected by weak background radio waves
- No sensitivity loss as battery discharges
- AAA battery and lanyard attachment clip included
UPC: 738549883975 In the Box KJB Security Products DD12051 iProtect RF Wireless Signal Detector Wand Lanyard Attachment Clip AAA Battery Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the KJB Security Products DD12051 iProtect RF Wireless Signal Detector Wand in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKJB Security Products DD12051 Specs Frequency Range | 50 MHz to 8 GHz | Controls | Power Button, Mode Button, ATT Button | Indicators | ATT State, Working Mode, Battery State (3 Colors), Vibration, 16-Segment Bar Graph | Battery Power | 1 x AAA Battery (Included) | Battery Life | 10 to 20 Hours | Power Consumption | Standby: 100 mA Full Bar Graph: 200 mA | Housing Material | Duralumin | Dimensions (L x W x H) | 6.6 x 0.6 x 0.6" / 168.3 x 15.9 x 15.9 mm | Weight | 2 oz / 57 g | | Package Weight | 0.55 lb | Box Dimensions (LxWxH) | 7.8 x 3.6 x 1.5" |
