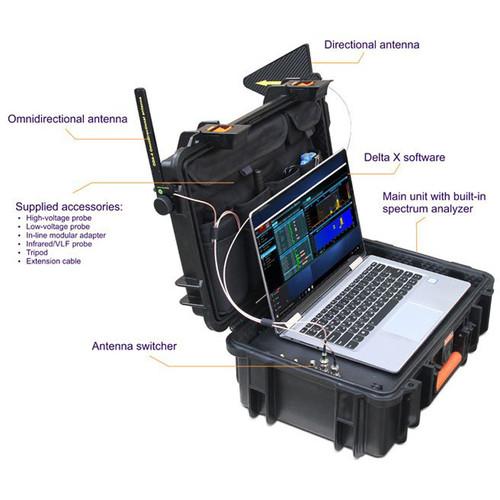

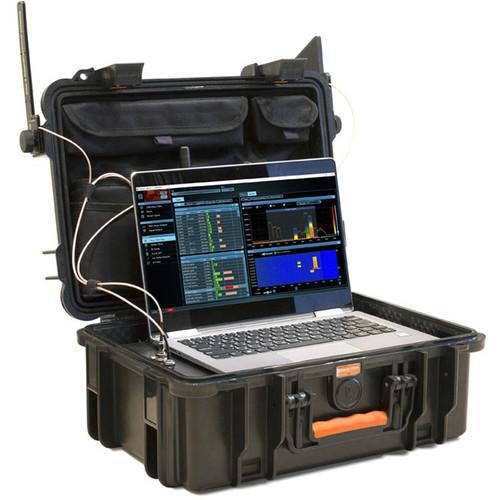

Product description Detect RF listening devices with the Delta X 100/12 Spectrum Analyzer from KJB Security Products. Sensitive to a variety of analog and digital signals, constant and intermittent, audio and video, and encrypted and non-encrypted, the Delta X is a powerful counter surveillance sweeping system with an update rate of 100 MHz per second. The system features a built-in RF switcher that extends its functionality, and comes with the full set of equipment needed for professional bug detection including an omnidirectional antenna, directed microwave antennas, and a multifunction probe for checking the infrared/low frequencies, as well as wires, cables, and adapters.
Unlike conventional spectrum analyzers that require the individual inspection of each radio band depending on its assignment, the Delta X does everything automatically. Signals are recognized, and depending on their type, are saved in the "common" or "mobile & wireless" sections of the constantly updated list. Each signal is assigned an individual danger level, helping the operator to distinguish between safe external sources and suspicious local transmitters. System - Finds hidden surveillance devices employing a variety of digital standards including GSM, 3G, 4G LTE, Bluetooth, Wi-Fi, and DECT
- Detects information transmission via AC, telephone, Ethernet, alarm, and other wires, as well as in the infrared range (multifunction probe included)
- Instant detection mode, guarding mode, locating mode, and car tracker detection mode
- Can monitor for RF 24 hours a day with data logging
- Capable of detecting covert bugging devices with accumulation functions and transmissions hidden within other signals
- Supports storage of unlimited number of signals
- Full information stored in the log can be reviewed during detection or later
- Demodulation of audio in FM, AM, USB, LSB, CW (adjustable bandwidth 3 to 240 kHz)
- Alarm relay output can activate external devices when a dangerous signal is detected (turn on a CCTV system, for example)
- Comes in a protected case that allows you to place a 13-14" laptop inside (laptop available separately)
- Powered via laptop's USB connection
- Update rate of 100 MHz per second
- Frequency range of 100 kHz - 12,400 MHz
- Detects signals within 60 to 120 seconds after their onset
- Detects digital signals with short bursts by accumulating data
Delta X Software - Visual representation with spectrogram/persistence, waterfall, and alarm graphs
- Known Signals table allows the system to reject TV, FM, and other 'friendly' signals while maintaining high sensitivity to unknown signals
- Detector and Locator allow operator to perform location of a bugging device with both visual and audio notifications
- Alarm Threshold decreases false alarm rate
- Hold Max Danger feature selects and shows the strongest signals for their location as the system is moved during detection
- Update Mask procedure allows operator to quickly adjust the system to the local RF environment in order to reject safe signals
- Signals table supports sorting and filtering
- Report function allows operator to export all obtained information about desired signals
UPC: 738549884798 In the Box KJB Security Products Delta X 100/12 Spectrum Analyzer (100 kHz - 12,400 MHz) Delta X Software on USB Flash Memory ODA-4 Omnidirectional Antenna MWA-6 Microwave Antenna MWA-12 Microwave Antenna Multi-Function Probe with Cables Coaxial Low-Attenuation Cable (16.4') In-Line Modular Adapter Tripod Convertible to Handle Case Cover Lock Set of Adapters (Angle USB, BNC-to-SMA, and SMA-to-BNC) Table of Contents
|
Upload User Manual
Have you got an user manual for the KJB Security Products Delta X 100 12 Spectrum Analyzer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKJB Security Products DX100-12 Specs | Update Rate | 100 MHz/sec | | Frequency Range | 100 kHz - 12,400 MHz | | Reaction Time | Minimal Signal Time for Detection: 60-120 seconds | | Resolution | Spectrum Resolution: 15 kHz | | Disk Space | Occupied Disk Space per 24 Hours: 1 GB | | Dynamic Range | Displayed Dynamic Range: -90 to -10 dBm | | Span | Displayed Spectrum Spans: 0.5, 1, 2, 5, 10, 25, 50, 100, 200, 500, 1000, 2000, 3000, 6000 MHz | | Spectrum Graphs | Waterfall and spectrogram | | Data | Spectrogram Display: Persistence, Live, Max, Threshold | | Modes | Detector: Wide-range, signal, selection | | Fields | Known Signals Table: Frequency, Bandwidth, Name, Modulation
Bands Table: Begin, End, Name, Type, Threshold, Priority, Tracker Detection
Signals Table: Frequency, Bandwidth, Name, dBm Level, dBm Peak Level, Danger Level, Peak Danger Level | | System Requirements | Intel Atom N2600 or Intel Core i3
2 x USB 2.0
Windows 7, 8, 10
13-14" / 33.0-35.6 cm screen recommended | | Temperature Range | 32 to 122°F / 0 to 50°C | | Dimensions | Not Specified by Manufacturer | | Weight | Not Specified by Manufacturer |
