KJB Security Products Delta X 100

Search your instruction manual in PDF to download

User Manual for KJB Security Products Delta X 100 4 Spectrum Analyzer

Click to enlarge the picture
KJB Security Products Delta X 100 4 Spectrum Analyzer Contents of the user manual for the KJB Security Products Delta X 100
  • Product category: Counter Surveillance KJB Security Products
  • Brand: KJB Security Products
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for KJB Security Products Counter Surveillance

KJB Security Products Delta X 100 4 Spectrum Analyzer KJB Security Products Delta X 100 4 Spectrum Analyzer
User manual for the KJB Security Products Delta X 100 contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any KJB Security Products product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official KJB Security Products user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a KJB Security Products product will considerably shorten its lifespan!



Product description

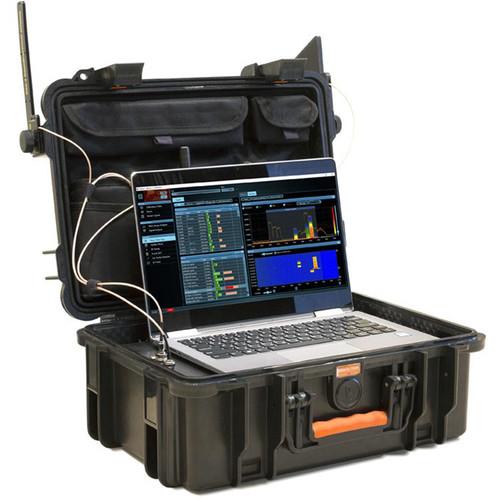

Detect RF listening devices with the Delta X 100/4 Spectrum Analyzer from KJB Security Products. Sensitive to a variety of analog and digital signals, constant and intermittent, audio and video, and encrypted and non-encrypted, the Delta X is a powerful counter surveillance sweeping system with an update rate of 100 MHz per second. The system features a built-in RF switcher that extends its functionality, and comes with the full set of equipment needed for professional bug detection including an omnidirectional antenna, a directed microwave antenna, and a multifunction probe for checking the infrared/low frequencies, as well as wires, cables, and adapters.

Unlike conventional spectrum analyzers that require the individual inspection of each radio band depending on its assignment, the Delta X does everything automatically. Signals are recognized, and depending on their type, are saved in the "common" or "mobile & wireless" sections of the constantly updated list. Each signal is assigned an individual danger level, helping the operator to distinguish between safe external sources and suspicious local transmitters.

System

  • Finds hidden surveillance devices employing a variety of digital standards including GSM, 3G, 4G LTE, Bluetooth, Wi-Fi, and DECT
  • Detects information transmission via AC, telephone, Ethernet, alarm, and other wires, as well as in the infrared range (multifunction probe included)
  • Instant detection mode, guarding mode, locating mode, and car tracker detection mode
  • Can monitor for RF 24 hours a day with data logging
  • Capable of detecting covert bugging devices with accumulation functions and transmissions hidden within other signals
  • Supports storage of unlimited number of signals
  • Full information stored in the log can be reviewed during detection or later
  • Supports multiple logs
  • Demodulation of audio in FM, AM, USB, LSB, CW (adjustable bandwidth 3 to 240 kHz)
  • Alarm relay output can activate external devices when a dangerous signal is detected (turn on a CCTV system, for example)
  • Comes in a protected case that allows you to place a 13-14" laptop inside (laptop available separately)
  • Powered via laptop's USB connection
  • Update rate of 100 MHz per second
  • Frequency range of 40 kHz - 4400 MHz
  • Detects signals within 45 seconds after their onset
  • Detects digital signals with short bursts by accumulating data

Delta X Software

  • Visual representation with spectrogram/persistence, waterfall, and alarm graphs
  • Known Signals table allows the system to reject TV, FM, and other 'friendly' signals while maintaining high sensitivity to unknown signals
  • Detector and Locator allow operator to perform location of a bugging device with both visual and audio notifications
  • Alarm Threshold decreases false alarm rate
  • Hold Max Danger feature selects and shows the strongest signals for their location as the system is moved during detection
  • Update Mask procedure allows operator to quickly adjust the system to the local RF environment in order to reject safe signals
  • Signals table supports sorting and filtering
  • Report function allows operator to export all obtained information about desired signals
  • Multi-language interface

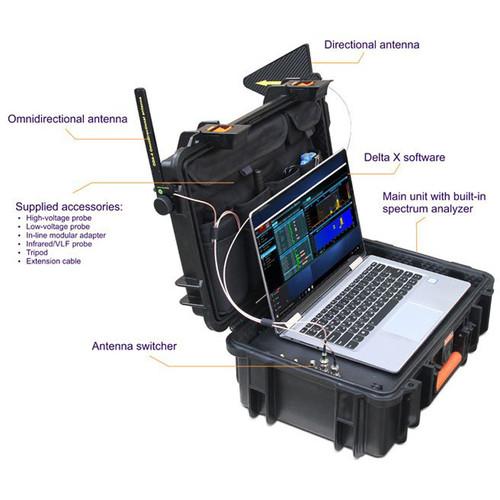

UPC: 738549884828 In the Box KJB Security Products Delta X 100/4 Spectrum Analyzer (40 kHz - 4400 MHz)
  • Delta X Software on USB Flash Memory
  • ODA-4 Omnidirectional Antenna
  • MWA-6 Microwave Antenna
  • Multi-Function Probe with Cables
  • Coaxial Low-Attenuation Cable (16.4')
  • In-Line Modular Adapter
  • Tripod Convertible to Handle
  • Case Cover Lock
  • Set of Adapters (Angle USB, BNC-to-SMA, and SMA-to-BNC)
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the KJB Security Products Delta X 100 4 Spectrum Analyzer in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    KJB Security Products DX100-4 Specs

    Update Rate 100 MHz/sec
    Frequency Range 40 kHz - 4400 MHz
    Reaction Time Minimal Signal Time for Detection: 45 seconds
    Resolution Spectrum Resolution: 15 kHz
    Disk Space Occupied Disk Space per 24 Hours: 0.5 GB
    Dynamic Range Displayed Dynamic Range: -90 to -10 dBm
    Span Displayed Spectrum Spans: 0.5, 1, 2, 5, 10, 25, 50, 100, 200, 500, 1000, 2000, 3000, 6000 MHz
    Spectrum Graphs Waterfall and spectrogram
    Data Spectrogram Display: Persistence, Live, Max, Threshold
    Modes Detector: Wide-range, signal, selection
    Fields Known Signals Table: Frequency, Bandwidth, Name, Modulation
    Bands Table: Begin, End, Name, Type, Threshold, Priority, Tracker Detection
    Signals Table: Frequency, Bandwidth, Name, dBm Level, dBm Peak Level, Danger Level, Peak Danger Level
    System Requirements Intel Atom N2600 or Intel Core i3
    2 x USB 2.0
    Windows 7, 8, 10
    13-14" / 33.0-35.6 cm screen recommended
    Temperature Range 32 to 158°F / 0 to 70°C
    Dimensions Not Specified by Manufacturer
    Weight Not Specified by Manufacturer
