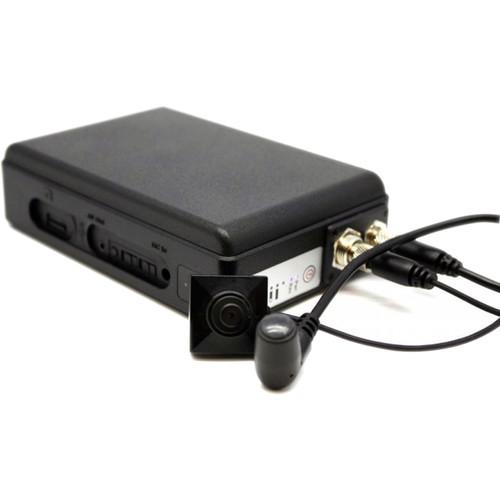

User Manual for KJB Security Products DVR1300W Wi-Fi Black Box with 2MP Covert Camera Click to enlarge the picture
Contents of the user manual for the KJB Security Products DVR1300W Wi-Fi Black
- Product category: Hidden Cameras KJB Security Products
- Brand: KJB Security Products
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for KJB Security Products Hidden Cameras
|
User manual for the KJB Security Products DVR1300W Wi-Fi Black contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any KJB Security Products product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official KJB Security Products user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a KJB Security Products product will considerably shorten its lifespan!
|
Product description The DVR1300W Wi-Fi Black Box from KJB Security Products comes with a covert pinhole button cone camera that captures video in a 2MP resolution. It also comes with PIR sensor with a 60" range. When there is no activity in range of the PIR sensor, the camera and DVR are powered down. When the sensor is triggered, the camera automatically powers on and begins recording. This helps for power conservation. On a full charge, the battery lets the Black Box capture 28-hour long video or lets it run for over a year in standby mode. Rugged and water resistant, this DVR is suitable for both outdoor or indoor surveillance. - Full HD resolution support
- Motion-activated recording
- Start-up time of 2 seconds
- Adopts lightweight, ultra-thin design cables
UPC: 738549884064 In the Box KJB Security Products DVR1300W Wi-Fi Black Box with 2MP Covert Camera SD Memory Card (16GB) Xtreme Life Recording Device Camera Charger TV Out Cable Camera Cable IR Remote Control European Plug Converter Limited 90-Day Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the KJB Security Products DVR1300W Wi-Fi Black Box with 2MP Covert Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKJB Security Products DVR1300W Specs | Algorithm | H.264, JPEG File | | Format | MOV, JPG | | Recording Mode | Normal / Motion Detection / PIR Recording | | Resolution | 1080p / 720p / WVGA | | Frame Rate | Up to 30 fps | | Wi-Fi | Built-in Wi-Fi module (IEEE 802.11b/g/n) | | Wi-Fi Protocol | RTSP | | Memory Type | Trio-Pac SD card (supports SDHC maximum 32 GB) | | Data Interface | Mini USB 2.0 | | Snapshot | Recording and Playback | | Standby Time | Up to 1 year | | Date/Time Stamp | YYYY.MM.DD, HH, MM, SS | | Power Input | DVR: 5 VDC | | Power Consumption | DVR:
380 to 440 mA when Wi-Fi off
Additional 80 mA when Wi-Fi on | | Charging Time | 18 hours @ 1.3 A | | Battery Input Connector | 3.7 VDC / 20,400 mA Lithium battery | | Battery Life | Continuous 28-hour recording (Wi-Fi off) | | Recording Time | 160 minutes @ 1920 x 1080 resolution (16 GB SD card) | | Pixel Size | H x V: 2.8 x 2.8 μm | | Focal Length | 4.3mm | | Aperture | f/2.0 | | Still Picture Resolution | H x V: 1920 x 1080 | | Sensor Resolution | 2000 x 1121 | | Image Sensor | Built-In: Progressive 1/2.9" SONY CMOS | | Low Light Sensitivity | 0.03 lux @ f/2.0 50 IRE | | Lens Diameter | 4.3mm | | Angle of View | 78° | | Depth | 19.7" to ∞ (50 cm to ∞) | | Electronic Shutter | 1/8 to 1/30,000 | | Video Output | I2C Data | | Power Supply | Camera: 220 mA | | Operating Temperature | 32 to 140°F (-10 to 60°C) | | Humidity | 20 to 90% | | Storage Temperature | -22 to 176°F (-30 to 80°C) | | Dimensions | Camera: 1.0 x 1.0 x 0.7" (25.0 x 25.0 x 17.0 mm)
DVR: 5.3 x 3.5 x 1.5" (13.5 x 9.0 x 3.8 cm) | | Weight | Camera: 0.6 oz (18 g)
DVR: 16.9 oz (480 g) | | | | Package Weight | 2.1 lb | | Box Dimensions (LxWxH) | 9.0 x 8.9 x 3.0" |
