User Manual for KJB Security Products GPS900 iTrail Solo GPS Tracking Device Click to enlarge the picture
Contents of the user manual for the KJB Security Products GPS900 iTrail Solo
- Product category: GPS Tracking KJB Security Products
- Brand: KJB Security Products
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for KJB Security Products GPS Tracking
 |
User manual for the KJB Security Products GPS900 iTrail Solo contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any KJB Security Products product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official KJB Security Products user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a KJB Security Products product will considerably shorten its lifespan!
|

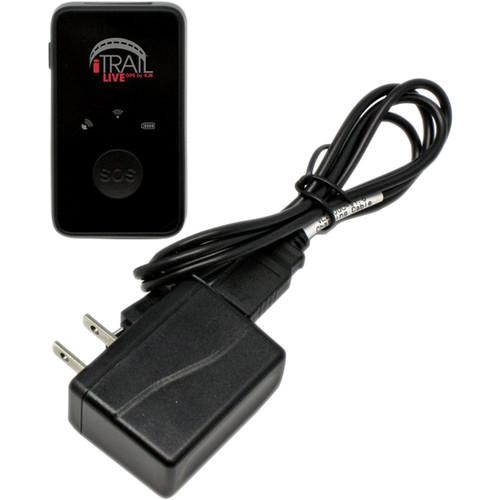

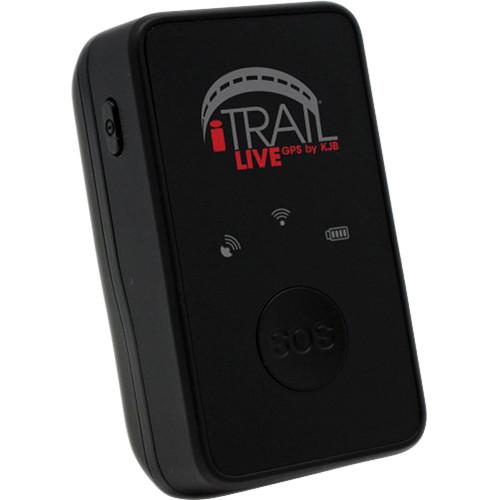

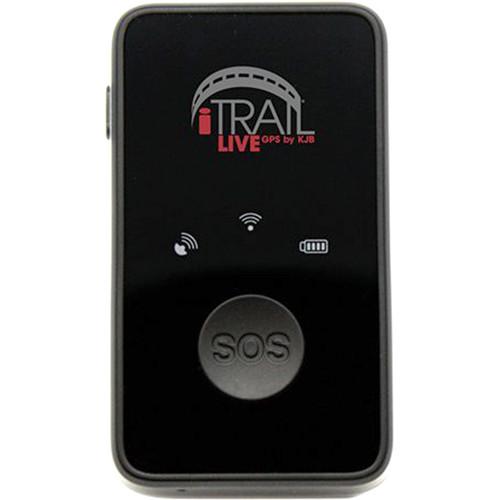

Product description Deploy the GPS900 iTrail Solo GPS Tracking Device from KJB Security Products on a vehicle, or place it in a backpack to track assets or people. This GPS tracker provides accurate tracking thanks to Verizon's CDMA network and has a long lasting 2000mAh battery that can last up to 14 days (1 hour per day). It features an SOS panic button and three indicator lights for GPS, Wi-Fi, and battery status. Compatible with Windows and Mac, you can customize settings to receive email and text notifications for arrival, departure, and low battery alerts.
Note: Activation and a monthly plan are required for use and are available separately. - Operates on Verizon CDMA network
- Arrival, departure, low battery alerts
- 30-second or 1-minute location updates
- Automatic sleep mode conserves battery
- Rechargeable 2000mAh battery for up to 14 days of use (1 hour per day)
- Text reports and text/email notifications
- Windows and Mac compatible via web browser
- SOS/panic button for emergencies
- Navigation and LiveShare feature
UPC: 738549883920 In the Box KJB Security Products GPS900 iTrail Solo GPS Tracking Device Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the KJB Security Products GPS900 iTrail Solo GPS Tracking Device in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKJB Security Products iTrail Solo Specs | | | Data Transmission | SMS, CDMA, 1xRTT packet data, TCP/IP, UDP | | Bands | CDMA 1xRTT: 800/900 MHz | | Transmitter Power | CDMA BC0: Power Class 3 (24.5 dBm) for 1xRTT
CDMA BC1: Power Class 2 (24.5 dBm) for 1xRTT | | Data Rates | Upload: 153.6 kbps
Download: 153.6 kbps | | Channels | 50-channel GPS with SBAS (WAAS) | | Location Accuracy | 6.6' (2 m) CEP (with SBAS) | | Sensitivity | Tracking: -160 dBm
Acquisition: -147 dBm | | Capability | AGPS | | | | Operating Voltage | 4.2 V internal battery | | Power Consumption | 200 μA at 4.2 V (typical, deep sleep)
42.5 mA at 4.2 V (typical, SMS and UDP connection with GPS off)
115 mA at 4.2 V (typical, continuous transmission) | | Features & Functions | Automatic over-the-air (OTA) provisioning on power-up
Low-power sleep mode | | | | Operating Temperature | -4 to 158°F (-20 to 70°C) | | Storage Temperature | -40 to 185°F (-40 to 85°C) | | Humidity | 95% RH, non-condensing at 122° (50°C) | | | | Battery Type | Lithium-ion | | Capacity | 2000 mAh | | Connections | USB | | Certifications | FCC, RoHS, Verizon | | Dimensions | 2.8 x 1.7 x 0.9" (71 x 42 x 23 mm) | | Weight | 2.5 oz (72 g) | | | | Package Weight | 0.475 lb | | Box Dimensions (LxWxH) | 4.45 x 4.0 x 2.4" |
