User Manual for KJB Security Products GPS903 iTrail Endurance GPS Tracker Click to enlarge the picture
Contents of the user manual for the KJB Security Products GPS903 iTrail Endurance
- Product category: GPS Tracking KJB Security Products
- Brand: KJB Security Products
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for KJB Security Products GPS Tracking
 |
User manual for the KJB Security Products GPS903 iTrail Endurance contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any KJB Security Products product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official KJB Security Products user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a KJB Security Products product will considerably shorten its lifespan!
|

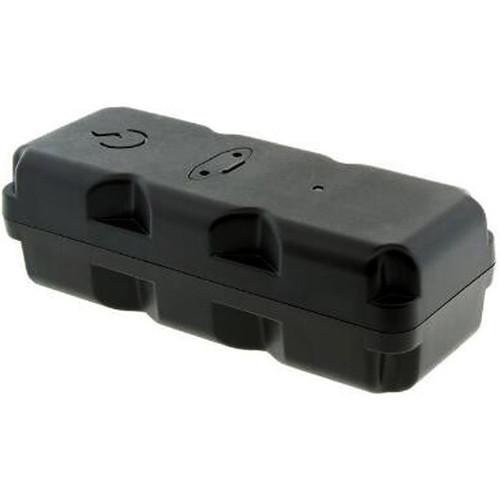

Product description The GPS903 iTrail Endurance GPS Tracker from KJB Security Products provides accurate GPS tracking over Verizon's CDMA network. It has a long-lasting battery that delivers 100 days (1 hour a day) of live tracking. The GPS903 is waterproof, so you can mount it on your vehicle, trailer, boat, heavy equipment, or managed assets without worrying about the elements.The GPS903 is compatible with Windows and Mac PCs, in addition to iOS and Android devices. You can customize settings to receive text (SMS) notifications for arrival, departure, and low battery. You can also generate reports and view historical playback.Activation and a monthly plan with Verizon are required for use and are available separately. You can cancel at any time and no contract is required. - Suitable for monitoring boats, vehicles, motorcycles, large collectibles, and heavy equipment
- Location updates every 30 or 60 seconds
- iTrail Tracking App for iOS and Android
- Subscription plans feature unlimited data, alert notifications, and report generation
UPC: 738549885870 In the Box KJB Security Products GPS903 iTrail Endurance GPS Tracker USB AC Charger USB Cable Mini Screwdriver Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the KJB Security Products GPS903 iTrail Endurance GPS Tracker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKJB Security Products iTrail Endurance Specs | | | Communication Mode | CDMA 1xRTT Packet Data, TCP/IP, UDP, and SMS | | Operating Bands | CDMA 1xRTT: 800/1900 MHz | | Transmitter Power | CDMA BC0: Power Class 3 (24.5 dBm) for 1xRTT
CDMA BC1: Power Class 2 (24.5 dBm) for 1xRTT
| | Channels | 50-channel GPS (with SBAS) | | Location Accuracy | 6.6' (2 m) CEP (with SBAS) | | Sensitivity | Tracking Sensitivity: -160 dBm
Acquisition Sensitivity: -147 dBm
| | Capability | AGPS, SBAS (WAAS) | | | | Operating Voltage | 4.2 V Internal Battery | | Power Consumption | Typical 200 µA at 4.2 V (deep sleep)
Typical 21.5 mA at 4.2 V (SMS + UDP connection, GPS off)
Typical 89.9 mA at 4.2 V (continuous transmit) | | | | Operating Temperature | -4 to 158°F (-20 to 70°C) | | Storage Temperature | -40 to 185°F (-40 to 85°C) | | Humidity | 95% RH, non-condensing at 122°F (50°C) | | | | Certification | Verizon, RoHS | | Dimensions (L x W x H) | 2.8 x 1.6 x 1.1" (70 x 41.3 x 28.6 mm) | | Weight | 3 oz (85 g) |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 25 owners. Add your rating and experience with the product.
