Product description

• GPS900 iTrail Solo GPS Tracking Device Deploy the GPS900 iTrail Solo GPS Tracking Device from KJB Security Products on a vehicle, or place it in a backpack to track assets or people. This GPS tracker provides accurate tracking thanks to Verizon's CDMA network and has a long lasting 2000mAh battery that can last up to 14 days (1 hour per day). It features an SOS panic button and three indicator lights for GPS, Wi-Fi, and battery status. Compatible with Windows and Mac, you can customize settings to receive email and text notifications for arrival, departure, and low battery alerts.

  Note: Activation and a monthly plan are required for use and are available separately.
  • Operates on Verizon CDMA network
  • Arrival, departure, low battery alerts
  • 30-second or 1-minute location updates
  • Automatic sleep mode conserves battery
  • Rechargeable 2000mAh battery for up to 14 days of use (1 hour per day)
  • Historical playback
  • Text reports and text/email notifications
  • Windows and Mac compatible via web browser
  • SOS/panic button for emergencies
  • Navigation and LiveShare feature
  UPC: 738549883920

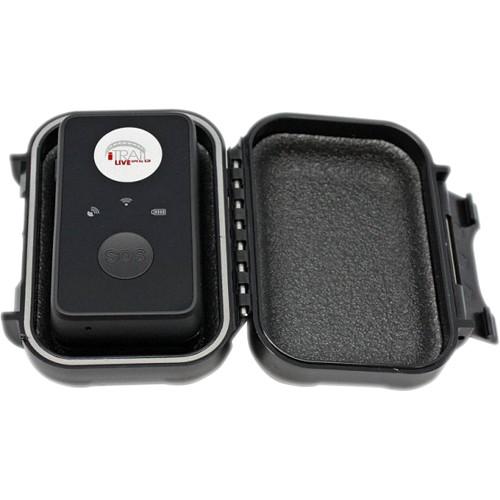

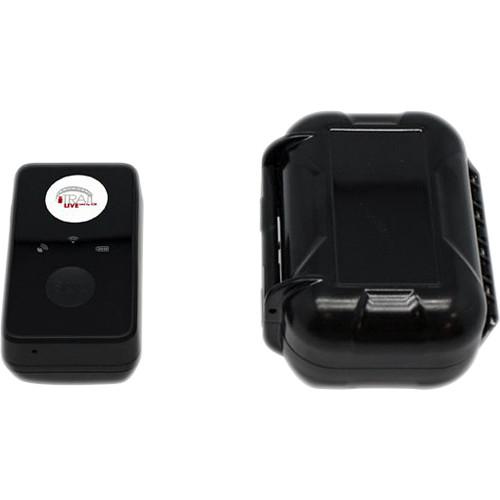

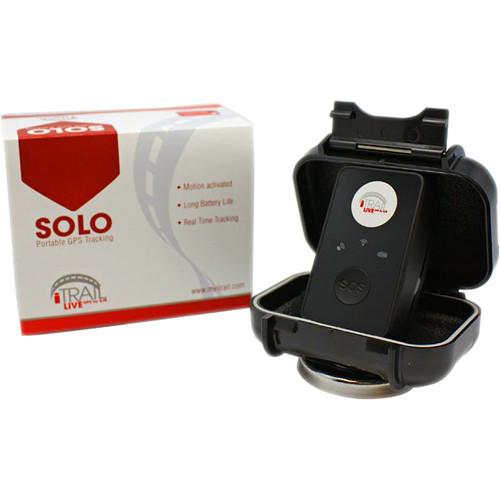

• Small Pelican Case with 80 lb Magnet The KJB Security Products Small Pelican Case with 80 lb Magnet can be used to store and mount a tracking or GPS logging device to a magnetic surface. Equipped with a strong magnetic pull the case can be mounted to the underside of a car, or other magnetic surface, and keeps the device inside secure from outdoor elements.

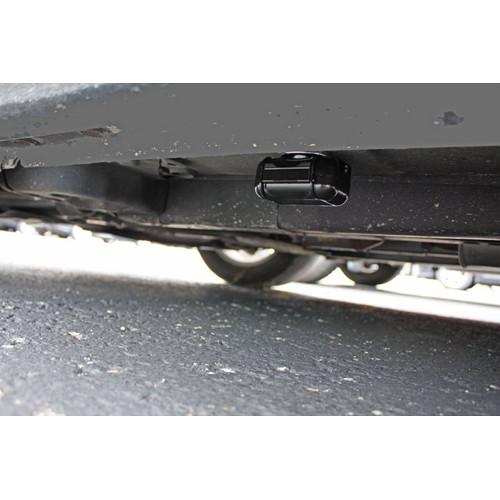

  • Comes equipped with one 80 lb magnet for attachment to a magnetic surface (like under a car, or inside of a boat)
  • Houses GPS devices
  • Water-resistant Pelican case

• Limited 1-Year Warranty

• Limited 90-Day Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• GPS900 iTrail Solo GPS Tracking Device

  Data Transmission	SMS, CDMA, 1xRTT packet data, TCP/IP, UDP
  Bands	CDMA 1xRTT: 800/900 MHz
  Transmitter Power	CDMA BC0: Power Class 3 (24.5 dBm) for 1xRTT CDMA BC1: Power Class 2 (24.5 dBm) for 1xRTT
  Data Rates	Upload: 153.6 kbps Download: 153.6 kbps
  Channels	50-channel GPS with SBAS (WAAS)
  Location Accuracy	6.6' (2 m) CEP (with SBAS)
  Sensitivity	Tracking: -160 dBm Acquisition: -147 dBm
  Capability	AGPS

  Operating Voltage	4.2 V internal battery
  Power Consumption	200 μA at 4.2 V (typical, deep sleep) 42.5 mA at 4.2 V (typical, SMS and UDP connection with GPS off) 115 mA at 4.2 V (typical, continuous transmission)
  Features & Functions	Automatic over-the-air (OTA) provisioning on power-up Low-power sleep mode

  Operating Temperature	-4 to 158°F (-20 to 70°C)
  Storage Temperature	-40 to 185°F (-40 to 85°C)
  Humidity	95% RH, non-condensing at 122° (50°C)

  Battery Type	Lithium-ion
  Capacity	2000 mAh
  Connections	USB
  Certifications	FCC, RoHS, Verizon
  Dimensions	2.8 x 1.7 x 0.9" (71 x 42 x 23 mm)
  Weight	2.5 oz (72 g)

  Box Dimensions (LxWxH)	4.45 x 4.0 x 2.4"

• Small Pelican Case with 80 lb Magnet

  Dimensions	3.5 x 2.8 x 2.0" (8.9 x 6.8 x 5.1 cm)
  Weight	0.30 lb (0.14 kg)

  Box Dimensions (LxWxH)	3.543 x 2.677 x 0.866"
