User Manual for KJB Security Products GPS932 iTrail Solo Worldwide GPS Tracking Device with Magnetic Case Click to enlarge the picture
Contents of the user manual for the KJB Security Products GPS932 iTrail Solo
- Product category: GPS Tracking KJB Security Products
- Brand: KJB Security Products
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for KJB Security Products GPS Tracking
 |
User manual for the KJB Security Products GPS932 iTrail Solo contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any KJB Security Products product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official KJB Security Products user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a KJB Security Products product will considerably shorten its lifespan!
|

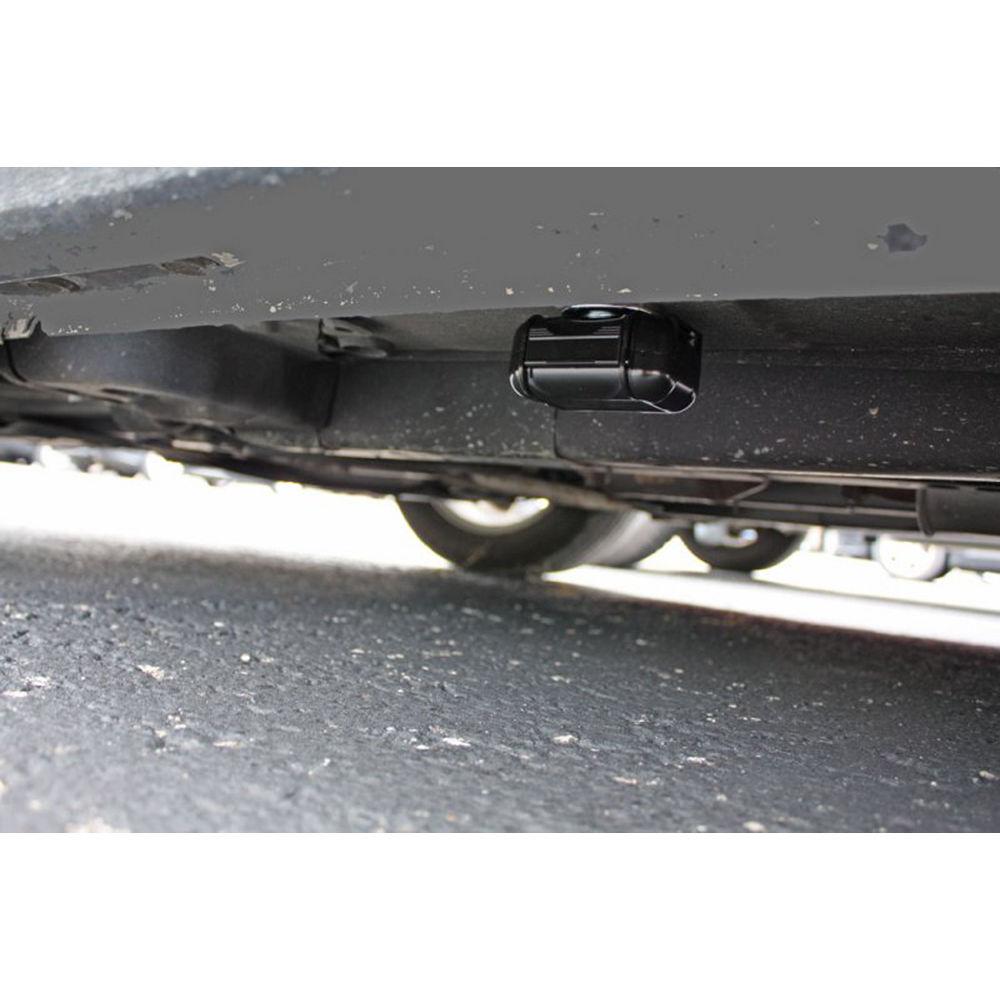

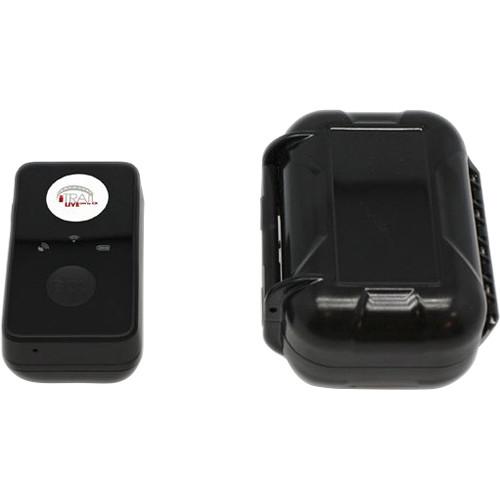

Product description The GPS932 iTrail Solo Worldwide GPS Tracking Device with Magnetic Case from KJB Security Products contains the KJB GPS910 GPS tracker in an E1070 magnetic Pelican case in order to protect your GPS from the elements and mount it securely under a vehicle or in a boat. The GPS tracker provides location data via domestic or international GSM networks and has a 2000mAh battery that can last up to 12 days (2 hours per day). It features an SOS panic button and three indicator lights for GPS, Wi-Fi, and battery status.
Note: Activation included with purchase. A monthly service plan is required for use and is available separately. This device operates on GSM networks via a SIM card and will work both domestically and internationally. - GPS910 iTrail Solo Worldwide GPS Tracking Device Deploy the GPS910 iTrail Solo Worldwide GPS Tracking Device from KJB Security Products onto a vehicle, or place it in a backpack to track assets or people. This GPS tracker provides accurate tracking via domestic or international GSM networks and has a long lasting 2000mAh battery that can last up to 12 days (2 hours per day). It features an SOS panic button and three indicator lights for GPS, Wi-Fi, and battery status.
Log into the iTrail Live platform from an internet-connected PC or smartphone to view your device's location. Compatible with Windows and Mac, you can customize settings to receive email and text notifications for arrival, departure, and low battery alerts. The tracker also has an integrated light and temperature sensor, as well as a 3-axis accelerometer for motion alerts.
Note: Activation and a monthly plan are required for use and are available separately. This GPS operates on GSM networks via a SIM card and will work both domestically and internationally. - Operates on GSM networks via SIM card for domestic and international use
- Internal cellular antenna for accurate tracking
- Arrival, departure, and low battery alerts
- 3-axis accelerometer for motion alerts
- 30-second or 1-minute location updates
- Automatic sleep mode conserves battery
- Rechargeable 2000mAh battery for up to 12 days of use (based on 2 hours of use per day)
- Text reports and text/email notifications
- Windows- and Mac-compatible via web browser
- SOS/panic button for emergencies
- Navigation and LiveShare feature

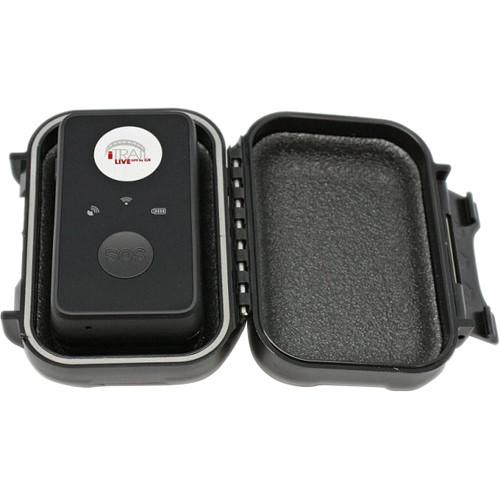

UPC: 738549883951 - Small Pelican Case with 80 lb Magnet The KJB Security Products Small Pelican Case with 80 lb Magnet can be used to store and mount a tracking or GPS logging device to a magnetic surface. Equipped with a strong magnetic pull the case can be mounted to the underside of a car, or other magnetic surface, and keeps the device inside secure from outdoor elements.
- Comes equipped with one 80 lb magnet for attachment to a magnetic surface (like under a car, or inside of a boat)
- Water-resistant Pelican case

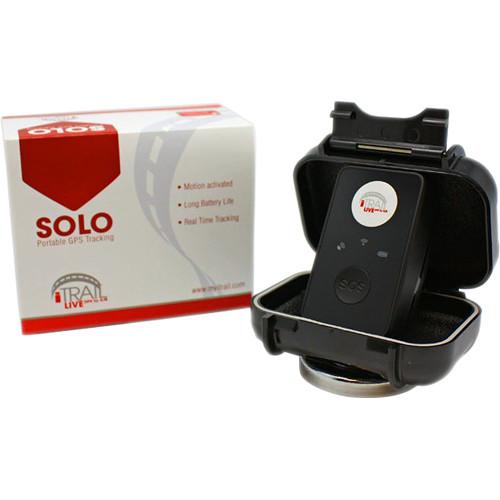

In the Box Bundle Items GPS910 iTrail Solo Worldwide GPS Tracking Device xqzysvtvrxzfdwadbervyfyrsbcrcucbzb Small Pelican Case with 80 lb Magnet Table of Contents
|
Upload User Manual
Have you got an user manual for the KJB Security Products GPS932 iTrail Solo Worldwide GPS Tracking Device with Magnetic Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - GPS910 iTrail Solo Worldwide GPS Tracking Device
| | | Antenna | Internal cellular antenna | | Data Transmission | SMS, UDP, GPRS, packet data | | Bands | GSM/GPRS: 850, 900, 1800, 1900 MHz | | Transmitter Power | GSM/GPRS:
850/900: 32.5 dB
1800/1900: 29.5 dB | | Channels | 50-channel GPS with SBAS (WAAS, EGNOS, MSAS, GAGAN) | | Location Accuracy | 6.6' (2 m) CEP (with SBAS) | | Sensitivity | Tracking: -162 dBm
Acquisition: -147 dBm | | Capability | AGPS | | | | Operating Voltage | 4.2 V internal battery | | Power Consumption | 200 µA at 4.2 V (typical, deep sleep)
21.5 mA at 4.2 V (typical, SMS and UDP connection with GPS off)
89.9 mA at 4.2 V (typical, continuous transmission) | | | | Operating Temperature | -22 to 158°F (-30 to 70°C) | | Storage Temperature | -40 to 185°F (-40 to 85°C) | | Humidity | 95% RH, non-condensing | | | | Battery Type | Lithium-ion | | Capacity | 2000 mAh | | Connections | USB, SIM card slot | | Certifications | FCC, PTCRB, IC, CE, RoHS | | Dimensions | 2.5 x 1.6 x 1" (64.75 x 41.3 x 25.5 mm) | | Weight | 2.7 oz (76 g) | - Small Pelican Case with 80 lb Magnet
| Dimensions | 3.5 x 2.8 x 2.0" (8.9 x 6.8 x 5.1 cm) | | Weight | 0.30 lb (0.14 kg) | | | | Box Dimensions (LxWxH) | 3.543 x 2.677 x 0.866" |
