User Manual for KJB Security Products Handheld DVR & 1080p Button Camera Kit Click to enlarge the picture
Contents of the user manual for the KJB Security Products Handheld DVR &
- Product category: Hidden Cameras KJB Security Products
- Brand: KJB Security Products
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for KJB Security Products Hidden Cameras
 |
User manual for the KJB Security Products Handheld DVR & contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any KJB Security Products product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official KJB Security Products user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a KJB Security Products product will considerably shorten its lifespan!
|

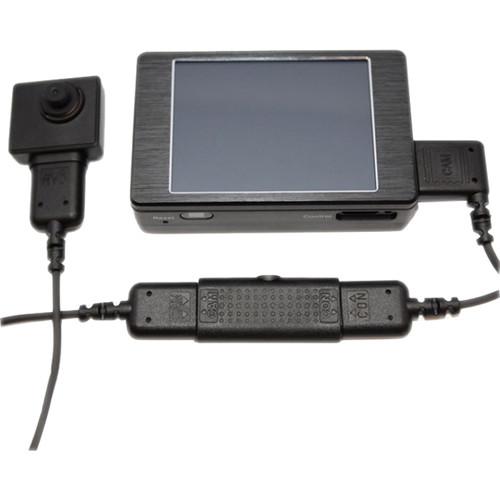

Product description The HD Touchscreen Handheld DVR & 1080p Camera Kit from KJB Security Products includes a DVR506 Handheld DVR and a C1023 1080p HD Miniature Covert Button Camera. The Handheld DVR offers video at up to 720p quality. When paired with the included camera, this DVR unit makes a wearable recording package. The digital video recorder features a 2.36" touchscreen and is compatible with Windows and Mac operating systems. The 1080p HD Miniature Covert Button Camera features a progressive 1/2.8" Sony CMOS image sensor and is designed for use with LawMate DVRs. It also features an external microphone and USB connection. The button camera is capable of providing 2MP images and 1080p resolution videos. - DVR506 720p Handheld DVR The DVR506 HD Touchscreen Handheld DVR from KJB Security Products allows you to view a camera's feed and save footage right to the included 4GB SD card. This DVR features a 2.36" LCD touchscreen and comes with connection cables to connect to a camera.
- 2.36" TFT touchscreen operation
- 720p recording resolution at up to 30 fps
- Time and date stamp on video files
- Multi-layer password protection
- Standard, motion, schedule, and event recording modes
- Dual video inputs provide digital or analog video feeds
- Compatible with most computers
- Record video files to the included removable 4GB memory card

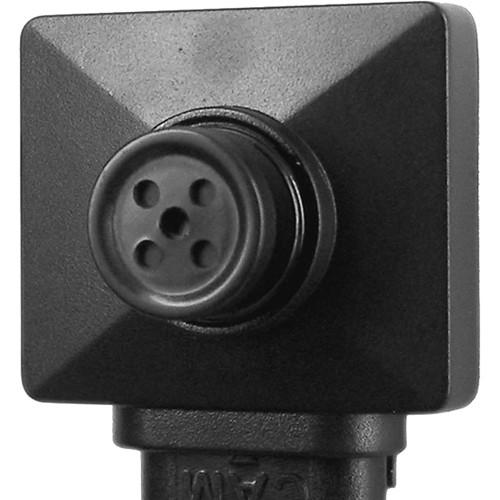

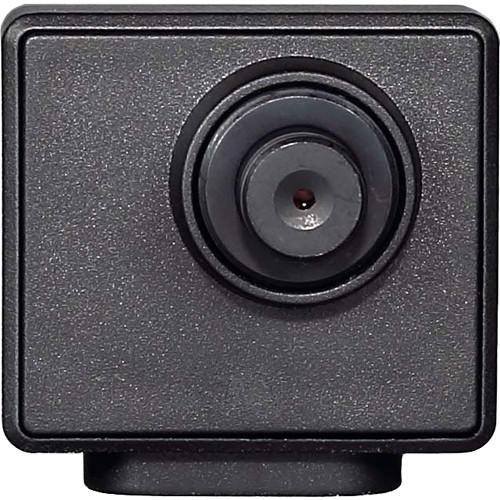

- Button with 2MP Covert Camera The Button with 2MP Covert Camerafrom KJB Security Products features a 1/2.8" progressive-scan Sony CMOS sensor to capture 1920 x 1080 resolution and 2MP still images. It has an external microphone and USB connection, and comes with a button set to offer a variety of styles of buttons to fit your needs. It is designed for use with LawMate Series DVRs.
- Miniature covert camera hidden in button
- 2MP 1/2.8" progressive-scan CMOS sensor
- 1920 x 1080 resolution recording and 2MP still images
UPC: 738549883333 In the Box Bundle Items DVR506 720p Handheld DVR - European Outlet Adapter Plug
Button with 2MP Covert Camera Table of Contents
|
Upload User Manual
Have you got an user manual for the KJB Security Products Handheld DVR & 1080p Button Camera Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - DVR506 720p Handheld DVR
| Display | 2.36" (6 cm) 480 x 234 color TFT LCD | | Video Input | NTSC and PAL (Auto Detection) | | Video Record Mode | Standard, Motion, Schedule, and Event | | Resolution | 320 x 240, 640 x 480, 720 x 480, 1024 x 768, 1280 x 720, 1280 x 960 | | Quality | High, Normal, and Low | | Maximum Resolution | 1280 x 720 | | Frame Rate | 1, 5, 15, 20, 30 fps | | Picture Format | JPG | | Memory Type | SD card (supports up to 32 GB SDHC) | | Computer Interface | USB 2.0 | | Battery Life | Up to 2.5 hours | | Dimensions | 3.5 x 2 x 1" (8.9 x 5.1 x 2.5 cm) | | Weight | 5 oz (142 g) | | | | Box Dimensions (LxWxH) | 9.4 x 5.2 x 2.7" | - Button with 2MP Covert Camera
| Video Resolution | > 1200 TVL | | Pixel Size | 2.8 x 2.8 um | | Resolution | 1920 x 1080 | | Image Sensor | Sony 1/2.8" progressive-scan CMOS | | Illumination | 0.08 lux, f/2.0 (50 IRE) | | Aperture | f/2.0 | | Lens Diameter | 4.3mm | | Angle of View | 78° | | Depth of Field | 20" (51 cm) | | Electronic Shutter | 1/8 to 1/30,000 | | Video Output | RAW Dana | | Audio Output | 2 Vpp (maximum) | | Impedance | 10 kOhms | | AGC | > 52 db (AGC off) | | S/N Ratio | 36 dB maximum | | Power Supply Voltage | 3.3 VDC +/- 5% | | Power Current | 200 mA | | Operating Temperature | 14 to 140°F (-10 to 60°C) | | Operating Humidity | 20 to 90% | | Storage Temperature | -22 to 176°F (-30 to 80°C) | | Dimensions | 1.2 x 1.2 x 0.8" (30 x 30 x 20 mm) | | Weight | 0.35 oz (10 g) | | | | Box Dimensions (LxWxH) | 6.0 x 4.9 x 2.6" |
