User Manual for KJB Security Products SG Home Smoke Detector with Battery-Powered 720p Wi-Fi Covert Camera

Click to enlarge the picture
KJB Security Products SG Home Smoke Detector with Battery-Powered 720p Wi-Fi Covert Camera Contents of the user manual for the KJB Security Products SG Home Smoke
  • Product category: Hidden Cameras KJB Security Products
  • Brand: KJB Security Products
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for KJB Security Products Hidden Cameras

User manual for the KJB Security Products SG Home Smoke contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any KJB Security Products product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official KJB Security Products user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a KJB Security Products product will considerably shorten its lifespan!

Product description

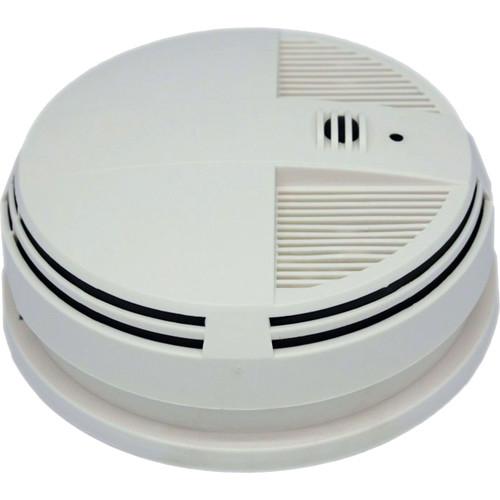

The SG Home Smoke Detector with Battery-Powered 720p Wi-Fi Covert Camera (Side View) is a non-functional smoke detector with a built-in camera for covertly capturing surveillance video. This side view camera has no visible wires and is integrated into the smoke detector. Since the lens of the camera is oriented sideways, the smoke detector should be positioned on a wall or ceiling in such a way that the device's side faces the desired scene. With a viewing angle of 125°, the camera covers a wide area and is suitable for monitoring the length of a room or hallway. Equipped with IR LEDs, the camera provides clear video in low light conditions. There is a PIR sensor that can trigger the camera to record when motion is detected in order to save battery life. Download the free SG Home app for iOS and Android devices to view live video right from your device. A 32GB microSD card is included to save recorded video.
  • 1280 x 720 resolution video at up to 30 fps
  • IR LEDs for low-light recording
  • Motion-activated and continuous recording modes
  • Battery operated 16 hours of continuous use or 90 days of standby
  • 32GB microSD card included for local storage
  • Wi-Fi connectivity for remote access via SG Home app for iOS and Android devices
UPC: 738549885429 In the Box KJB Security Products SG Home Smoke Detector with Battery-Powered 720p Wi-Fi Covert Camera (Side View)
  • 32GB microSD Card
  • USB Charge Cable
  • Limited 1-Year Warranty
  • Table of Contents

    Upload User Manual

    Have you got an user manual for the KJB Security Products SG Home Smoke Detector with Battery-Powered 720p Wi-Fi Covert Camera in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:


    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)


    Technical parameters

    KJB Security Products SG Home Specs

    Type Side view
    Signal System NTSC, PAL
    Image Sensor 1/3" digital CMOS
    Resolution 1280 x 720 at 30 fps
    Viewing Angle 125°
    IR High-powered IR LEDs for low-light recording
    Video Resolution 1280 x 720
    Recording Frame Rate Up to 30 fps
    Video Compression H.264
    Video Format MP4
    Memory Card Support 32 GB microSD included
    Time Setting Via internet
    PIR Sensor Built-in
    Recording Mode Motion-detection, continuous, overwrite
    Still Image Capture Images save to mobile device via SG Home app
    Operating Temperature 32 to 122°F (0 to 50°C)
    Battery Rechargeable 5 V, 10,000 mAh lithium-ion
    Battery Life PIR Mode: Up to 90 days
    Continuous Mode: Up to 16 hours
    Battery Charge Time 10 hours
    Power Voltage 5/12 VDC using AC adapter
    Mobile OS Support iOS 8 and later
    Android 4.4 and later
    Mobile App SG Home
    Dimensions 6 x 6 x 2.5" (15.24 x 15.24 x 6.35 cm)
    Weight 1 lb (0.45 kg)
    Package Weight 1.23 lb
    Box Dimensions (LxWxH) 9.65 x 7.4 x 3.25"
