User Manual for KJB Security Products SG Home Smoke Detector with Battery-Powered 720p Wi-Fi Covert Camera Click to enlarge the picture
Contents of the user manual for the KJB Security Products SG Home Smoke
- Product category: Hidden Cameras KJB Security Products
- Brand: KJB Security Products
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for KJB Security Products Hidden Cameras
|
User manual for the KJB Security Products SG Home Smoke contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any KJB Security Products product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official KJB Security Products user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a KJB Security Products product will considerably shorten its lifespan!
|

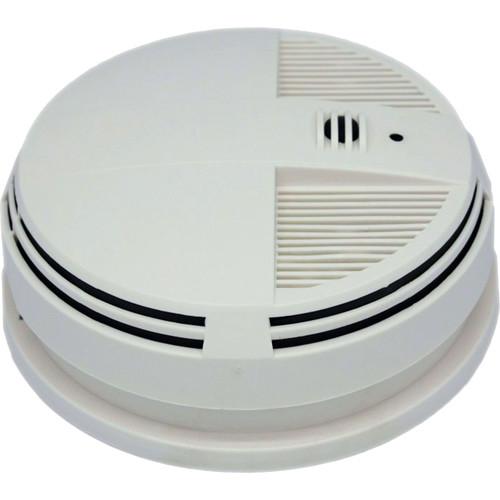

Product description The SG Home Smoke Detector with Battery-Powered 720p Wi-Fi Covert Camera (Bottom View) is a non-functional smoke detector with a built-in camera for covertly capturing surveillance video. This bottom view camera has no visible wires and is integrated into the smoke detector. Since the lens of the camera is oriented downward, the smoke detector should be positioned on a wall or ceiling in such a way that the device's bottom faces the desired scene. With a viewing angle of 125°, the camera covers a wide area and is suitable for monitoring the length of a room or hallway. Equipped with IR LEDs, the camera provides clear video in low light conditions. There is a PIR sensor that can trigger the camera to record when motion is detected in order to save battery life. Download the free SG Home app for iOS and Android devices to view live video right from your device. A 32GB microSD card is included to save recorded video. - 1280 x 720 resolution video at up to 30 fps
- IR LEDs for low-light recording
- Motion-activated and continuous recording modes
- Battery operated 16 hours of continuous use or 90 days of standby
- 32GB microSD card included for local storage
- Wi-Fi connectivity for remote access via SG Home app for iOS and Android devices
UPC: 738549885443 In the Box KJB Security Products SG Home Smoke Detector with Battery-Powered 720p Wi-Fi Covert Camera (Bottom View) 32GB microSD Card USB Charge Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the KJB Security Products SG Home Smoke Detector with Battery-Powered 720p Wi-Fi Covert Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKJB Security Products SG Home Specs | | | Type | Bottom view | | Signal System | NTSC, PAL | | Image Sensor | 1/3" digital CMOS | | Resolution | 1280 x 720 at 30 fps | | Viewing Angle | 125° | | IR | High-powered IR LEDs for low-light recording | | | | Video Resolution | 1280 x 720 | | Recording Frame Rate | Up to 30 fps | | Video Compression | H.264 | | Video Format | MP4 | | Memory Card Support | 32 GB microSD included | | Time Setting | Via internet | | PIR Sensor | Built-in | | Recording Mode | Motion-detection, continuous, overwrite | | Still Image Capture | Images save to mobile device via SG Home app | | | | Operating Temperature | 32 to 122°F (0 to 50°C) | | Battery | Rechargeable 5 V, 10,000 mAh lithium-ion | | Battery Life | PIR Mode: Up to 90 days
Continuous Mode: Up to 16 hours | | Battery Charge Time | 10 hours | | Power Voltage | 5/12 VDC using AC adapter | | Mobile OS Support | iOS 8 and later
Android 4.4 and later | | Mobile App | SG Home | | Dimensions | 6 x 6 x 2.5" (15.24 x 15.24 x 6.35 cm) | | Weight | 1 lb (0.45 kg) | | | | Package Weight | 1.23 lb | | Box Dimensions (LxWxH) | 9.3 x 7.7 x 3.2" |
