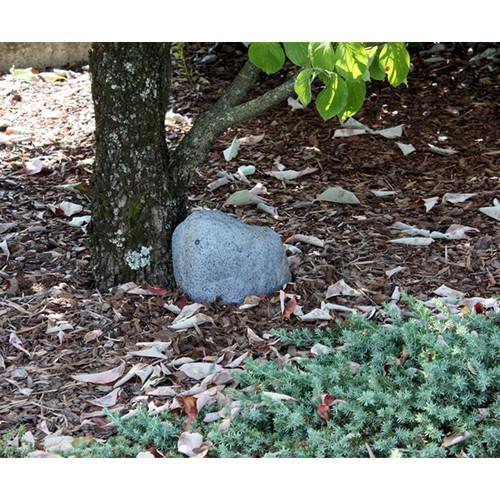

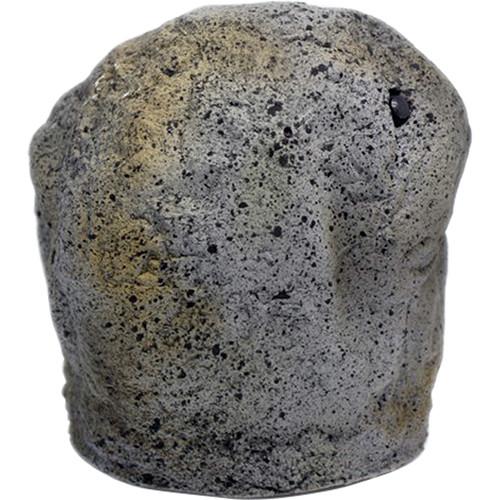

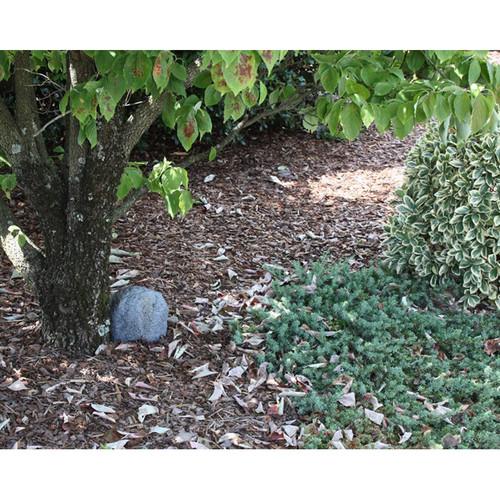

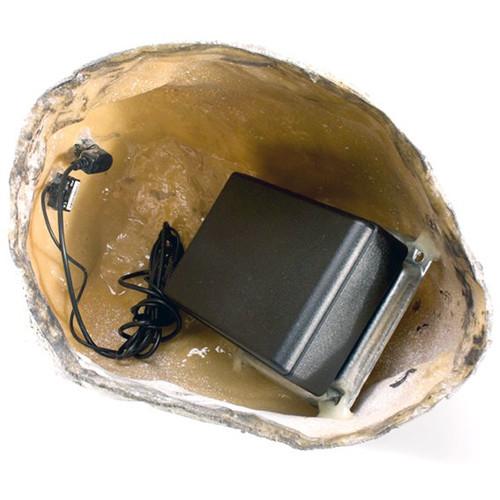

Product description The SleuthGear Xtreme Life Plus Landscape Stone with Covert Camera & DVR from KJB Security Products features the LawMate DVR1300W Black Box covert surveillance system hidden inside a rugged outdoor landscape stone. This system is comprised of a wired covert pinhole button cone camera, a PIR sensor, and a DVR. The camera uses a 2MP 1/2.9" Sony CMOS sensor to capture videos at up to 1080p resolution at 30 fps. The recorder unit features Wi-Fi connectivity and a maximum recording time of 320 minutes on a 32GB microSD card (160 minutes with the included 16GB card). The built-in battery offers continuous recording for 28 hours and can remain in standby mode for more than a year when using the PIR motion setting. This covert system is suitable for both indoor as well as outdoor installations. - 2MP CMOS covert pinhole button cone camera
- Features a PIR sensor that helps conserve battery life
- 60" camera and PIR sensor cable
- Low light sensitivity of 0.03 lux at f/2.0 (50 IRE)
- 28 hours of continuous recording battery life
- Offers up to one year of operation in standby mode on a full battery charge
- Supports a microSD card up to 32GB (16GB included) for onboard storage and playback recorded footage
- Live streaming over a Wi-Fi network
- View real-time video on your smartphone or tablet via free PV Cam Viewer app
- Time and date stamp available
- Weather-resistant, suitable for both indoor and outdoor surveillance
UPC: 738549884514 In the Box KJB Security Products SleuthGear Xtreme Life Plus Landscape Stone with Covert Camera & DVR DVR1300W Wi-Fi Black Box with 2MP Covert Camera xqzysvtvrxzfdwadbervyfyrsbcrcucbzb Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the KJB Security Products SleuthGear Xtreme Life Plus Landscape Stone with Covert Camera & DVR in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKJB Security Products Xtreme Life Specs | | | Image Sensor | 1/2.9" Sony CMOS | | Sensor Resolution | 2000 x 1121 | | Field of View | 78° | | Image Resolution | 1920 x 1080 | | Pixel Pitch (H x V) | 2.8 x 2.8 µm | | Minimum Illumination | 0.03 lux at f/2.0 (50 IRE) | | Focal Length | 4.3mm | | Aperture | f/2.0 | | Depth of Field | 50 cm to ∞ | | Electronic Shutter | 1/8 to 1/30,000 | | Power Supply | 220 mA | | Video Output | I2C data | | Operating Temperature | 14 to 140°F (-10 to 60°C) | | Operating Humidity | 20 to 90% | | Dimensions | 0.98 x 0.98 x 0.67" (25 x 25 x 17 mm) | | Weight | 0.6 oz (18 g) | | | | Recording Resolution | 1080p / 720p / WVGA | | Frame Rate | Up to 30 fps | | Recording Mode | Auto / Manual / Motion / PIR | | File Format | MOV, JPG | | Wi-Fi | Built-in Wi-Fi module (IEEE 802.11b/g/n)
Protocol: RTSP | | Antenna Gain | 3 dBi | | Data Interface | Mini-USB 2.0 | | Modes | Disguised Mode: Standby, power-off | | Date/Time Stamp | YYYYMMDD_HHMMSS | | Snapshot | Recording and playback | | Storage | 32 GB microSD card (16 GB card included) | | Recording Time | Approximately 10 min/GB, 32 GB maximum
160 min at 1920 x 1080 resolution with included 16 GB SD card | | Compression Format | H.264, JPEG | | Mobile OS Support | iPhone 3GS or higher
iPad iOS 5.1 or higher
Android 2.3 or higher | | Charging Time | 18 hours (1.3 A) | | Battery Life | Continuous recording for 28 hours (Wi-Fi off) | | Standby Time | Up to 365 days (1 year) | | Power Consumption | Wi-Fi Off: 380 to 440 mA
Wi-Fi On: +80 mA | | Power Input | 5 VDC
Battery Input: 3.7 VDC / 20,400 mA lithium battery | | Dimensions | 5.3 x 3.5 x 1.5" (13.5 x 9 x 3.8 cm) | | Weight | 16.9 oz (480 g) | | | | Dimensions | Not Specified by the Manufacturer | | Weight | Not Specified by the Manufacturer | | | | Package Weight | 5.7 lb | | Box Dimensions (LxWxH) | 12.0 x 10.0 x 9.0" |
