User Manual for KJB Security Products Xtreme Life Electric Box with 720p Covert Camera & DVR Click to enlarge the picture
Contents of the user manual for the KJB Security Products Xtreme Life Electric
- Product category: Hidden Cameras KJB Security Products
- Brand: KJB Security Products
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for KJB Security Products Hidden Cameras
 |
User manual for the KJB Security Products Xtreme Life Electric contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any KJB Security Products product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official KJB Security Products user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a KJB Security Products product will considerably shorten its lifespan!
|

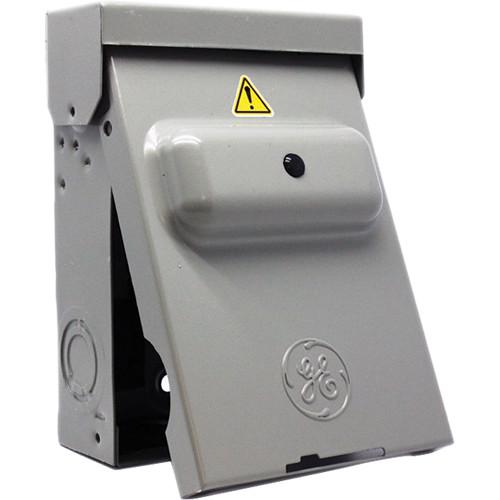

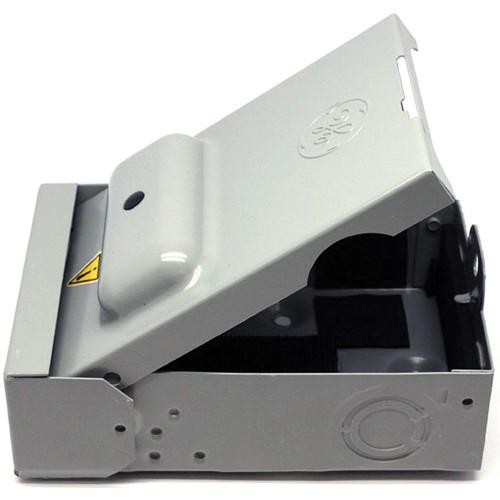

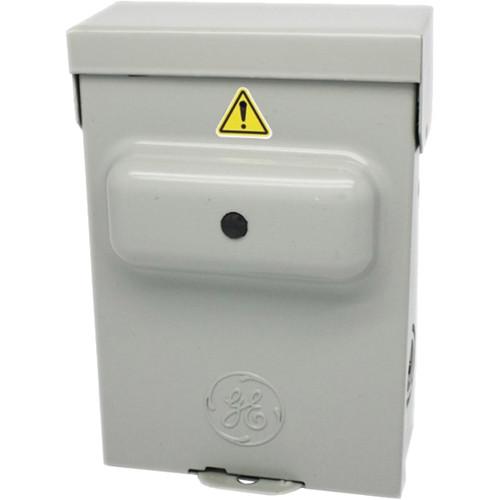

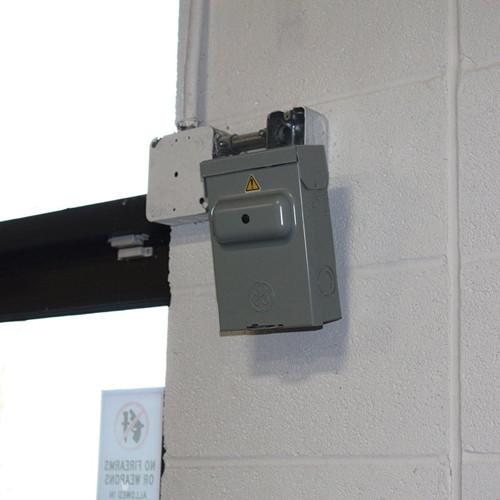

Product description The Xtreme Life Electric Box with 720p Covert Camera & DVR from KJB Security Products is designed for covert surveillance. The discreet device records 1280 x 720 resolution video at up to 30 fps. Night vision functionality enables the camera to capture footage in darkness. A 140° field of view offers a wide coverage area. The included rechargeable li-ion battery delivers up to 16 hours of continuous battery life. PIR motion sensor helps conserve battery life.
This device supports SD cards up to 64GB, and an 8GB SD card is included. It's housed in a weather-resistant enclosure, making it suitable for outdoor placement. - 1/3" digital CMOS image sensor
- PIR trigger video recording mode
- 2-second start up from PIR motion sensor trigger to video recording
- Playback options for TV, Windows or Mac PCs, iOS, and Android
- Time and date stamp enables precise documentation of recorded video
- Up to 90 days of standby battery power
- Includes remote control, li-ion battery, AV output cable, USB charging cable, and 8GB SD card
UPC: 738549881865 In the Box KJB Security Products Xtreme Life Electric Box with 720p Covert Camera & DVR Remote Control Li-Ion Battery AV Output Cable 8GB SD Card USB Charging Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the KJB Security Products Xtreme Life Electric Box with 720p Covert Camera & DVR in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKJB Security Products Xtreme Life Specs | | | Sensor | 1/3" digital CMOS | | Effective Pixels | 1280 x 720 | | Field of View | 140° | | Video Standard | NTSC | | Operating Temperature | 22 to 158°F / -5.5 to 70°C | | IR Wavelength | 940 nm | | | | Recording Resolution | 1280 x 720
Adjustable resolution | | Frame Rate | Up to 30 fps (adjustable) | | Video Compression | H.264 | | Date/Time Stamp | Supported | | Storage | SD cards up to 64 GB, Class XC1 (confirmed with Toshiba and Samsung EVO)
8 GB card included | | Recording Modes | PIR trigger | | Playback Options | TV, computer, iOS, Android | | Video Playback Formats | AVI | | IR Remote Control | Yes | | Operating Temperature | 32 to 122°F / 0 to 50° | | | | Type | Rechargeable li-ion (included) | | Battery Life | Up to 16 hours | | Standby Battery Life | Up to 90 days | | Battery Charge Time | 9 to 10 hours | | Battery Capacity | 10,000 mAh | | Battery Power | 5 VDC, 1000 mA | | | | Dimensions (L x W x H) | 5 x 2.25 x 7.5" / 127 x 57.2 x 190.5 mm | | Weight | 2.38 lb / 1 kg | | | | Package Weight | 3.05 lb | | Box Dimensions (LxWxH) | 9.3 x 7.4 x 3.3" |
