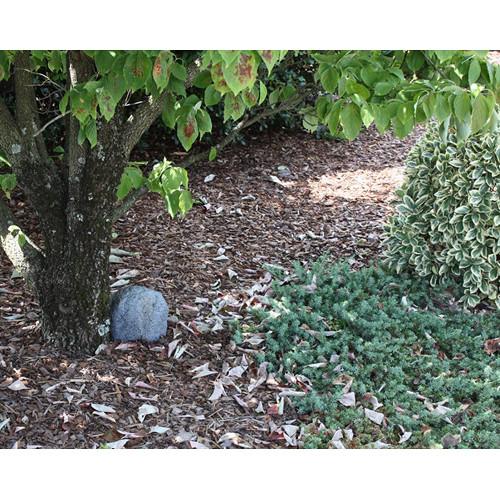

Product description The Xtreme Life Landscape Stone with 4K UHD Covert Camera & DVR from KJB Security Products is designed for covert surveillance. This camera is housed in a faux landscape stone. It uses a digital CMOS sensor to discreetly record 3480 x 2160 resolution video at 24 fps. The camera's 120° field of view provides a wide coverage.
Recording modes on this device include motion detection and continuous recording. Included is a rechargeable lithium-ion battery to deliver 16 hours of continuous battery life. An onboard memory card slot supports microSD cards up to 128GB, and a 32GB card is included. - Adjustable frame rate up to 120 fps
- Li-ion battery utilizes a PIR sensor to provide up to 90 days of standby battery power
- Includes RCA video cable to connect to an external display (available separately) for video playback
- IR remote control included
- Compatible with iOS, Android, Mac & Windows PCs

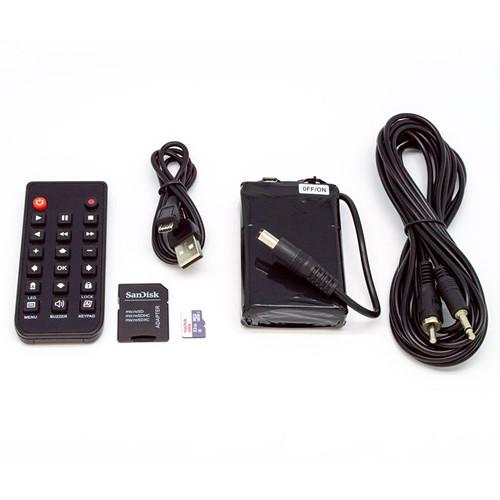

UPC: 738549886389 In the Box KJB Security Products Xtreme Life Landscape Stone with 4K UHD Covert Camera & DVR 32GB microSD Card Li-Ion Battery RCA Video Cable IR Remote Control Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the KJB Security Products Xtreme Life Landscape Stone with 4K UHD Covert Camera & DVR in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKJB Security Products Xtreme Life 4K Specs | | | Effective Pixels | 2280 x 2160 | | Image Sensor | 1/2.7" Sony IMX326 high-speed digital CMOS sensor | | Function | Video imaging | | IR Cut Filter | Yes | | IR Wavelength | 940 nm | | Aperture | f/2.2 | | Field of View | 120° | | | | Recording Resolutions | 4K UHD / 3840 x 2160 at 24 fps
2K at 30 fps
1296p at 30 fps
1920 x 1080 at 60/30 fps
1280 x 720 at 120/60/30 fps | | Frame Rate | Adjustable up to 120 fps | | Video Compression | H.264 | | Date/Time Stamp | Supported | | Onboard Storage | Supports microSD cards up to 128 GB, Class XC1 (confirmed with Toshiba and Samsung EVO)
32 GB card included | | Recording Modes | Motion, continuous | | File Type | MP4 | | Playback | TV or PC | | Operating Temperature | 32 to 122°F / 0 to 50°C | | | | Type | Rechargeable lithium-ion (included) | | Battery Life | Up to 16 hours | | Standby Battery Life | Up to 90 days | | Battery Charge Time | 9 to 10 hours | | Battery Capacity | 10,000 mAh | | Battery Power | 5 VDC, 1000 mA | | | | Dimensions | 9.75 x 7.00 x 8.25" / 24.8 x 17.8 x 20.9 cm | | Weight | 2.13 lb / 0.97 kg |
