User Manual for Klark Teknik AIR LINK DW 20R Stereo 2.4 GHz Wireless Receiver Click to enlarge the picture
Contents of the user manual for the Klark Teknik AIR LINK DW 20R
- Product category: Wireless Receivers Klark Teknik
- Brand: Klark Teknik
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Klark Teknik Wireless Receivers
 |
User manual for the Klark Teknik AIR LINK DW 20R contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Klark Teknik product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Klark Teknik user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Klark Teknik product will considerably shorten its lifespan!
|

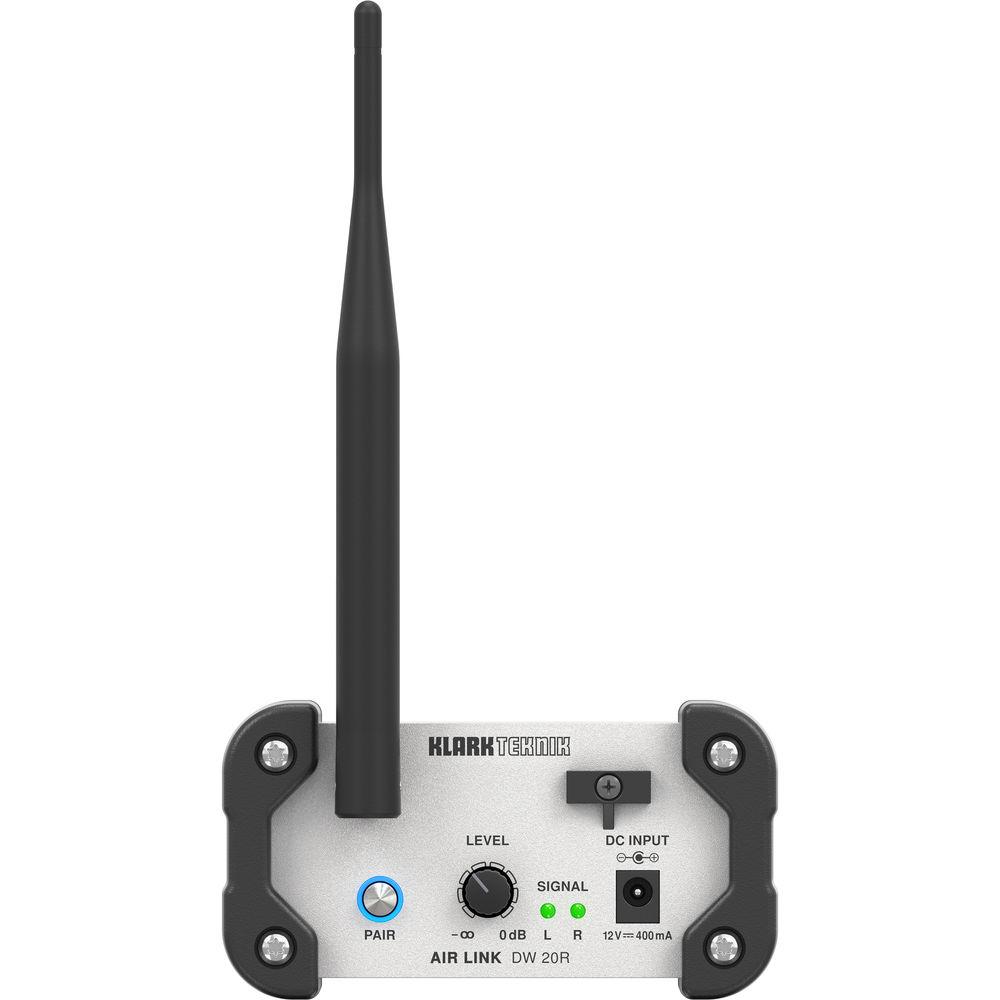

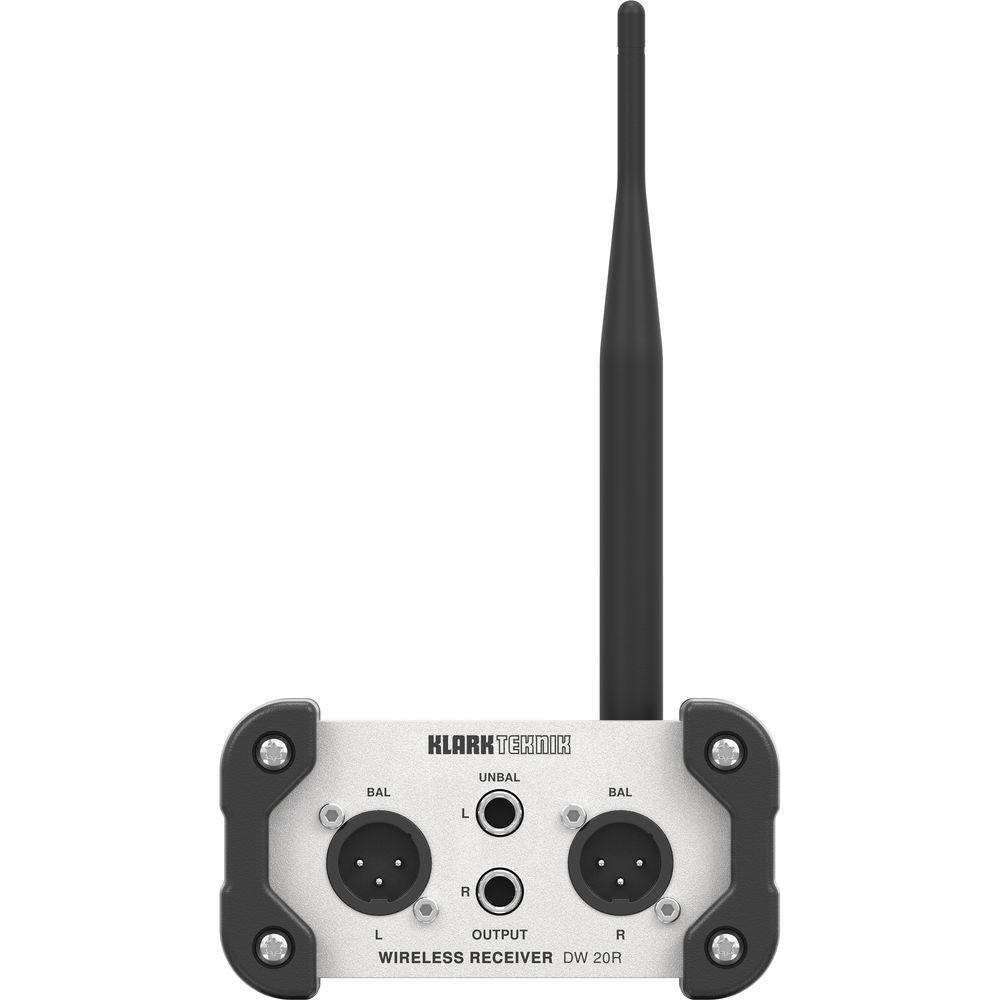

Product description The Klark Teknik AIR LINK DW 20R is a stereo 2.4 GHz wireless receiver offering license-free use and high audio headroom for home audio, retail stores, restaurants, hotels, and live stage applications. It utilizes the 2.4 GHz ISM band and simple pairing for hassle-free setup and operation. An external articulating antenna contributes to the AIR LINK DW 20R achieving a wireless range of up to 100 feet. The adjustable level control feeds the balanced Neutrik XLR and unbalanced 1/4" outputs, allowing proper connectivity to a PA, mixer, or speaker system. Two LEDs indicate the presence of audio signal received from a DW 20T transmitter. Built to handle the demands of installed or portable configurations, the DW 20R features a tough aluminum enclosure and protective rubber corners. It includes mounting brackets for easy attachment to a wall, floor, or shelf. The AIR LINK DW 20R is supplied with a power adapter. - When used in conjunction with a DW 20T wireless transmitter (available separately), the AIR LINK DW 20R wireless stereo receiver brings the convenience of high-performance wireless audio to any installed or portable sound system, making it ideal for hospitality and event spaces, retail stores, home audio, and more
- Aided by an external articulating antenna, the AIR LINK DW 20R is designed to provide dependable reception from up to 100 feet away
- Adjustable output level for easy gain optimization
- Pair button with LED ring enables easy setup
- Integrate multiple DW 20R with a single DW 20T transmitter for increased coverage
- Supports targeted zone broadcasting with multiple receivers and transmitters; pair one DW 20R receiver per DW 20T transmitter at a time to allow unique content to be streamed concurrently across each of the individual zones

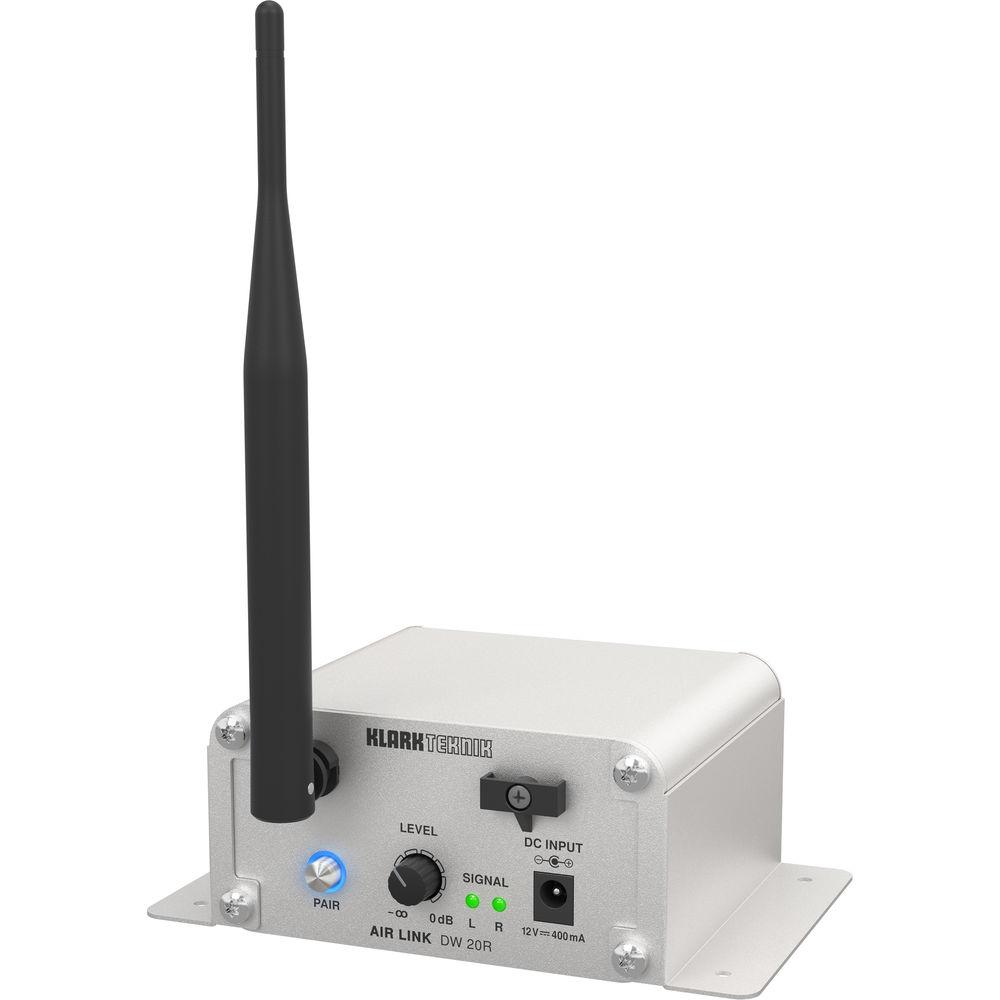

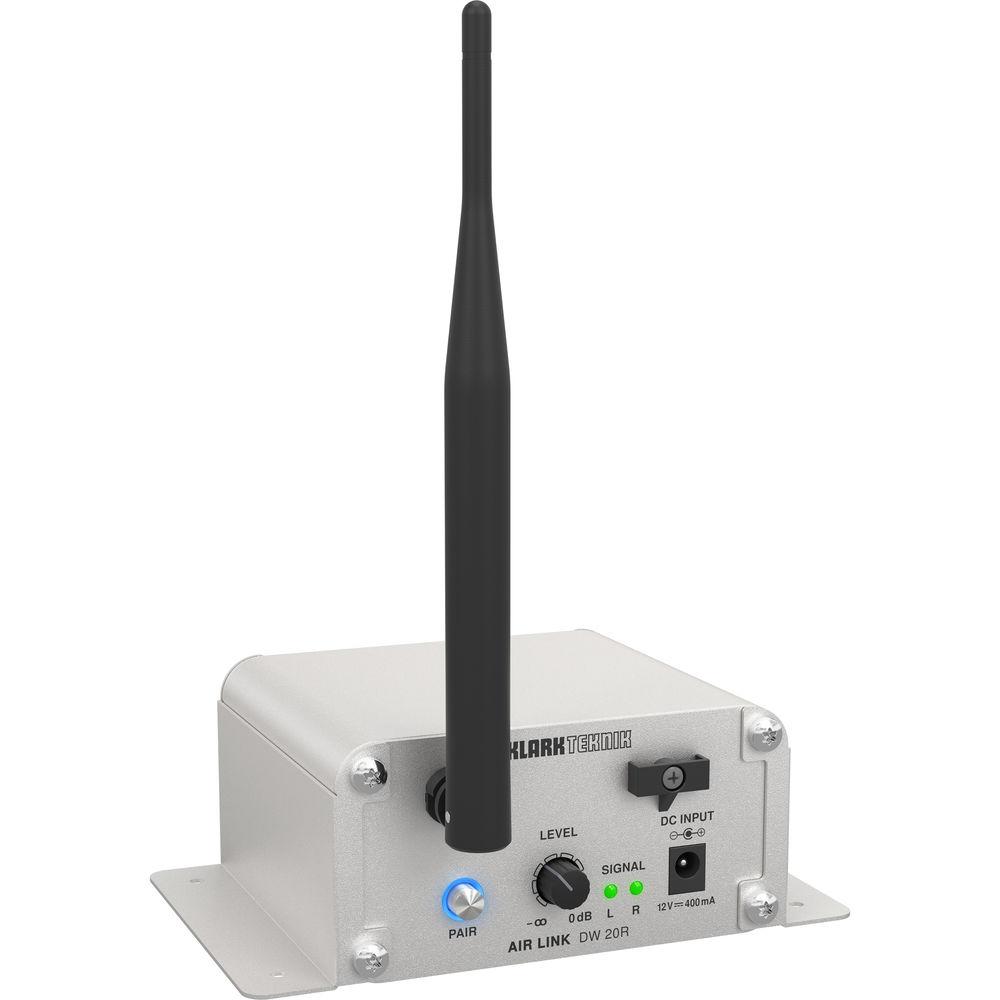

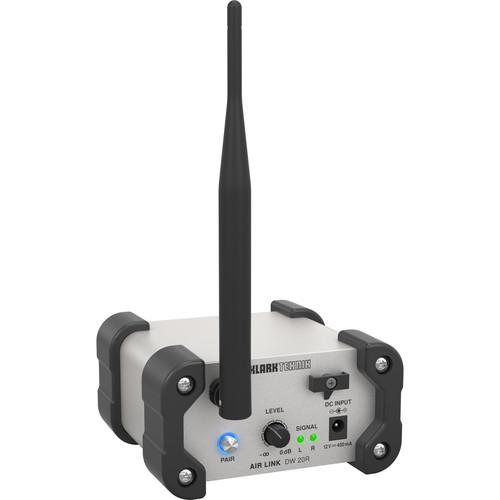

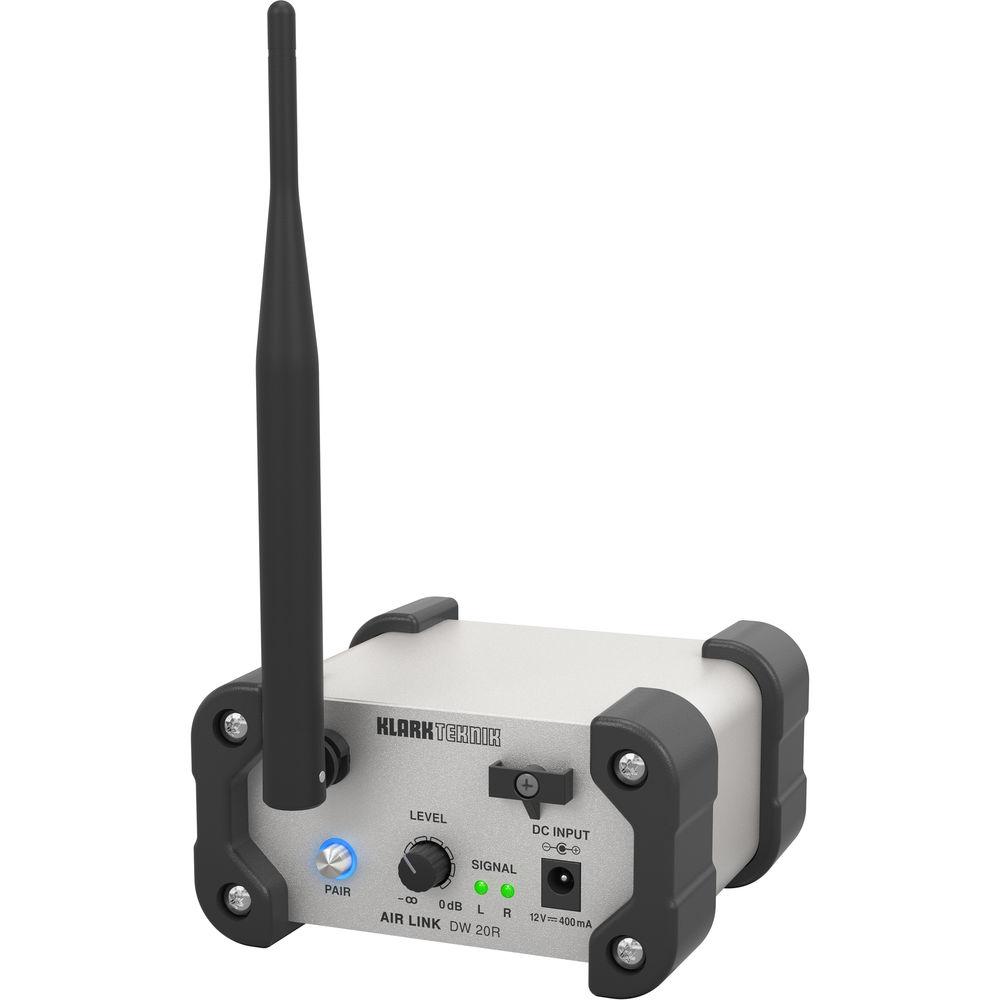

- Housed in a compact and rugged aluminum extrusion enclosure, the DW 20R receiver can be permanently installed via the included floor-/wall-mount brackets, or placed securely on a shelf thanks to its rubber corner protectors
- Signal LEDs light when the DW 20R receives an audio signal from the DW 20T
- Designed and engineered in the United Kingdom
UPC: 653341317636 In the Box Klark Teknik AIR LINK DW 20R Stereo 2.4 GHz Wireless Receiver Power Adapter Mounting Brackets Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Klark Teknik AIR LINK DW 20R Stereo 2.4 GHz Wireless Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKlark Teknik DW 20R Specs | Outputs | 2 x 3-Pin XLR Male (Balanced)
2 x 1/4" TRS (Unbalanced) | | Output Impedance | Balanced: 240 Ohms
Unbalanced: 120 Ohms | | Maximum Output Level | 15 dBu | | Wireless Channels | 24 | | Transmission Frequencies | 2.406 to 2.475 GHz | | Wireless Range | Up to 100' / 30.5 m | | Sensitivity | -81 dBm at 1% Packet Error Rate (PER) | | Frequency Response | 20 Hz to 20 kHz (
