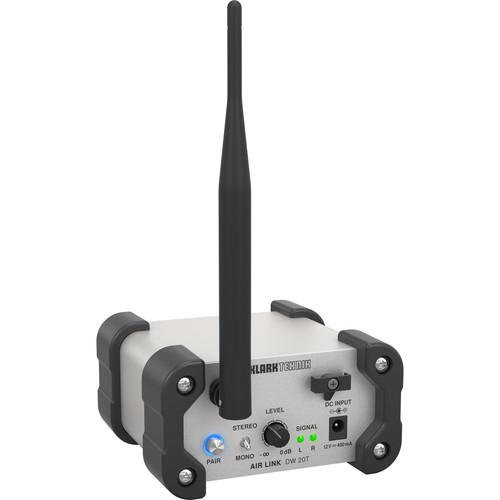

User Manual for Klark Teknik AIR LINK DW 20T Stereo 2.4 GHz Wireless Transmitter Click to enlarge the picture
Contents of the user manual for the Klark Teknik AIR LINK DW 20T
- Product category: Wireless Transmitters Klark Teknik
- Brand: Klark Teknik
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Klark Teknik Wireless Transmitters
 |
User manual for the Klark Teknik AIR LINK DW 20T contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Klark Teknik product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Klark Teknik user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Klark Teknik product will considerably shorten its lifespan!
|

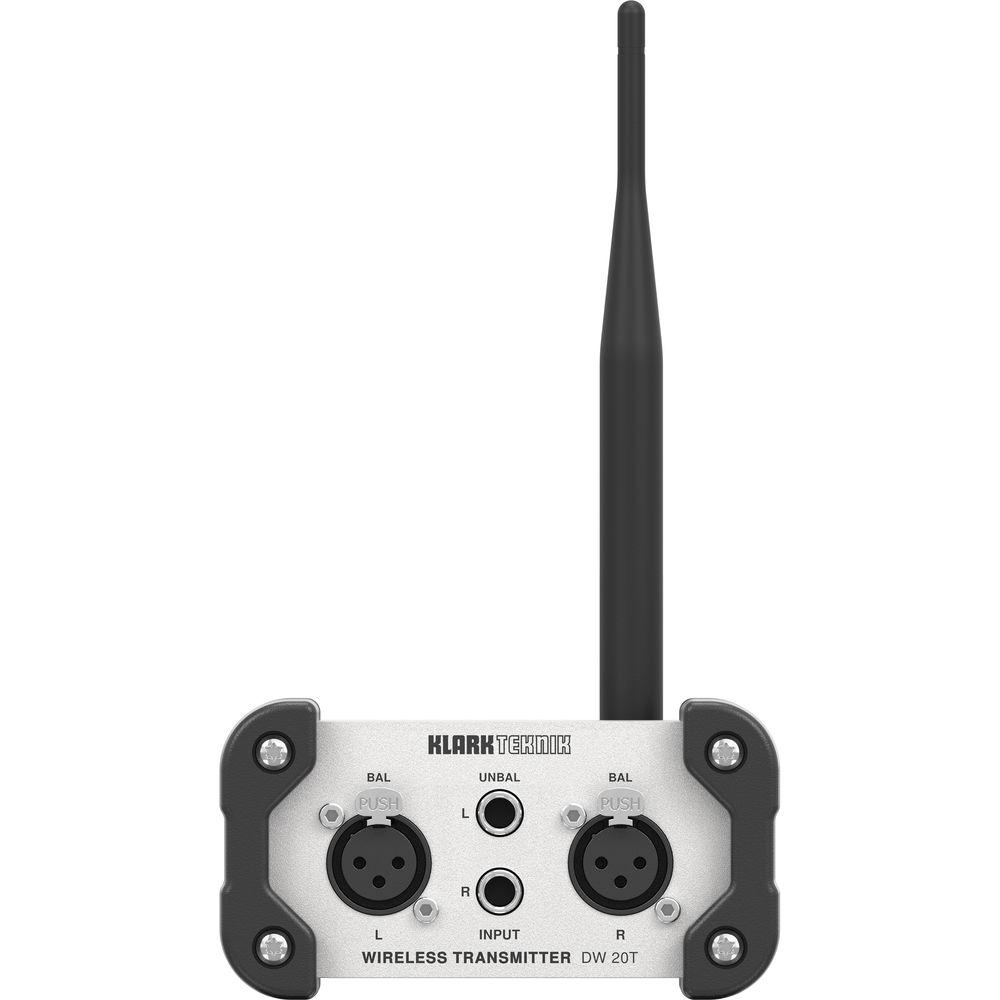

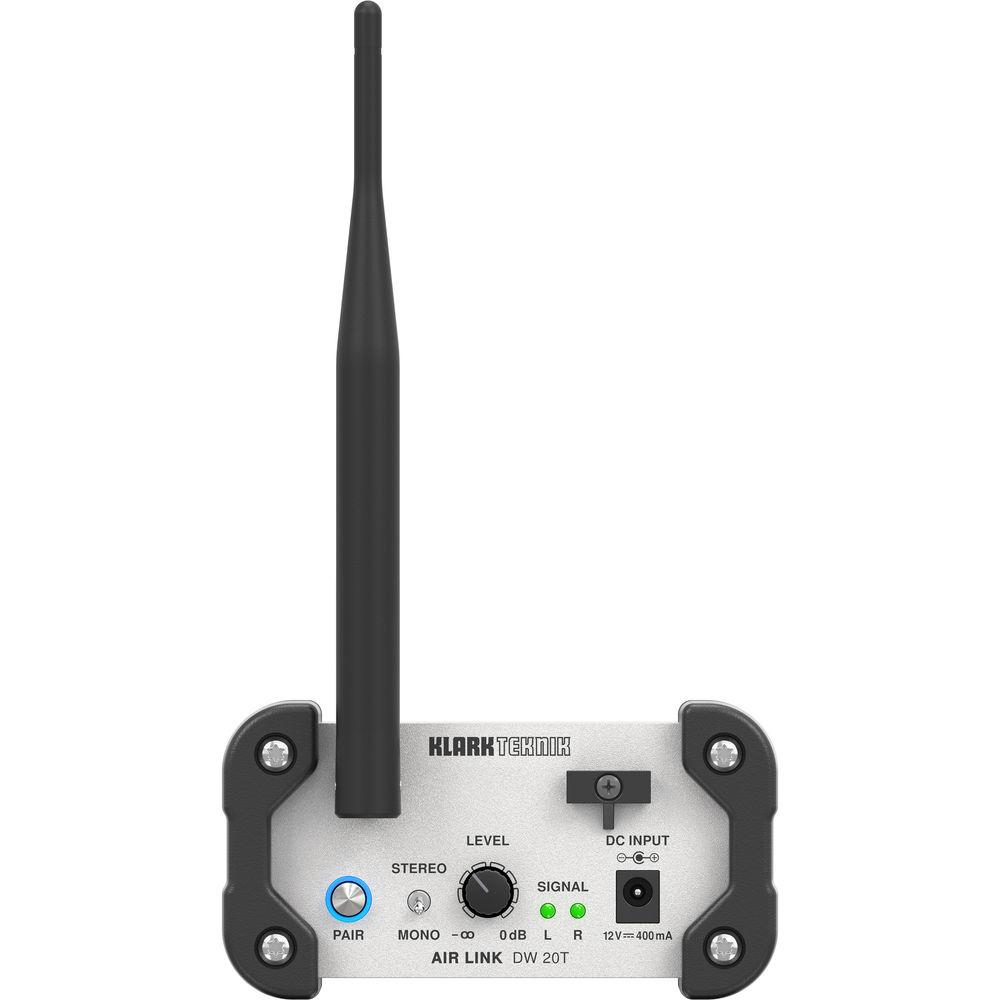

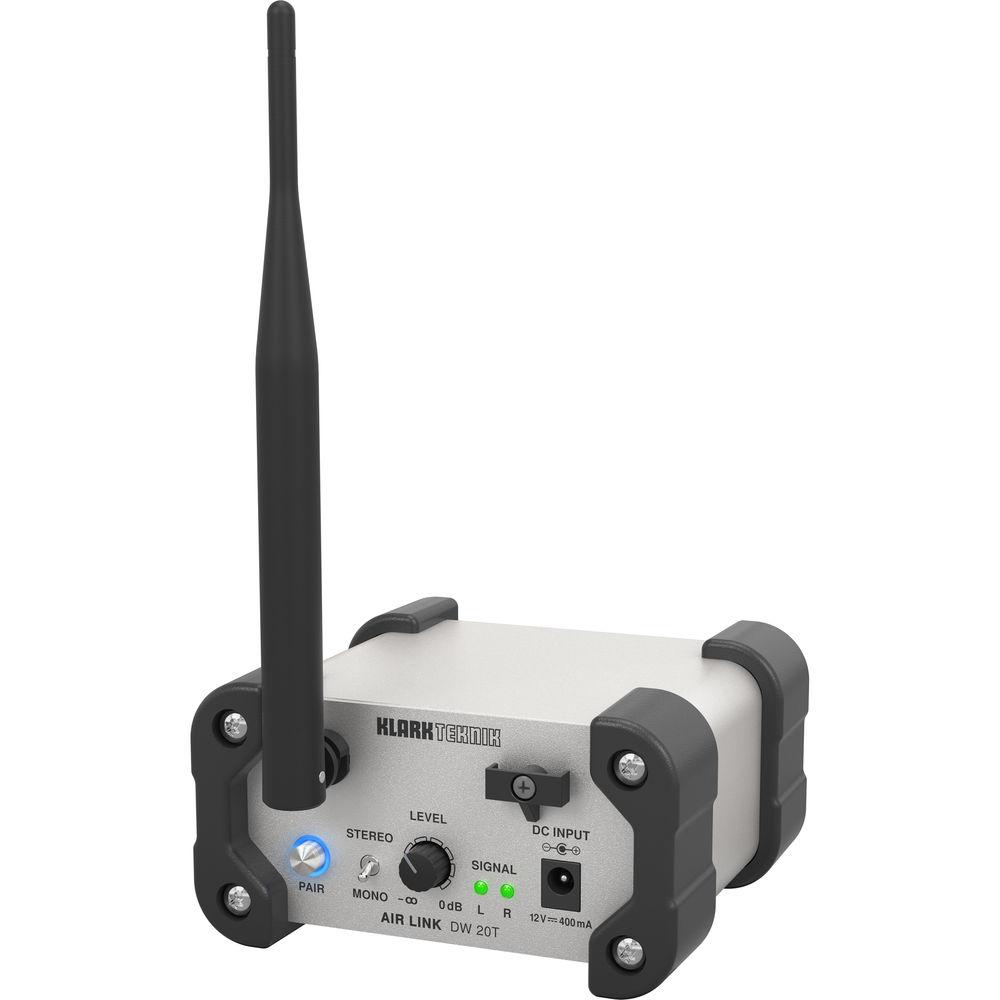

Product description The Klark Teknik AIR LINK DW 20T is a stereo 2.4 GHz wireless transmitter offering license-free use and high audio headroom for home audio, retail stores, restaurants, hotels, and live stage applications. It utilizes the 2.4 GHz ISM band and simple pairing for hassle-free setup and operation. An external articulating antenna contributes to the AIR LINK DW 20T achieving a wireless range of up to 100 feet. The adjustable level control sets the sensitivity for the signal received at the balanced Neutrik XLR or unbalanced 1/4" input jacks, allowing proper gain staging. Green/red LEDs indicate the presence of input signal and clipping. Use the stereo/mono switch to set the wireless output to stereo or mono. Built to handle the demands of installed or portable configurations, the DW 20T features a tough aluminum enclosure and protective rubber corners. It includes mounting brackets for easy attachment to a wall, floor, or shelf. The AIR LINK DW 20T is supplied with a power adapter. - When used in conjunction with a DW 20R wireless receiver (available separately), the AIR LINK DW 20T wireless stereo transmitter brings the convenience of high-performance wireless audio to any installed or portable sound system, making it ideal for hospitality and event spaces, retail stores, home audio, and more
- Aided by an external articulating antenna, the AIR LINK DW 20T is designed to reliably transmit signal up to 100 feet away
- Adjustable input level for easy gain optimization
- Stereo/mono switch determines whether the outgoing wireless audio signal is stereo or mono
- Pair button with LED ring enables easy setup
- Integrate multiple DW 20R receivers with a single DW 20T transmitter for increased coverage
- Supports targeted zone broadcasting with multiple receivers and transmitters; pair one DW 20R receiver per DW 20T transmitter at a time to allow unique content to be streamed concurrently across each of the individual zones

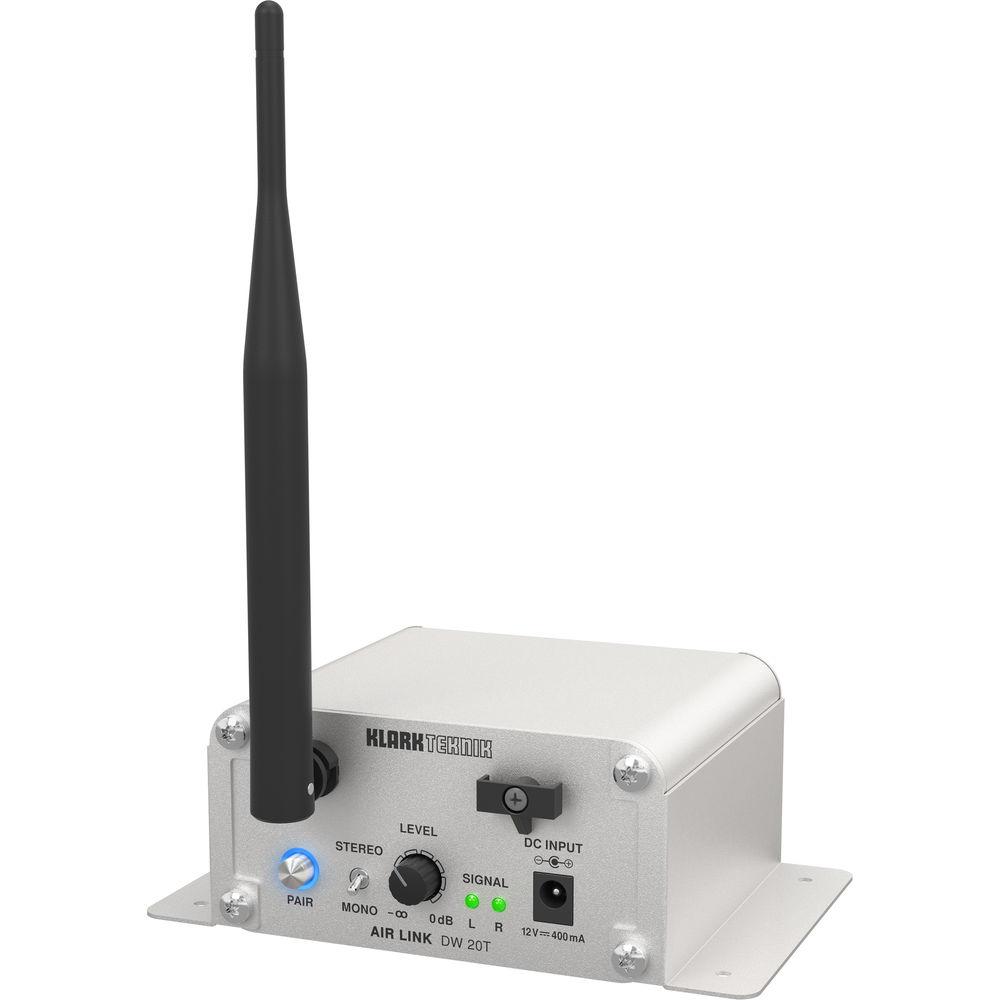

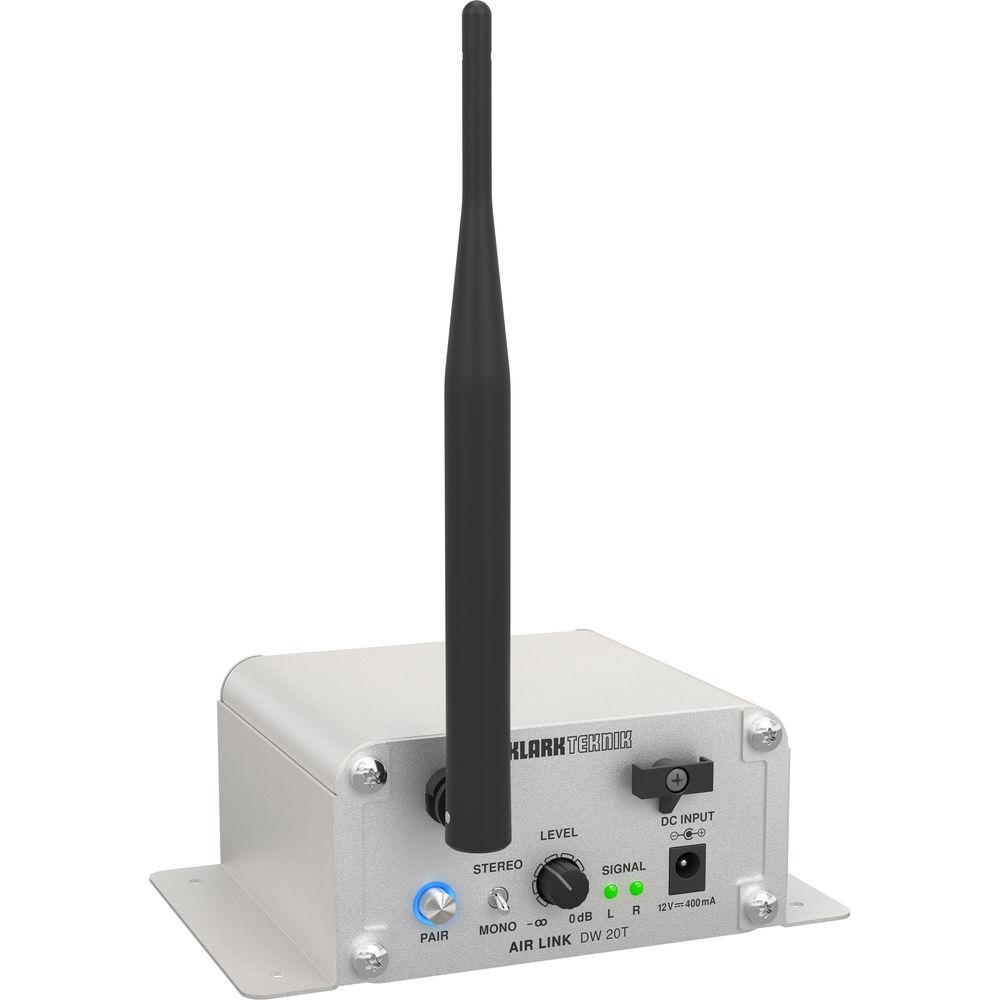

- Housed in a compact and rugged aluminum extrusion enclosure, the DW 20T transmitter can be permanently installed via the included floor-/wall-mount brackets, or placed securely on a shelf thanks to its rubber corner protectors
- LEDs light green when input signal is present, or turn red when the incoming audio signal clips the inputs
- Designed and engineered in the United Kingdom
UPC: 653341317735 In the Box Klark Teknik AIR LINK DW 20T Stereo 2.4 GHz Wireless Transmitter Power Adapter Mounting Brackets Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Klark Teknik AIR LINK DW 20T Stereo 2.4 GHz Wireless Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKlark Teknik DW 20T Specs | Inputs | 2 x 3-Pin XLR Female (Balanced)
2 x 1/4" TRS (Unbalanced) | | Input Impedance | Balanced: 10 kOhms
Unbalanced: 15 kOhms | | Maximum Input Level | 10 dBu | | Wireless Channels | 24 | | Transmission Frequencies | 2.406 to 2.475 GHz | | Wireless Range | Up to 100' / 30.5 m | | Transmission Power | 12 dBm | | Frequency Response | 20 Hz to 20 kHz (
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 83 owners. Add your rating and experience with the product.
