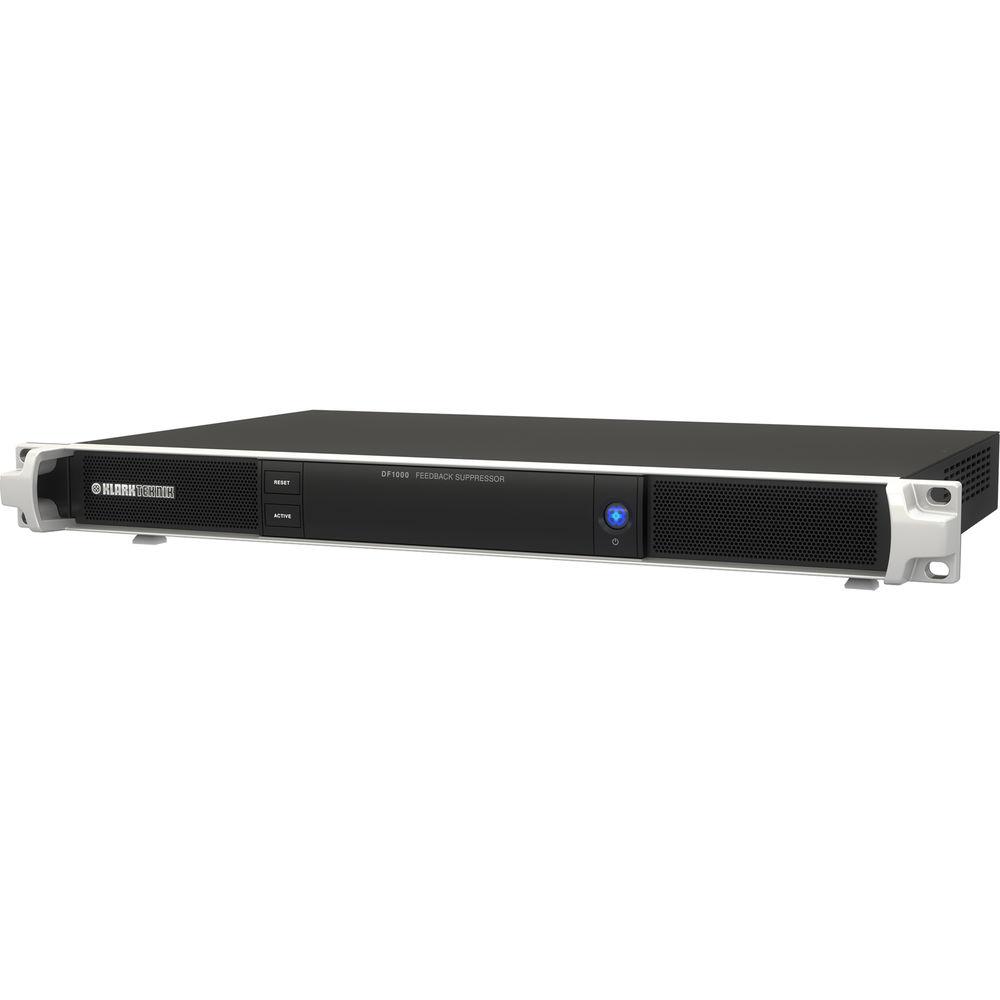

User Manual for Klark Teknik Automatic Dual-Channel Feedback Suppression Processor Click to enlarge the picture
Contents of the user manual for the Klark Teknik Automatic Dual-Channel Feedback Suppression
- Product category: Feedback Controllers Klark Teknik
- Brand: Klark Teknik
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Klark Teknik Feedback Controllers
 |
User manual for the Klark Teknik Automatic Dual-Channel Feedback Suppression contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Klark Teknik product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Klark Teknik user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Klark Teknik product will considerably shorten its lifespan!
|

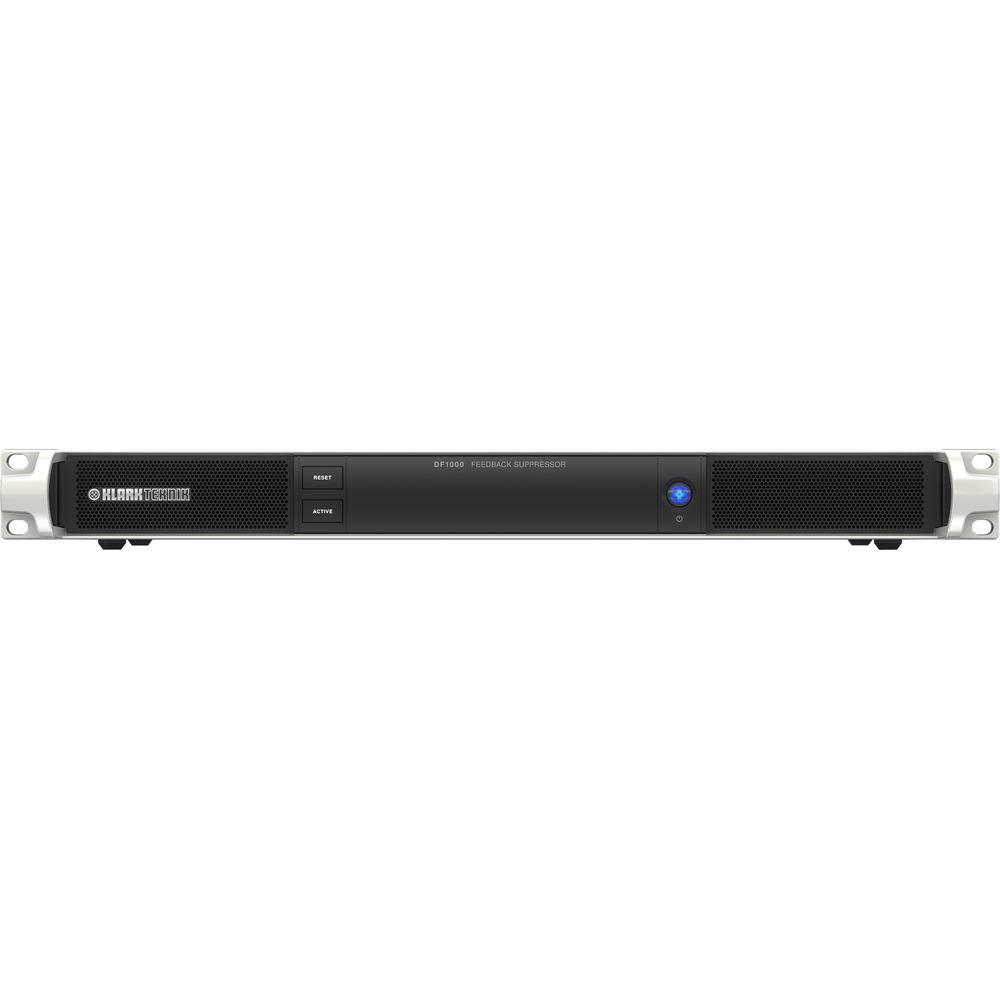

Product description The Automatic Dual-Channel Feedback Suppression Processor from Klark Teknik uses accurate feedback detection algorithms to instantly find critical frequencies and apply up to 32 filters per channel to eliminate feedback. Fully automatic, the DF1000 requires no advance setup or tuning. It functions in real time, with detection accuracy within one-sixth of a cycle, offering a plug-and-play solution to feedback in speech and music. Once the DF1000 is installed in-line between your mixing console and power amps, you just power up, engage the front panel active button, and walk away. - System Enhancement
- By removing annoying and potentially destructive feedback, your live sound system's output gain can be increased by as much as 10 dB to provide much needed headroom.
- Automatic DSP Applies up to 32 Filters per Channel
- Using an ultra-fast feedback-detection algorithm, the DF1000 automatically and "intelligently" locates up to 32 feedback frequencies per channel. The algorithm then sets extremely narrow notch filters (up to 1/30th of an octave) to lower those frequencies while leaving the remainder of your signal virtually untouched.
- Dual-Mode Operation
- The DF1000 can be used as a stereo Front of House (FOH) feedback eliminator. Alternatively, it can serve as a single-unit feedback control center if you use channel 1 for FOH (mono) and channel 2 on your monitors.
- Connections

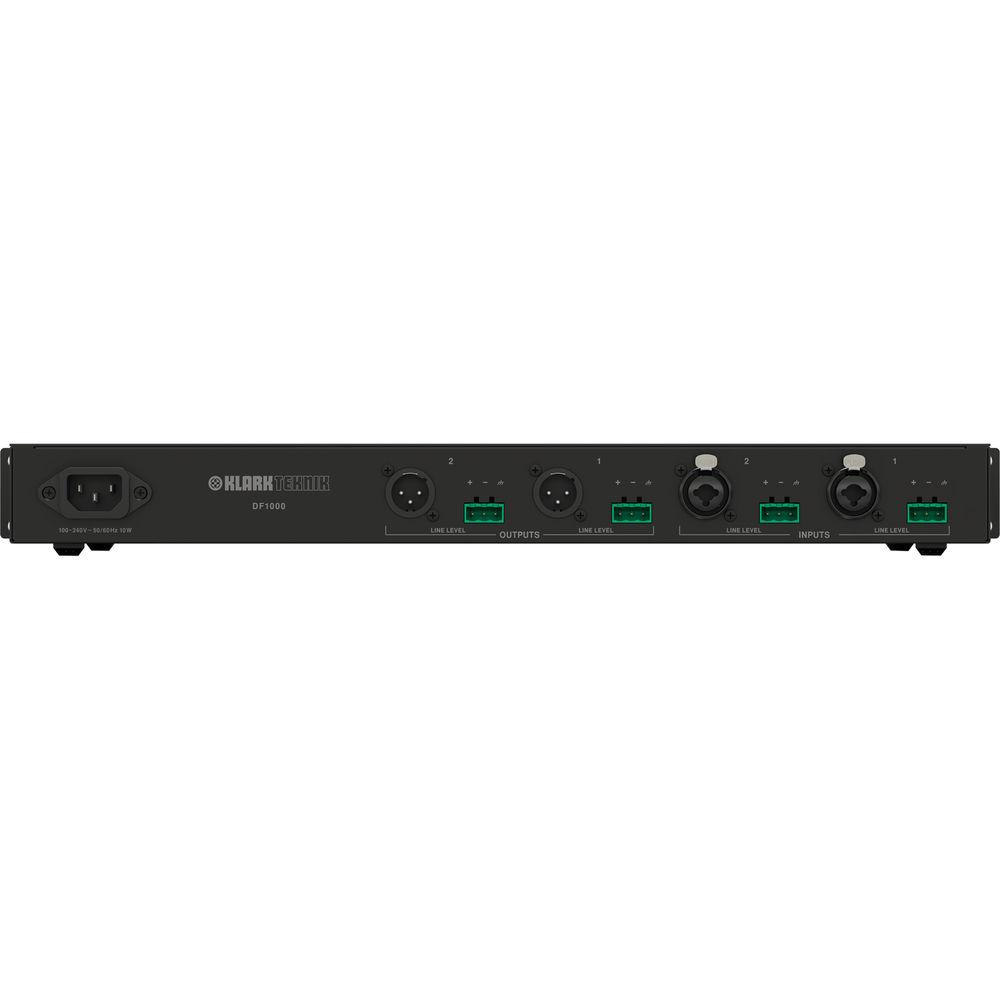

- There are two balanced/unbalanced inputs on combination line-level XLR/TRS sockets and 3-pin Euroblock connectors. Outputs are provided in the form of balanced XLR and Euroblock connectors.
UPC: 748252179845 In the Box Klark Teknik Automatic Dual-Channel Feedback Suppression Processor IEC Power Cable Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Klark Teknik Automatic Dual-Channel Feedback Suppression Processor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKlark Teknik DF1000 Specs | | | Connections | 2 x XLR/TRS combo
2 x 3-pin Euroblock | | Input Impedance | Approx. 20 kOhms | | Input Level | Normal: 4 dBu
Max: 21 dBu | | | | Connections | 2 x XLR
2 x 3-pin Euroblock | | Output Impedance | Approx. 50 Ohms | | Output Level | Normal: 4 dBu
Max: 21 dBu | | | | Controls | Power on/off
Suppression (momentary)
Filter reset (momentary) | | Indicators | Power
Active
Reset | | Frequency Response | 20 Hz to 20 kHz, 0/-0.5 dB | | Dynamic Range | 104 dB | | THD+N | Less than 0.01% at 20 Hz to 20 kHz, 4 dBu in | | Crosstalk | Less than -81 dB | | S/N Ratio | Over 88 dB at 4 dBu in | | CMRR | Over 45 dB | | Gain | Processor System Gain: 0 dB
Additional Acoustic Gain: 10 dB | | Feedback | Feedback Suppressor (FBQ)
Feedback Reduction Method: Automatically detect and apply notch filter
Filters: 32 independent digital notch filters per channel
Filter Width: Min. 1/126th octave, max. 1/38th octave
Resolution: 0.2 Hz
Time Required to Find One Feedback Mode: 100 to 400 ms
Time Required to Find Multiple Feedback Modes: 2 to 4 sec | | | | Converters | 24-bit | | Sample Rate | 48 kHz | | | | Operation Temperature | 32 to 113°F / 0 to 45°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | | | Type | Auto-switching | | Mains Voltage | 100 to 240 VAC, 50/60 Hz | | Fuse | T 1.25 A H 250 V | | Power Consumption | 10 W | | AC Connector | Standard IEC receptacle | | | | Rack Size | 1 RU | | Dimensions | 2.0 x 19.0 x 11.6" / 5.0 x 48.3 x 29.6 cm | | Weight | 6.4 lb / 2.9 kg | | | | Package Weight | 8.5 lb | | Box Dimensions (LxWxH) | 22.5 x 14.2 x 4.7" |
