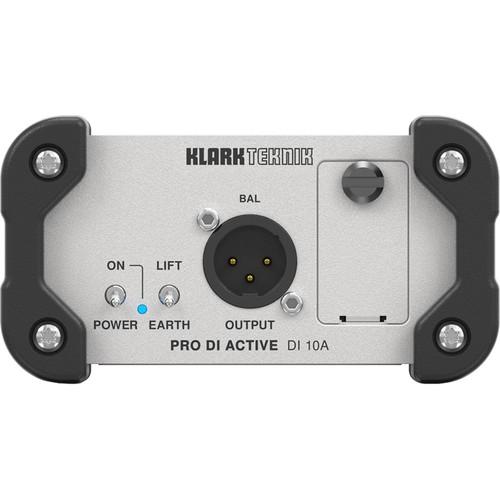

User Manual for Klark Teknik DI10A Active DI Box with Midas Transformer and Phantom Battery Operation Click to enlarge the picture
Contents of the user manual for the Klark Teknik DI10A Active DI Box
- Product category: Direct Boxes Klark Teknik
- Brand: Klark Teknik
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Klark Teknik Direct Boxes
 |
User manual for the Klark Teknik DI10A Active DI Box contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Klark Teknik product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Klark Teknik user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Klark Teknik product will considerably shorten its lifespan!
|

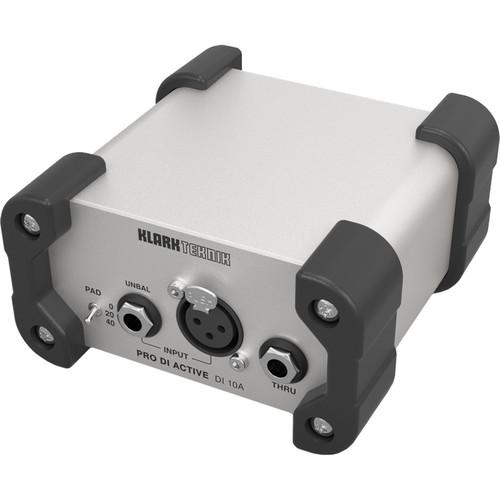

Product description The DI 10A Active DI Box with Midas Transformer and Phantom/Battery Operation from Klark Teknik is designed to interface keyboards, samplers, guitars, and other electronic musical instruments to a mixing console. It can be used to reproduce the character of electric and acoustic instruments allowing more musical performance to be captured for live stage, theater, and rehearsals applications. The DI 10A is powered by +48V phantom power with a 9V battery backup, which allows the device to function should phantom power fail. Equipped with a switchable input attenuator, XLR input, thru input, and 1/4" input, the DI 10A accommodates instruments, line, and even loudspeaker-level signals. In addition, it provides extended dynamic range, making it a solution for professional audio and multimedia applications. - Active DI Box for general purpose and multimedia applications
- Custom-built MIDAS transformer for highest signal integrity
- High-headroom design offers a better sound quality
- Powered from +48V phantom or internal battery (not included)
- Automatic switchover to battery if phantom power fails
- Matches the level and impedance with unity gain without loading the source

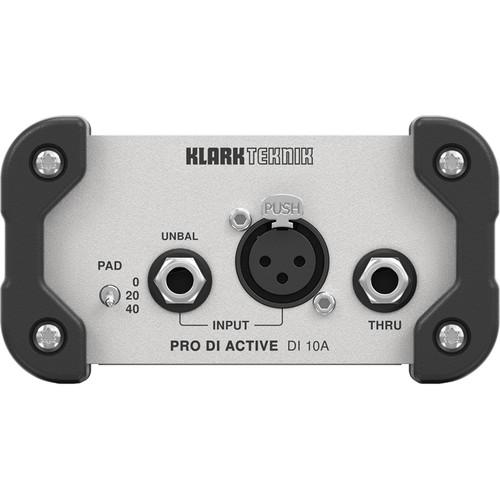

- Switchable input attenuation for guitar, line and speaker levels
- High-quality Neutrik XLR and high-impedance 1/4" TRS connectors
- Earth-lift switch eliminates ground-loop problems
- Fully transformer-isolated design ensures electrical separation
- Ultralow noise and ultralinear system for highest signal integrity
- Aluminum extrusion casing with protective rubber corners
- Compact and rugged design
- Limited 10-year warranty program
UPC: 653341311436 In the Box Klark Teknik DI10A Active DI Box with Midas Transformer and Phantom/Battery Operation Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Klark Teknik DI10A Active DI Box with Midas Transformer and Phantom Battery Operation in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKlark Teknik DI10A Specs | | | Input | 1 x XLR, balanced
1 x 1/4" / 6.3 mm TS, unbalanced | | Input Impedance | > 250 kOhms | | Thru | 1 x 1/4" / 6.3 mm TS, unbalanced | | Output | 1 x XLR, balanced | | Load Impedance | > 600 Ohms | | Maximum Input Level | +10 / +30 / +50 dBu | | | | Frequency Response | 10 Hz to 90 kHz,
