User Manual for Klark Teknik DI22P Passive Stereo DI Box with Midas Transformers and Extended Dynamic Range Click to enlarge the picture
Contents of the user manual for the Klark Teknik DI22P Passive Stereo DI
- Product category: Direct Boxes Klark Teknik
- Brand: Klark Teknik
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Klark Teknik Direct Boxes
 |
User manual for the Klark Teknik DI22P Passive Stereo DI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Klark Teknik product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Klark Teknik user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Klark Teknik product will considerably shorten its lifespan!
|

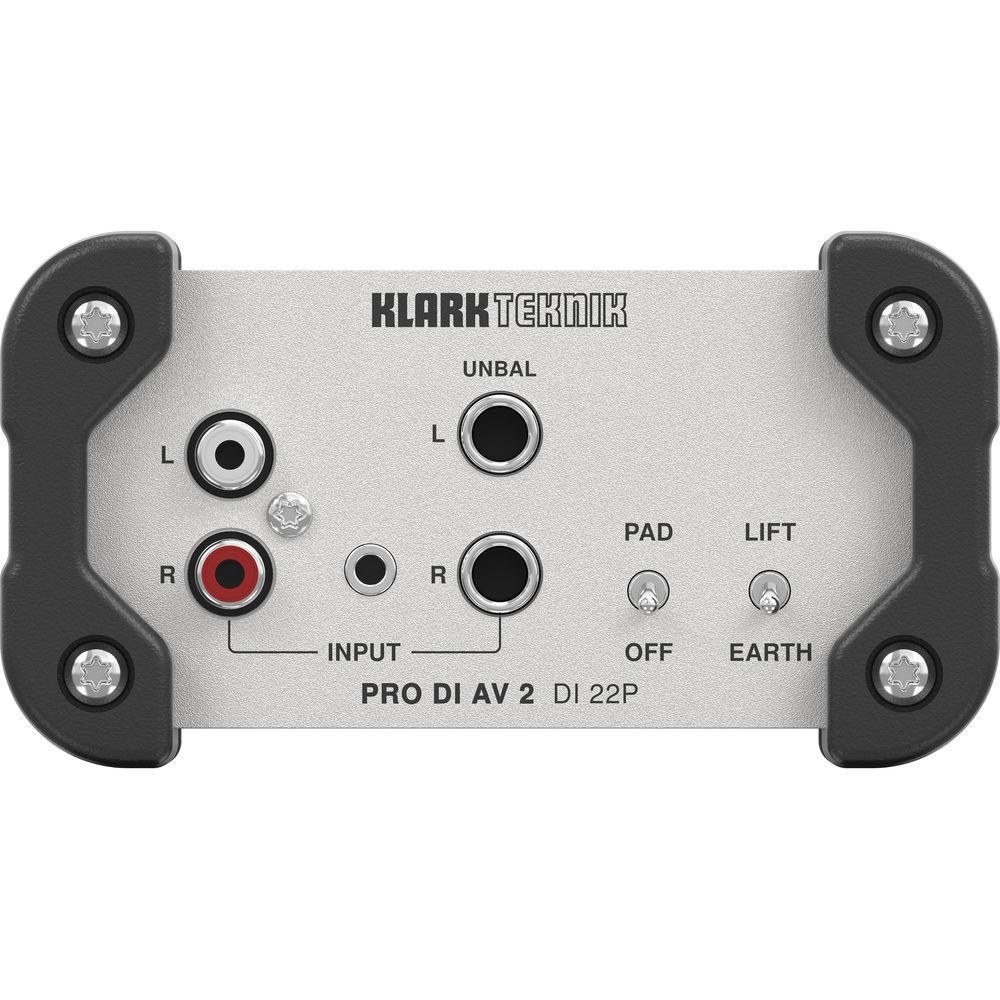

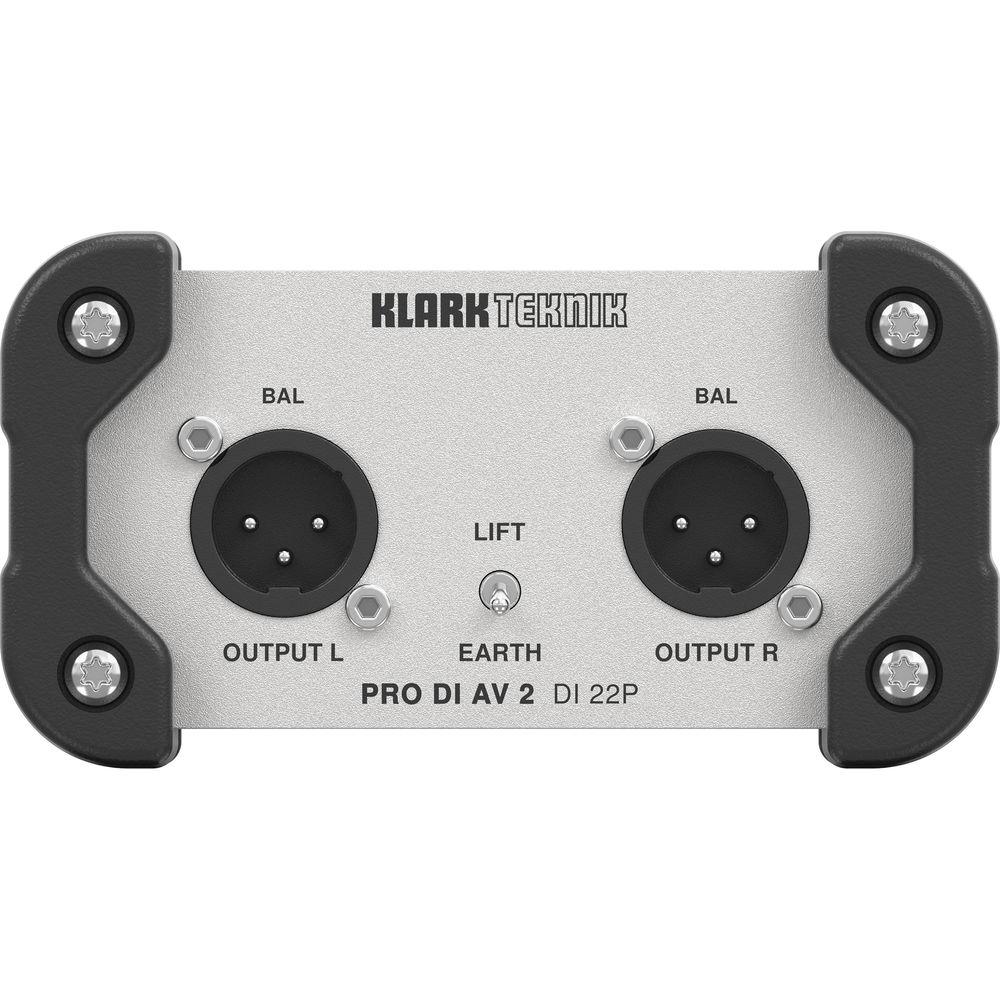

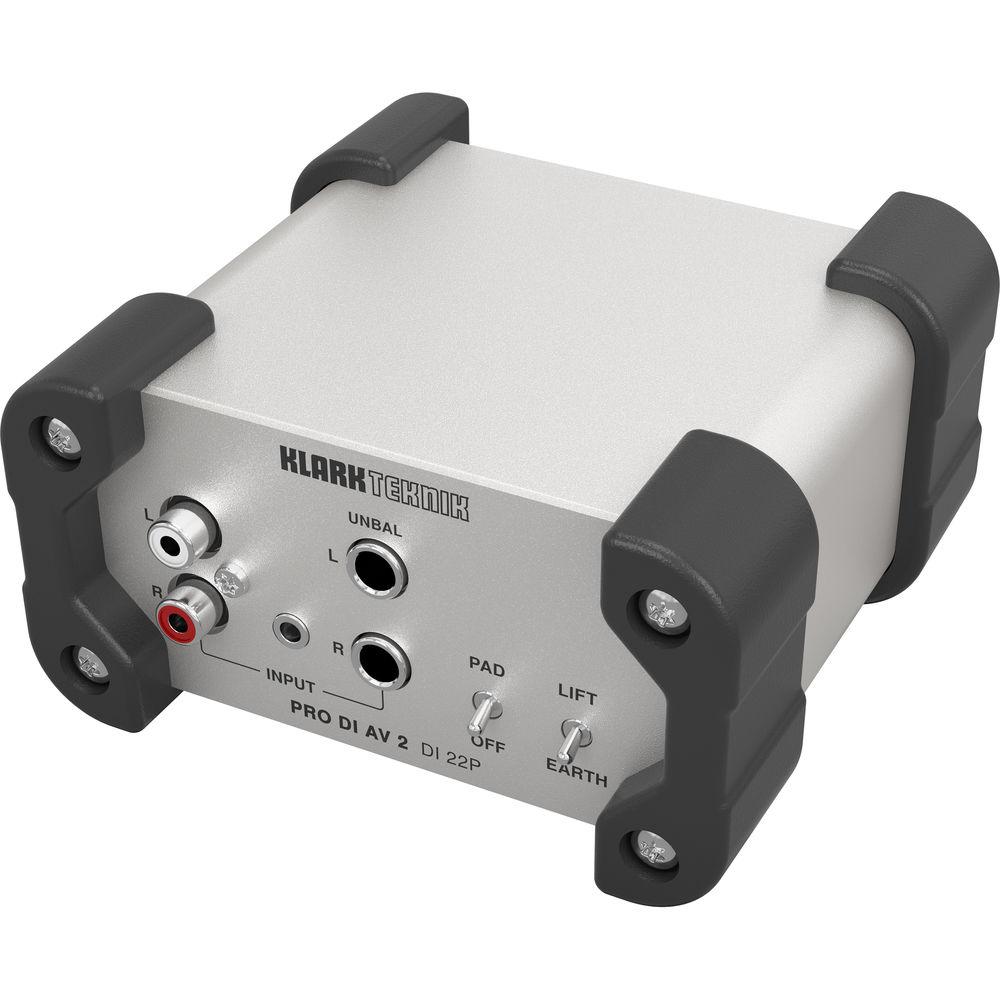

Product description The DI22P Passive Stereo DI Box with Midas Transformers and Extended Dynamic Range from Klark Teknik is designed to interface dual instrument, line and speaker levels, MP3 and CD players to a mixing console. It can be used to reproduce the character of electric and acoustic instruments allowing more musical performance to be captured for live stage, theater, and rehearsals applications. The DI 22P does not require any form of external power. Equipped with custom-built Midas transformers and switchable input pads, the DI 22P is built with a ground-lift switch, two unbalanced 1/4" connectors, two RCA input connectors, and one TRS 1/8" input connector. In addition, it provides extended dynamic range, making it a suitable solution for professional audio and multimedia applications. - Passive stereo DI box for general purpose and multimedia applications
- Custom-built MIDAS transformer for highest signal integrity
- High-headroom design offers a better sound quality
- Passive design does not require any power supply
- Stereo input on 1/4", 1/8" TRS and RCA connectors
- Switchable input attenuation for guitar, line and speaker levels
- High-quality Neutrik XLR connectors
- Earth-lift switch eliminates ground loop problems
- Fully transformer-isolated design ensures electrical separation
- Ultralow noise and ultralinear system for highest signal integrity
- Aluminum extrusion casing with protective rubber corners
- Compact and rugged design
- Limited 10-Year warranty program
UPC: 653341311931 In the Box Klark Teknik DI22P Passive Stereo DI Box with Midas Transformers and Extended Dynamic Range Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Klark Teknik DI22P Passive Stereo DI Box with Midas Transformers and Extended Dynamic Range in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKlark Teknik DI22P Specs | | | Input | 2 x 1/4" / 6.3 mm TS, unbalanced
2 x 1/8" / 3.5 mm TRS, unbalanced
2 x RCA unbalanced | | Impedance | 30 kOhms | | Maximum Input Level | 30 dBu @ 1 kHz | | Outputs | 2 x XLR, balanced | | Impedance | 600 Ohms | | Maximum Output Level | 8.5 dBu @ 1 kHz | | | | Frequency Response | 20 Hz to 30 kHz,
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 82 owners. Add your rating and experience with the product.
