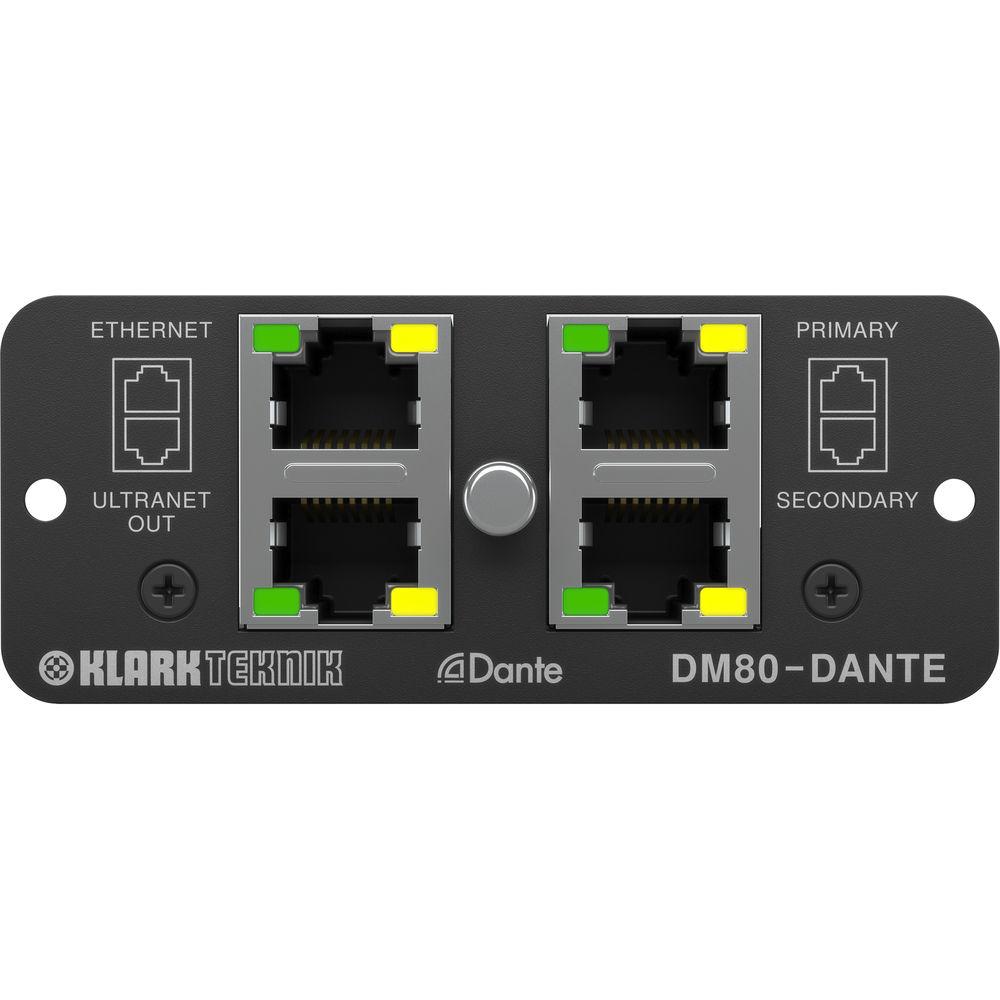

User Manual for Klark Teknik DM80-DANTE - Dante Expansion Module for DM8000 Processor Click to enlarge the picture
Contents of the user manual for the Klark Teknik DM80-DANTE - Dante Expansion
- Product category: Networked Audio Systems Klark Teknik
- Brand: Klark Teknik
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Klark Teknik Networked Audio Systems
 |
User manual for the Klark Teknik DM80-DANTE - Dante Expansion contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Klark Teknik product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Klark Teknik user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Klark Teknik product will considerably shorten its lifespan!
|

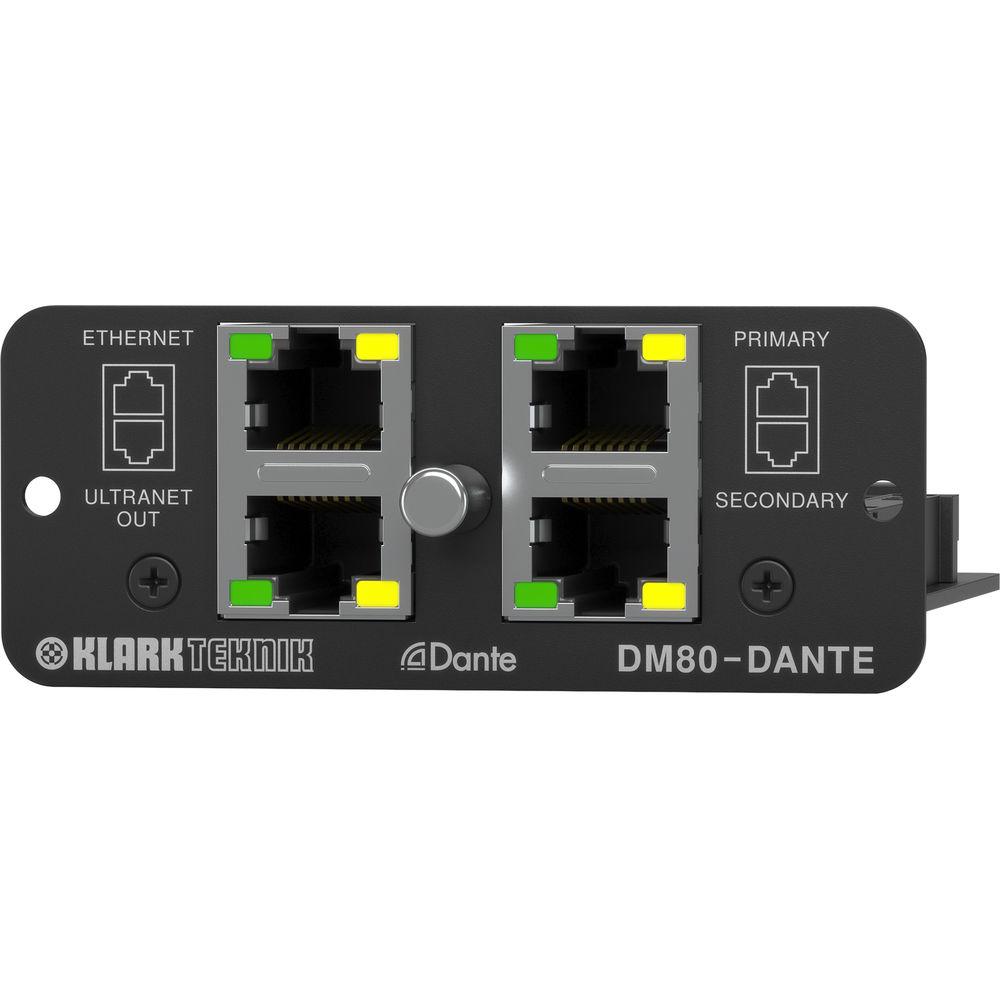

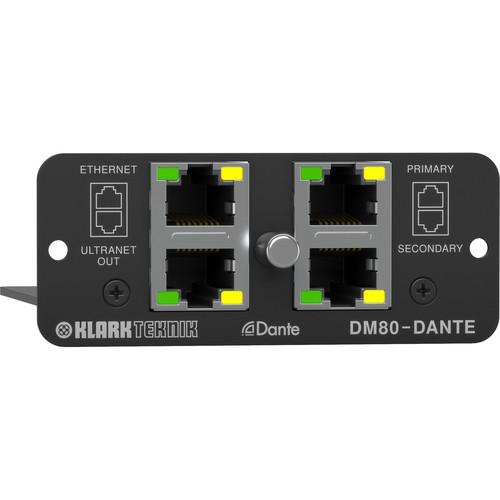

Product description The Klark Teknik DM80-DANTE is a multichannel audio interface expansion card designed for the DM8000 Digital Audio Processor to connect to external devices using the Dante high-performance digital media protocol to deliver audio over a standard Ethernet IP network. The card features dual RJ45 Dante connections (primary and secondary), which allow for 16 input and 16 output channel networking of 24-bit / 48 kHz low-latency audio over standard Cat 5e cables. Additionally, the Klark Teknik DM80-DANTE provides dual ULTRANET RJ45 Ethernet connectors for proprietary digital networking and 16 channels of audio output, allowing for a total of 16 inputs and 32 outputs. -
- Dante expansion module for Klark Teknik DM8000 featuring Dante and ULTRANET audio networking
- Expands the processing benefits of DM8000 to third-party systems
- Dante enabled audio networking enables up to 16 input and 16 output channels
- ULTRANET digital audio networking for additional and simultaneous 16 output channels
- Full software configuration and control via integrated Ethernet port
- Dual RJ45 connections for Dante primary and secondary networking interface
- Transformer-isolated design to eliminate ground loop interference
- Designed and engineered in the U.K.
In the Box Klark Teknik DM80-DANTE - Dante Expansion Module for DM8000 Processor Limited 10-Year Warranty with Registration within 90-Days Table of Contents
|
Upload User Manual
Have you got an user manual for the Klark Teknik DM80-DANTE - Dante Expansion Module for DM8000 Processor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKlark Teknik DM80DANTE Specs | For Use with | DM8000 Digital Audio Processor | | Connectors | 4 x RJ45 | | Dante Interface | 2 x RJ45 for Dante primary and secondary networking
Channels: 16 input and 16 output | | Ultranet Input/Link | 1 x RJ45
Outputs: 16 | | Ethernet | 1 x RJ45 | | Transformer | Transformer-isolated design to eliminate ground loop interference | | Dimensions | Not specified by manufacturer | | Weight | Not specified by manufacturer | | | | Package Weight | 0.435 lb | | Box Dimensions (LxWxH) | 6.6 x 4.05 x 1.85" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 67 owners. Add your rating and experience with the product.
