User Manual for Klark Teknik DM8000 Advanced Digital Audio Processor Click to enlarge the picture
Contents of the user manual for the Klark Teknik DM8000 Advanced Digital Audio
- Product category: Networked Audio Systems Klark Teknik
- Brand: Klark Teknik
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Klark Teknik Networked Audio Systems
 |
User manual for the Klark Teknik DM8000 Advanced Digital Audio contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Klark Teknik product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Klark Teknik user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Klark Teknik product will considerably shorten its lifespan!
|

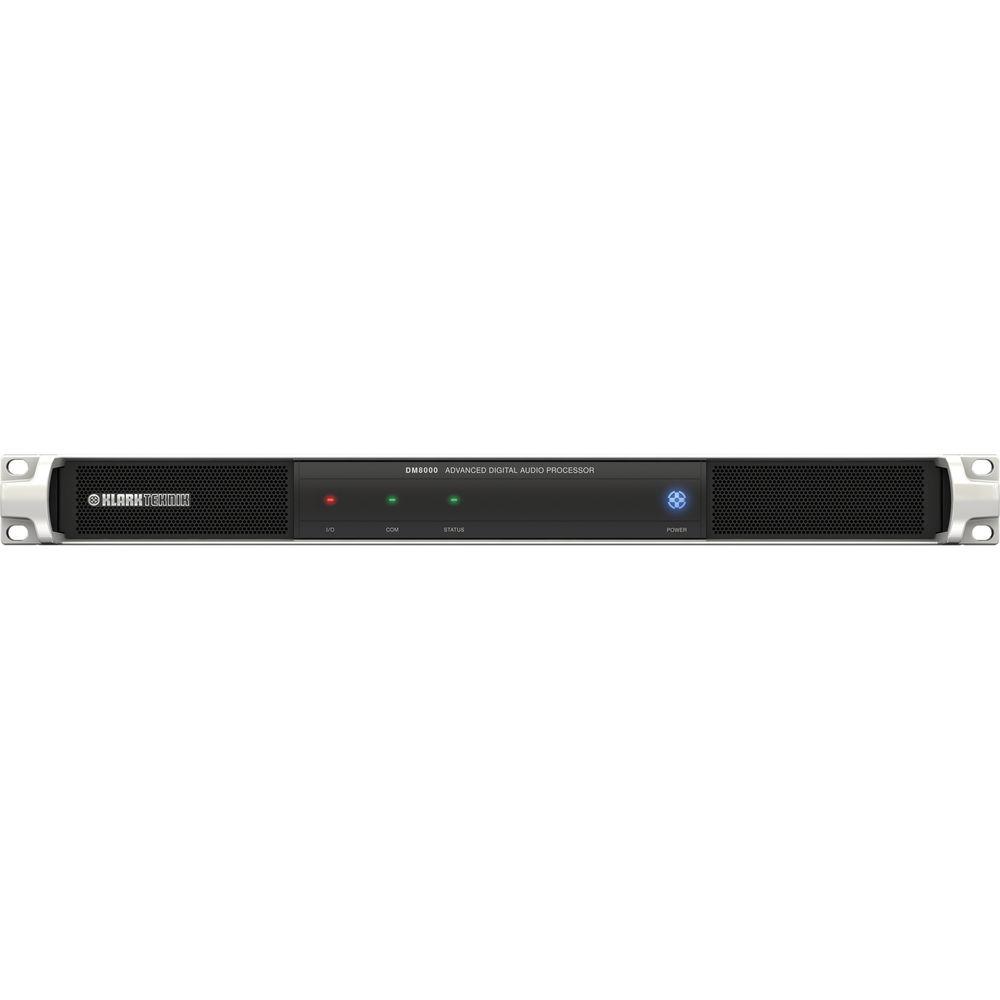

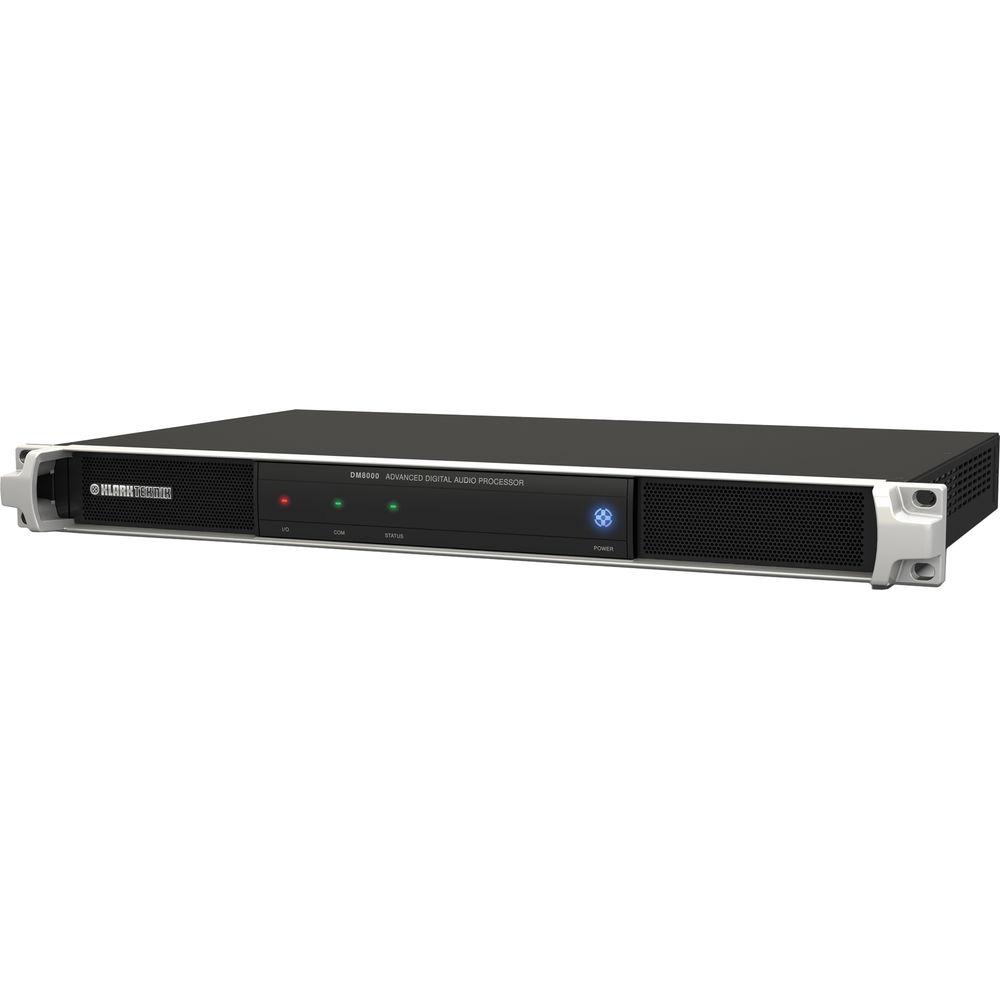

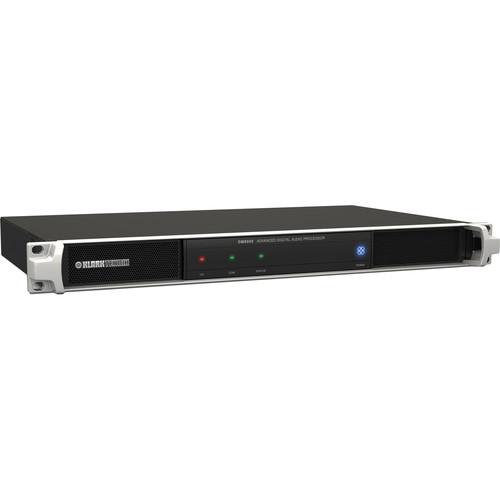

Product description The 1 RU DM8000 Advanced Digital Audio Processor from Klark Teknik is equipped with user-friendly features such as DSP and routing options, multiple inputs and outputs, and auto mixing. Designed for installation in boardrooms, council chambers, courtrooms, and more, the DM8000 also provides eight channels of wide-band Acoustic Echo Cancellation (AEC), effectively removing secondary room reflections from the signal path. It seamlessly integrates with computer based conferencing systems and audio networks via USB, and can be remotely controlled using the built-in Ethernet and RS-232 ports. - Powerful DSP
- The DM8000 DSP is equipped with a comprehensive library of processing modules that can be deployed and configured using the DM8000 DSP Designer software. This easy-to-use software allows the entire signal and processing structure to be defined and compiled right on your PC, and then run within DM8000's robust on-board DSP.
- Acoustic Echo Cancellation
- The DM8000 uses its wide-band AEC module to detect and eliminate secondary room reflections from the signal path, resulting in high-quality sound.
- Auto Mixing
- DM8000's Auto Mixer modules automatically adjust and balance levels for up to eight inputs and combine them into a single output. The onboard Feedback Suppressor behaves much like a highly surgical parametric equalizer, detecting and removing feedback frequencies before they can become an issue.
- IP-Based Audio Networking
- By using the built-in Ethernet connection, multiple DM8000 devices can be linked, creating a network for system-wide programming and control of a variety of Input sources. DM8000's PC-based software provides an intuitive graphical user environment for system configuration and remote control up to 328' via Cat 5/5e cable. This versatile network can accommodate multiple microphone inputs, a live band, and stereo music source, as well as telephony, and send the resulting mixes to up to six destinations.
- Massive Connectivity

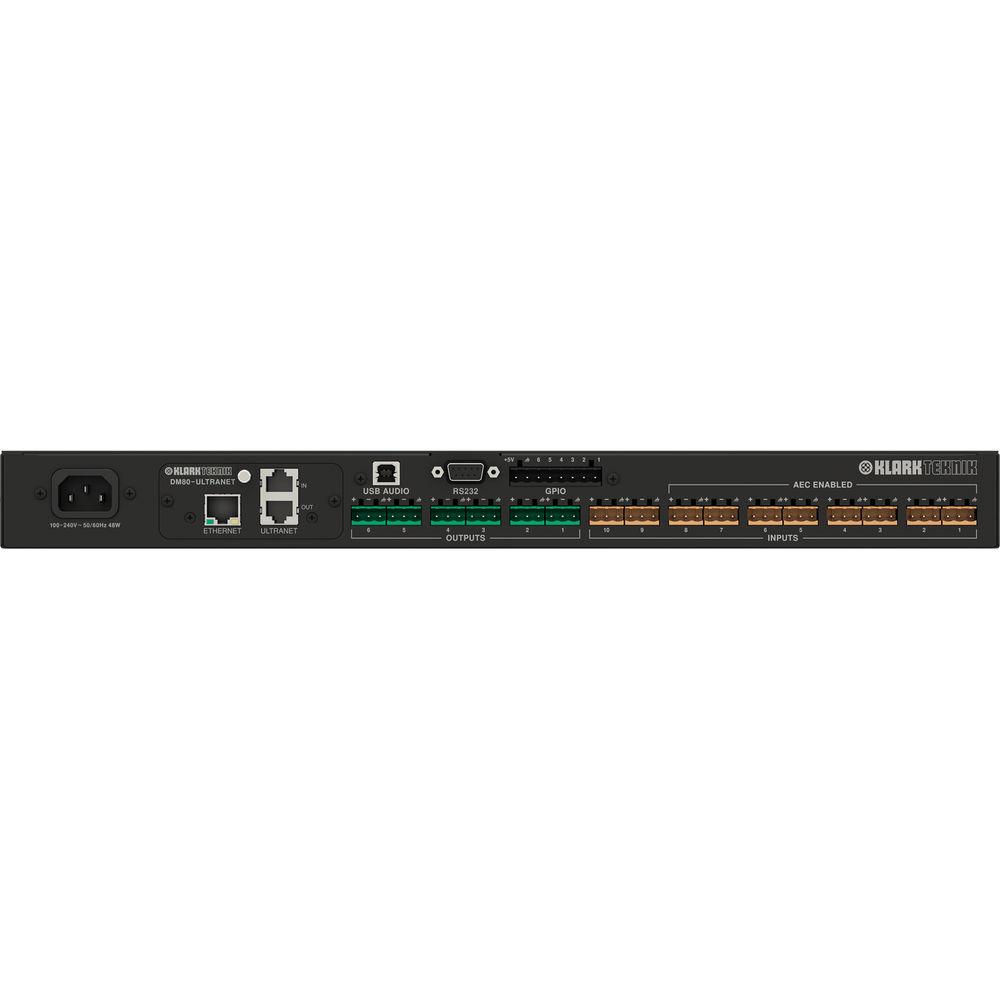

- The DM8000 includes 10 high-headroom analogue universal mic/line inputs, six electronically balanced low-impedance line level outputs, USB audio for integration with computer based conferencing systems, and an optional ULTRANET digital audio transport output for use with compatible devices. The onboard RS-232 connector lets you interface with a variety of 3rd-party control systems.
UPC: 748252160744 In the Box Klark Teknik DM8000 Advanced Digital Audio Processor (1 RU) Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Klark Teknik DM8000 Advanced Digital Audio Processor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKlark Teknik DM8000 Specs | | | Number of Channels | 10 (8 AEC enabled) | | Type | Analogue, electronically balanced Euroblock connectors | | Impedance | 10 kOhms | | Maximum Input Level | 24 dBu | | Gain Range | 0 to 66 dB | | Common Mode Rejection | Typically, -60 dB at 1 kHz | | Crosstalk @ 1 kHz | < 75 dB | | Phantom Power | 48 VDC | | | | Number of Channels | 6 | | Type | Analogue, electronically balanced Euroblock connectors (Pin 2 hot) | | Output Impedance | 100 Ohms, balanced | | Maximum Output Level | -31 to 24 dBu (configurable in six steps) | | | | Number of Channels | 16 input / 16 output | | Sampling Rate | 48 kHz | | Latency | < 0.9 ms | | Connector | 2 x RJ45 | | Cable | Shielded Cat 5 | | Cable Length | Up to 250' / 75 m | | | | Number of Channels | 2 input / 2 output | | Resolution | 24-bit | | Sampling Rate | 48 kHz | | Type | Audio Class 1.0 compliant, asynchronous | | Connector | USB type-B | | | | Number of Channels | 6 | | Input Voltage | 5 V | | Input Impedance | 4.7 kOhms to 5 V (2-wire mode) > 1 MOhms (3-wire mode) | | Output Voltage | 5 V (unloaded) | | Output Impedance | 470 Ohms (source)
10 Ohms (sink) | | Output Current | 10 mA (source)
60 mA (sink) | | Supply Current | Up to 150 mA | | | | Format | 8-N-1, 38, 400 baud | | Connector | 9-pin Sub-D female | | | | Frequency Response | 20 Hz to 20 kHz (±1 dB, input to output @ 4 dBu) | | THD + N | < 0.005% (20 Hz to 20 kHz @ 0 dB gain < 0.005% +4 dBu output) | | Equivalent Input Noise | -125 dBu (20 kHz BW @ 66 dB gain, RS = 150 Ohms) | | Dynamic Range | > 105 dB (20 kHz BW, input to output @ 24 dBu) | | A/D and D/A Conversion | Multi-bit ΣΔ | | AEC Processing | AEC Tail Length: 300 ms
AEC Convergence: Up to 100 dB/sec | | | | Type | Switch-mode power supply | | Voltage | 100 to 240 VAC, 50/60 Hz | | Power Consumption | 48 W | | Mains | Standard IEC connector | | | | Operating Temperature | 32 to 113°F / 0 to 45°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Dimensions | 1.9 x 19.0 x 11.8" / 4.9 x 48.3 x 30.0 cm | | Weight | 8.6 lb / 3.9 kg | | | | Package Weight | 11.65 lb | | Box Dimensions (LxWxH) | 23.071 x 14.095 x 4.488" |
