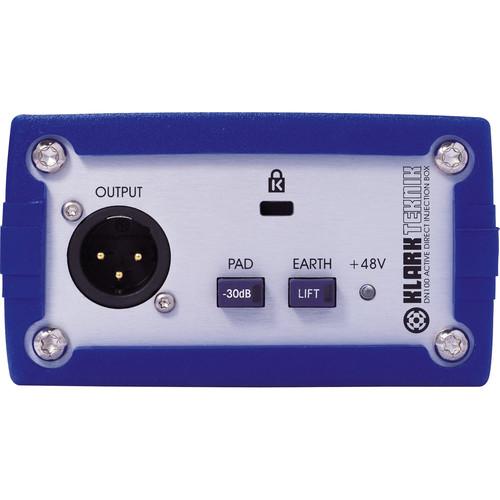

User Manual for Klark Teknik DN100 - Single Channel Active Direct Box Click to enlarge the picture
Contents of the user manual for the Klark Teknik DN100 - Single Channel
- Product category: Direct Boxes Klark Teknik
- Brand: Klark Teknik
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Klark Teknik Direct Boxes
|
User manual for the Klark Teknik DN100 - Single Channel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Klark Teknik product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Klark Teknik user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Klark Teknik product will considerably shorten its lifespan!
|
Product description The DN100 from Klark Teknik is an active direct box that delivers an extended dynamic range and low noise floor. The DI provides transformer isolation impedance matching and attenuation, into a low impedance active balanced input. The unit is also designed with the touring musician or engineer in mind. To that end, it provides a thick aluminum shell to protect the electronics, which in turn is protected by a tough silicone rubber casing. The latter is replaceable and available as a spare part. The DN100 is fitted with a Kensington security slot in one of the end panels, to allow the unit to be made secure using a Kensington MicroSaver security cable. - Accepts a maximum input level of +30dB
- Switchable -30dB input pad
- Earth lift switch isolates input and output grounds
- Extended dynamic range and lower noise floor
- Rugged thick aluminum shell and tough silicone rubber casing
- Pad, ground lift and +48V phantom LED indicators
UPC: 748252169648 In the Box Klark Teknik DN100 - Single Channel Active Direct Box Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Klark Teknik DN100 - Single Channel Active Direct Box in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKlark Teknik DN100 Specs | Input Connections | 2 x 1/4" TS phone
1 x XLR Linked in parallel | | Output Connectors | 1 x XLR | | Input Level | 30dBu | | Output Level | 10dBu with load >2kΩ | | Controls | -30dB input pad
Ground lift switch | | Frequency Response | 20Hz to 20kHz, +0.5/-1.0dB | | Noise | -100dBu, 20Hz to 20kHz unweighted, with input terminated by 10k resistor | | Power | +48VDC phantom power | | Dimensions (WxDxH) | 4-1/4 x 5-5/8 x 2-3/8" (106 x 142 x 60 mm) | | Weight | 2.2 lbs (1 kg) | | Specialties | Security slot for Kensington MicroSaver security cable | | | | Package Weight | 1.83 lb | | Box Dimensions (LxWxH) | 5.8 x 4.45 x 2.35" |
