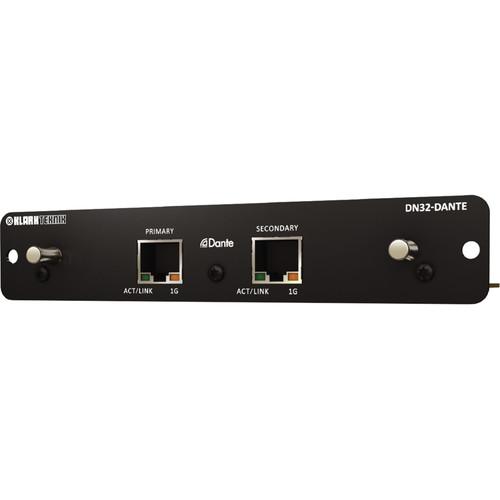

Product description By installing the Klark Teknik DN32-DANTE, your M32 or X32 console will interface with Dante networks using virtually any 100 Mbit/s or Gigabit Network infrastructure with DSCP-based QoS – providing dependable multi-channel audio that coexist with other IP-based data traffic on the same network.The DN32-DANTE card utilizes 24-bit signal transmission with sample-accurate synchronization and low latency, ensuring the highest audio integrity. A secondary input allows you to set up a seamless, redundant network.Full remote control of the M32/X32 is possible using the integrated Ethernet switch. When the DN32-DANTE card is connected to a computer, Audinate’s Dante Controller application gives you full control over configuration and signal routing among your Dante-enabled devices. -
- Audinate Dante expansion module for Midas and Behringer digital consoles
- Up to 32 bidirectional channels @ 48 kHz
- Enables multichannel recording and playback via Dante Virtual Soundcard (Windows or Mac computer)
- Primary and secondary Ethernet interfaces for dual-redundant Dante networking
- Operates from internal Dante network Precision Time Protocol (PTP) clock
- Optional Dante Controller software for remote configuration (Windows or Mac computer)
- LED indicators monitor network activity and speed
UPC: 748252143440 In the Box Klark Teknik DN32-DANTE 32-Channel Dante Expansion Card for M32 & X32 Consoles Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Klark Teknik DN32-DANTE 32-Channel Dante Expansion Card for M32 & X32 Consoles in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Klark Teknik DN32-DANTE 32-Channel Dante Expansion Card for M32 & X32 Consoles can be downloaded in PDF format at the link stated below.
Technical parametersKlark Teknik DN32-DANTE Specs | Connectors | 2 x RJ45, Gigabit Ethernet 1 GBit/s, primary and secondary | | Inputs and Outputs | Input / Output Channels: 32 / 32 | | Sample Rates | 44.1 / 48 kHz | | Bit Depth | 24-bit PCM | | Clock | Clock Synchronization, Onboard High-Quality Dante Network Clock, Based Upon IEEE1588 PTP (Precision Time Control): Console "Local" or Dante network clock "DN32-DANTE" | | Latency | System Audio Latency: 0.25, 0.5, 1.0, or 5.0 ms (depending on Dante Controller network configuration) | | Gigabit Ethernet Port | Dual-input Gigabit Ethernet Ports: Ethernet Switch mode or Dante Redundancy mode | | Indicators | Ethernet Link, LED Indicator in Socket: 2 LED, green - flashes with network activity
1 Gbit/s Ethernet Link: 2 LED, amber - LED indicator in socket | | System Requirements | Dante Controller App
PC Hardware (Minimum)
CPU: 1 GHz
RAM: 512 MB
Display: 1024 x 768
Wired Ethernet interface
Windows Applications (ASIO and WDM Audio Device Interface)
XP SP3 32-bit
Win7 32-/64-bit
Win8 32-/64-bit
Mac OSX Applications: (Intel CPU Only, No PPC Support, CoreAudio)
Mac OSX 10.6.8, 10.7.5, 10.8, 10.9
Dante Virtual Soundcard
PC Hardware (Minimum)
CPU: Dual Core
RAM: 1 GB
Wired Ethernet interface, 1 GB/s required for channel counts higher than 32 x 32 @ 48 kHz
Windows Applications (ASIO and WDM Audio Device Interface)
Win7 32-/64-bit
Win8 32-/64-bit
Mac OSX Applications: (Intel CPU Only, No PPC Support, CoreAudio)
Mac OSX 10.6.8, 10.7.5, 10.8, 10.9 | | Dimensions | Not specified by manufacturer | | Weight | Not specified by manufacturer | | | | Package Weight | 0.65 lb | | Box Dimensions (LxWxH) | 8.0 x 6.8 x 2.0" |
