Product description

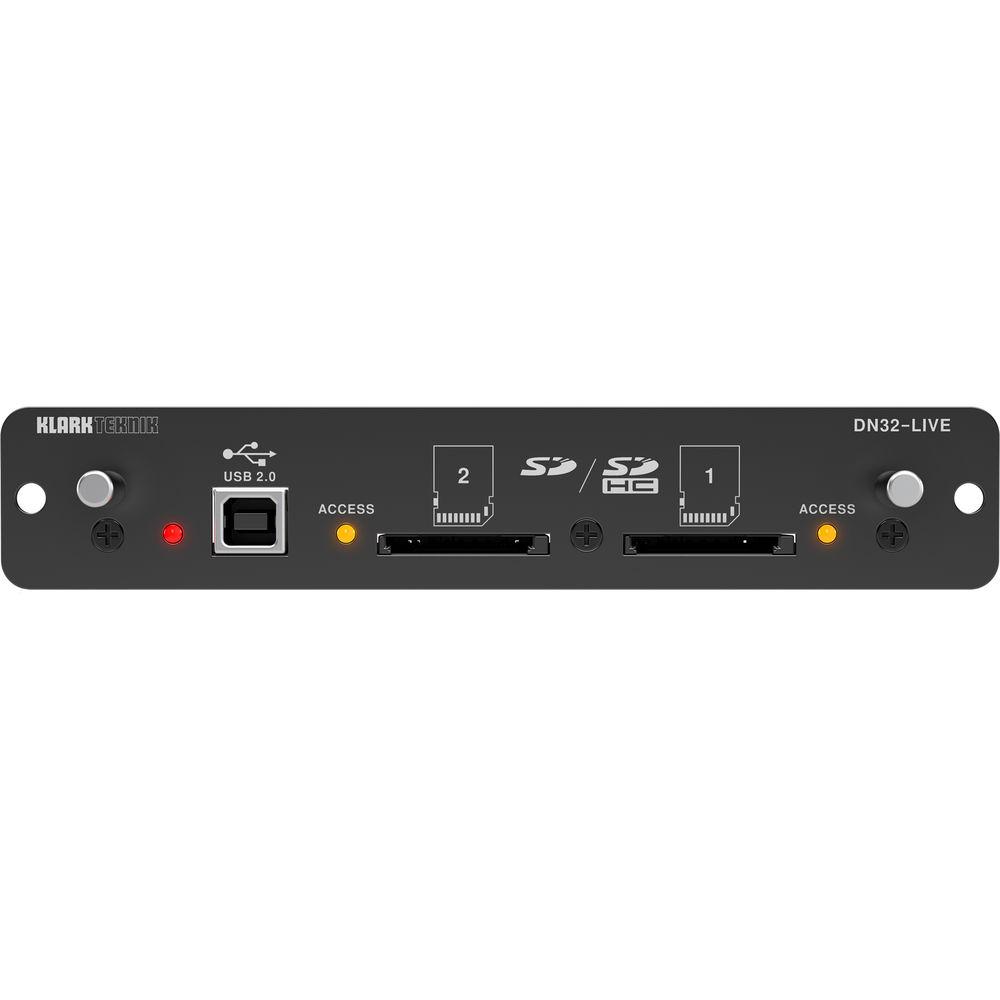

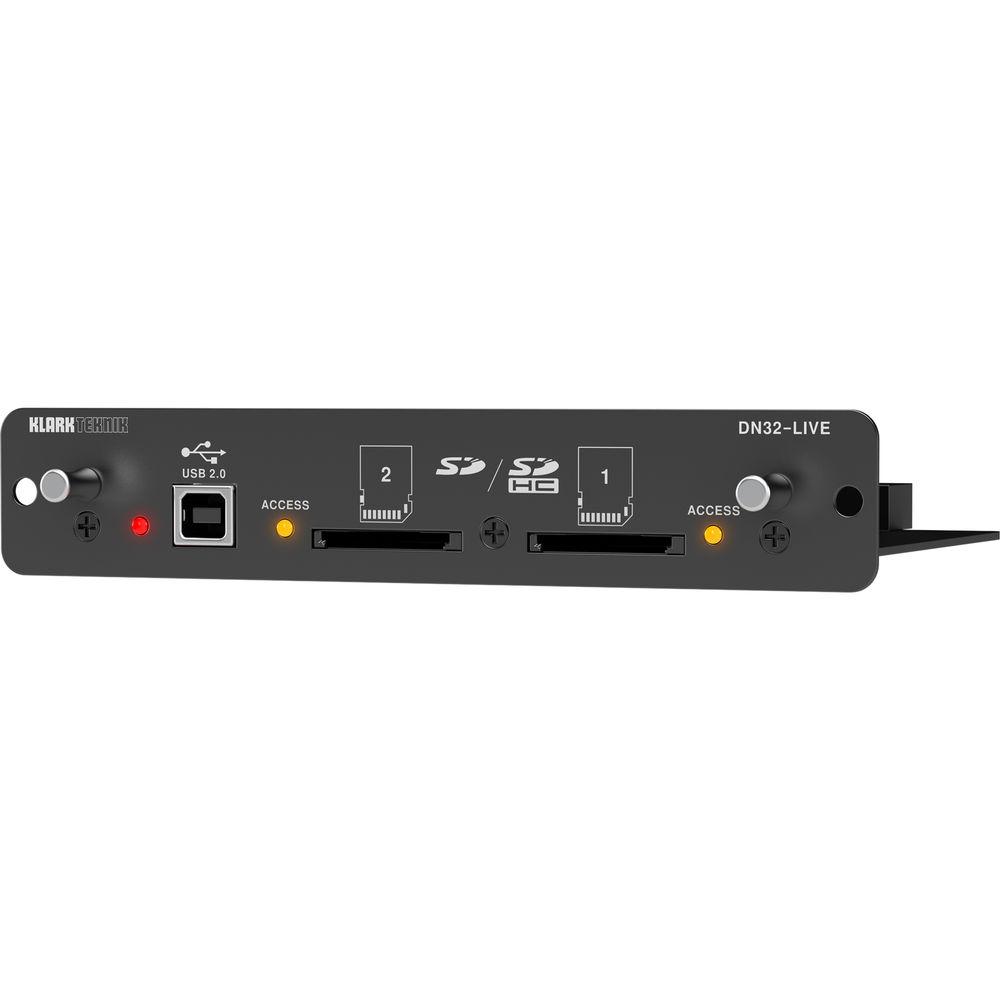

The Klark Teknik DN32-LIVE is an SD/SDHC and USB 2.0 expansion module designed to add audio recording, playback, and streaming functionality to a Midas M32 or Behringer X32 mixer. Its two SD/SDHC card slots accommodate up to 32GB memory cards (available separately), which can be utilized for up to three hours of 32-channel, 48 kHz / 32-bit PCM recording in one session. Connect to a Mac or Windows computer via the USB 2.0 Type-B port to stream 32 channels of audio inputs and outputs to/from your mixer. Independently operate SD/SDHC cards and USB audio I/O for easy recording, playback, and virtual soundcheck. Install a CR123A lithium cell (available separately) to enable secure file handling in the event of a power loss. The DN32-LIVE supports remote control via a variety of devices such as computers, mobile devices, and control surfaces.
  • Expansion module for Midas M32 and Behringer X32 mixers (available separately)
  • Adds two SD/SDHC card slots and one USB 2.0 Type-B port
  • Supports recording and playback of up to 32 channels on dual SD/SDHC cards
  • Supports up to 32 channels in and out via USB 2.0
  • Up to three hours of 48 kHz / 32-bit PCM recording of 32 channels in one session
  • Records in uncompressed WAV file format
  • Independent operation of SD cards and USB recording/playback
  • Remote control via PC, Android or iPad apps, assignable controls, or compatible hardware control surfaces such as the Behringer X-TOUCH
  • Dual SD card slots to keep virtual sound check and live performance files separately available or for extended recording time
  • Sample-accurate automatic spanning feature allows extending a session across both SD cards for more than 12 hours of continuous 8-track recording time
  • Instantaneous live playback with preload and markers in the console UI and remote apps
  • Markers can be set on the fly for identifying song positions while recording or playing back
  • All markers can be edited directly in the console GUI
  • Seamless computer integration for virtual sound checks and software plug-ins
  • Channel routing can be stored and automated for record/playback
  • Secure file handling in the event of power blackout (optional CR123A lithium cell required)
  • Enables remote control of compatible DAW software via emulations of Mackie Control and HUI protocols
  • LED indicators for SD card slot activity and USB interface status
  • 32-channel recording on Class 10 media, 8- or 16-channel recording on Class 6 media (typical)
  • Designed and engineered in the U.K.
UPC: 653341319937 In the Box Klark Teknik DN32-LIVE SD/SDHC and USB 2.0 Expansion Module for M32/X32 Mixers
  • Limited 10-Year Warranty Upon Online Registration Within 90 Days
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Klark Teknik DN32-LIVE SD SDHC and USB 2.0 Expansion Module for M32 X32 Mixers in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Klark Teknik DN32LIVE Specs

    System Requirements Mac OS X 10.6.8 to 10.11
    macOS 10.12
    1.5 GHz or faster Intel CPU
    512 MB RAM
    USB 2.0 port
    DAW that supports Core Audio devices

    Windows 7 or Windows 10 (32-/64-bit)
    2 GHz or faster Intel Core 2 Duo CPU
    1 GB RAM
    USB 2.0 port
    DAW that supports ASIO, WASAPI, or WDM audio devices
    USB Port 1 x USB 2.0 Type-B
    Media Card Slots 2 x SD/SDHC slots
    Channels of I/O USB Audio: 2, 8, 16, or 32
    SD Card: 8, 16, or 32
    Sample Rates 44.1 kHz or 48 kHz
    Bit Depth 32-bit PCM
    File Format WAV (8, 16, or 32 channels)
    Maximum Card Capacity Up to 32 GB
    Maximum Recording Time Up to 200 minutes (32 channels at 32-bit / 44.1 kHz on two 32 GB SDHC cards)
    Indicators 2 x Amber LEDs for SD card activity
    1 x Red LED for USB interface active status
    Battery 1 x CR123A lithium cell (available separately)
    Dimensions (W x H x D) 6.5 x 1.2 x 5.4" / 165 x 30 x 138 mm
    Weight 0.3 lb / 0.1 kg
    Package Weight 1.0 lb
    Box Dimensions (LxWxH) 11.0 x 9.0 x 7.5"
