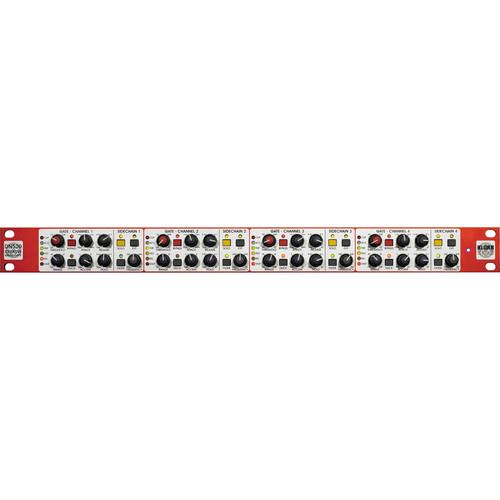

User Manual for Klark Teknik DN530 Creative Quad Gate Click to enlarge the picture
Contents of the user manual for the Klark Teknik DN530 Creative Quad Gate
- Product category: Dynamics Processors Klark Teknik
- Brand: Klark Teknik
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Klark Teknik Dynamics Processors
|
User manual for the Klark Teknik DN530 Creative Quad Gate contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Klark Teknik product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Klark Teknik user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Klark Teknik product will considerably shorten its lifespan!
|
Product description The Klark Teknik DN530 Creative Quad Gate is a professional, 4-channel rack mounted analog gate for professional recording and sound reinforcement. The gate features 4 balanced XLR inputs and outputs, summed output and side-chain connection per channel.The DN530 compliments the plug-in laden digital world of signal processing by offering enhanced "Transient Accenting" characteristics to gated signals. Enhance the attack envelope beyond merely opening the gate, and provide up to 12dB of additional transient energy to drums, percussion instruments, piano guitars and much more. In many cases the DN530's control over transients may prove to be a viable alternate to EQ. - It features a unique progressively controllable accent level that emphasizes the start of a signal to increase the dynamic power within percussive signals
- Gate attack is exponential which means it can be set extremely fast to reduce signal loss at the start of sounds while remaining sonically transparent - no clicks
- Gate release is reverse exponential so it can be set relatively fast and blend in seamlessly with the natural decay of the material
- Designed from an exemplary technical point of view, features extremely low noise and distortion levels
- The gate features an advanced band pass side chain filter to increase trigger source discrimination
- The gate provides rotary controls for all envelope characteristics and range
- External key inputs and ducking facilities are provided
- The status of bypass, solo and other major switches are boldly presented to avoid mistakes
- Auto switching power supply
In the Box Klark Teknik DN530 Creative Quad Gate Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Klark Teknik DN530 Creative Quad Gate in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKlark Teknik DN530 Specs | Function | Gate | | Number of Channels | 4 Channels | | Inputs | Balanced XLR x4
Impedance: 10k ohms Maximum input level: +22dBu
Common mode rejection: Typically, -80dB at 1kHz | | Outputs | Balanced XLR x4
Impedance: < 60 ohms Maximum output level: +22dBu
Signal drive capability: < 600 ohms | | Gate Threshold | Threshold: Scale = -50dB to +25dB | | Gate Rate | Range: Scale = -4 (minus infinity) to 0dB | | Frequency Response | 20Hz to 20kHz | | Dynamic Range | >116dB (22Hz to 22kHz unweighted) | | Noise | -94dBu | | Dimensions (LxWxH) | 19 x 1.75 x 12" (483 x 44.5 x 305mm) |
