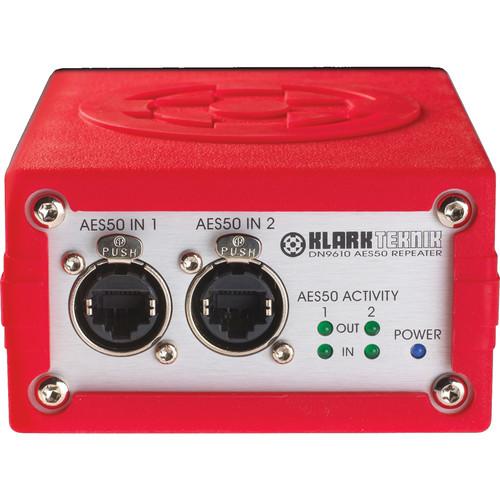

User Manual for Klark Teknik DN9610 Dual Port AES50 Repeater Click to enlarge the picture
Contents of the user manual for the Klark Teknik DN9610 Dual Port AES50
- Product category: Networked Audio Systems Klark Teknik
- Brand: Klark Teknik
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Klark Teknik Networked Audio Systems
|
User manual for the Klark Teknik DN9610 Dual Port AES50 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Klark Teknik product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Klark Teknik user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Klark Teknik product will considerably shorten its lifespan!
|
Product description The Klark Teknik DN9610 AES50 Repeater is used to extend the AES50 multichannel digital audio network connections (Cat 5) to longer distances. Housed in a rugged, compact, aluminum extrusion casing, and enclosed in a shock-absorbing silicone sleeve, the DN9610 will fit almost anywhere. The DN9610 is capable of extending two AES50 streams by up to 330' (100m) on Cat 5 cable. Provision is made for dual-redundant power supplies, with automatic, seamless recovery in the event of a power supply failure. Power supplies are multi-region and feature locking DC connectors to ensure against inadvertent disconnection.The DN9610 is capable of both 24-bit / 48 kHz and 24-bit / 96 kHz operations, and can operate its two AES50 streams at different clock rates simultaneously. It features a through-unit latency of 0.03 ms. Multiple DN9610s can be connected in series, allowing transmission of AES50 over considerable distances. Discrete LED status indicators are provided for power, AES50 input 1, AES50 input 2, AES50 output 1, and AES50 output 2. The four RJ-45 sockets are roadworthy Neutrik etherCON connectors. The Klark Teknik DN9610 operates with any AES50-compliant devices and ships with an auto-voltage sensing power supply for use worldwide. -
- Extends two independent AES50 connections by up to 330' with Cat 5 cable
- High-channel capacity: Bidirectional operation
- 48 channels @ 96 kHz
- 96 channels @ 48 kHz
- Supports dual-redundant AES50 networks (X and Y connections)
- Rugged locking Neutrik etherCON connectors used for AES50 connections
- Status indicator LEDs on front panel for each AES50 port
- Dual-redundant power supply inputs with locking Switchcraft connectors
- External auto-ranging universal switch-mode power supply adapter
- Aluminum extrusion casing with stackable protective silicone rubber sleeve
- Compact and rugged design
UPC: 713757158718 In the Box Klark Teknik DN9610 Dual Port AES50 Repeater Power Supply Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Klark Teknik DN9610 Dual Port AES50 Repeater in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKlark Teknik DN9610 Specs | AES50 Ports | Ports: 2
Type: Neutrik etherCON
Sample Rate: 48, 96 kHz
| | Power | Power Terminations: 2
Type: Switchcraft locking 2.1 mm DC power connector (center positive)
Voltage: 9 to 18 VDC
| | Power Consumption | 83 mA single channel
166 mA both channels | | Dimensions (LxHxD) | 4.2 x 5.7 x 2.3" / 106.0 x 145.0 x 59.0 mm | | Weight | 1.8 lb / 0.8 kg | | | | Package Weight | 2.465 lb | | Box Dimensions (LxWxH) | 9.3 x 6.2 x 3.05" |
